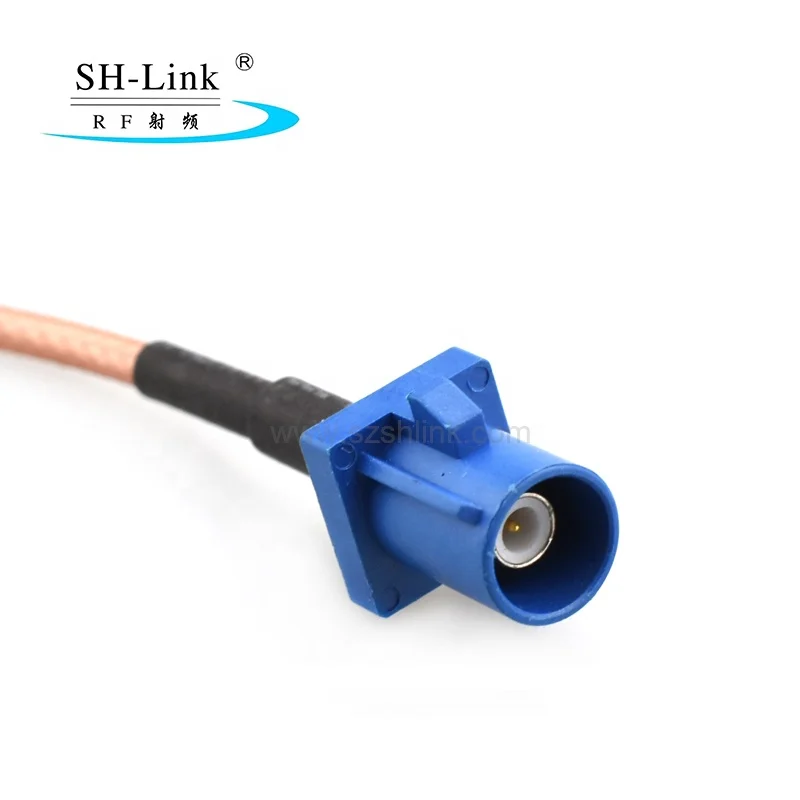

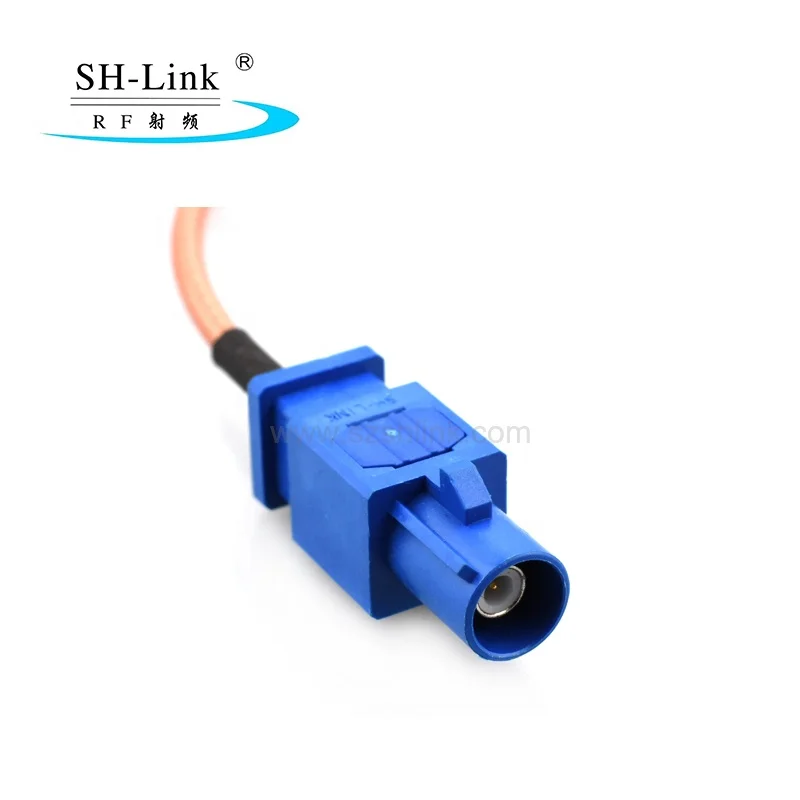

FAKRA male to RG316 to FAKRA male connector for cable assembly
- Category: >>>
- Supplier: Shenzhen Sihanming Technology Co. Ltd.
Share on (62267431613):
Product Overview
Description
FAKRA male to RG316 to FAKRA male connector for cable assembly
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB (Double Braid Shield )MIL-C-17 RG316 Coaxial Cable
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure The connector is be protected by the cap . Easy to assembly Many difference between the connector and the cap. | |
The product technical characteristics: | |
Body: | Brass, Ni-plated |
Socket: | beryllium-copper, Gold-plated |
Pin contact: | Brass |
Insulator: | PTFE |
Crimp ferrule: | brass, Ni-plated |
O-ring: | beryllium-copper |
Shell: | PA66+30%GF |
Technical characteristics |
|
Impedance: | 50Ω |
Frequency Range: | 4GHz |
Withstanding Voltage: | 1000V(RMS) |
Contact resistance: |
|
Center contact: | ≤ 20m |
Outer contact: | ≤10m |
Insulation: | ≥1,000MΩ |
VSWR: | DC - 2GHz<1.2 |
Mechanical characteristics: |
|
Assembly: | locked |
Durability: | ≥ 500 cycles |
Temperature: | - 40 - +85°C |
