Plastic Geogrid

Product Overview

Description

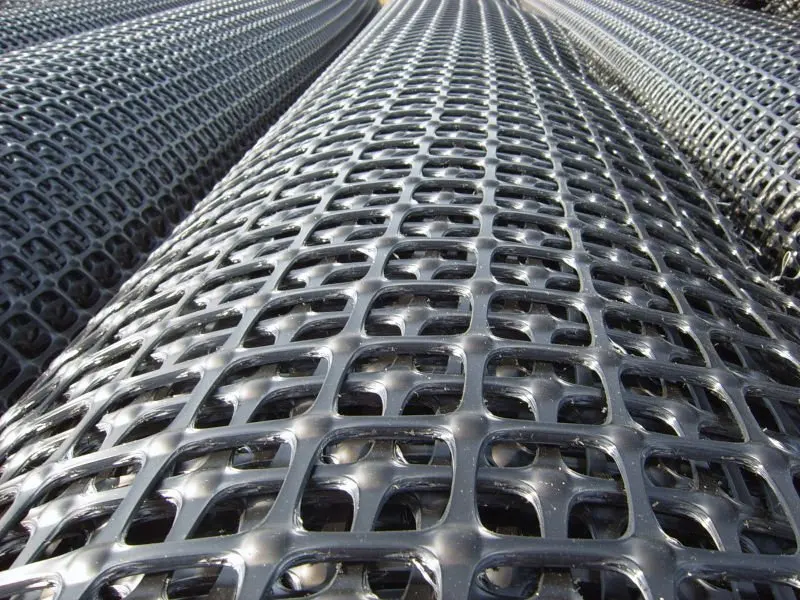

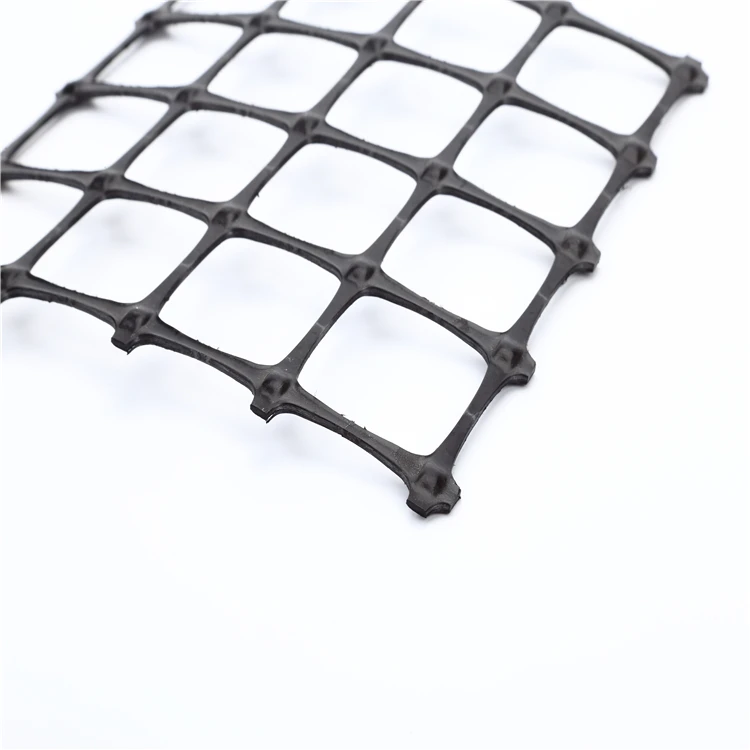

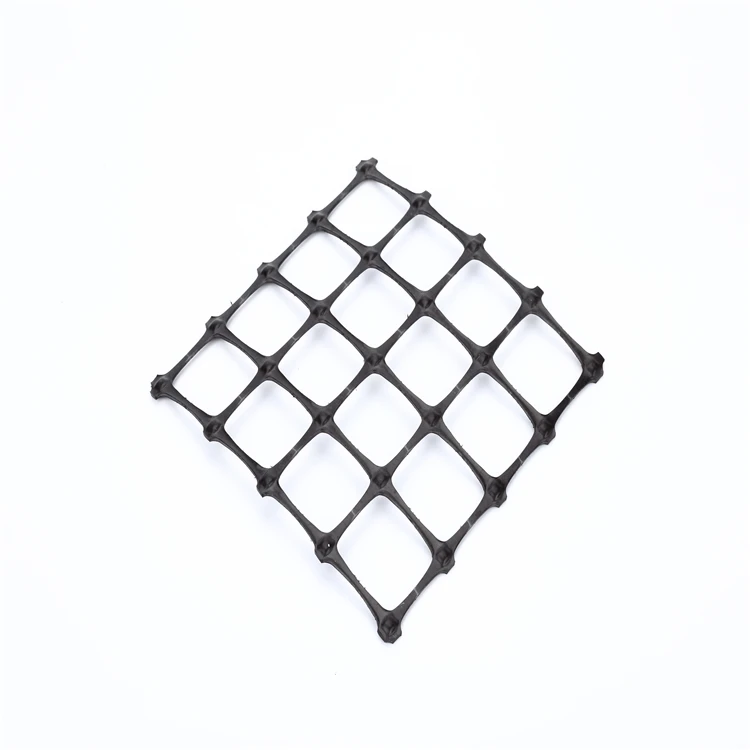

Plastic Geogrid



Plastic geogrid includes biaxial geogrid and uniaxial geogrid according to its structure. BPM biaxial polyethylene plastic geogrid is made of polyethylene or high density polyethylene as the main raw material through the processes of hot-melt extrusion, vertical and horizontal stretching to form a high strength reinforced square mesh structure. So the plastic geogrid material on the longitudinal and transverse has great mechancal strength which can provide a more effectively undertake and spread of the tensile strength thought system inside the soil. Our biaxial plastic geogrid is widely used to increase the bearing capacity and stabilization of low load bearing soils.



Plastic geogrid Performance: High tensile strength at both longitudinal & transverse dire.



Plastic geogrid Main type: 15-15, 20-20, 25-25, 30-30, 40-40, 50-50

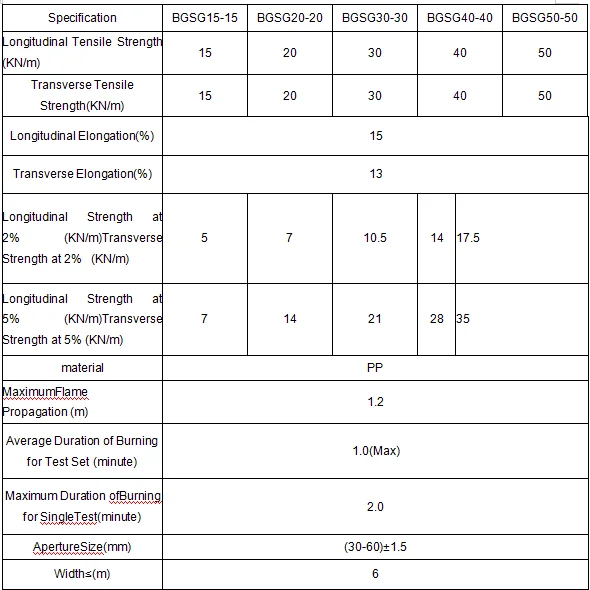

 Plastic Geogrid Specification:





Plastic Geogrid Application:

Soft foundation reinforcing for highway, railway, Slop protecting projects, landfill side

Plastic Geogrid Fuction:
1. Improve the bearing capacity of foundation;
2. Preventing cracking and subsiding;
3. Convenient to construct, reducing cost and maintaining expense



Plastic Geogrid Loadability:
