Price:$1.50 - $2.70

Quantity:


Product Overview

Description



Product Description


Introduction

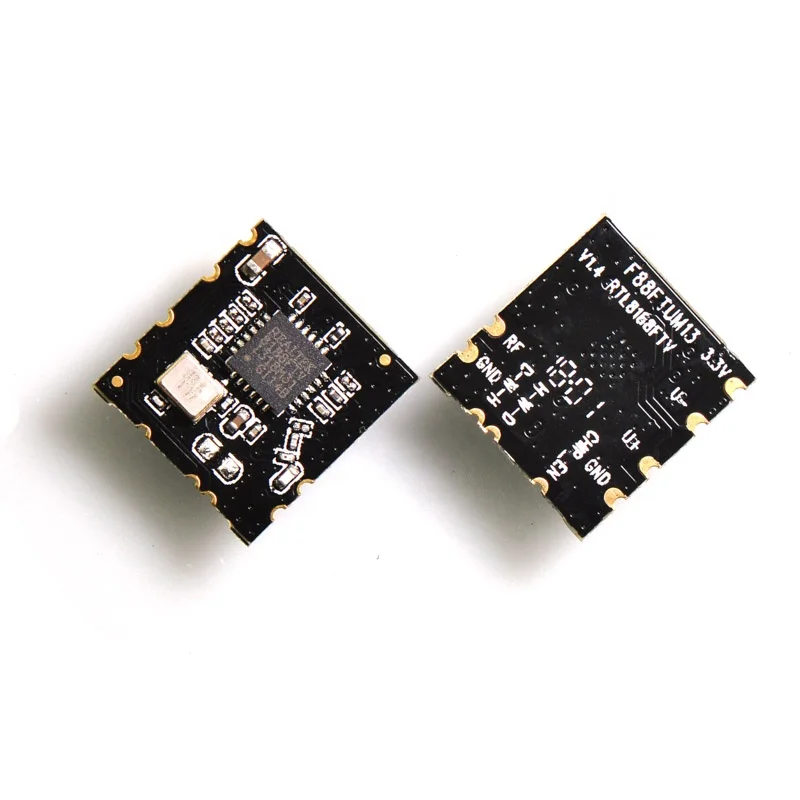

F88FTUM13-W5 is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0 network interface device. High-speed wireless connection up to 150 Mbps.

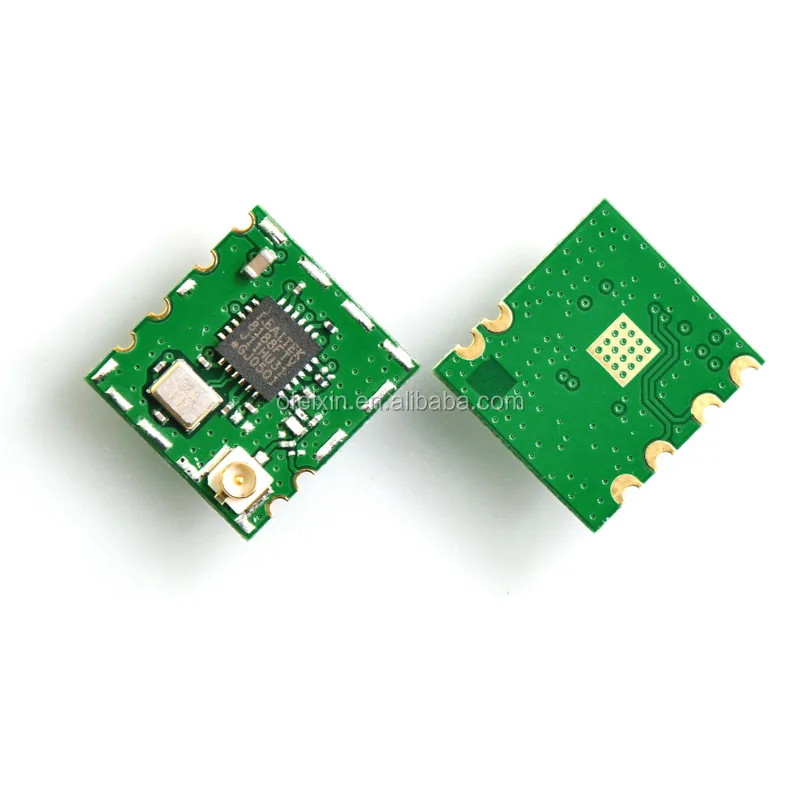

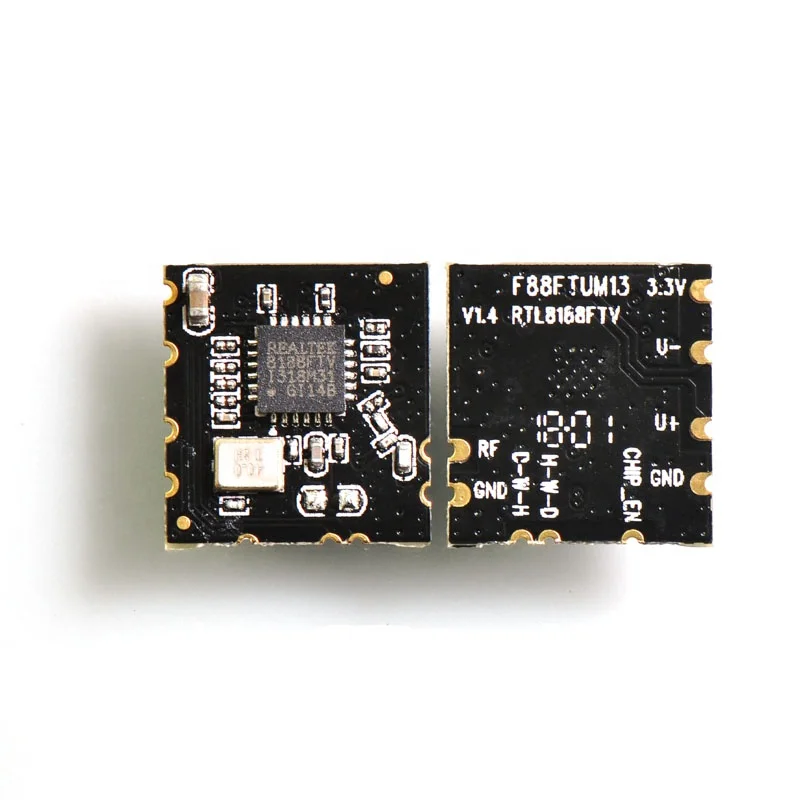

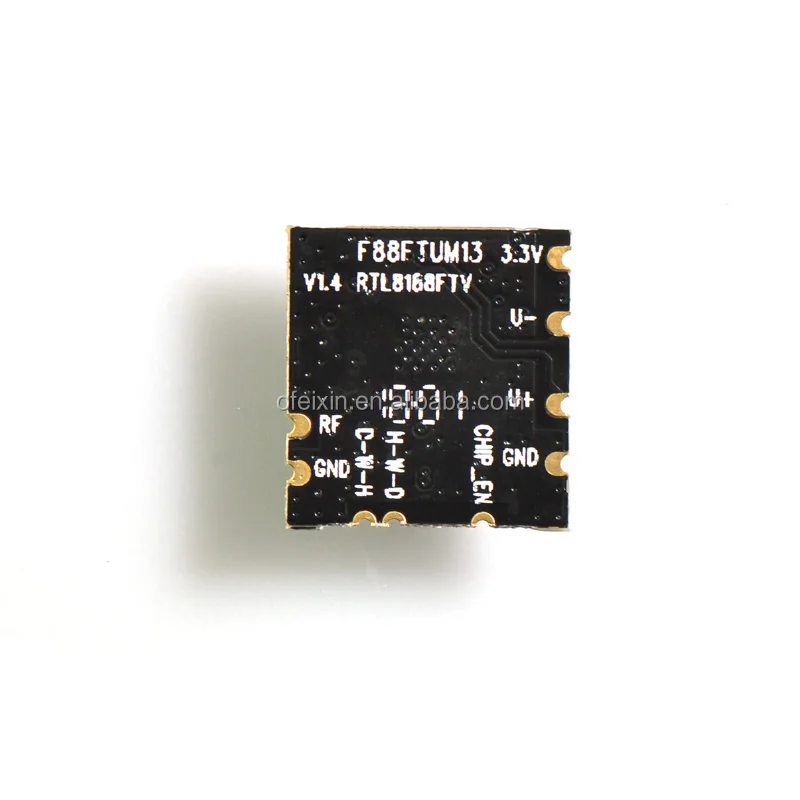

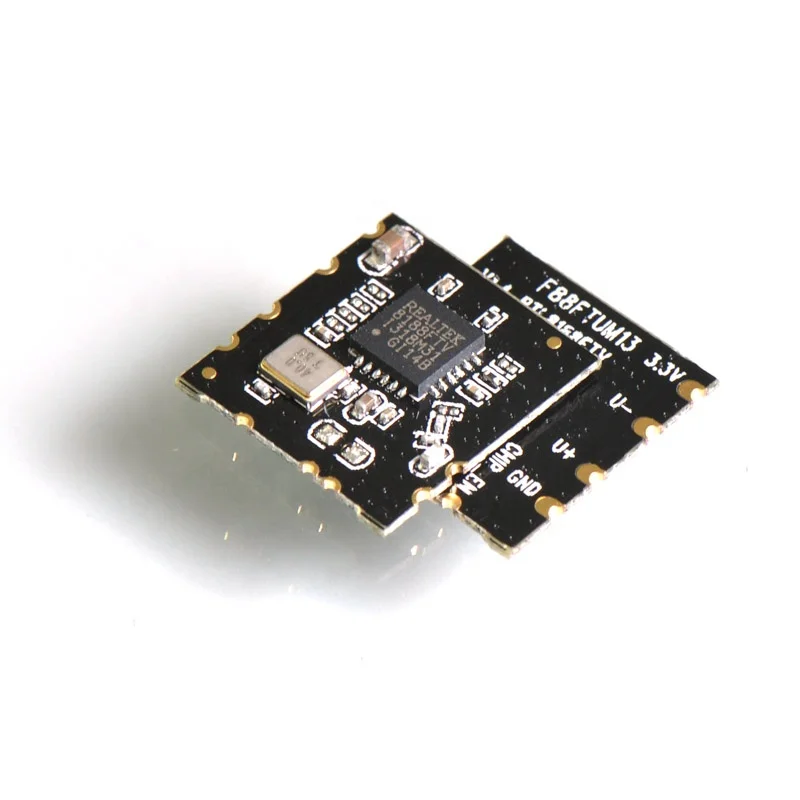

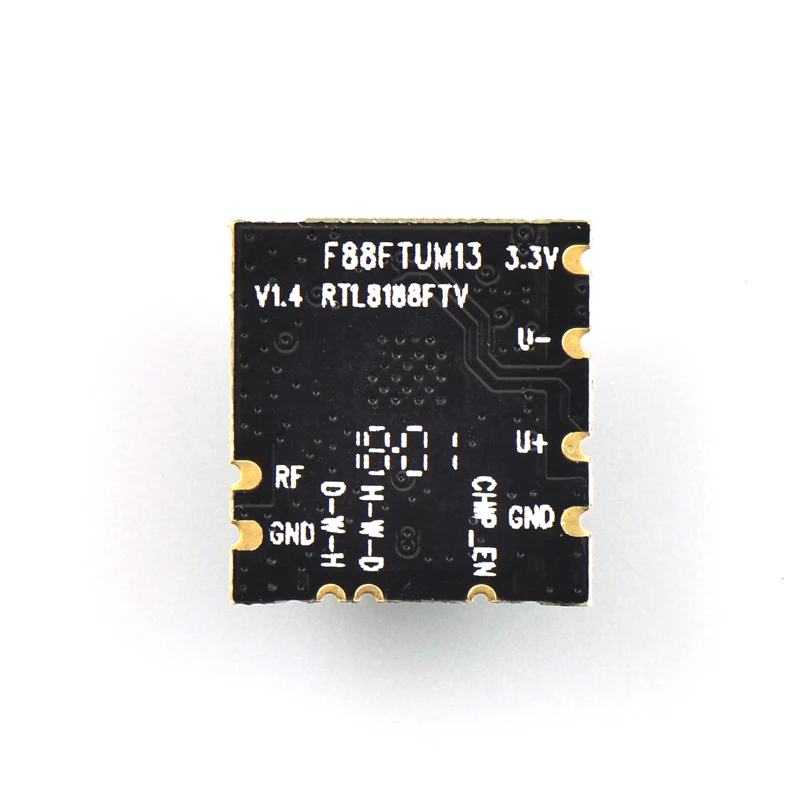

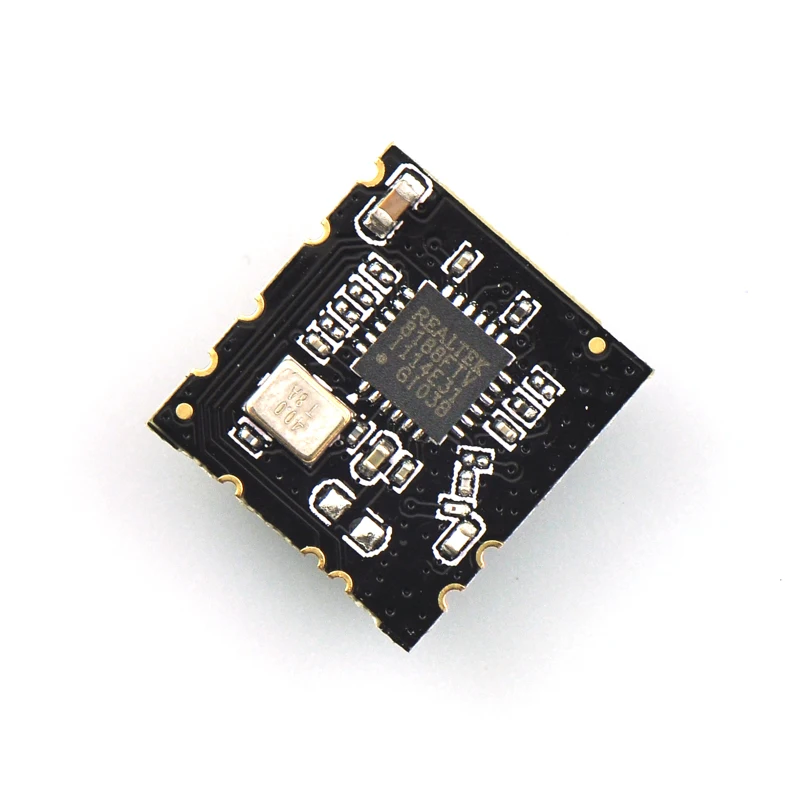

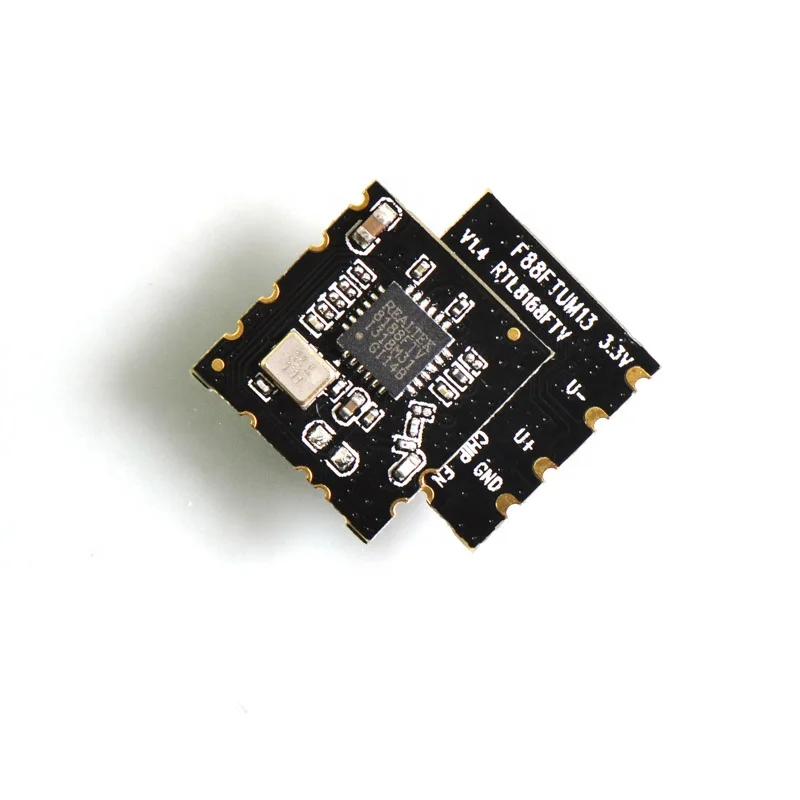

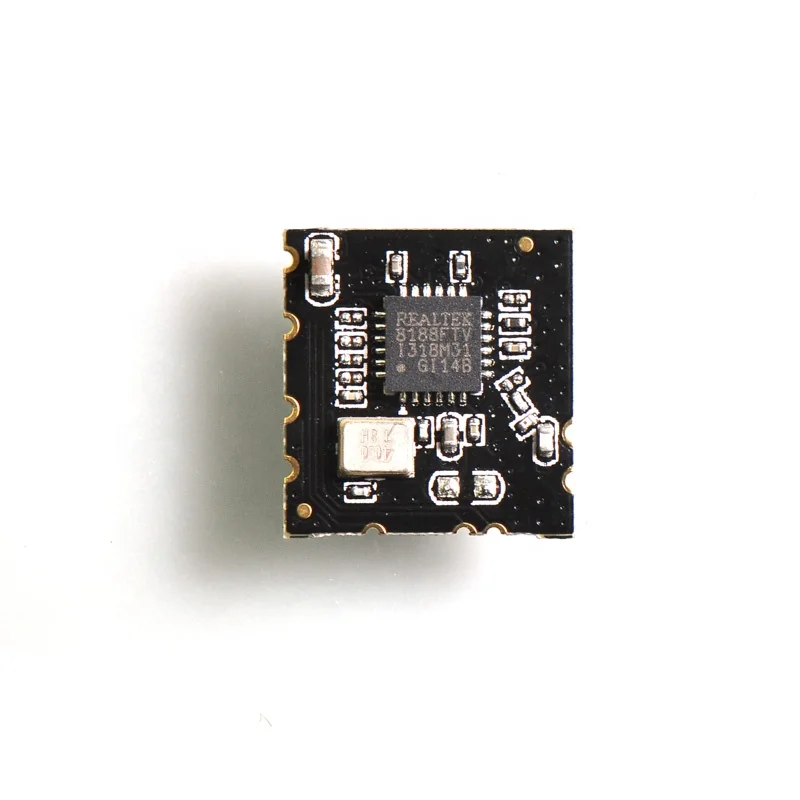

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8188FTV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.



Features

Operate at ISM frequency bands (2.4GHz) 

USB Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi. 

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates






Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
F88FTUM13-W5
Main Chipset
RTL8188FTV
WIFI/BT Interface
USB2.0
WIFI Standard
IEEE802.11b/g/n
Date Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
Android /Linux/ Windows
Operating Frequency
2.4GHz
Operating Voltage
3.3V
Dimensions
L12.90*W12.20
RF Chains
1T1R
Operating Temperature
0°C to +70°C
Storage Temperature
-40°C to +80°C


Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
