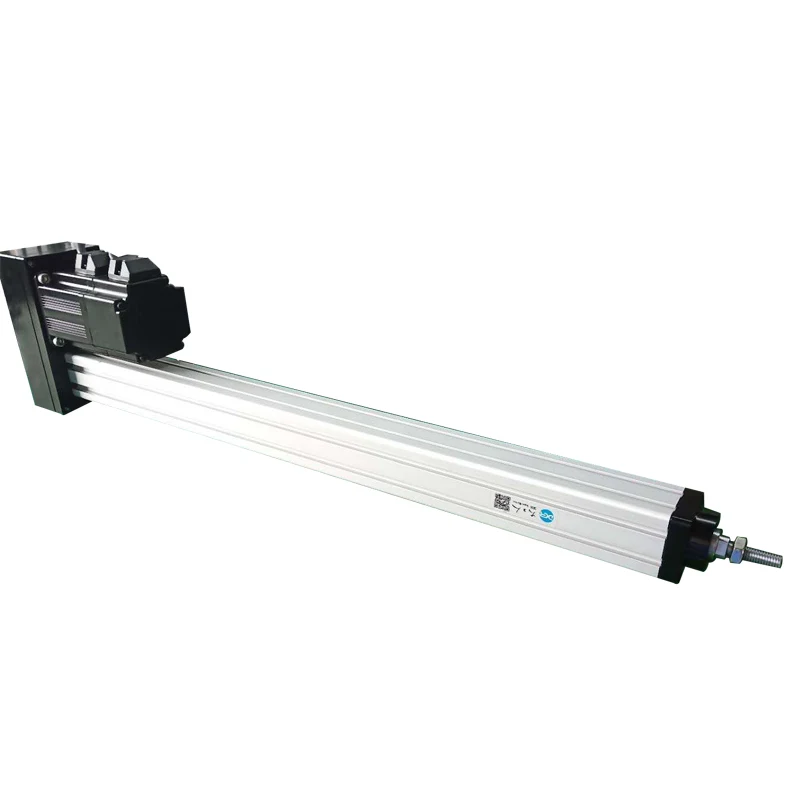

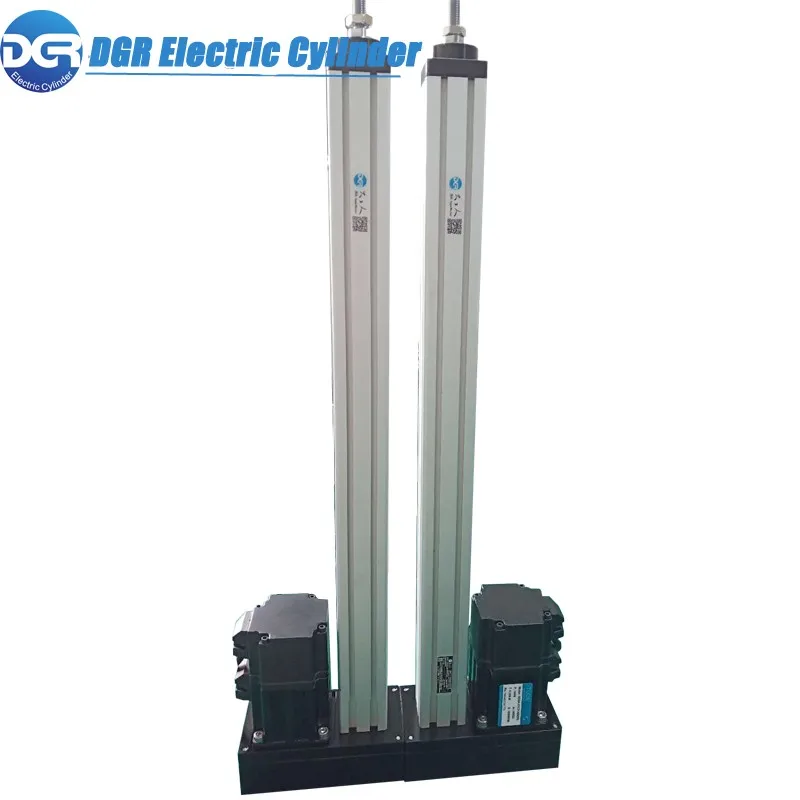

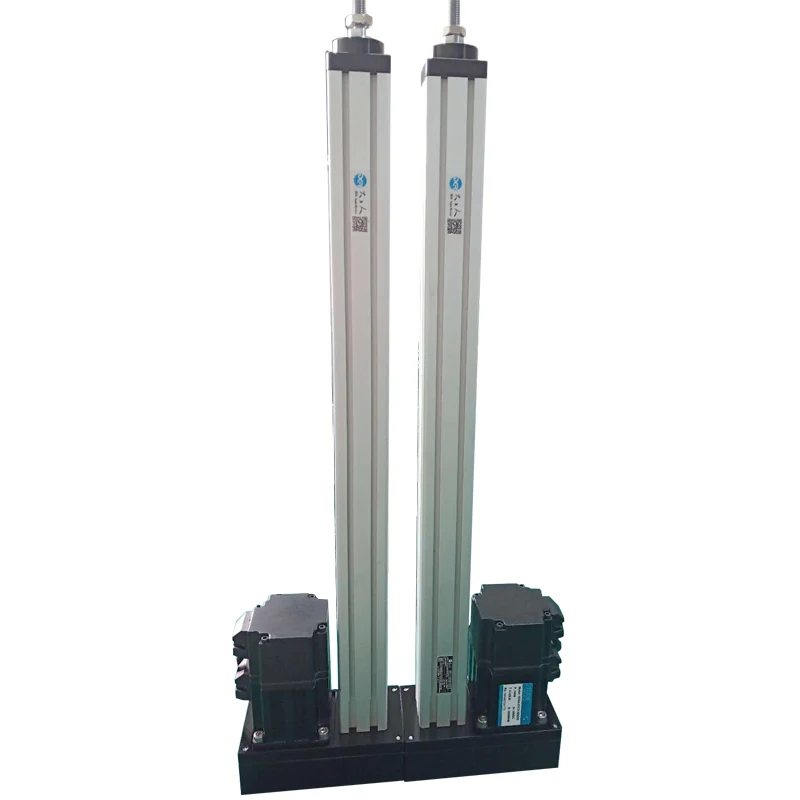

DGREC39 Economical Long Life Low Voltage Electric Cylinder Technical Data
Product Series
DGREC39
Screw lead / pitch (mm)
2
Max. Power of Motor (W)
200
Max. Rated Thrust
50(N)=11.2(lb)
Max. Speed
100(mm/s)=3.9(inch/s)
Max. stroke
500(mm)=19.7(inch)
Rated Driving Torque (N.m)
0.018
Max. Ball Screw Diameter (mm)
8
Rated Dynamic Load of Ball Screw (kgf)
135
Axial Backlash (mm)
0.02-0.04
Lead Error Every 300mm (mm)
0.023
Repeatability Accuracy (mm)
0.02
Note: 1.If you need to know the ball screw life, please contact customer service for detailed consultation; 2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used. 3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device; Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.
DGREC39 Economical Long Life Low Voltage Electric Cylinder Motor Selection List
Product Series
DGREC39
Flange Size of Optional Servo Motor Series (mm)
40
Flange Size of Optional Stepper Motor Series (mm)
39/ 42
Flange Size of Optional Gear Box Series (mm)
Note: 1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda; 2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc; 3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo; 4. The cylinder can be equiped with or without a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

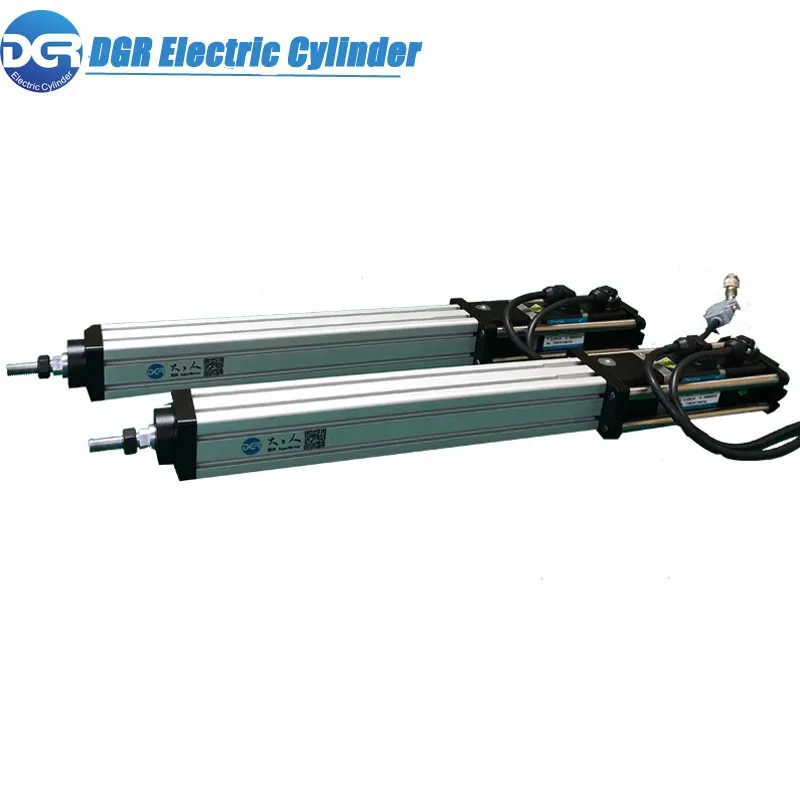

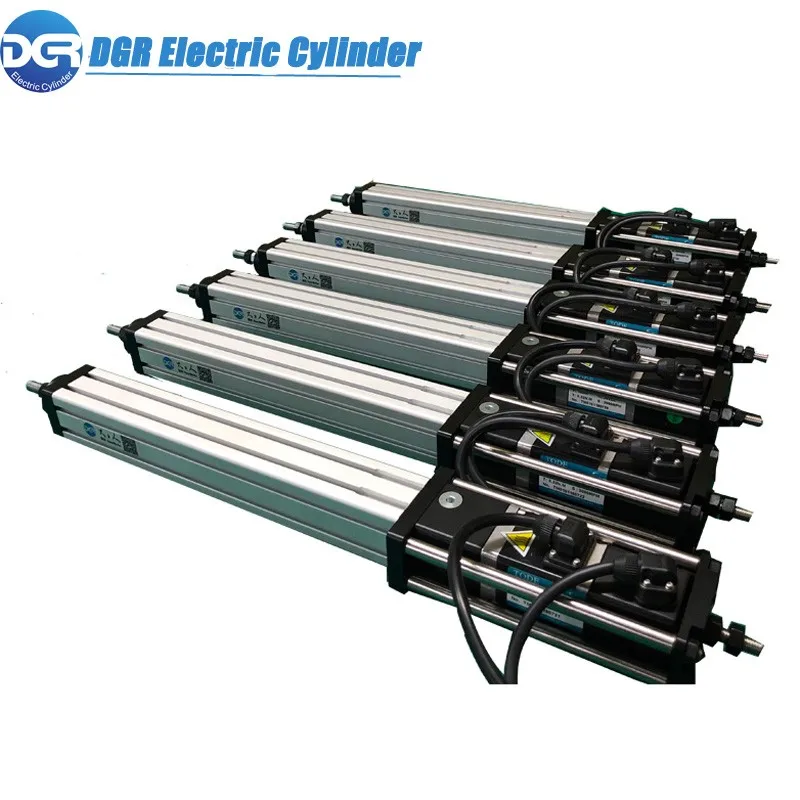

Features of DGREC39 Economical Long Life Low Voltage Electric Cylinder
Accuracy
High precision, repeatability up to 0.02mm.
Service life
Run over a distance of 100,000 km
Material Selection
1.Aluminum alloy, Carbon Steel,Stainless Steel optional for cylinder body
2. Various surface treatment options (including: coating, azotizing, oxidation)
3.Selected internationally-famous brands of motor, ball screws, bearings and gears
Features
Rigid connection between the screw nut and the piston rod
Excellent Service
1.DGR Electric cylinders can be fully customized for customer's particular application and requirements.
2. 1 year warranty and lifetime technical services
Duty Cycle
The duty cycle is ensured to be greater than 50% or even 100% continuous operation.
Complete Testing
Professional inspection: including appearance, mechanical properties, stability, noise decibels, IP testing, etc.
Applications

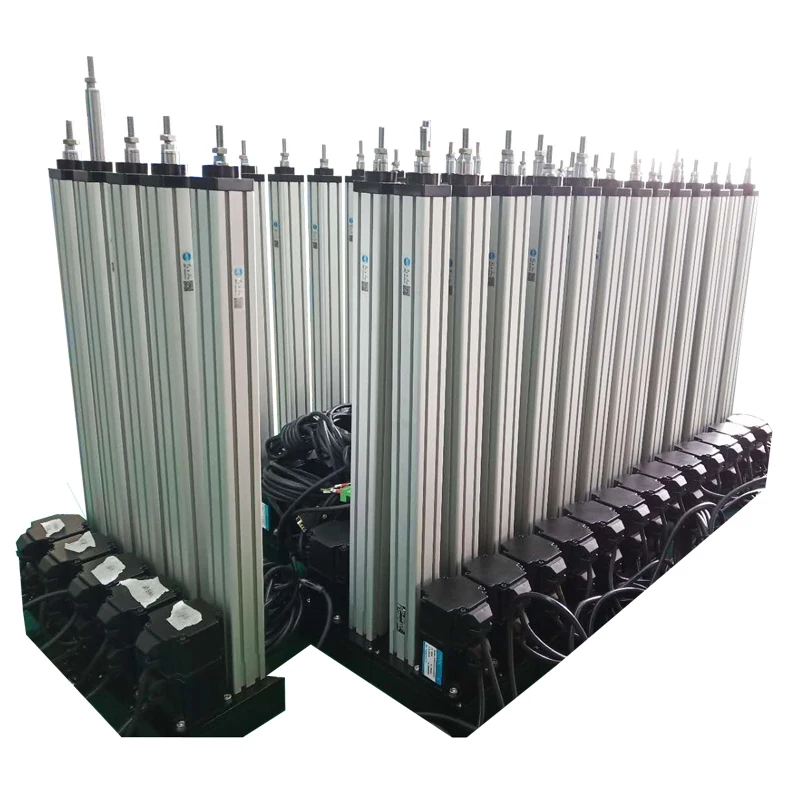

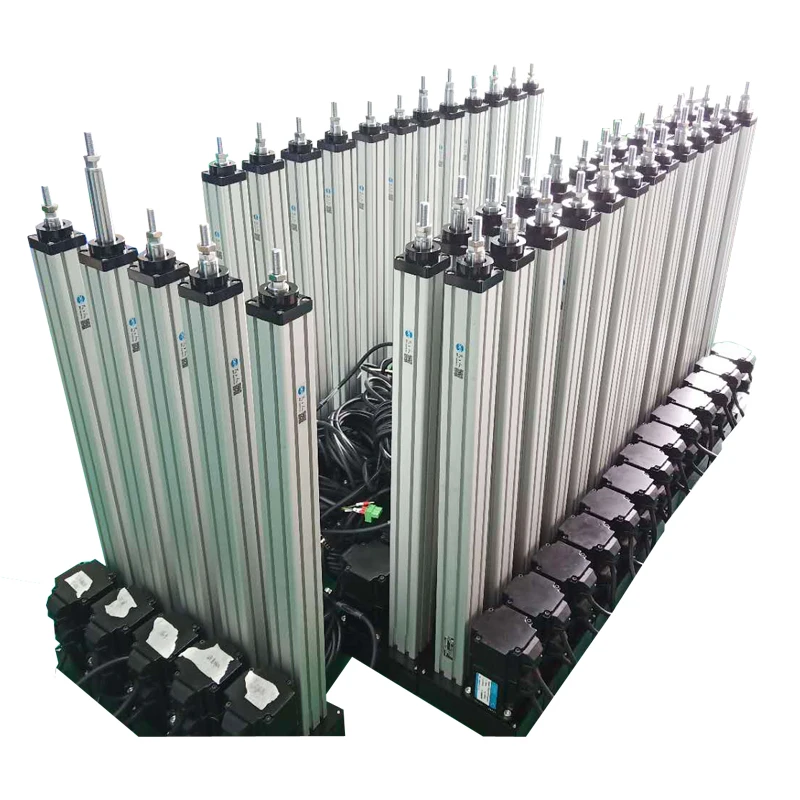

DGREC39 Fast Servo Low Cost Electric Lift Linear Actuator
DGR Electric Cylinder
Entertainment
Six degrees of freedom motion platform widely used in a variety of simulation, entertainment equipment, robotic arms, dynamic seats in movie theaters.
VR Simulations
Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
Automobile industry
Electric cylinder servo press is widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard
The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
Automation Industry
The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
