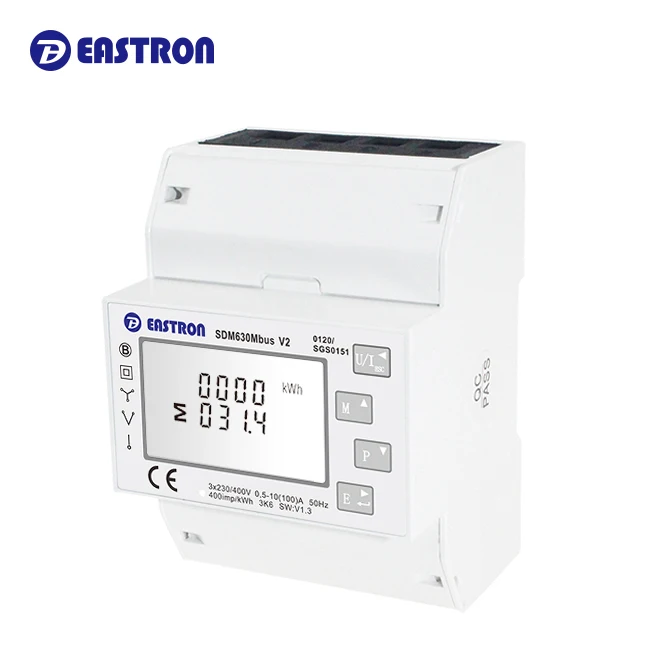

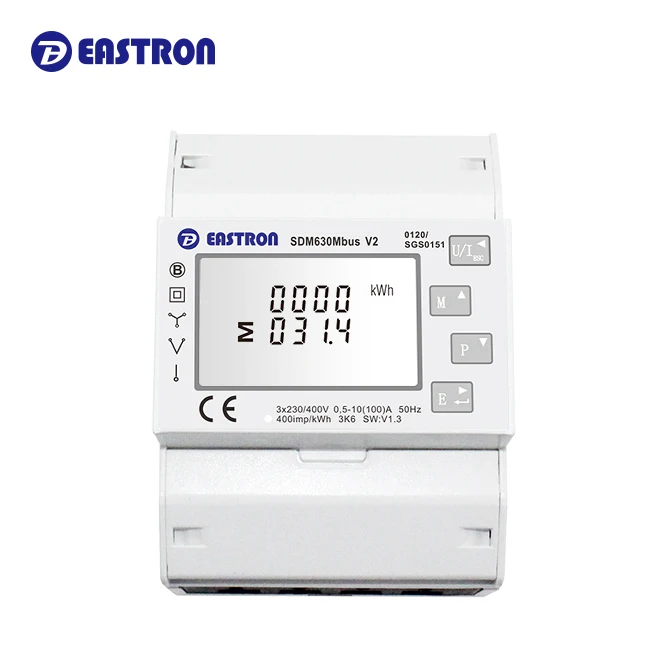

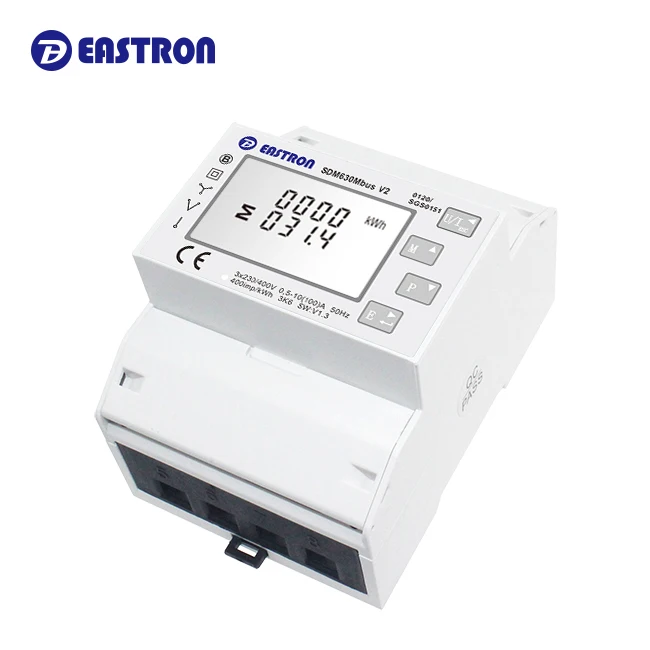

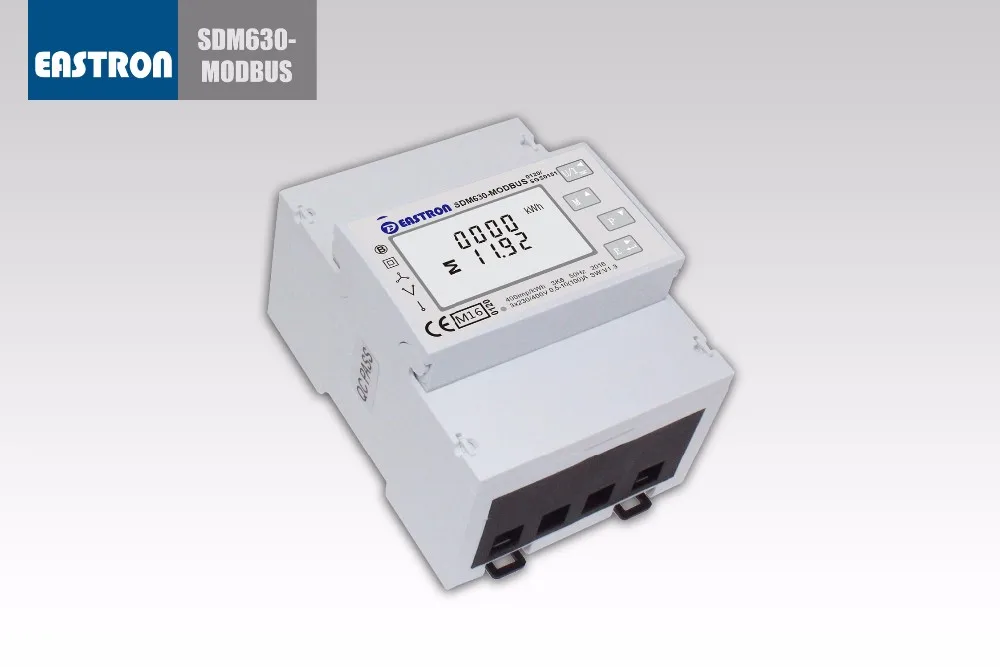

SDM630Mbus 3 Phase Mbus Multifunction Mbus Power Analyzer

Product Overview

Description



Brief Introduction

The unit measures and displays the characteristics of single phase two wires(1p2w) , three phase three wires(3p3w,) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes. In order to measure energy,the unit requires voltage and current inputs in addition to the supply required to power the product.



SDM630Modbus supports max. 100A direct connection,saves the cost and avoid the trouble to connect external CTs,giving the unit a cost-effective and easy operation.Built-in interfaces provides pulse and RS485 Modbus RTU outputs.Configuration is password protected.







Features



l Measures kWh Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.



l Bi-directional measurement IMP & EXP



l Two pulse outputs



l RS485 Modbus

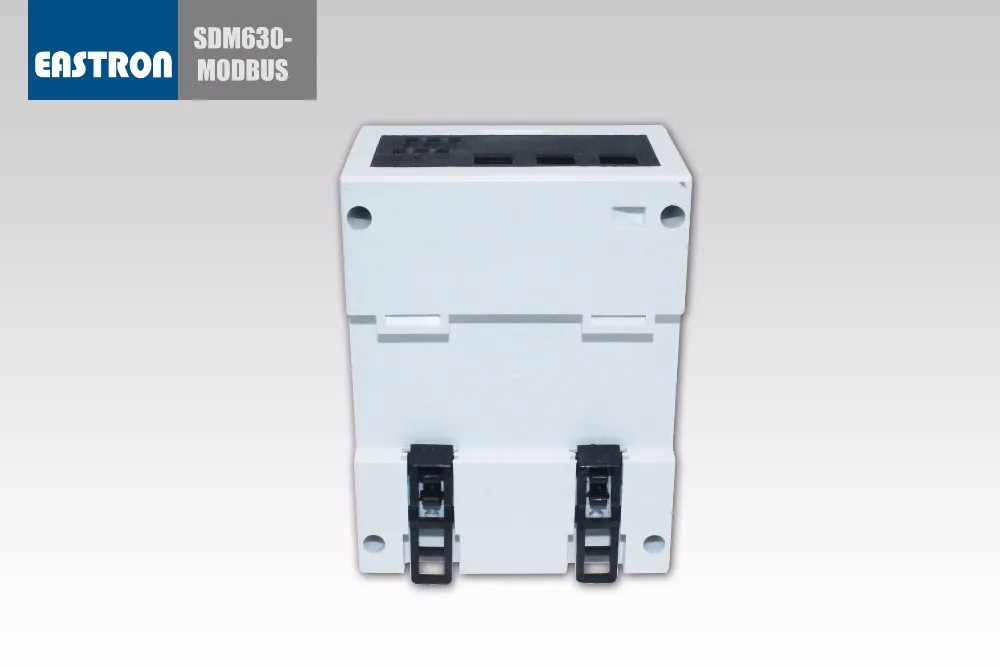

l Din rail mounting 35mm



l 100A direct connection







Benefits

Cost effective

Simple navigation

Renowned quality

CE,MID approved

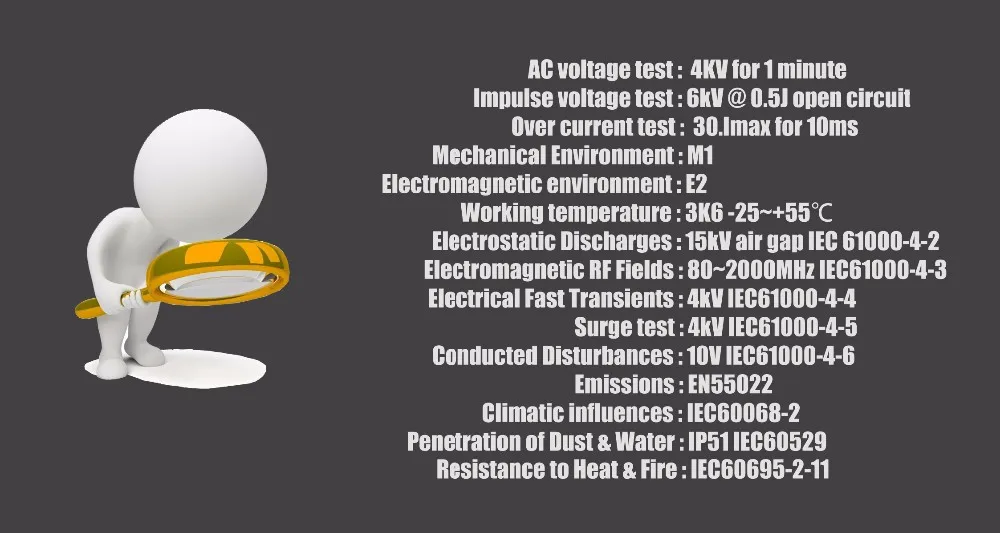

Approvals

IEC61326

IEC61010-1

IEC62053-21





Measurements



V1 V2 V3 (V1-2 V2-3 V3-1)



I1 I2 I3 (I1-2 I2-3 I3-1)



PF of L1 L2 L3 PF total



Frequency(Hz)



kWh, kVarh, kW, kVar, kVA



import export energy



THD up to 31st of Voltage and current



Max. Demand







*Multi-tariff



This unit provide option for multi tariff. max. tariff can be programmed to 4 , and 10 period. (optional)







Communications



The meter is an ideal choice as slave meter in AMR system. it provides both Pulse output and RS485 port.







Pulse Output



There are 2 pulse output, one is for active energy, and constant is 1000imp/kWh, another one is configurable.



the user can set the pulse output type, pulse constant, and pulse weight.



Pulse type: total kWh, total kVarh, import kWh, export kWh, import kVarh, export kVarh



Pulse constant: 100/10/1/0.1/0.01/0.001kWh(kVarh)/imp



Pulse weight: 200/100/60mS







RS485 Port



There are one RS485 port on the meter, which can be used for remote communication or monitoring.



Protocol: Modbus RTU



Parity: NONE/EVEN/ODD



Baudrate: 2400/4800/9600/19200/38400bps.



Slave ID: 1~247



Max quantity on a Bus line: 64pcs

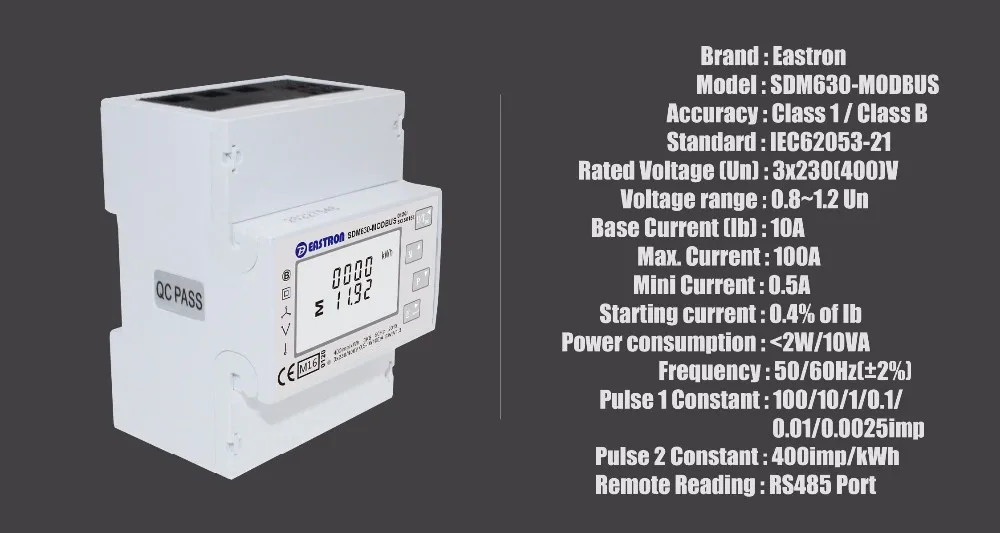

Accuracy

Voltage	0·5% of range maximum
Current	0·5% of nominal
Frequency	0·2% of mid-frequency
Power factor	1% of unity
Active power (W)	±1% of range maximum
Reactive power (VAr)	±2% of range maximum
Apparent power (VA)	±1% of range maximum
Active energy (Wh)	Class 1 IEC 62053-21
Reactive energy (VARh)	±2% of range maximum

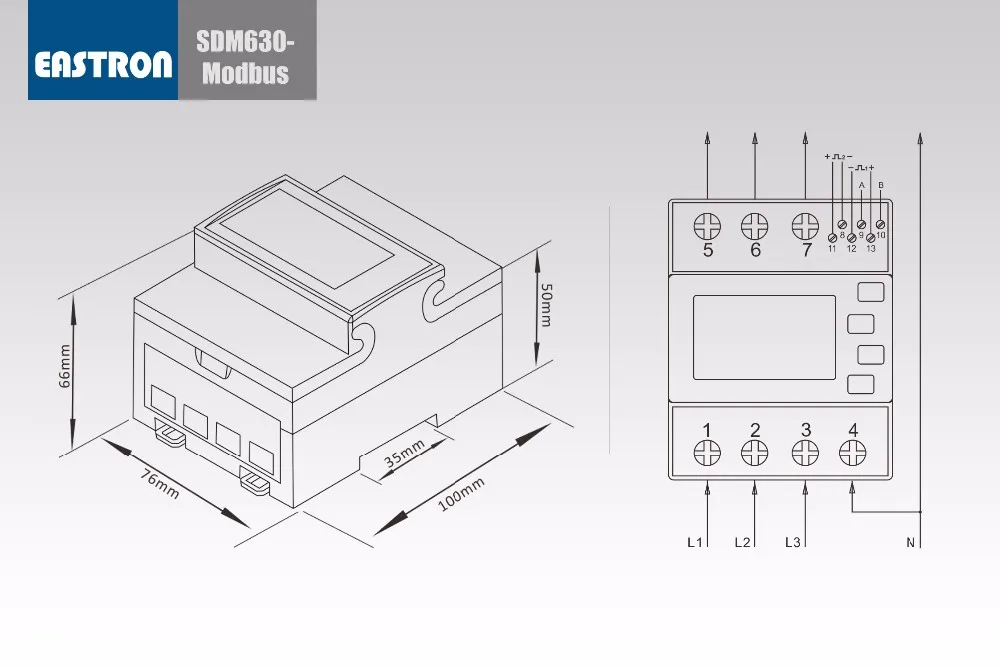

Dimensions

(the unit is the smallest three phase multi function din rail energ meter in the market present)

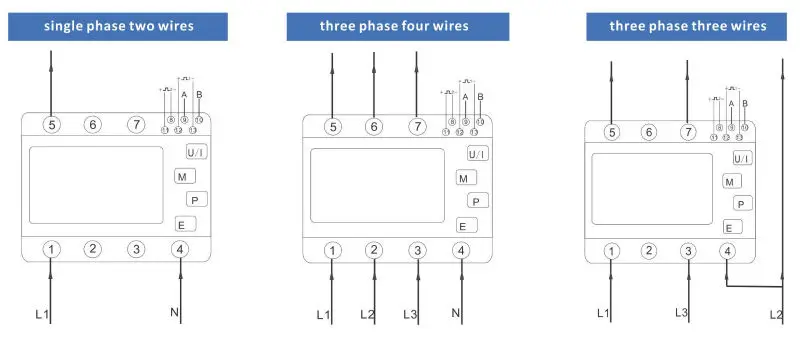

Wiring Digram

Approvals
