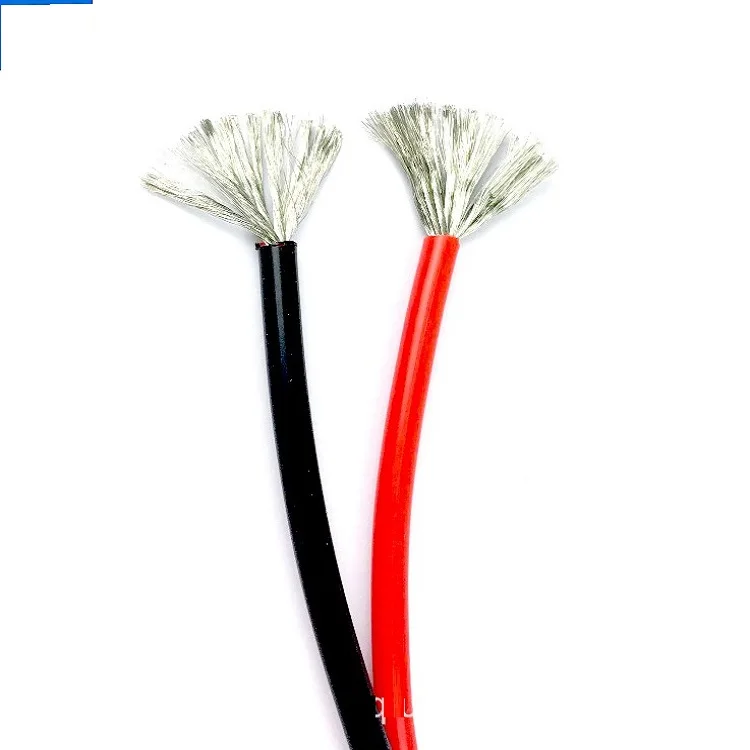

MIL W 16878/7 Type F Wire
- Category: >>>
- Supplier: Zhengzhou Sanhe Cable Co. Ltd.
Share on (62267930616):
Product Overview
Description
Product Description
Product Description
1.Application
M16878/7 Wire is designed to be flame retardant and meet Navy regulations on smoke, toxicity, and acid gas. Applications include those requiring high flexibility, durability, and high temperature applications.
2.Construction
- Conductor: Soft annealed silver plated copper
- Insulation: Extruded silicone
M16878/7 Wire Ratings and Approvals:
- Mil Spec: M16878/7
- Temperature Rating: 150 °C
- Voltage Rating: 600V
3.Standard
M16878/7 Wire Ratings and Approvals:
- Mil Spec: M16878/7
- Temperature Rating: 150 °C
- Voltage Rating: 600V
4.Specification Examples
| Part Number | AWG Size | Conductor Stranding | Min O.D. (in) | Max O.D. (in) |
| M16878/7BEB | 24 | 7/32 | .052 | .058 |
| M16878/7BFB | 22 | 7/30 | .058 | .064 |
| M16878/7BGB | 20 | 7/28 | .066 | .072 |
| M16878/7BGC | 20 | 10/30 | .066 | .072 |
| M16878/7BHB | 18 | 7/26 | .076 | .082 |
| M16878/7BHD | 18 | 16/30 | .076 | .082 |
| M16878/7BJE | 16 | 19/29 | .085 | .091 |
| M16878/7BJF | 16 | 26/30 | .085 | .091 |
| M16878/7BKE | 14 | 19/27 | .116 | .122 |
| M16878/7BKH | 14 | 41/30 | .116 | .122 |
| M16878/7BLE | 12 | 19/25 | .135 | .141 |
| M16878/7BLJ | 12 | 65/30 | .135 | .141 |
| M16878/7BNK | 10 | 105/30 | .156 | .166 |
