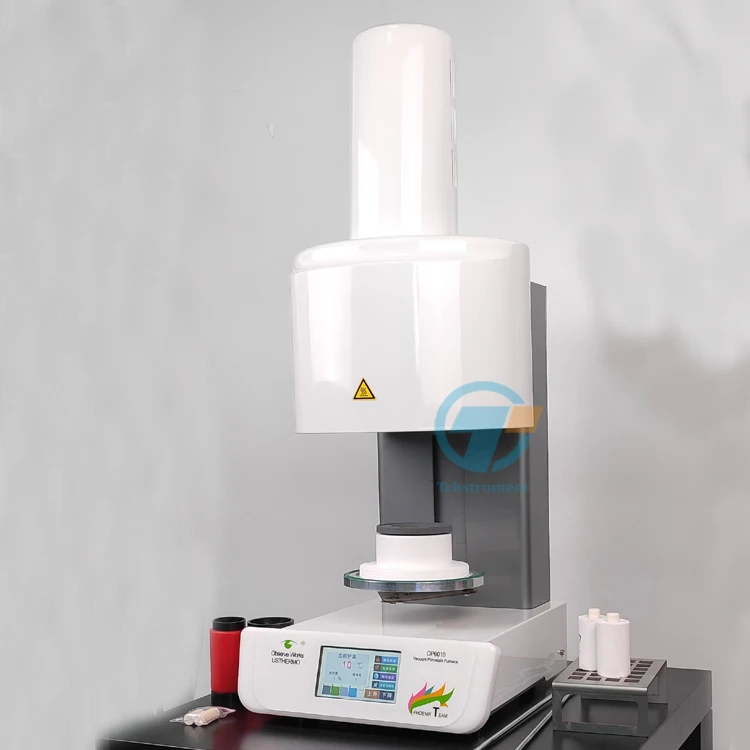

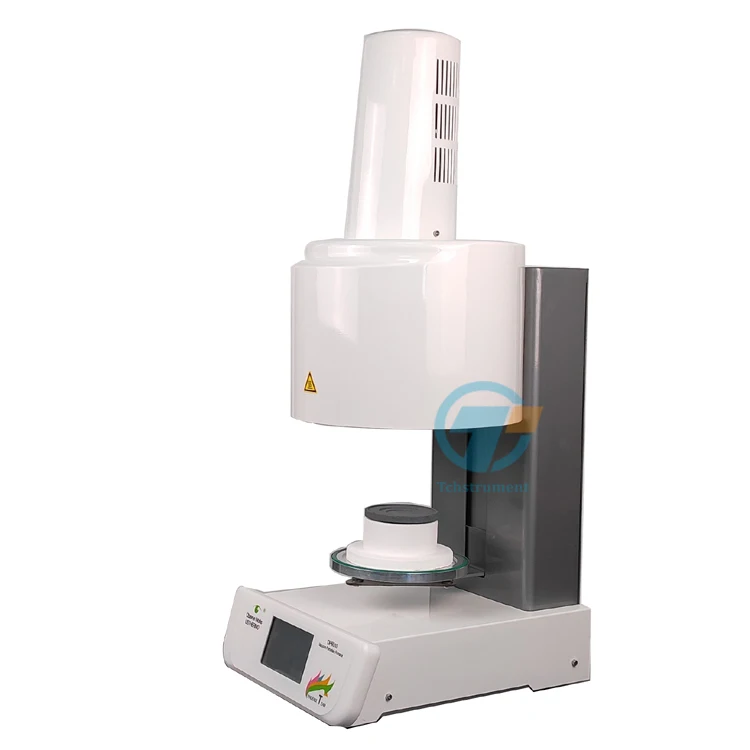

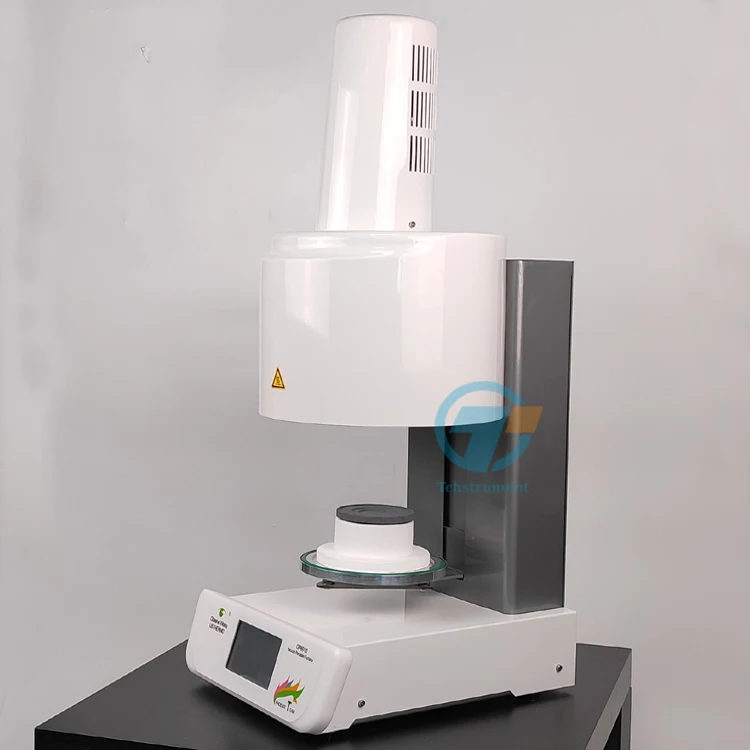

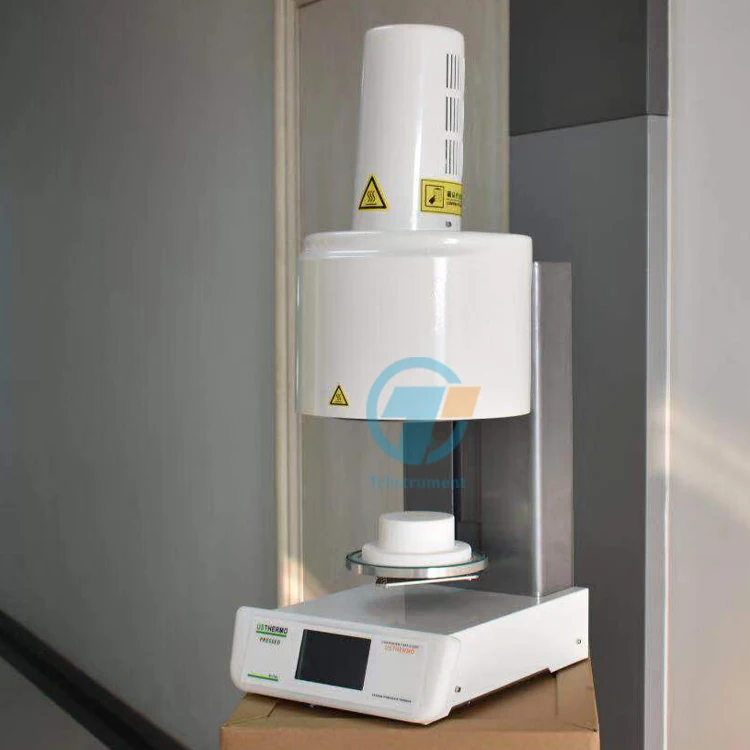

Usthermo dental ceramic pressing and firing sintering furnace

THE FUNCTIONS OF Usthermo dental ceramic pressing and firing sintering furnace

• High quality of the function of temperature adjustment automatically,ensure the actually temperature error within +/-1.
• Easy to operate,compact size,the smallest size in the world at present.

• Precision stepper motor drive, the smooth and jitter-free functioning, noise-free,Speed programmable.
• Spiral quartz chamber of furnace

• Temperature adjustment automatically before every firing procedure.

• True color touch screen, the operation is simple and convenient.

• USB port can easily connect to the computer service program.

• Built in 99 program.

• Optical status display.

  THE INTRODUCTION OF SPECIFICATIONS:

OPERATION:

The velocity of temperature increasing: 200℃/min max. (392°F /minute)

The max temperature: : 1200℃  max

(2283°F)

The time which can be kept at the max temperature: 2 H Vacuum level:1-101%

ELECTRIC POWER:

Operation range:100-120V 50/60HZ 230V 50/60HZ Electric current:14.5ampere@110V   7.0ampere@230V Power:max 1500w

TYPICAL SPECIFICATION:

WXDXH :width 27cm Depth 36cm Height 70cm Usable measure (firing chamber)::9cm(3.5”) Net weight:23Kg

Weight include the package:26.5Kg

AMBIENT CONDITIONS

•  Indoor use

•  Ambient temperature: 2°C to 40°C

•  Relative humidity 80% at 31°C

•  Maximum altitude: 1500 m (Special Model:3500m)

•   Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage

DEVICE IN BOX COMPLETE WITH:

•  1 furnace.pressed.

•  1 firing pan

•  1 connection cable for the mains power supply

•  1 furnace tweezers

•  1 Tongs

•  2 Press rod

•  1 Embedding ring 100g

•  1 Cooling rack

reference of the Usthermo dental ceramic pressing and firing sintering furnace
