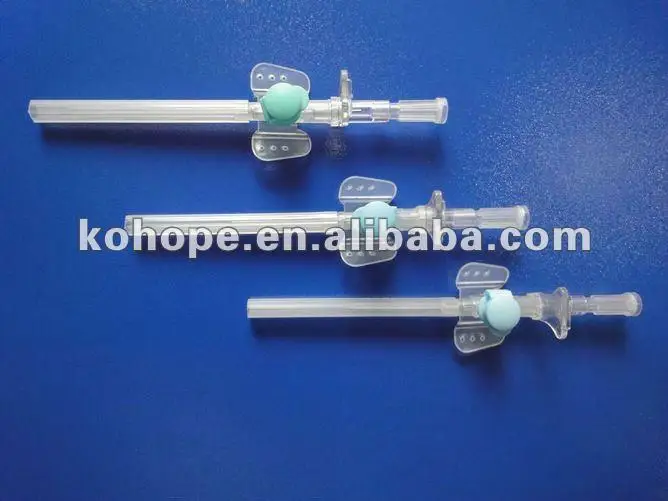

iv catheter with injection valve

Product Overview

Description



iv catheter with injection port

Pen type/Butterfly type

Color-coded casing cap allows for easier identification of catheter size

Translucent catheter hub and flashback chamber allows for easy detection of blood flashback at vein insertion

Teflon Radio-opaque catheter

Precision finished PTEE catheter assures stable flow and eliminates catheter tip kink during venipucture

Can be connected to syringe by removing filter cap to expose Luer taper end

Use of hydrophobic membrane filter eliminates blood leakage

Close and smooth contact between catheter tip and inner needle enables safe and smooth venipuncture



Color codes and specifications
Type	SIZE OD(mm) GAUGE		COLOR COLOR%CODE	LENGTH
				20 3/4"	25 1"	32 1 1/4"	38 1 1/2"	50 2"	64 2 1/2"
Pen type	0.70	24G	yellow	V
	0.90	22G	bule		V
	1.00	20G	pink			V		V
	1.20	18G	green			V	V	V
	1.70	16G	grey					V	V
	2.0	14G	orange					V
Butterfly type	0.70	24G	yellow	V
	0.90	22G	bule		V
	1.00	20G	pink			V		V
	1.20	18G	green			V	V	V
	1.70	16G	grey					V	V
	2.0	14G	orange					V
Remark:normal size in above table.we can also make special size as clients' request.
