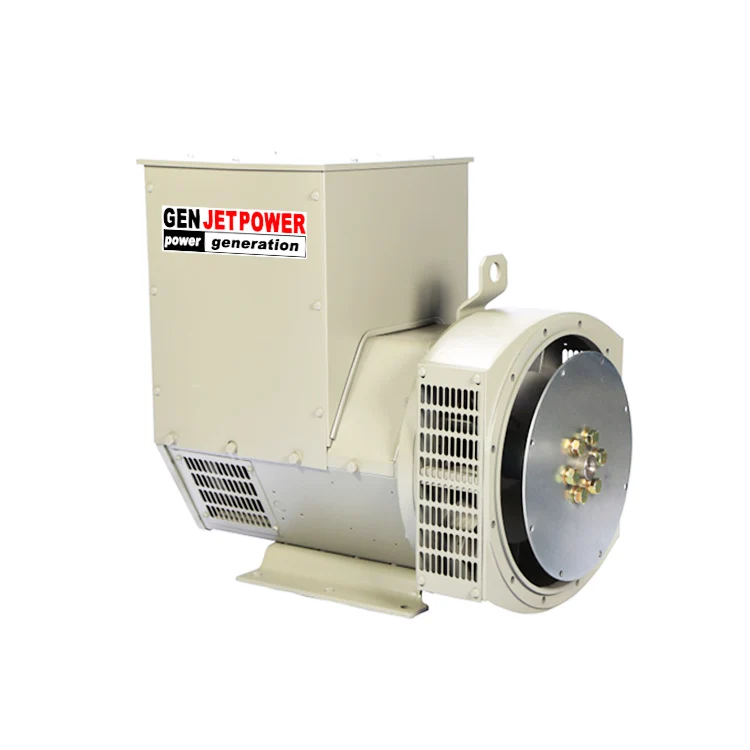

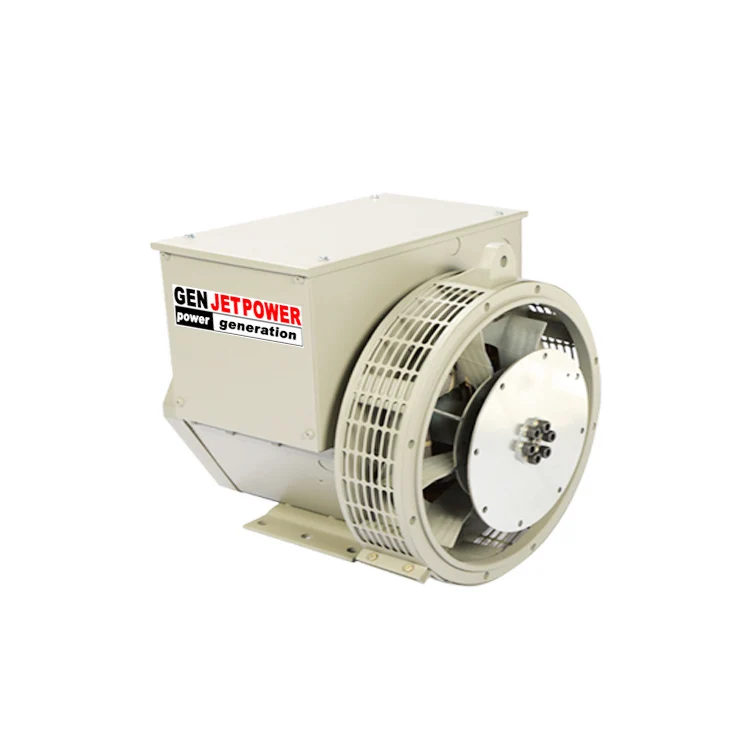

Stamford Type Synchronous 30kw 40kw 50kw Brushless AC Alternator Price (62268413077)

Share on:


Price:RUB 15,866.94 - RUB 79,334.70
Price in USD:Details

Quantity:


Product Overview

Description

2-Diesel Generator

Tech datas

MODELCore Length3-PHASE 50Hz /1500RPM 380V-440V 3-PHASE 60Hz /1800RPM 440V-480V DIMENSIONWEIGHT
(KVA)(KW)(KVA)(KW)CMKG
JET 164AL=65mm8.16.510.28.264×54×7295
JET 164BL=80mm118.813.81164×54×72102
JET 164CL=100mm13.510.816.913.564×54×72110
JET 164DL=115mm1612.8201664×54×72116
JET 184DL=135mm18.715221884×59×75120
JET 184EL=150mm22.51828.82384×59×75133
JET 184FL=190mm27.52234.427.584×59×75156
JET 184GL=230mm31.32537.530 84×59×75172
JET 184HL=255mm37.53046.937.584×59×75226
JET 184JL=285mm4032504084×59×75236
JET 224CL=134mm42.53452.54296×66×102275
JET 224DL=160mm504062.55096×66×102295
JET 224EL=186mm6048705696×66×102315
JET 224FL=248mm72.55887.57096×66×102345
JET 224GL=309mm856897.57896×66×102385
JET 274CL=165mm1008011894126×76×102415
JET 274DL=205mm11491138110126×76×102435
JET274D1L=210mm125100137.5110126×76×102450
JET 274EL=230mm140112168134126×76×102485
JET 274FL=285mm160128190152126×76×102530
JET 274GL=340mm175140213170126×76×102580
JET 274HL=375mm200160245196126×76×102630
JET 274JL=410mm230184281224.8130×76×102750
JET 274KL=450mm250200299239.2130×76×102760
JET 444CL=275mm250200294235151×79×107880
JET 444DL=340mm295236350280151×79×107950
JET 444EL=410mm325260394315151×79×1071065
JET 444FSL=450mm380304456365151×79×1071145
JET 444FL=500mm400320480384151×79×1071185
JET 544CL=350mm450360550440165×95×1161350
JET 544DL=430mm500400594475165×95×1161450
JET 544ESL=490mm563450650520165×95×1161620
JET 544EL=500mm600480713570165×95×1161700
JET 544FSL=520mm625500725580165×95×1161753
JET 544FL=575mm670536775620165×95×1161820
JET 634BL=355mm750600855684180×100×1452020
JET 634CL=380mm800640916732.8180×100×1452050
JET 634DL=410mm9107281034834.2180×100×1452100
JET 634EL=465mm10008001145916180×100×1452260
JET 634FL=560mm113090412741019.2180×100×1452490
JET 634GL=675mm1250100013861108.8180×100×1452820



Detailed description

1.Brushless synchronous alternator with Stamford technology.

2.Output range:6.5kw - 1150kw single-phase and three-phase

3.High-performance Convenient installation and maintenance

4.Three phase 4 wire, optional 50Hz/60Hz, 1500/1800RPM

5.4-pole, brushless alternator with AVR, H class insulation, IP21

6. Be suitable for various brands engine, international standard SAE port, double bearing as optional21

brushless alternator-005.jpg

 Stamford type alternator -01.jpg

Product Features

1.Advanced automatic voltage regulator control for trouble-free operation under the most demanding condition

2.Easy paralleling with mains or other generators .Standard 2/3 pitch windings avoid excessive neutral currents.

3.Dynamically balanced rotor, with sealed-for-life ball bearings and single or two-bearing construction.

4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.

5.Wide range of Flange adaptor and single bearing coupling disc.



Stamford type alternator -05

Voltage regulation

Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.5 to 1 and 2.8%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR, model: SX460, SX440

Stamford type alternator -04.jpg

Insulation Class H

All regulatory components are made up with special materials and are immersed in lacquer by peculiar

tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

Stamford type alternator -03
Warranty policy

JET product has guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.



brushless alternator -0031.jpg
