wholesale Straight Line Iron Steel Wire Drawing Machine of good quality
- Category: >>>
- Supplier: Shijiazhuang Satle Machinery Manufacture Co. Ltd.
Share on (62268691759):
Product Overview
Description
Product Description

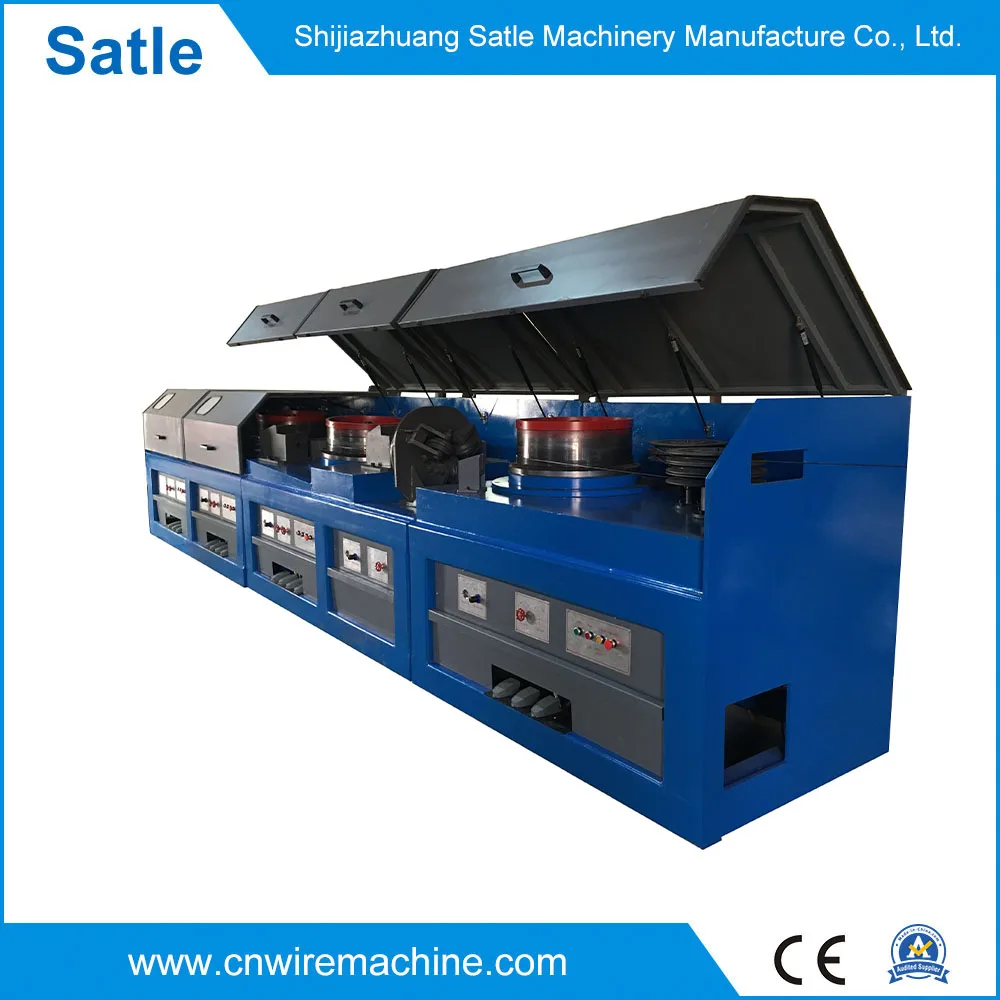

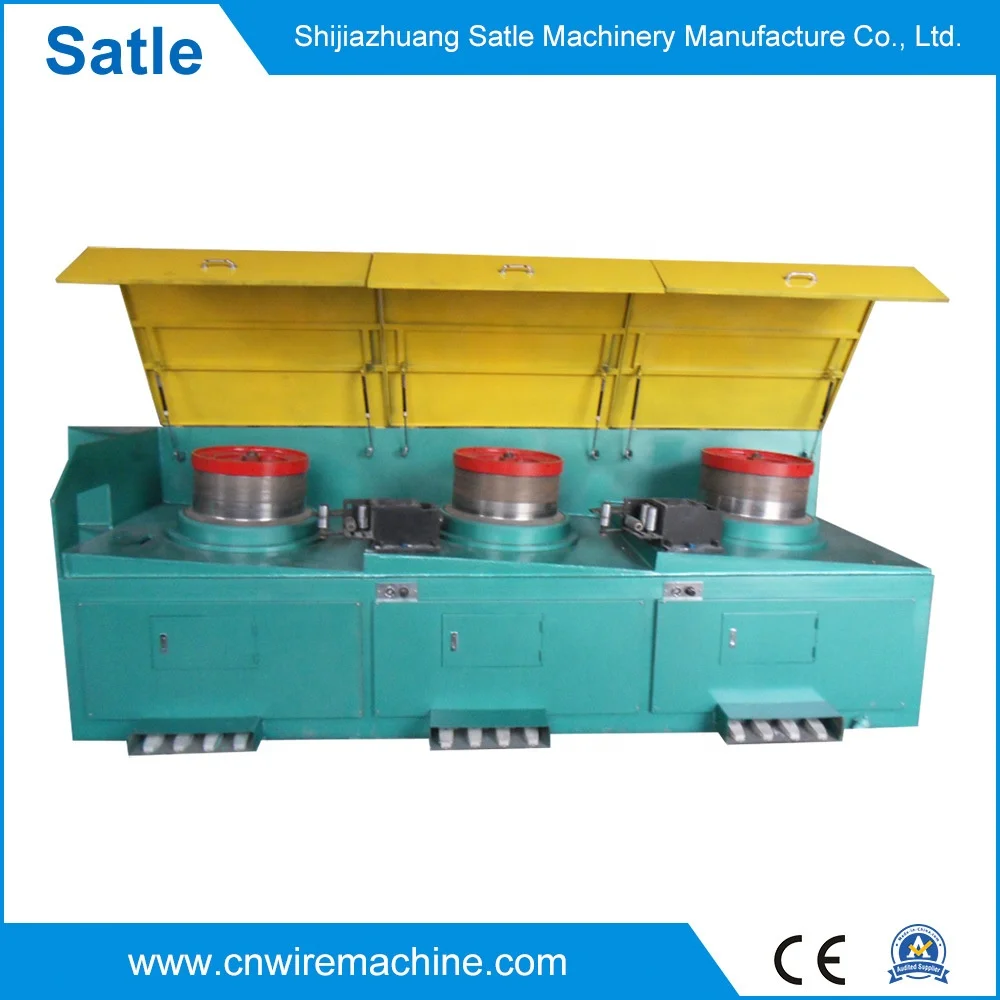

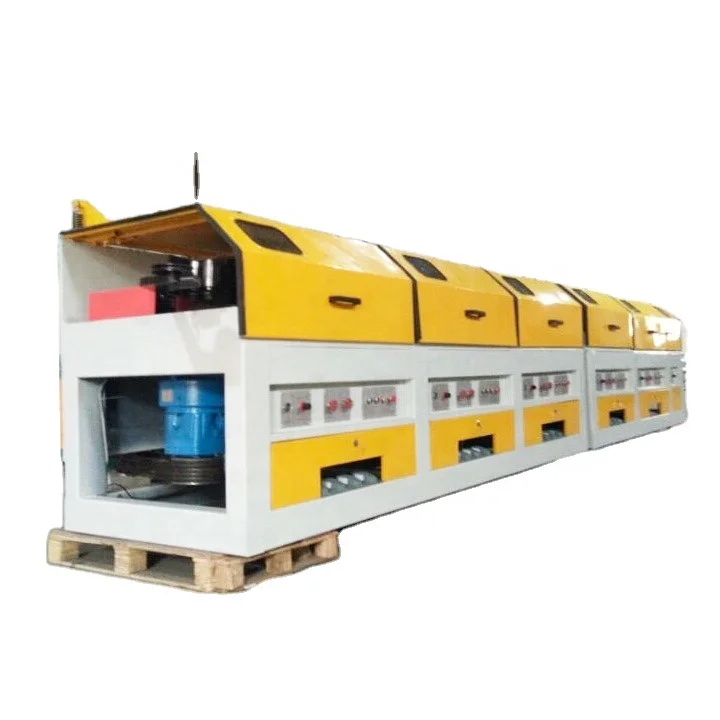

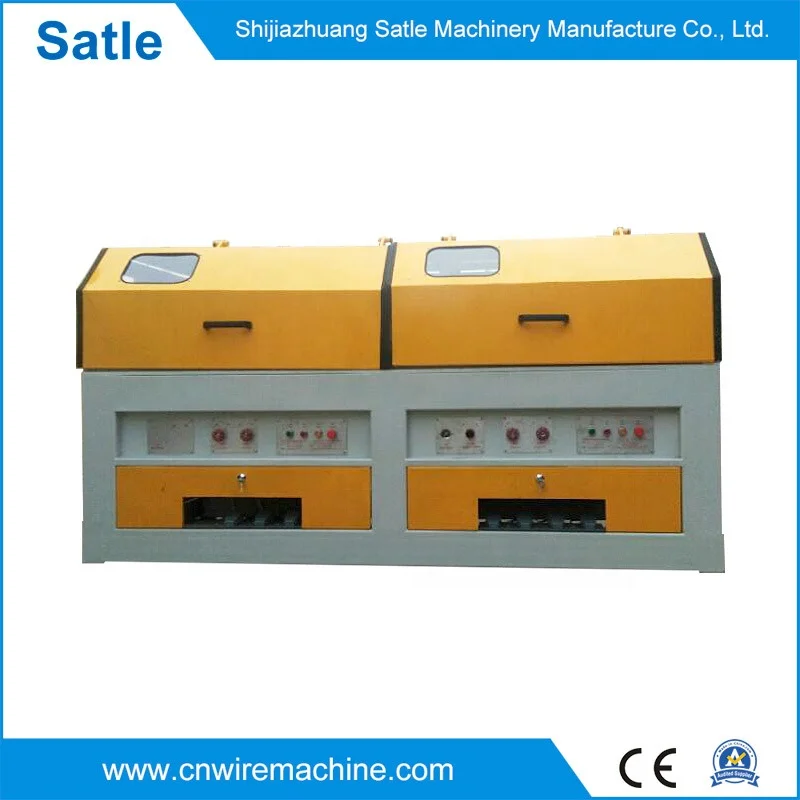

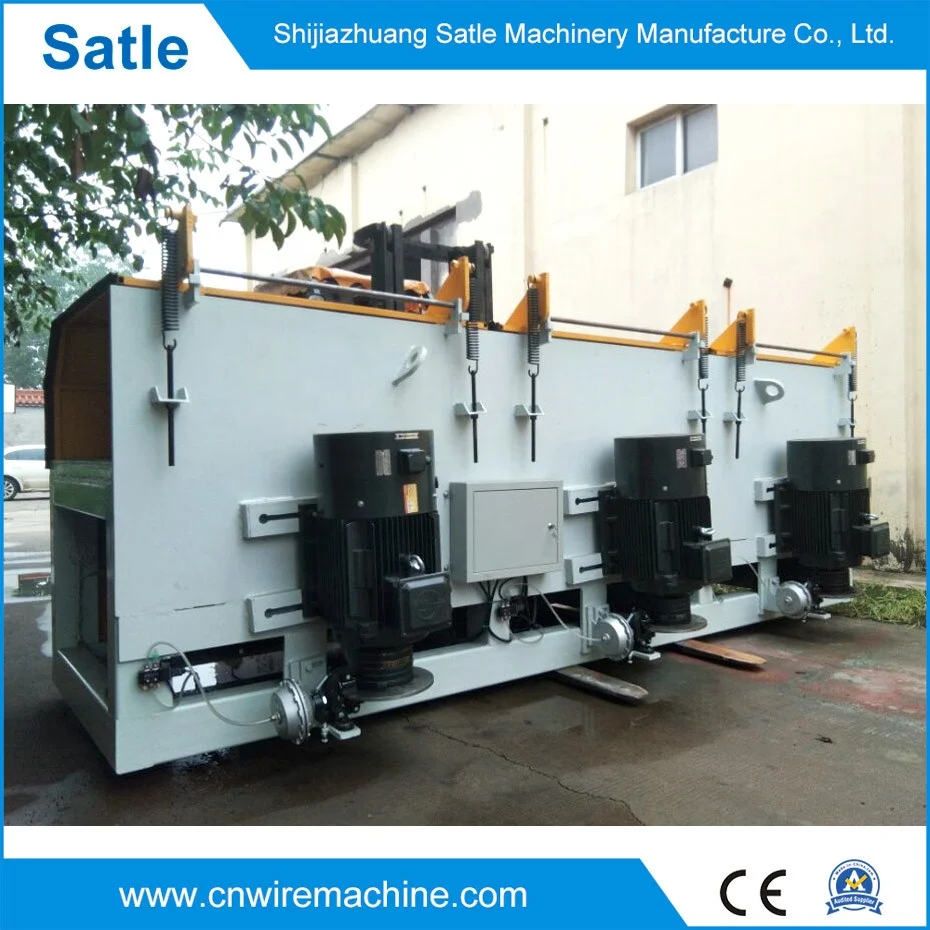

Straight Line Wire Drawing Machine
We have straight line wire drawing machine in various model sizes and we can meet customers' different needs. With the latest technology and high machine quality, our machine could run at high speed and high stability with low failure rate and easy operation. We assemble the various machines to create a custom production line, which will provide you competitive products.
Features
1)Simple structure ,easy in installation and maintation.
2) High speed and stable production, high efficiency and save energy.
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4) High accuracy to control outlet wire diameter.
5) Running in a high automatization and intellectualization,no pollution
2) High speed and stable production, high efficiency and save energy.
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4) High accuracy to control outlet wire diameter.
5) Running in a high automatization and intellectualization,no pollution
Framework
14# B style U steel

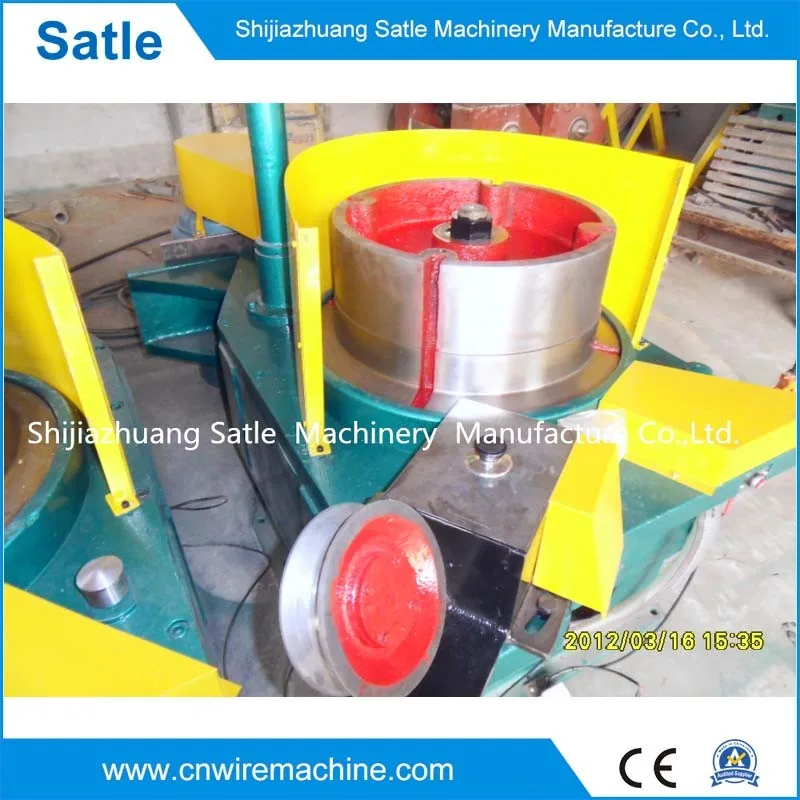

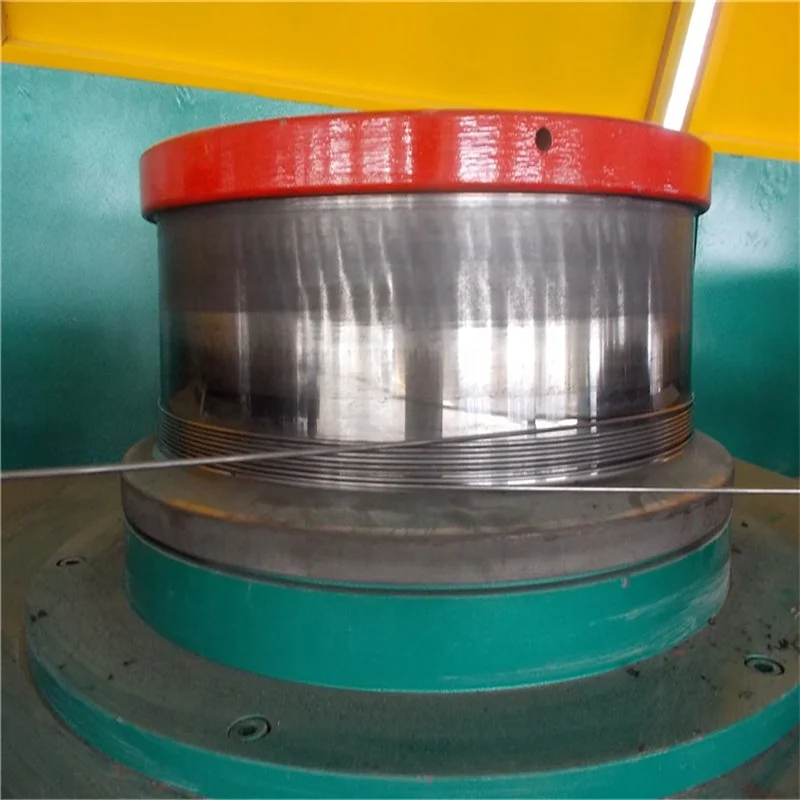

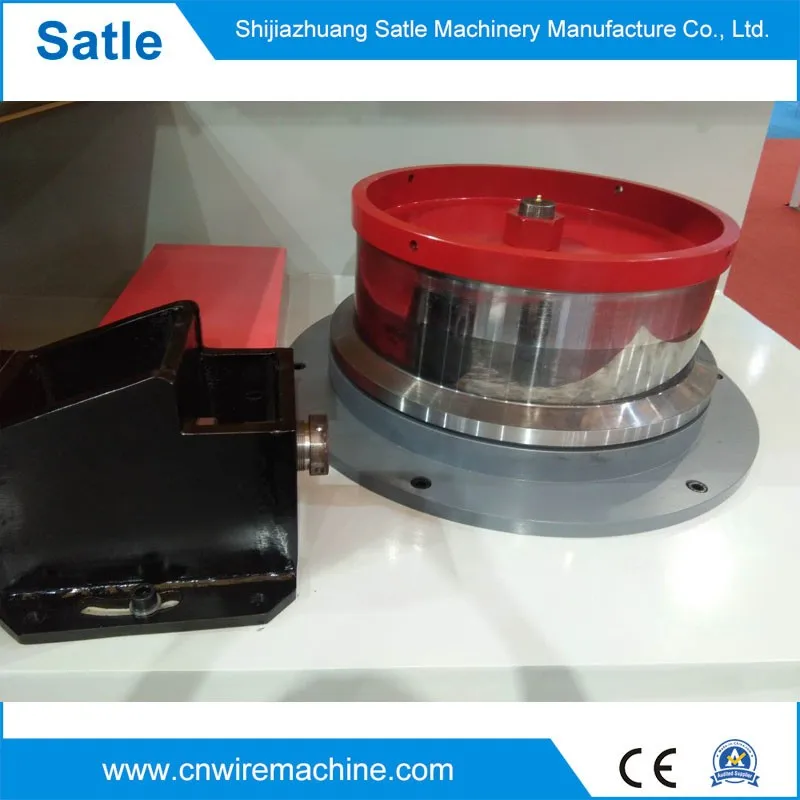

Capstan
ZG45# steel , coated tungsten carbide, HRC60. Capstan running time more than 26000 hours. The height of the capstan is 280mm. The height of spraying tungsten carbide is 80mm and the thickness is 2mm. The temperature of the capstan< 80℃. Roughness <0.8μmm.There are operation buttons in front of each capstan.
Cooling type: narrow slit water cooling . water proof and anticorrosive treatment.
Cooling type: narrow slit water cooling . water proof and anticorrosive treatment.
Die box
Welding part is adopted for the die box. The guide roller is in front of die box and coated with tungsten carbide. The die box is divided into lubrication cavity and cooling cavity. Ball valve adjusts water feeding flow. The position of die box can be adjusted to adapt the position of wire for drawing. The dancer arm wheel is in the entry of die box to adjust the drawing speed of every drawing block. It is driven by pneumatic cylinder. Tension roller is made of special steel alloy and heat treated to have long working life.
The wire tension is detected by the TE sensor(none touch type) dynamically and feedback signal to the motor driver.
The wire tension is detected by the TE sensor(none touch type) dynamically and feedback signal to the motor driver.

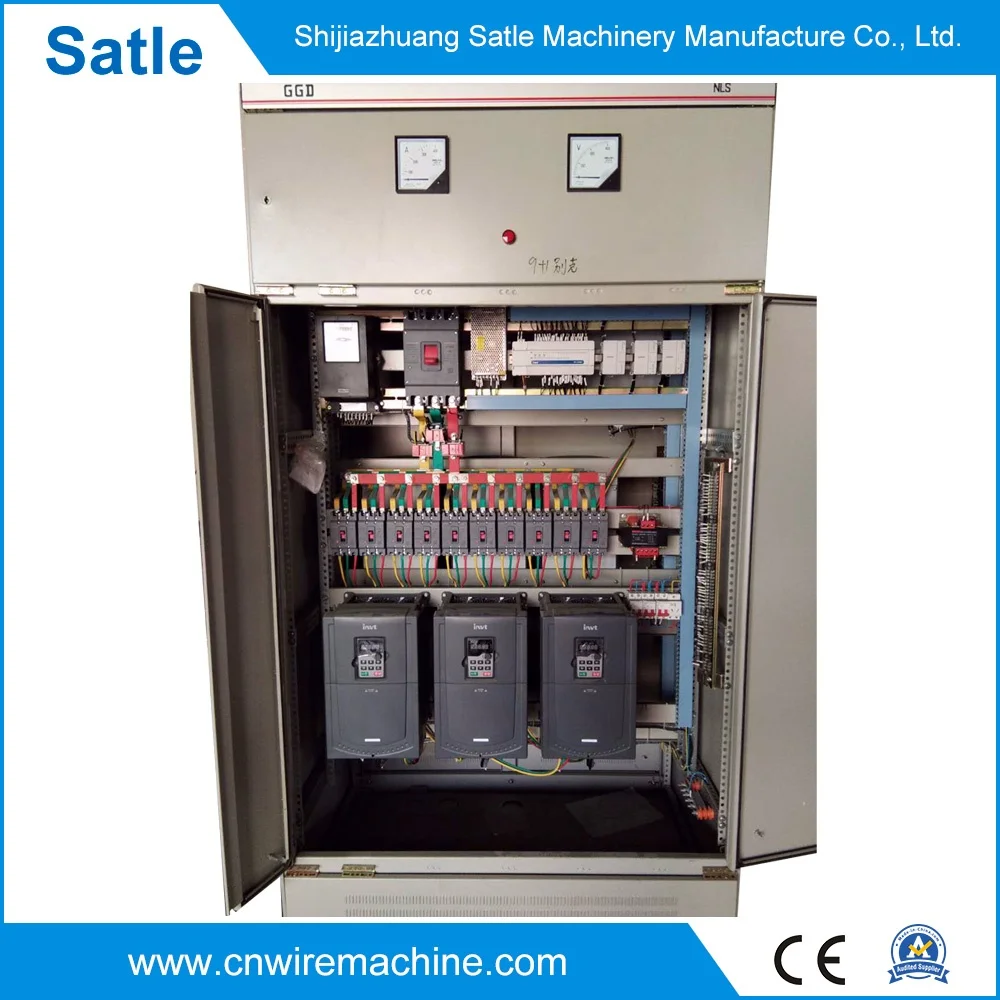

PLC
SIEMENS or as request.
Operation
including touch screen, emergency button ready button, stop button, accelerate button, decelerate button, fault button and reset button. Touch screen is colorful and the brand is Weinview . The yield can be presented on the screen by the meter-counter or weight-counter. The drawing speed can be adjusted on the screen.
Our Company
Why choosing us?
We have more than 15 years of experience in wire and wire machine production.
Our machines have goog reputation overseas,have been exported to the United States, Egypt, Pakistan, and many other countries.
Professional technical team,we can design and produce appropriate wire drawing machines according to customers’ existing equipment and requirements. We will reduce your cost and increase your production efficiency.
Our machines have goog reputation overseas,have been exported to the United States, Egypt, Pakistan, and many other countries.
Professional technical team,we can design and produce appropriate wire drawing machines according to customers’ existing equipment and requirements. We will reduce your cost and increase your production efficiency.
Certifications

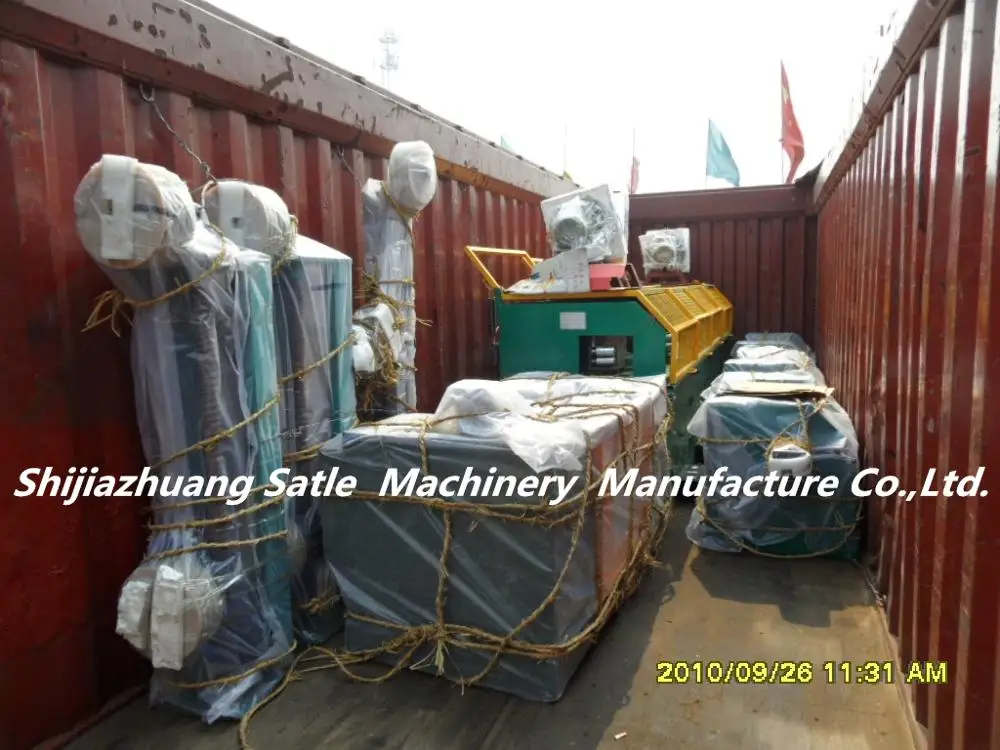

Packing & Delivery
Packing
With years of export experience along with excellent quality, advanced services and competitive prices, saite has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, saite has won numerous customers' trust and support.
Delivery
FAQ
Q:Are you trading company or manufacturer?
A: We are manufacture&trading company.
Q:Can your machine be customized?
A:Yes,we can make the machine according to your wire.
Q:What is your delivery date?
A:10-40days.
Q: What is your terms of payment?
A: TT, 30% deposit ,70% before shipment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
Q: What is your available Shipment?
A:FOB Tianjin.
