1 set of standard hardened and ground rolls (special steel) All rolls Planetary/Gear – Hydro motor Driven Side supports are suitable for angle iron bending leg in -Leg Out Portable control panel Horizontal and Vertical optional Body constructed of stress-relieved steel Overload protection on hydraulic and electrical systems Bottom rolls hydraulically adjustable with digital readout Full function,various profile can be bent by replace the mold NC or CNC can optional by customer CE certificate
SPECIFICATIONS FOR W24S-16 PROFILE BENDING MACHINE
Parameter
W24S-16
Profile maximum bending section modulus
16
Rolling speed
6
Profile yield limit(mpa)
△S-250
Angle steel inner bending
Maximum section(mm)
70x8
Minimum bending diameter(mm)
1000
Minimum section(mm)
30x3
Minimum bending diameter(mm)
550
Angle iron outer bending
Maximum section(mm)
80x8
Minimum bending diameter(mm)
1000
Minimum section(mm)
30x3
Minimum bending diameter(mm)
550
Channel steel outer bending
Channel model(mm)
12
Minimum bending diameter(mm)
800
Channel steel inner bending
Channel model(mm)
12
Minimum bending diameter(mm)
900
Flat bar flat bending
Maximum section(mm)
150x25
Minimum bending diameter(mm)
700
Flat bar vertical bending
Maximum section(mm)
75x16
Minimum bending diameter(mm)
760
Round tube bending
Maximum section(mm)
76x4.5
Minimum bending diameter(mm)
750
Round bar bending
Maximum section(mm)
52
Minimum bending diameter(mm)
600
Square bar bending
Maximum section(mm)
60x4
Minimum bending diameter(mm)
900

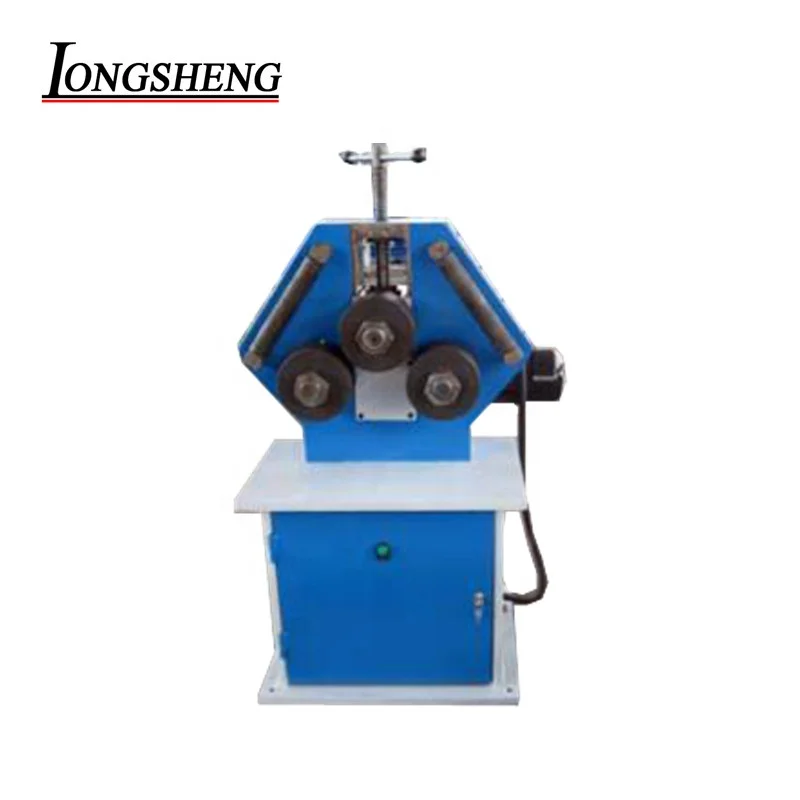

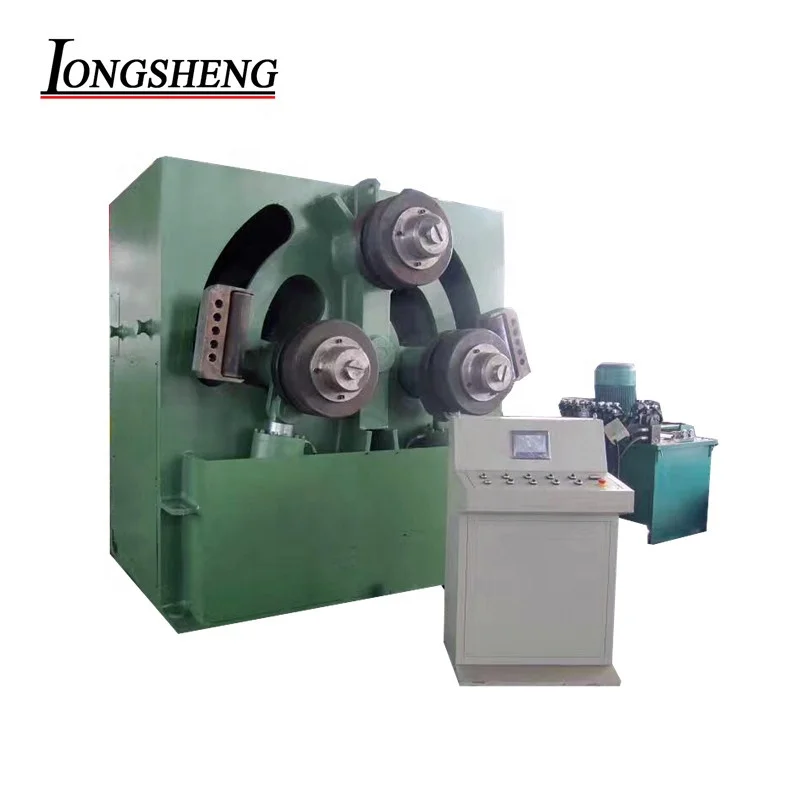

Product Display

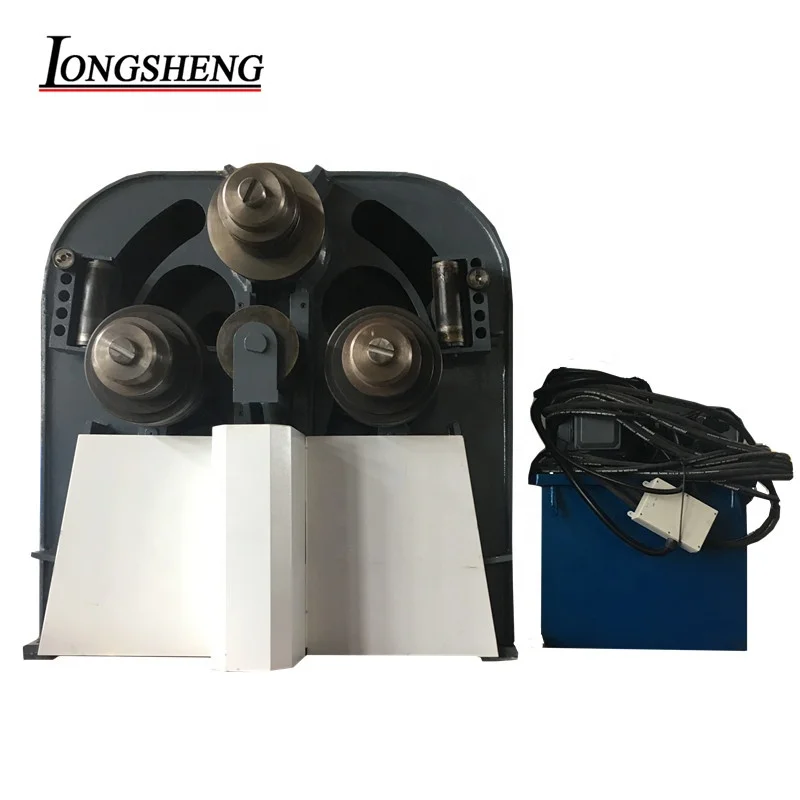

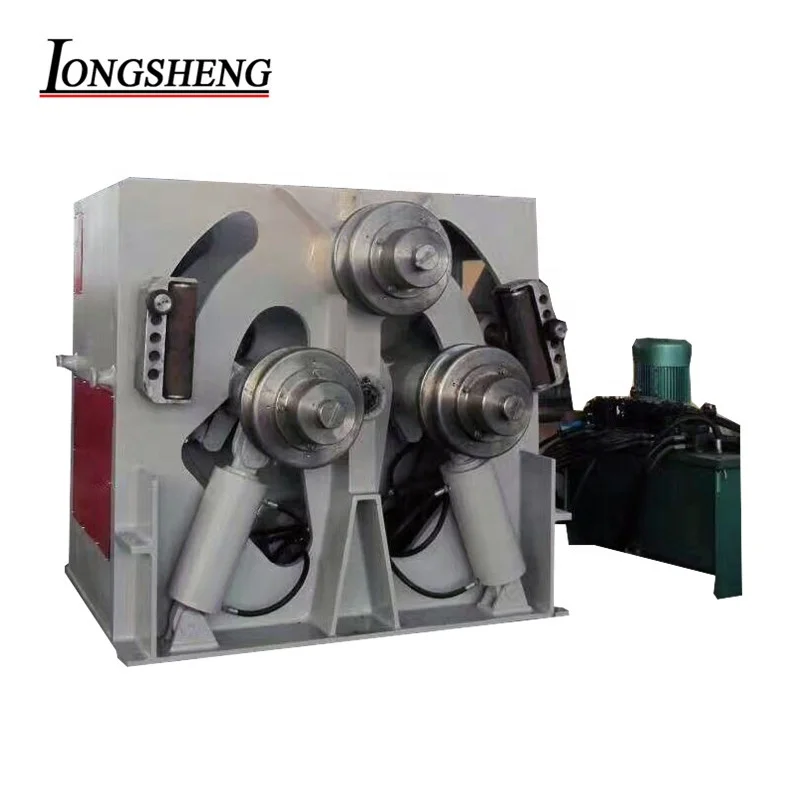

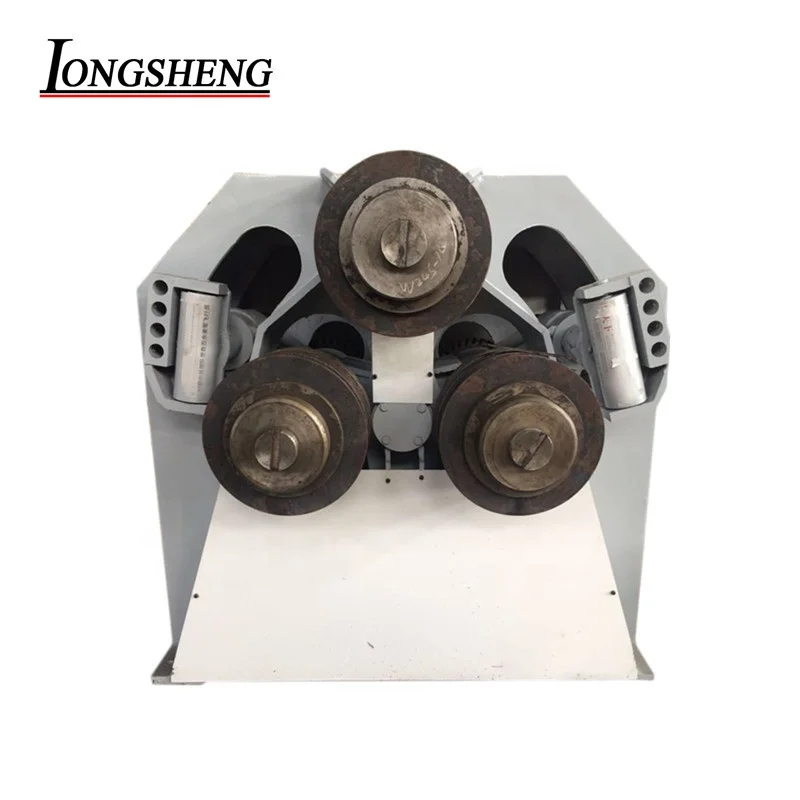

ROLLER
●Top roller fixed, two bottom roller move by arc lifting around a fixed center. ●They can rise and fall separately also can rise and fall at the same time.
Side guid rollers to ensure the high quality for asymmetrical section bending.
Three drive rolls mounted with hydraulic motor, without slipping, even for thinner material can be bent.
HYDRAULIC SYSTEM
●Full hydraulic transmission ●The machine adopts hydraulic pressing, so the pressure is large and the performance is stable.
●Hydraulic guide rolls.
MAIN MOTOR
●The main drive device includes main motor, reducer gear and etc.
CONTROL SYSTEM
●The operation table is set with indicators for each part's movement.
13.Finished Product 14.Hydraulic Station 15.Packing 16.Shipping
Assambling
Certifications
FAQ
1.When can customers contact us? We are available Monday through Saturday. 8AM to 12PM Beijing time.We also offer 24 hour online service for customers. 2.How do I order a pipe and tube bending machine from you? If you have any problems occur with our pipe and tube bending machine or you are in need of assistance,please send email or call us via telephone.We will reply as quickly as possible. We offer OEM and ODM services. 3.Terms of payment 1) T/T 30% prepayment,70% balance before shipment 2) L/C at sight 4.How about your pipe and tube bending machine quality? Longsheng is a mature brand in China. Through our over thirteen years research in pipe and tube bending machine technology, our design including structure and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard. Where there are our pipe and tube bending machine, there are good reputation and terminal user satisfaction.
Packing & Delivery
Packaging
Size
2800(L) * 1700 (W) * 1780 (D)
Weight
3 T
Packaging Details
The normal package is plastic film(Size: L*W*H). If you need wooden packaging, please check attached pictures, we can also provide it, but at an extra charge. And if export to european countries, the wooden box will be fumigated. Besides, if container is too tigher, we still recommend that the customer use a pe film package.
