Hisen LCD Display 50L Auto Lift miniature rotovap mini lab rotary evaporator
- Category: >>>
- Supplier: Shanghai Hisen Instrument Co. Ltd.
Share on (62268809165):
Product Overview
Description
Product Description
Hisen LCD Display Auto Lift miniature rotovap mini lab rotary evaporator
A rotary evapoprator is a device used in chemical laboratories for the efficient and gentle removal of solvents from shapes a thin film in negative pressure condition by heating, evaporates, and then the vapor condensed, liquefied, and recollected for separation. We can provide the whole solution for rotary evaporator, including supporting equipment, like the circulating chiller and vacuum pump.

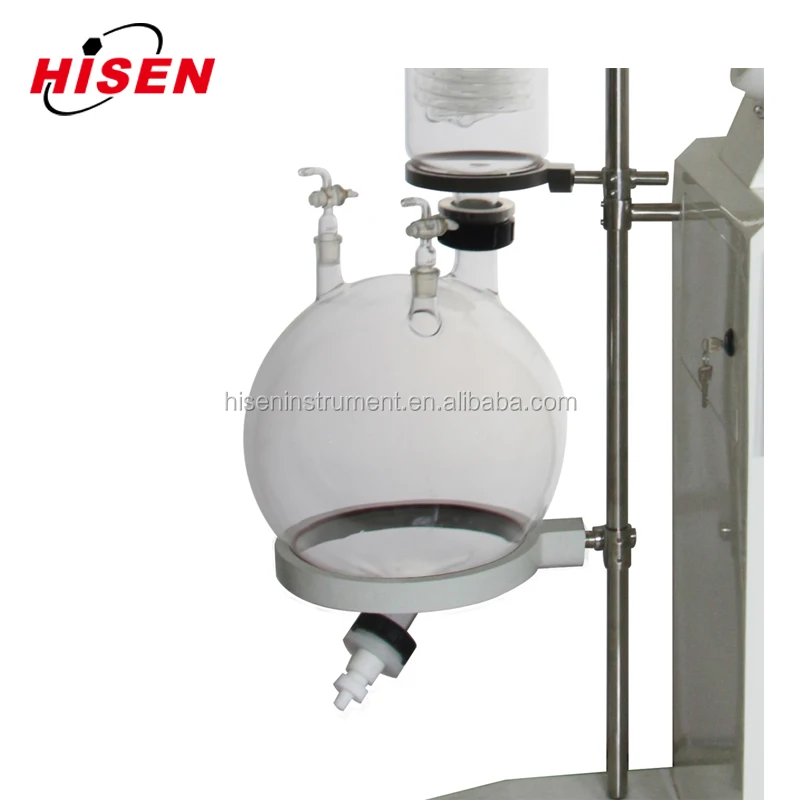

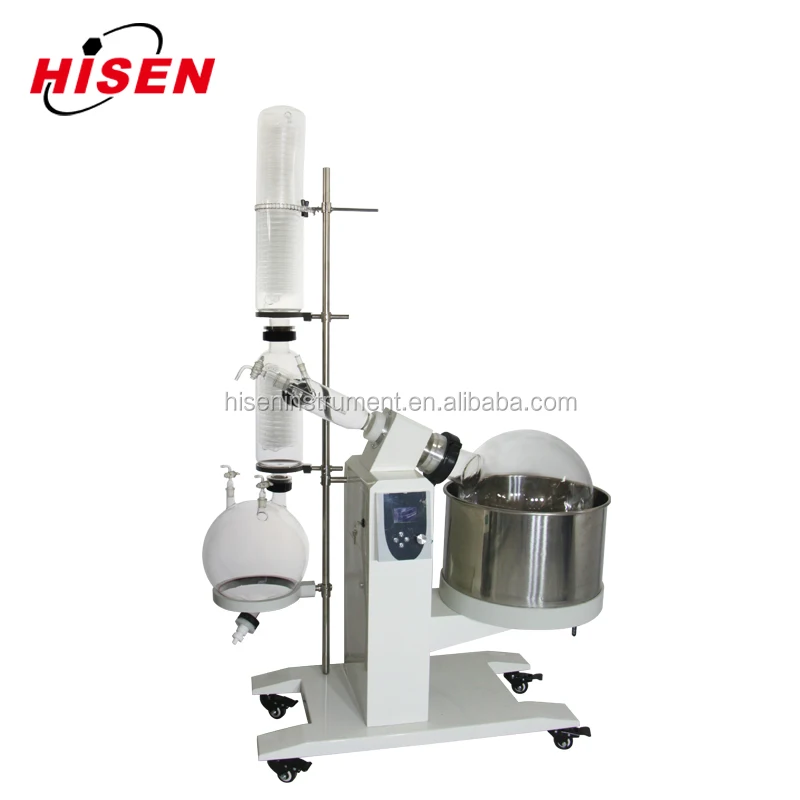

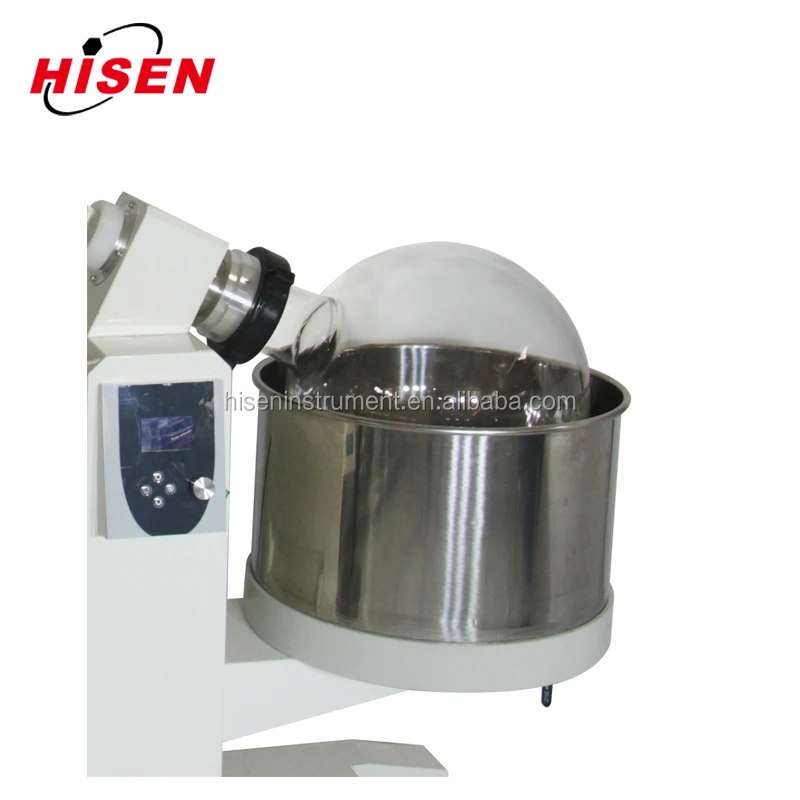

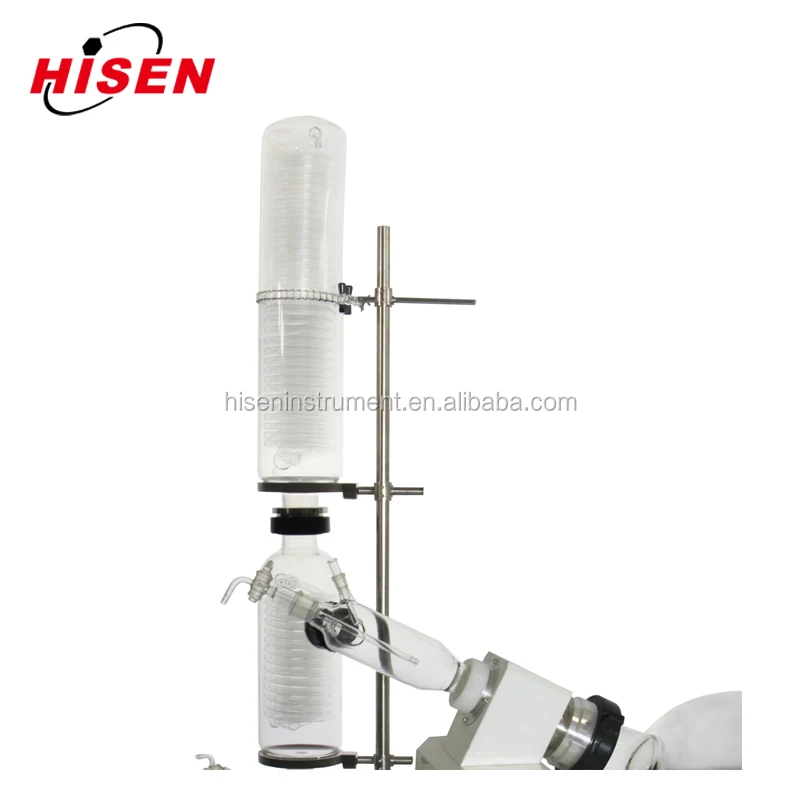

Structure Display
Technical Data
| Model | RE505 | RE510 | RE520 | RE530 | RE550 |
| Rotation Flask | 5L | 10L | 20L | 30L | 50L |
| Bath Lift | Motor lift | ||||
| Condenser | Glassware: Vertical with spiral glass tubing | ||||
| Flask Rotation Speed | 0~120 rpm | ||||
| Moter Power | 80W | 180W | 180W | 250W | 250W |
| Receiving Flask | 3L | 5L | 10L | 20L | 30L |
| RPM Indicator | LCD Display | ||||
Vacuum Degree (Ultimate Pressure) | 4mbar | 20mbar | |||
| Temp. Range Heating Bath | Water bath/Oil bath: RT~180℃ | ||||
Heating Power (customizable as clients' requirement) | 2KW | 3KW | 4KW | 5KW | 6KW |
Temp. Control | PID from main heater, ON/OFF Control | ||||
Safety | Over-temp and fuse protections | ||||
Glass Material | High borosilicate glass 3.3 | ||||
| Power Source | 220V/110V | ||||
