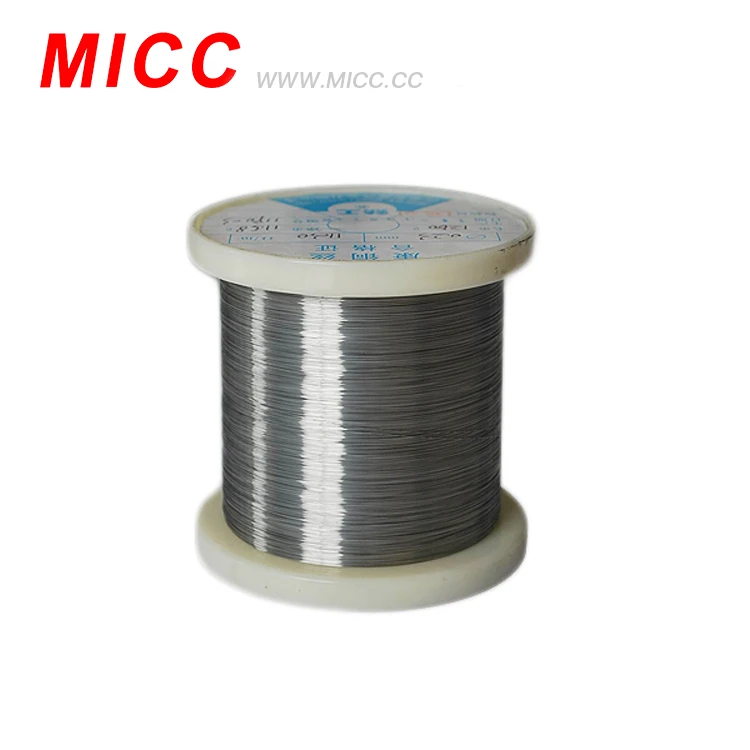

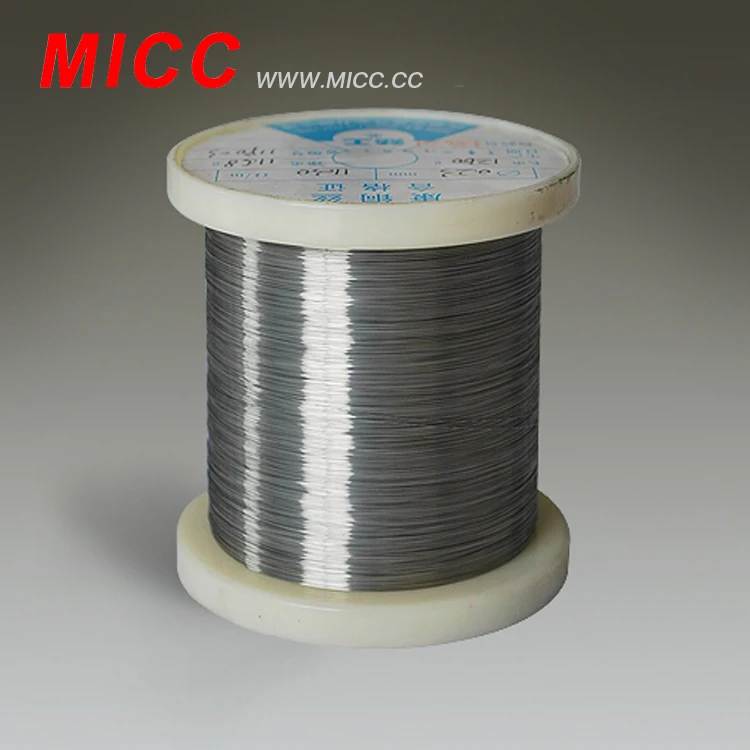

MICC factory direct supplied customized diameter Constantan wire resistence wire
- Category: >>>
- Supplier: Micc Tech. Limited
Share on (62268828508):
Product Overview
Description
MICC factory direct supplied pure nickel wire for industrial use
heating element wire
Resistance heating wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy. Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc. It is widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.
- Name: Heating resistance wire
- Type: Ni-Cr wire, pure Nickel, Chromel alloy, Fe-Cr-Al alloy, Copper nickel alloy, etc.
- Color: bright, oxidized
- Package: Carton or wooden case as demanded
- Application: making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor
- Place of Origin: Jiangsu, China (Mainland)
- Eco-friendly: Yes
- MOQ: 1kgs
- Certificate: ISO,CQC
- Making sample time: all type in stock
- Trade term: FOB, EXW, CIF, CFR
- Payment term: T/T, Western Union, L/C
Specification of Cold-drawing Round Type heating element wire
Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
>0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
>0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
>0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
>0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
Specification of Cold-drawing Strip Type heating element wire
Thickness(mm) | Tolerance(mm) | Width(mm) | Tolerance(mm) |
0.05-0.10 | ±0.010 | 5.00-10.0 | ±0.2 |
>0.10-0.20 | ±0.015 | >10.0-20.0 | ±0.2 |
>0.20-0.50 | ±0.020 | >20.0-30.0 | ±0.2 |
>0.50-1.00 | ±0.030 | >30.0-50.0 | ±0.3 |
>1.00-1.80 | ±0.040 | >50.0-90.0 | ±0.3 |
>1.80-2.50 | ±0.050 | >90.0-120.0 | ±0.5 |
>2.50-3.50 | ±0.060 | >120.0-250.0 | ±0.6 |
Alloy Type | Diameter | Resistivity | Tensile | Elongation(%) | Bending | Max.Continuous | Working Life |
Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
>3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 | >8000 |
Production flow of heating element wire
