Mining powder movable conveyer belt, belt conveyor for stone crushing plant,cement plant
- Category: >>>
- Supplier: Henan Hongxing Mining Machinery Co. Ltd.Henan Ltd.
Share on (62268830857):
Product Overview
Description
Mining powder movable conveyer belt
Product Description
1.Introduction of Mining powder movable conveyer belt
• Mining powder movable conveyer belt is widely used in the conveyance of bulk materials or piece articles and the production line in mine, metallurgy, chemistry, casting and building material industry and the production departments such as hydropower station construction site and port.
• According to the conveying requirement, one belt conveyor can convey materials independently or several belt conveyors form or with other conveying machines form a horizontal or tilted conveying system.
• This series of conveying equipment can be used in the temperature ranges of -20°C~+40°C and the temperature of the materials to be conveyed should be below 50°C.
2.Advantages of Mining powder movable conveyer belt
◊ big conveying amount
◊ long conveying distance
◊ smooth conveyance
◊ simple structure
◊ convenient maintenance
◊ standard spared parts
◊ long conveying distance
◊ smooth conveyance
◊ simple structure
◊ convenient maintenance
◊ standard spared parts
◊ low noise
◊ no relative movement between the materials and the belt
◊ no relative movement between the materials and the belt
3.Working principle of Mining powder movable conveyer belt
♥ Mining powder movable conveyer belt is mainly composed of rack, conveying belt, belt roller, tension device and driving device.
♥ The rack is connected with excellent steel plate, and there are belt roller and carrier roller for driving and supporting the conveying belt, and there are two driving methods: reduction motor drive and motorized pulley drive.

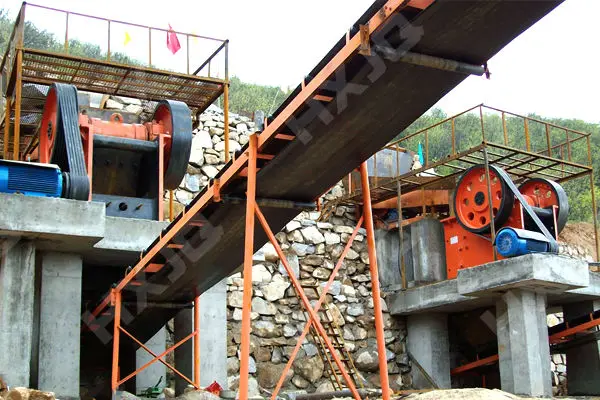

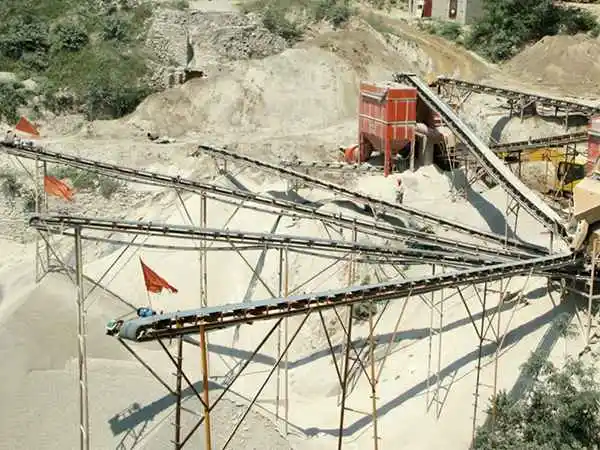

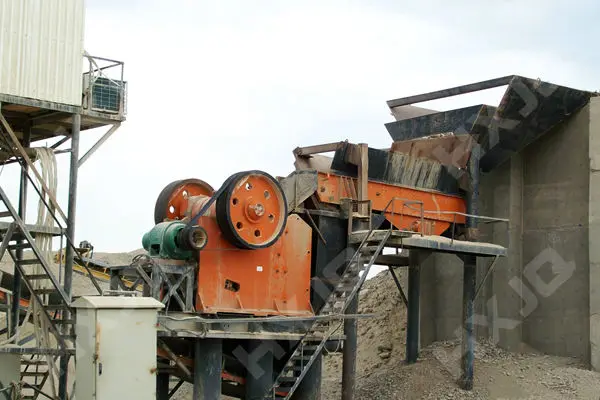

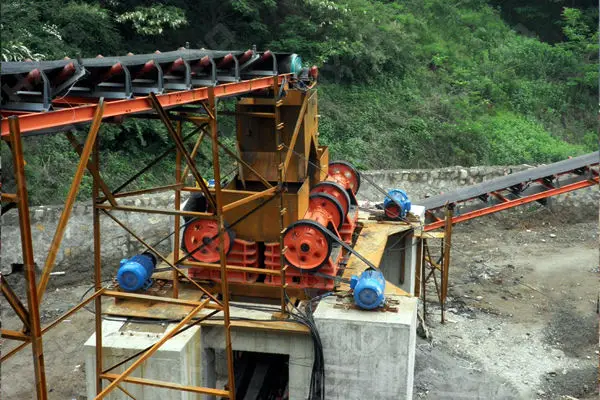

Successful case:

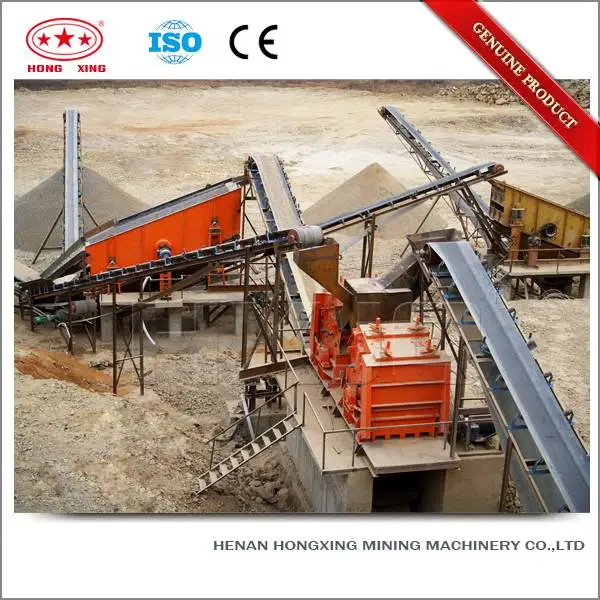

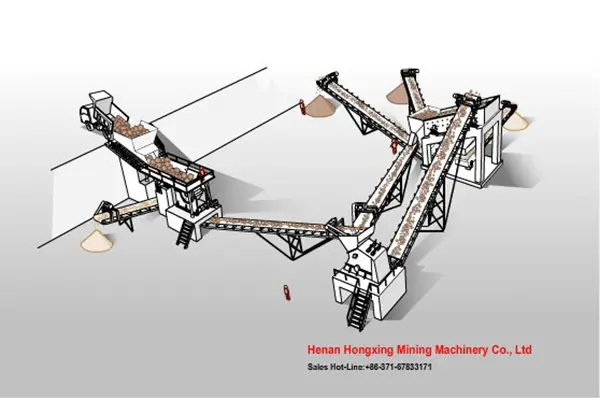

Main Equipment for 50 t/h Limestone Crushing Production Line:
• GZD750*2500 Vibrating feeder
• PE500*750 Jaw crusher
• PF1007 Impact crusher
• 4YK1237 Vibrating screen
• B500*17m Belt conveyor
• 2 sets of B500*19m Belt conveyor
• 4 sets of B500*15m Belt conveyor
• Finished size: 0-10mm, 10-20mm, 20-30mm
Main Equipment for 50 t/h Limestone Crushing Production Line:
• GZD750*2500 Vibrating feeder
• PE500*750 Jaw crusher
• PF1007 Impact crusher
• 4YK1237 Vibrating screen
• B500*17m Belt conveyor
• 2 sets of B500*19m Belt conveyor
• 4 sets of B500*15m Belt conveyor
• Finished size: 0-10mm, 10-20mm, 20-30mm
4.Technical parameters of Mining powder movable conveyer belt
Belt width (mm) | Conveying length(m) Power(kw) | Conveying speed (m/s) | Conveying capacity(t/h) | ||
500 | ≤12 ----- 3 | 12-20 ----- 4-5.5 | 20-30 ----- 5.5-7.5 | 1.3-1.6 | 78-191 |
650 | ≤12 ----- 4 | 12-20 ----- 5.5 | 20-30 ----- 7.5-11 | 1.3-1.6 | 131-323 |
800 | ≤6 ----- 4 | 6-15 ----- 5.5 | 15-30 ----- 7.5-15 | 1.3-1.6 | 278-546 |
1000 | ≤10 ----- 5.5 | 10-20 ----- 7.5-11 | 20-40 ----- 11-22 | 1.3-2.0 | 435-853 |
1200 | ≤10 ----- 7.5 | 10-20 ----- 11 | 20-40 ----- 15-30 | 1.3-2.0 | 655-1284 |
1400 | ≤10 ----- 11 | <10-20 ----- 18.5 | 20-40 ----- 22-37 | 1.3-2.0 | 893-1745 |
1600 | ≤10 ----- 15 | <10-20 ----- 22 | 20-40 ----- 30-45 | 1.3-2.0 | 1069-2195 |
Note:
1. The conveying quantity is worked out by the following conditions: material density is between 1. 0t/m3-1.6t/m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.
2. Density of material is less than 2.5t/m3.
3. The conveying length is not restricted to the form; different length can be manufactured according to customers demands.

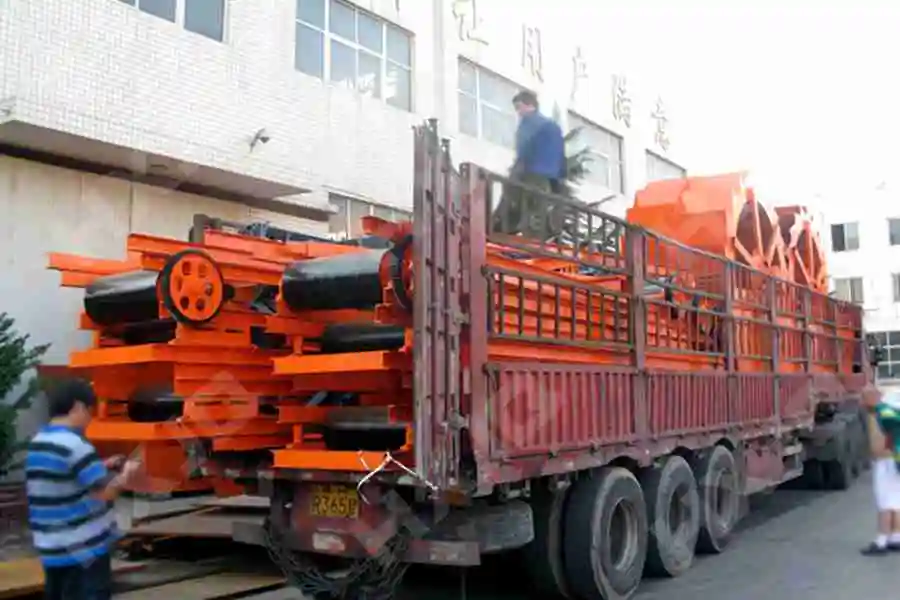

Packaging & Shipping
Delivery
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
Company Information
Our Services
Why Choose Us
1. We are Factory ( NOT Dealer )
All machineries from Henan Hongxing Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service.
So please buy machine from factory.
2. Training & Service
1)Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
4)In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business, we will help you
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable type for you and send you a best quotation.
