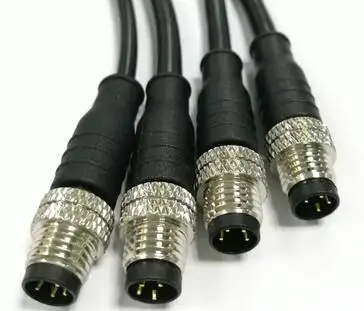

circular connector M8 M12 M16 connector waterproof connectors
- Category: >>>
- Supplier: Shenzhen Linconn Electronic Technology Co. Limited
Share on (62268866690):
Product Overview
Description
circular connector M8 M12 M16 connector Binder connector
Electrical Specification:
1.Rated Current:1-30A
2.Withstand Voltage:500V AC ,60S
3.Shielding:>75dB at 10Mhz;>40dB at 1 Ghz (IEC60169-1-3)
4.Rated Temperature:-60degree,+220degree
5.Corrosion Resistance:Salt spray test,>144h (IEC60512-6,11f)
6.Humidity:60degree,95% Min
7.Ingress protection:IP66~IP68

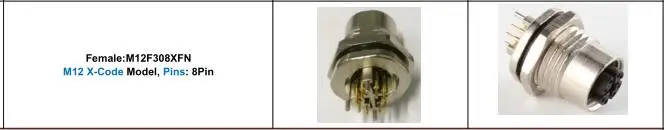

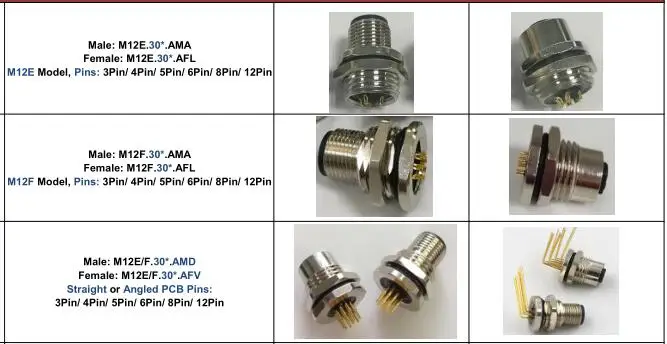

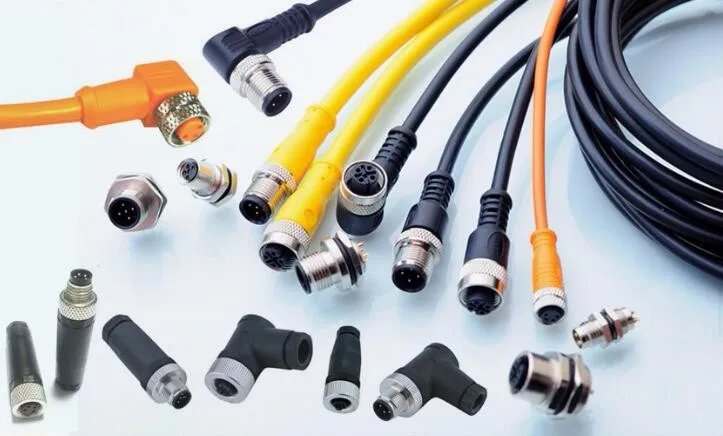

M12 connector description:
• The M12 circular connector we produced conform to international standard IEC61076-2-101 with M12*1.0 screw locking.
• Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical

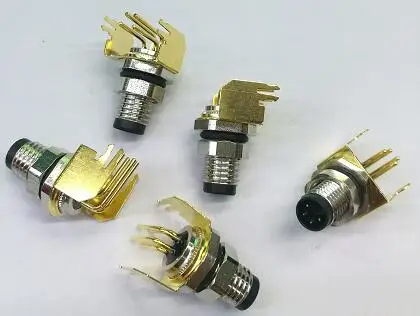

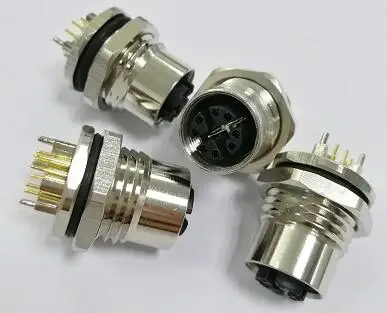

• M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A, B, D, coding, for both screw-locking and quick-locking system.
Electrical Data:
Rated current: 4A / 2A / 1.5A
Rated voltag: 250V / 60V / 30V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ
Connector Specification:
Gender: Male / Female
Insert: PA66+GF Contacts: Brass / Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Degree of protection: IP67 in locked condition
Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC/PUR
Temperature range: -25°C ~ +90°C
Important Applications:
1.Medical Electronics
2.Test and Laboratary
3.Measurement Instrumentation
4.Data and Telecom Systems
5.Audio and video Applications
6.Military and Aerospace
7.Industrial Controls
8.Nuclear Technology
Company Information

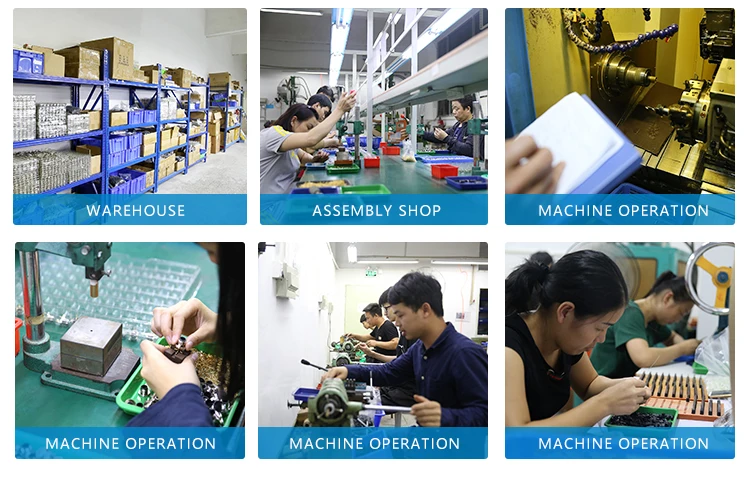

1. Our factory has had rich experience for 16 years , professional resarch ,strong development capabilites and advanced management experience.Comprehensive R&D testing and the whole line of production make our products high reliability and high operational capability.
2. Our factory specializes in electrical connector and cable, like the circular B K S serise connector; M12&M8 connector; Pogo Pin; metal connector, Banana Plug, waterproof connector, custome connector and etc.
3. Service concept: making all efforts to offer value-added connector products and service to strength client's compentitive advantages.
4. competitive price.
5. Main market: Eastern Aisa, Mid East, North America, Western Europe, Eastern Europe.
FAQ
1.Do you offer cables too?
Yes,we can offer cable
2.Do you offer samples?
We can offer samples to test
3.If this connector is not compatible, can I ask for money back?
Yes, if it can not work, we can refund money
4.What the way of payment is mainly?
TT in advance, Western Union
5.How about the delivery time of this connector does?
5-7 days for samples,15-30 days for big orders
