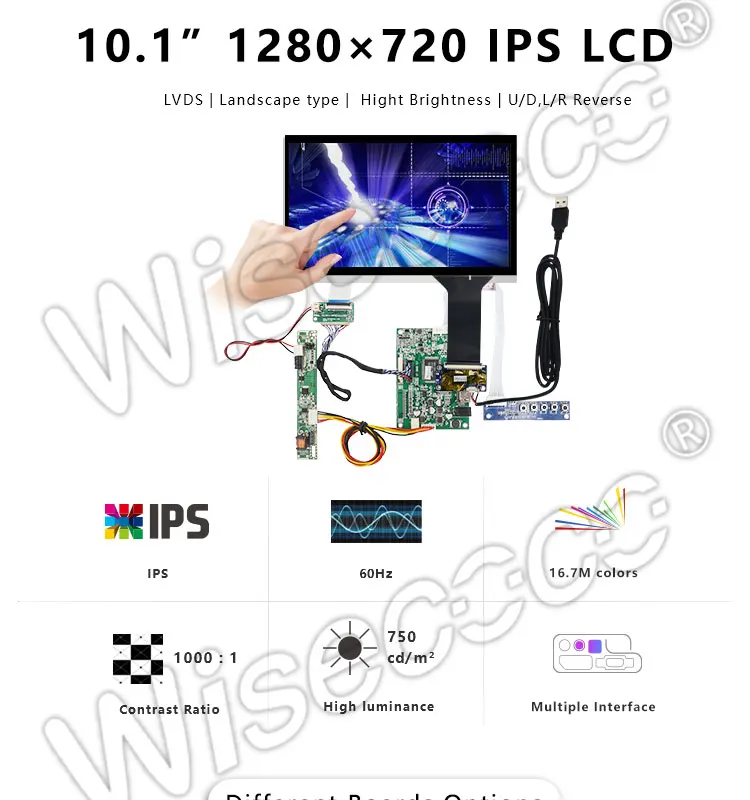

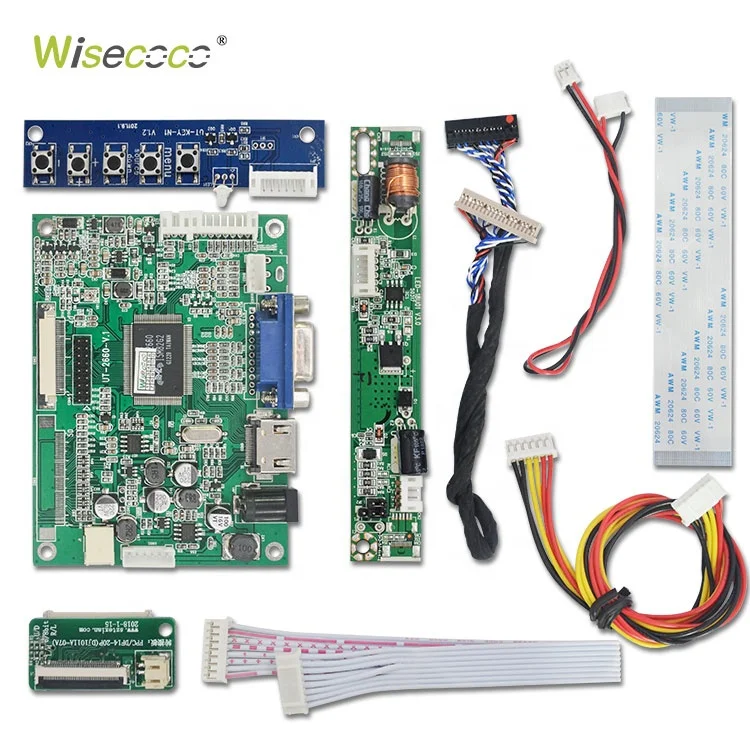

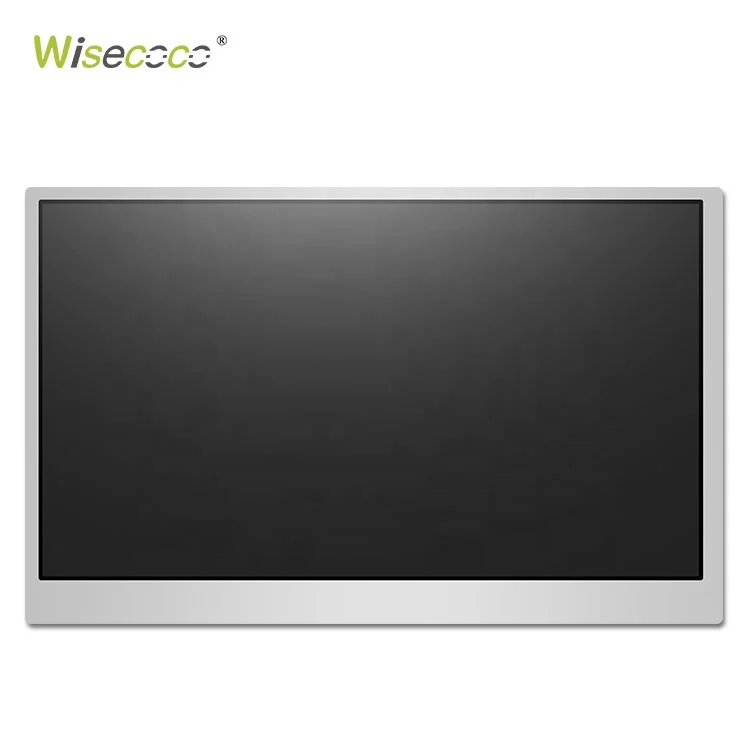

High Brightness 10.1 Inch 1280*720 Vga Laptop Tft Touch Screen Lcd Module Panel Pc Computer Advertising Display Controller Board
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62268945778):
Product Overview
Description
Product Description
high brightness 10.1 inch 1280x720 vga laptop tft touch screen lcd module panel pc computer advertising display controller board
General Features | |||
Diagonal Size | 10.1 inch | Type | a-Si TFT-LCD, LCM |
Pixel Format | 1280(RGB)*720 [WXGA] | Configuration | RGB Vertical Stripe |

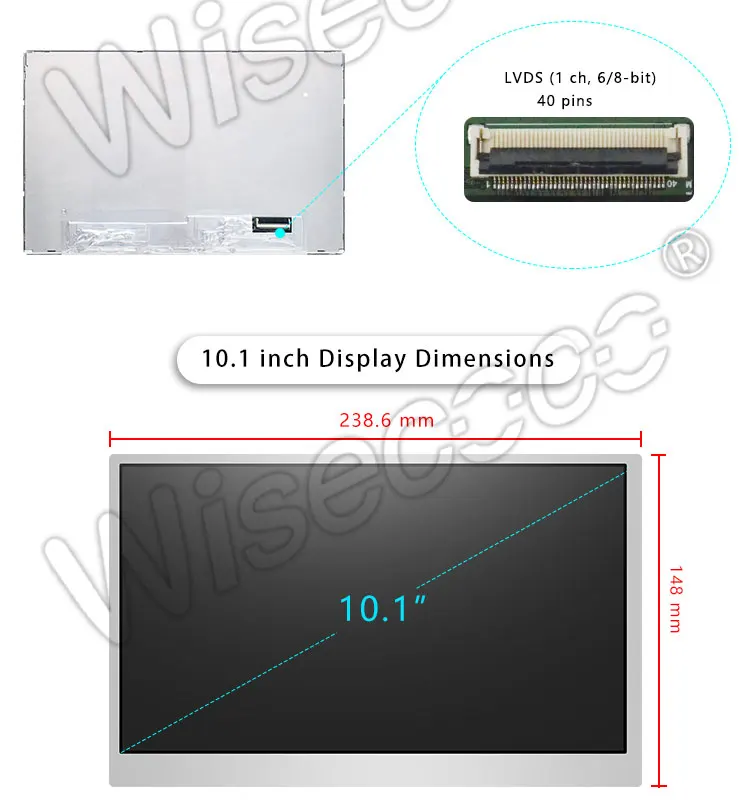

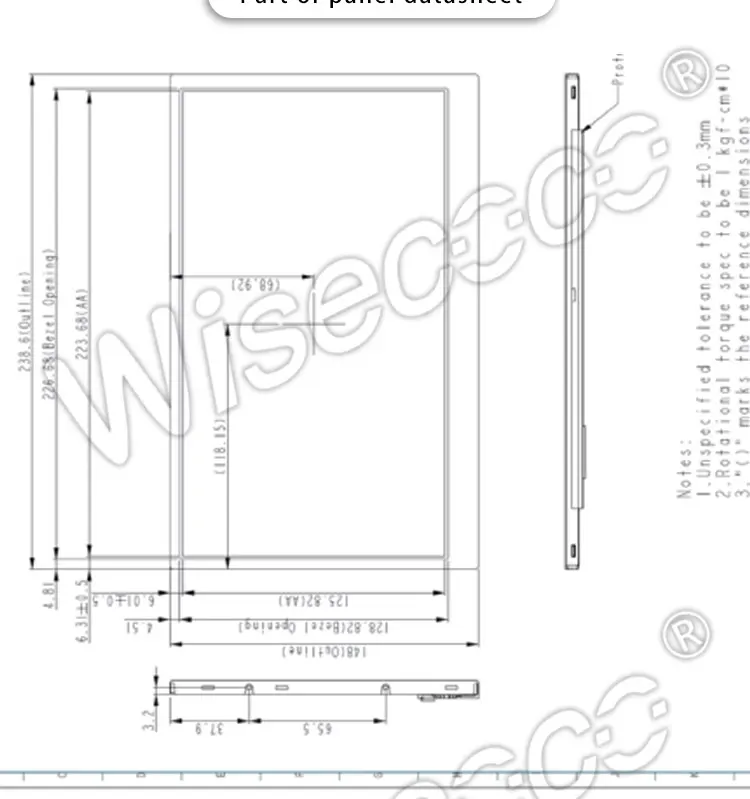

Active Area | 223.68(H)*125.82(V) mm | Outline Dim. | 238.6(H)*148(V)*9.7(D) mm |
Bezel Area | 226.68(H)*128.82(V) mm | Treatment | Antiglare |
Luminance | 750 Cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive |
Support Color | 262K/16.7M 70% NTSC | Light Source | WLED , 20K hours , W/O Driver |
Weight | 360g (Max.) | Designed For | Automotive Display&Industrial&Pad&Tablet |

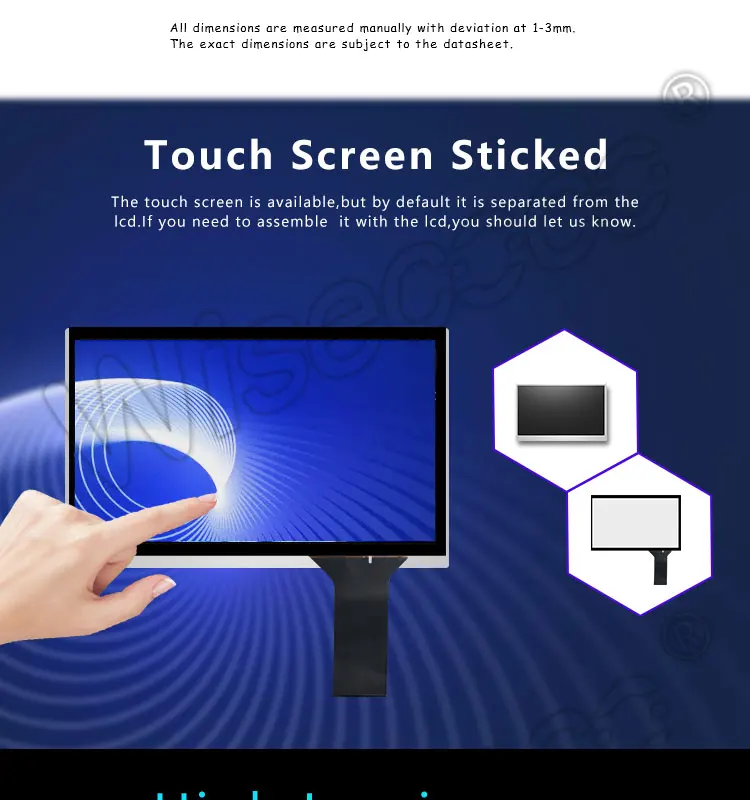

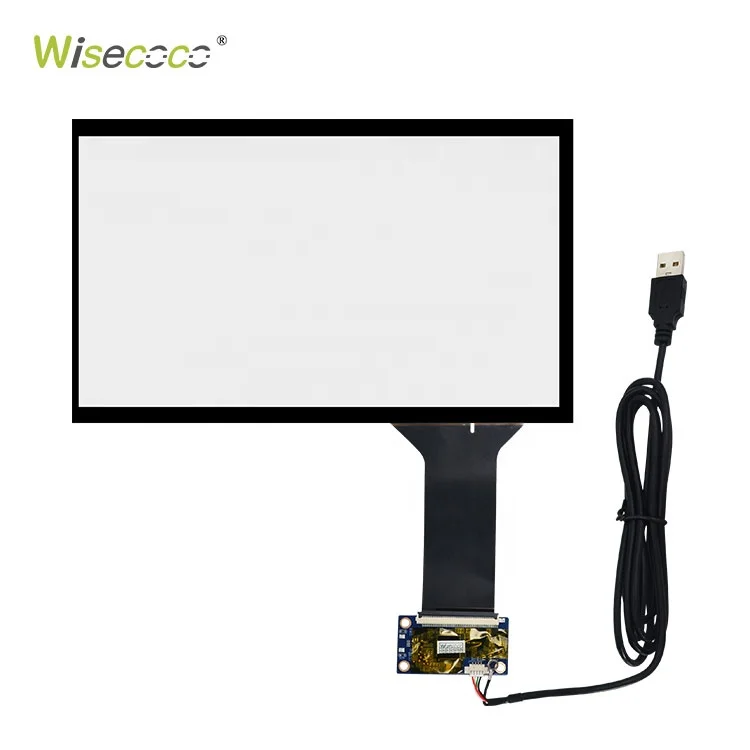

Frame Rate | 60Hz | Touch Panel | Available |

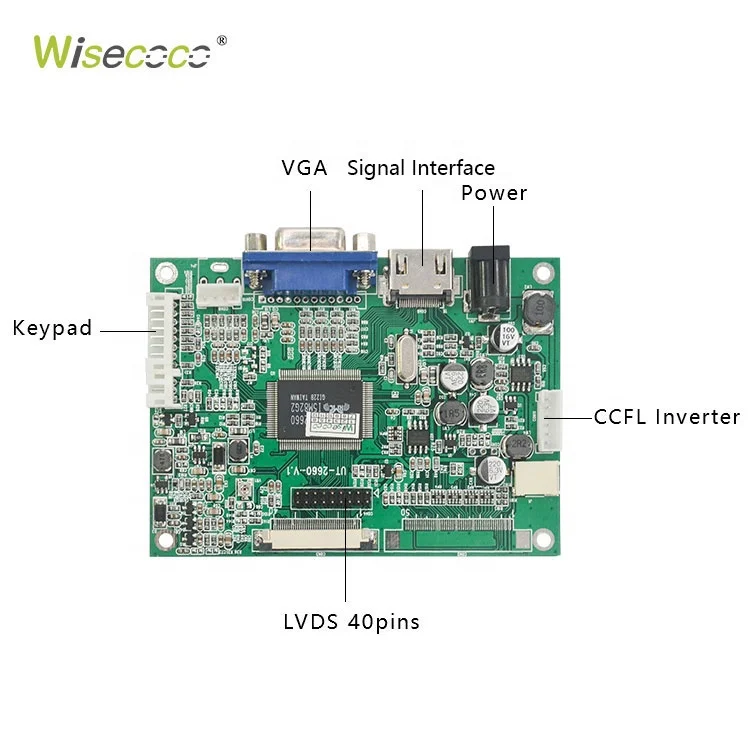

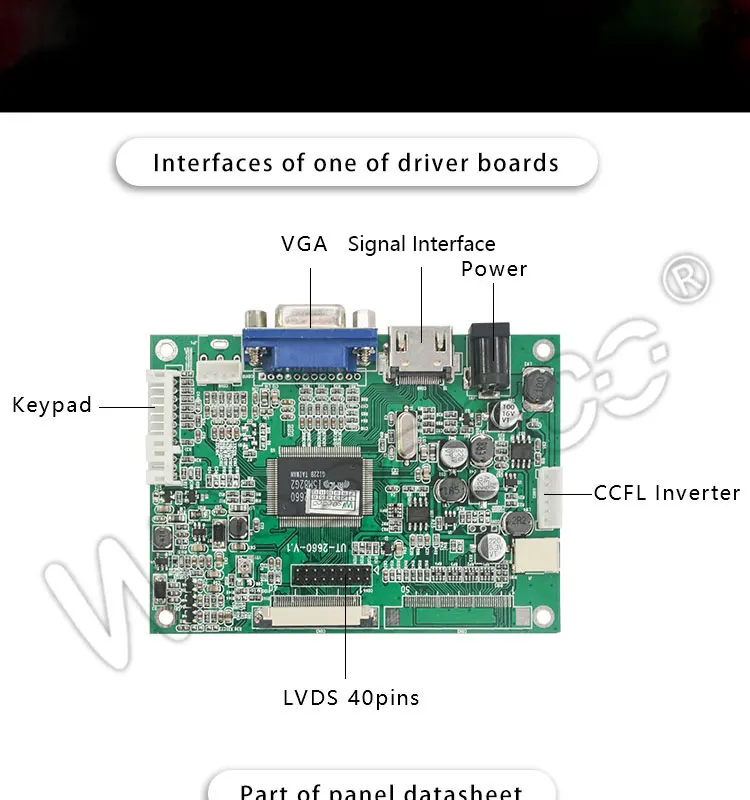

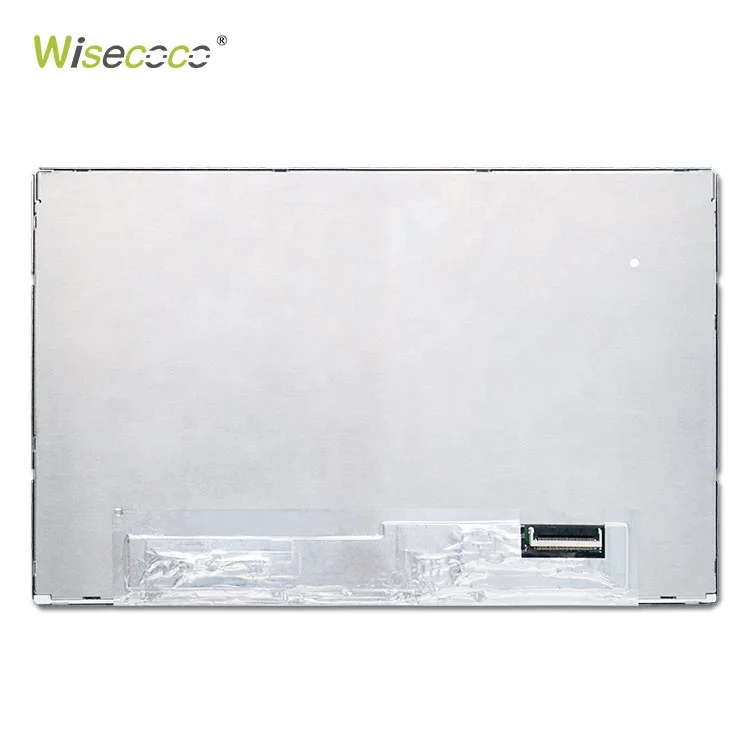

Interface Type | LVDS (1 ch, 6/8-bit) , 40 pins , Connector | ||
Power Supply | 3.3V (Typ.) | ||
Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C | ||
