HDMI Splitter 1x16 1 in 16 out 2k x 4k
HDMI Splitter 1x16 1 in 16 out 2k x 4k

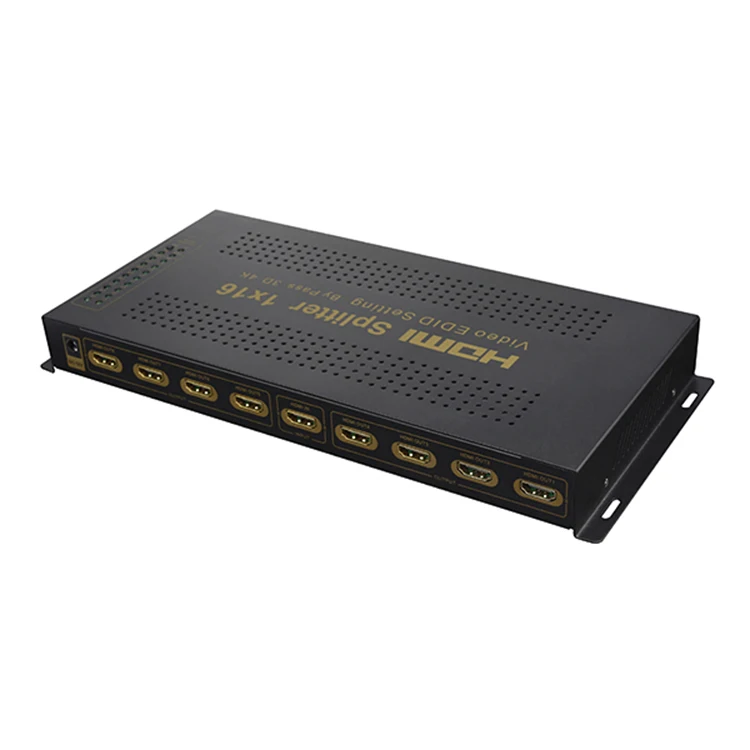

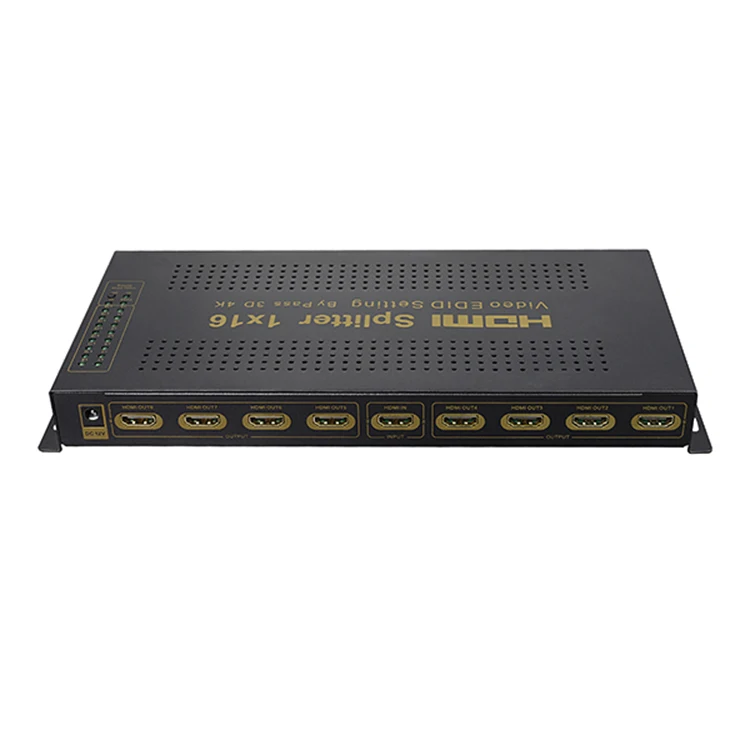

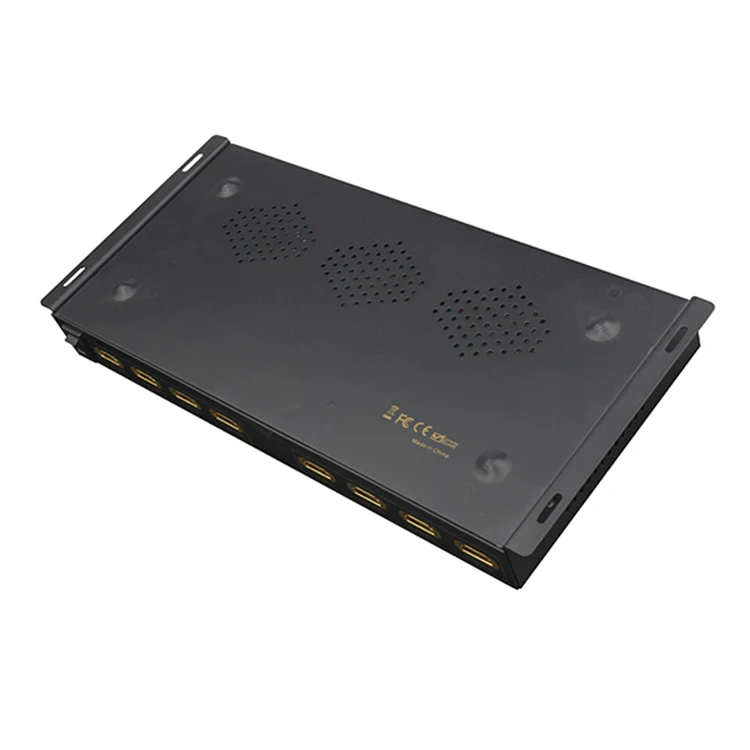

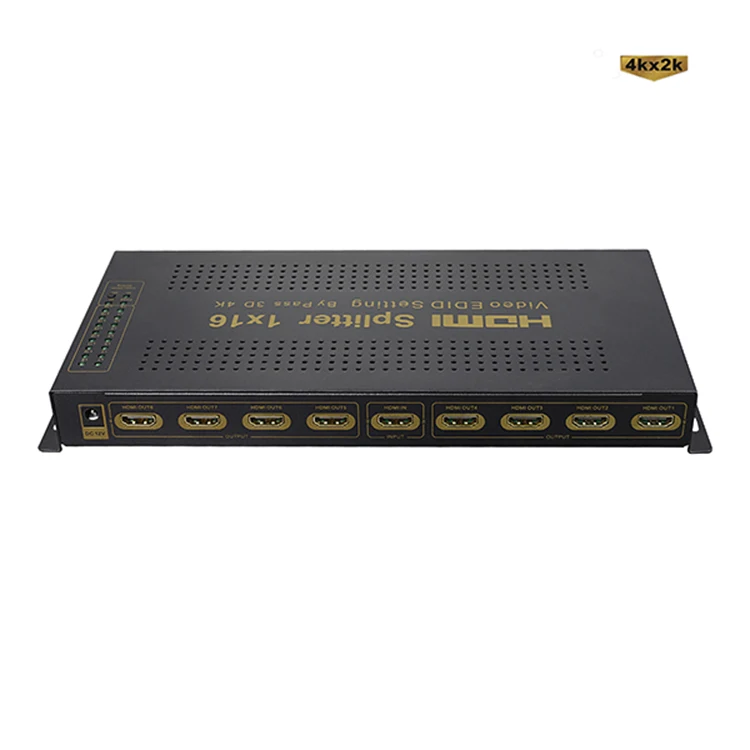

1x16 HDMI Splitter
Model No:HDSP0006M1
The 1x16 HDMI Splitter allows one HD source to be split easily to sixteen support HDMI signal inputs display .And the 1X16 splitter also supports video EDID setting, The user can do choose one video mode out from the three video modes that include 3D/4K/Pass. It will bring the super vivid HD experience to the users.
High16 Port HDMI Splitter 1x16 1 to 16 2k x 4k
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.




ShenZhen ASK 16-port Hdmi Splitter 1x16 4Kx2K 3D 1 to 16 Support EDID setting 4K/3D/By Pass
FEATURES
l One HDMI input signal split to sixteen HDMI sink devices
l Support Video Out Resolution Set-up, it can set up as the 4K or 3D video out, Plus it can set up as the Video Pass-through out, at this mode the splitter will output the video resolution as the output display can support.
l Support 3D 4K HDMI signal input and output
l Support deep color 24bit, 30bit, 36bit
l Support Blue-Ray 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30fs/2160P
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 10metres AWG26 HDMI standard cable length,
output up to 10metres AWG26 cable length
l No loss of quality
l Installs in minutes
l Need DC12V/3A power supply
HDMI Splitter 1x16 1 in 16 out 2k x 4k
PACKAGE CONTENTS:
1,12V Power Adaptor
2,one pc of Manual
HDMI Splitter 1x16 1 in 16 out 2k x 4k
SPECIFICATIONS: HDSP0006M1
HDMI resolution …………24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P Support video color format …………………………..…………….24bit/30bit,36bit deep color Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Max bandwidth……………………………………………………………………………..340MHz Max transmission bandwidth…….………………….…………………………………..10.2Gbps Input/Output TMDS signal ………….…………………………..…………0.5~1.5Volts p-p(TTL) Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL) Input cable distance..…... ………………………….…..…≤10m AWG26 HDMI standard cable Output cable distance……………………………………...≤10m AWG26 HDMI standard cable Max working current………………………………………………………………………........2.0A Power adapter format..Input: …………......AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A Operating Temperature range……..…………….…………………………………… (0 to +40℃) Operating Humidity range………………………….….……….5 to 85%RH (No Condensation) Dimension (L x W x H) ……………………………….………………………297x 137x 33 (mm) Weight…..………………………………………………………..…….……………………….1020g |
HDMI Splitter 1x16 1 in 16 out 2k x 4k
Operating and Connecting:
HDMI Splitter 1x16 1 in 16 out 2k x 4k
Connect one cable from HDMI source devices into HDMI Splitter input.
Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
Connect 12V power supply to the HDMI 1x16 Splitter.

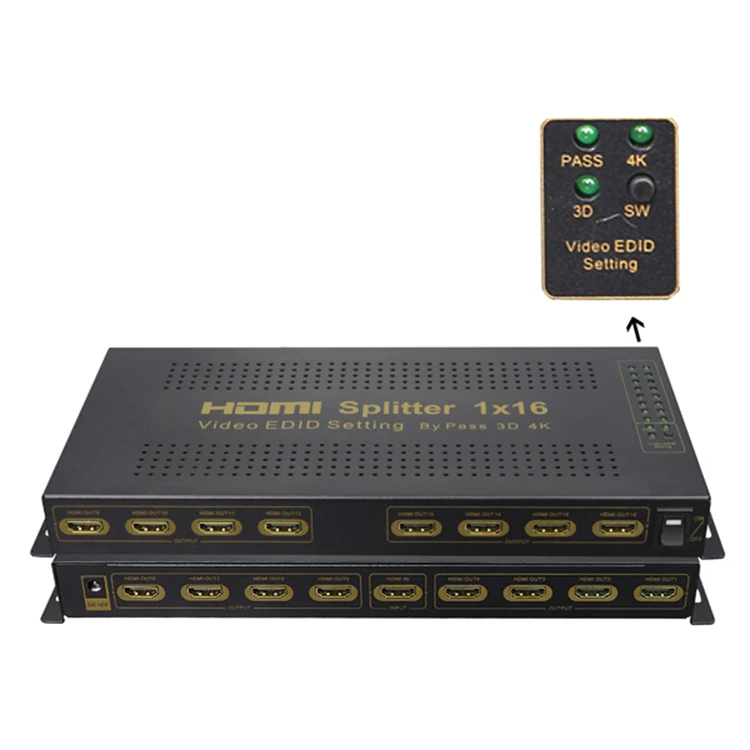

Press the switch key can do switch of the three EDID video mode: 3D, 4K and Pass.


Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
Pls use the original factory power adaptor.
Packing: Standard neutral gift box and outer carton
Shipping:7-15days after received the payment
