Hot Selling 12V/24V Solar Controller 10A/20A MPPT Solar Charge Controller


Specification:
1.MPPT controller
2.Soft-start function
3.Avaliable for 12V and 24V output at the same time
4.warranty:12 months


Feature:
1.Build-in industrial micro controller.

 2.One-key setting,digital display,auto memory function.

 3.Fully MPPT charge management.

 4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

 5.Dual mosfet Reverse current protection ,low heat production.



Model:
10A
20A
System Voltage:
12V/24V
Max. Input Voltage of solar panel:
26V
Max. charge current:
10A
20A
MPPT efficiency:
99%
Over voltage protection:
16V; ×2/24V
Voltage of stop charging:
14.7V; ×2/24V
Discharge recovery voltage:
12.0V; ×2/24V
Over discharge voltage:
10.8V; ×2/24V
Working Temperature:
-20℃---+55℃
Size:
190mm×108 mm×41.5mm
Waterproof grade:
IP32

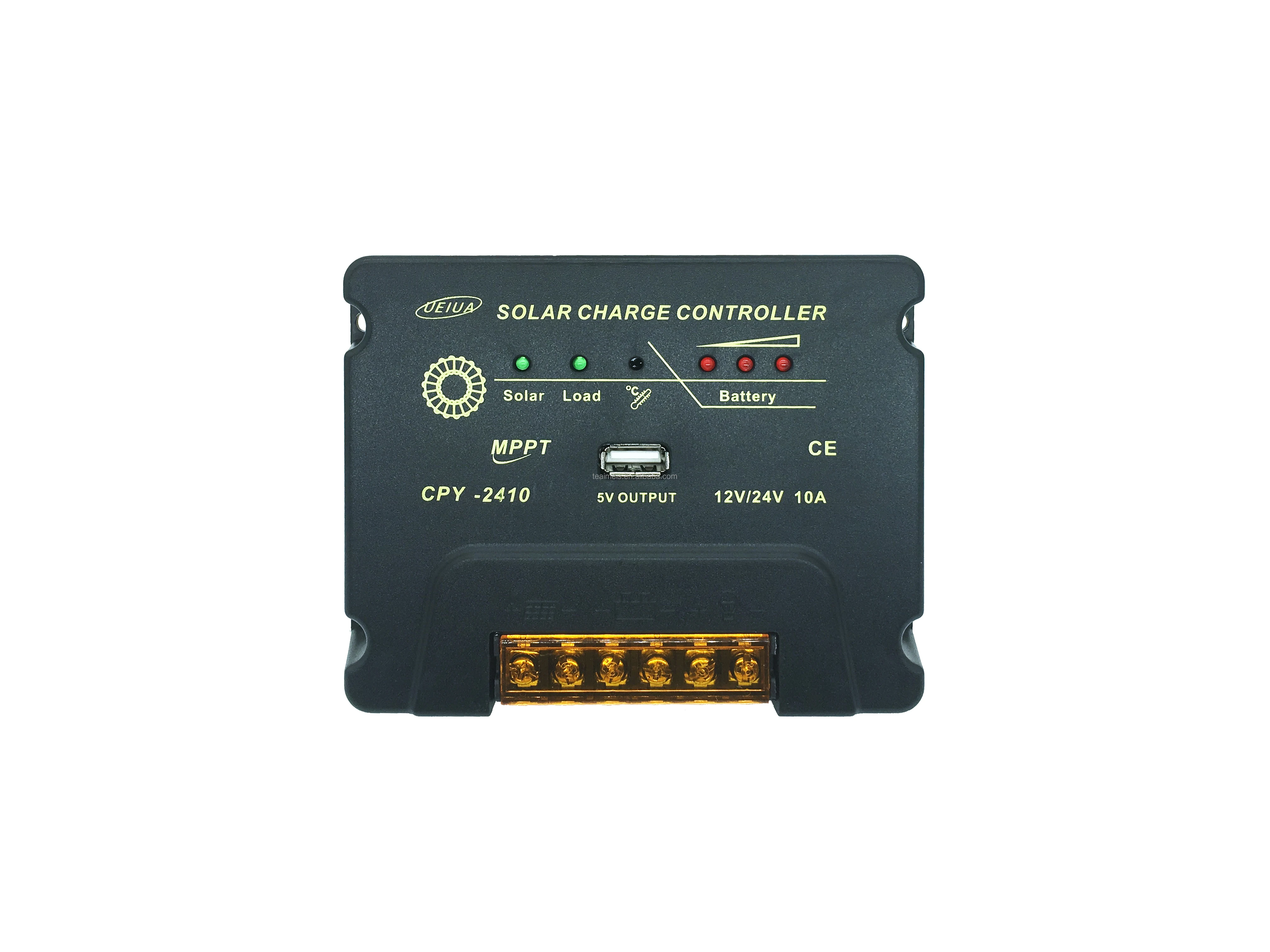

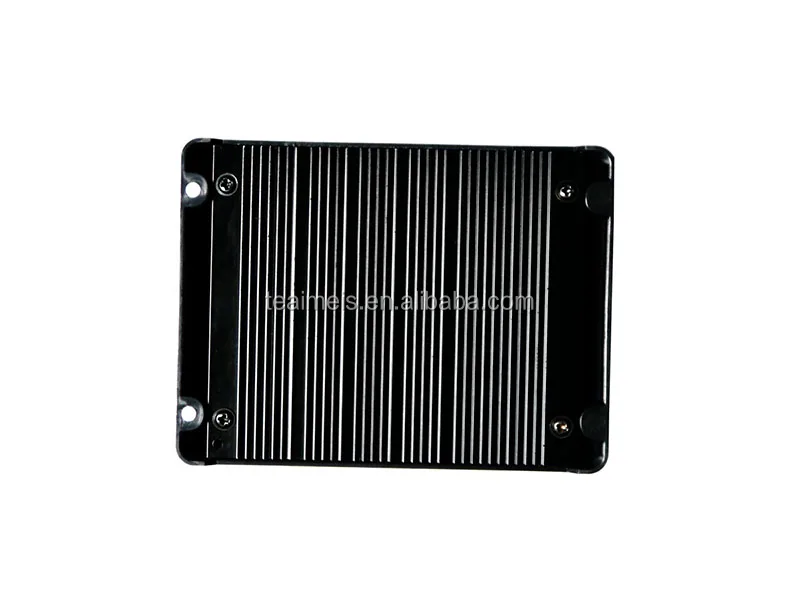

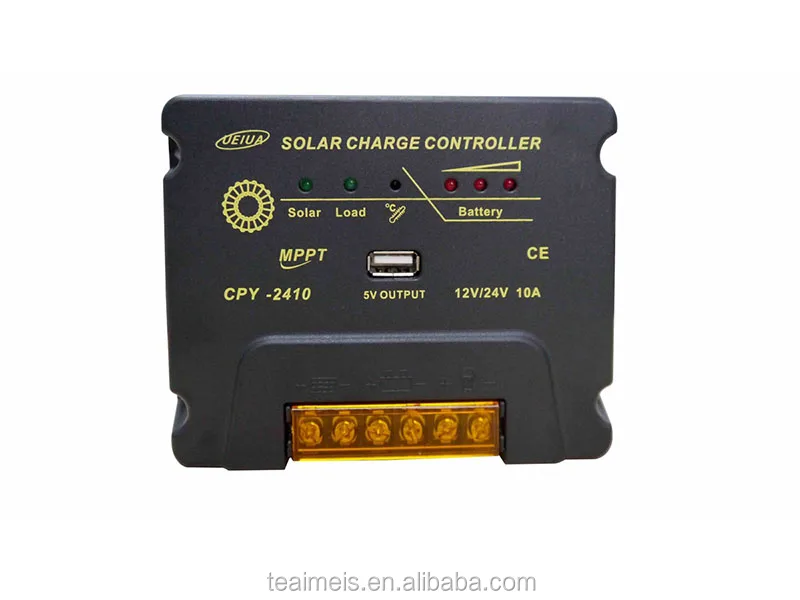

Detailed Images
