5G chipset x-ray inspection machine X6600 PCB xray inspecting system
Major applications:
PCBA BGA/IC LED Aliminum die casting Battery connector inspecting
1. Semiconductor package 5G chipset x-ray inspection machine
2. Electronic connector module.5G chipset x-ray inspection machine
3. Original Package 5G chipset x-ray inspection machine
4. Aerospace components 5G chipset x-ray inspection machine
5. Medical appliances5G chipset x-ray inspection machine
6. Automation components 5G chipset x-ray inspection machine
Video Link:
https://youtu.be/IUGLT_xeS1Q
https://youtu.be/9IlC9vNFFlQ
https://youtu.be/0krZkxgzlNg
X-ray Inspecting Features: 5G chipset x-ray inspection machine

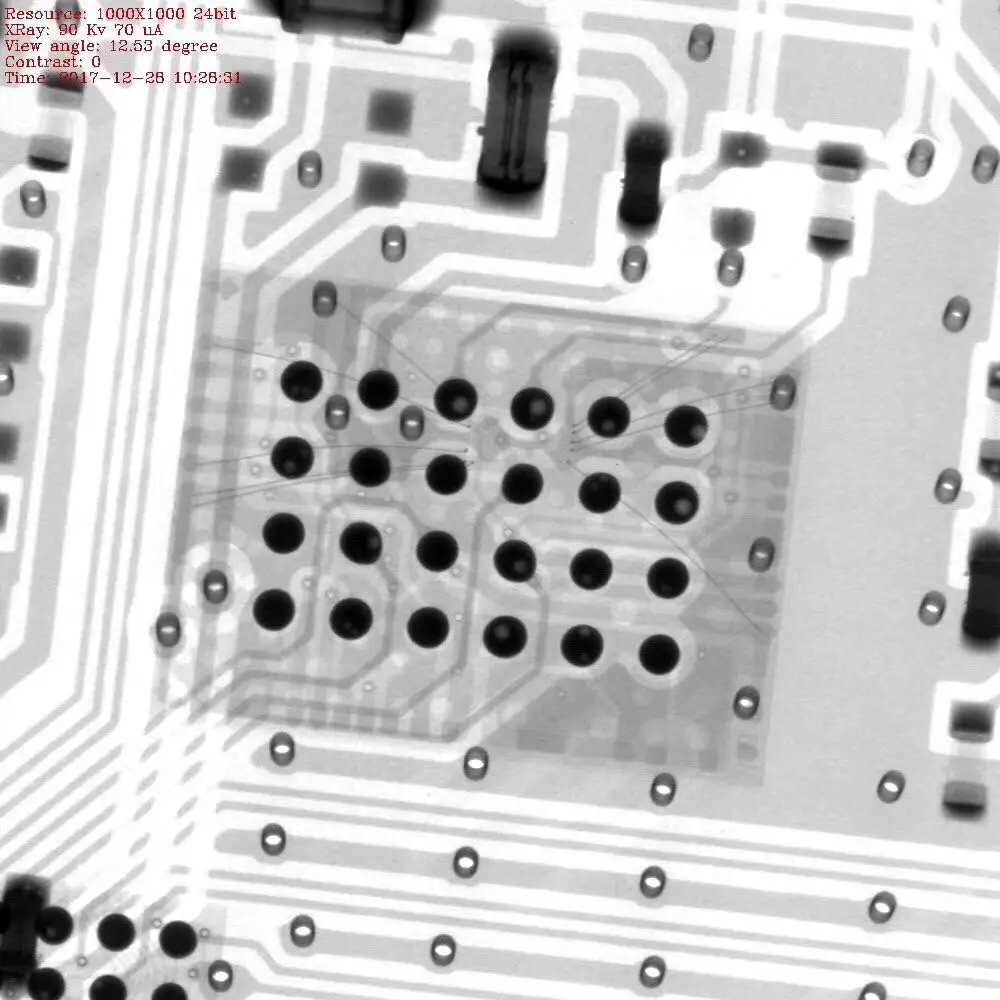

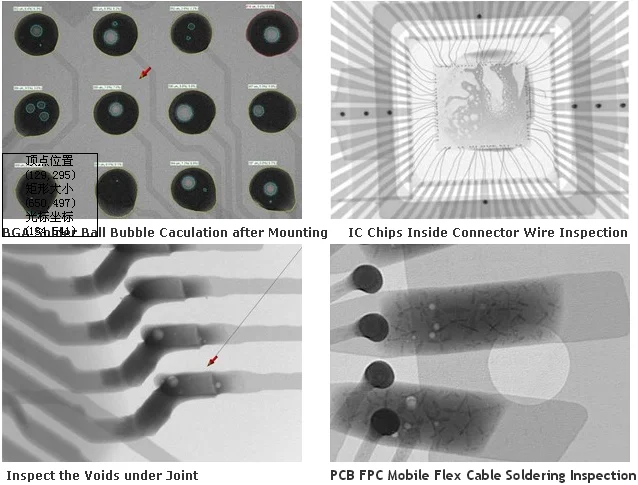

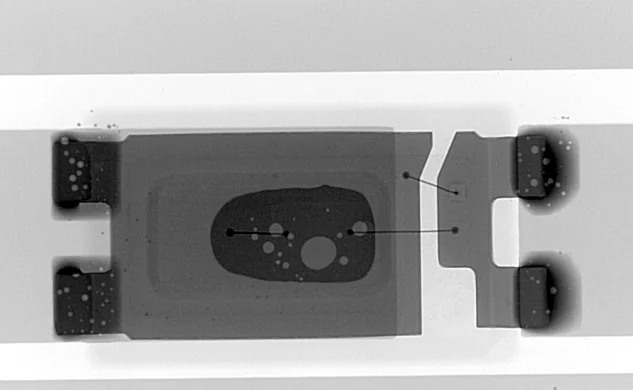

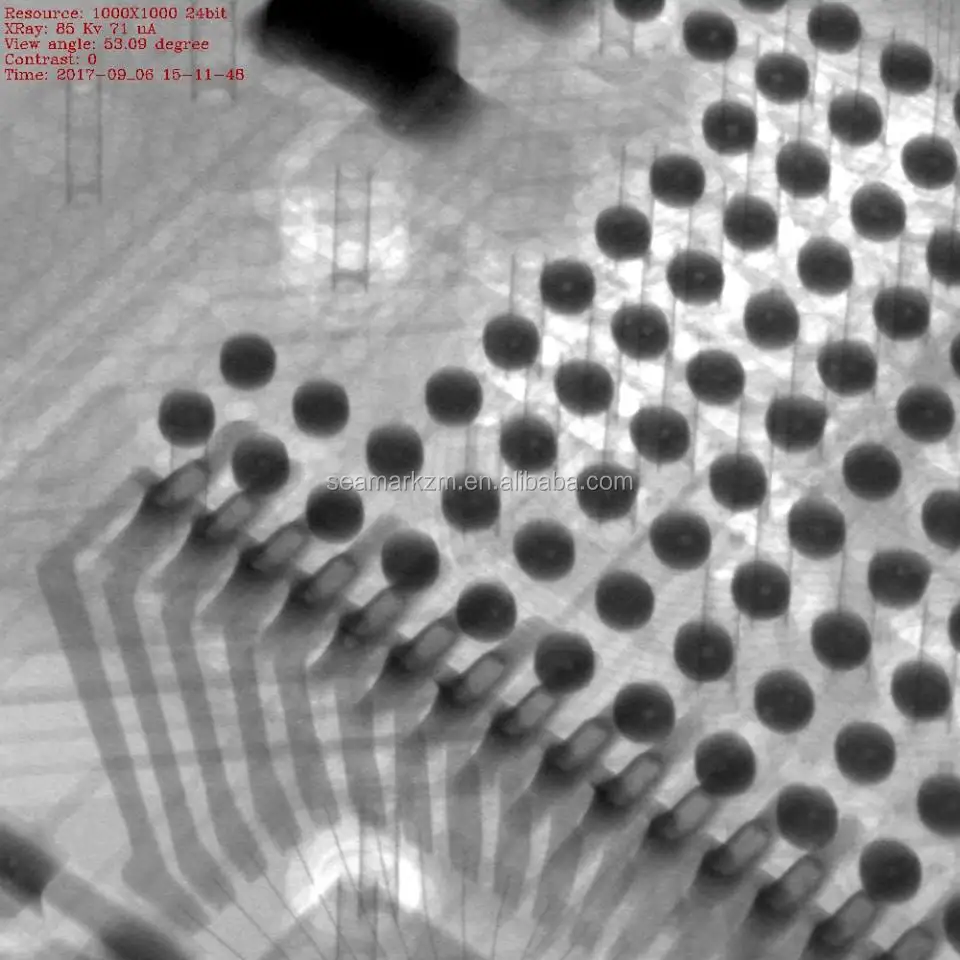

(1) Coverage of process defects up to 97%. Inspectible defects include: Empty solder, Bridge, Solder shortage, voids, components missing, and so on. In particular, the BGA, CSP and other solder joint devices can also be checked by X-Ray.5G chipset x-ray inspection machine
(2) Higher test coverage. It can check where the naked eye and the online test can not be checked. Such as PCBA was judged fault, suspected PCB inner trace break, X-ray can be quickly checked.5G chipset x-ray inspection machine
(3) The test preparation time is greatly reduced.5G chipset x-ray inspection machine
(4) It can observe other means of detection can not be reliably detected defects, such as: Empty soldering, air holes and poor molding and so on.5G chipset x-ray inspection machine
(5) Double layers board and multi-layer boards only one check (with layered function).
(6) Can provide relevant measurement information, used to evaluate the production process. Such as solder paste thickness, solder joints under the amount of solder.
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.5G chipset x-ray inspection machine
Detail Presetation
Digital Panel Detector Mapping Guide System+PC Control Interface
Application
Specification for Seamark X6600 X-ray inspection system | |||
Mainly Functions 5G chipset x-ray inspection machine | |||
Functions 5G chipset x-ray inspection machine | Advantages | ||
X-ray tube and detector can be moved along the Z axis smt X-ray Inspect equipment | can be detected the Defects less than 2.5μm | ||
Software setting voltage and current | Easy maintenance, with long life | ||
Can control the speed in X-Y direction | Eeasy operation, Traning time just need 15minutes | ||
Editable detecting procedures 5G chipset x-ray inspection machine | Suitable for the large batch detecting | ||
Detectors maximum inclination 70 ° | Semiautomatic to identify OK / NG in Products | ||
Large navigation windowr, mouse clicks canl move the stage to a position that you need. | High accuracy detection Can meet the size for kinds of samples allows a unique perspective to detect sample | ||
Technical Parameters 5G chipset x-ray inspection machine | x-ray machine prices | x-ray machine prices | |
Items 5G chipset x-ray inspection machine | Contents | ||

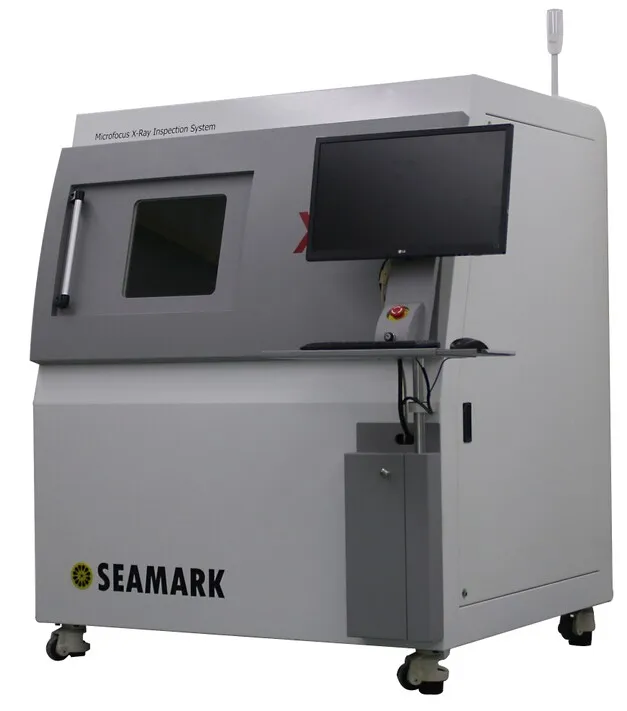

Model 5G chipset x-ray inspection machine | X-6600 | ||
X-RAY launching tube | Tube Type | Sealed type X-ray Tube | |
Maximum tube voltage | 90kV | ||
Maximum tube current | 0.12mA | ||
Focal size | 5um | ||
Magnification | Geometric magnification:150X System magnification:1000X | ||
Detectorx ray machine price | Image Speed | 30 fps | |
Resolution | 1000*1000 | ||
Tilt angle | Detector60°Tilting | ||
Cabinet Specifications | Stage size | 640mm*540mm | |
Dimension | L:1360mm,W:1360mm,H:1650mm | ||
Net weight | 900kg | ||
Input voltage | AC 110-220V (+10%)(international general power supply) | ||
X-ray leakage amount | ≤1 u Sv/h | ||
Operation System | Windows 7 | ||
Total power | 1.5Kw | ||
Standard configuration 5G chipset x-ray inspection machine | |||
Items | Quatity | Unit | Remark |
90KV-5umSealed type X ray Tube | 1 | PCS | |
Stage | 1 | PCS | Size:640mm*540mm |
Flat Panel Detector | 1 | PCS | High definition |
Image processor CPU | 1 | PCS | Full-featured |
LCD Monitor | 1 | PCS | 24" |
Most Zhuoao photoelectric X-RAY system supports all kinds of X-RAY tube, X-ray detector and image processor. We can provide different configuration of the shell, X-ray tube control, enhanced screen and image processing functions according to the needs of customers.5G chipset x-ray inspection machine
Customer Visiting
In order to meet the international market demand and customer customization requirement, we keep developing and researching different level of machines for different customer choice.

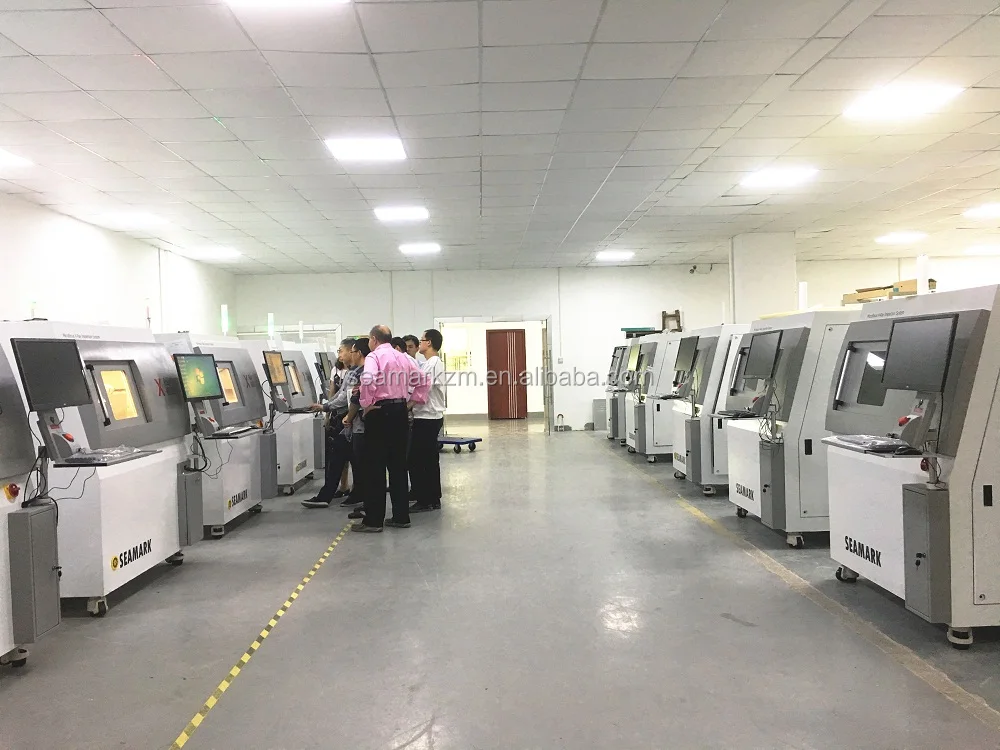

Nearly every day some customers from home and abroad come to visit our factory, we arrange the technician to show the PCB X-ray machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
