warehouse roof ventilation system aluminum alloy turbine roof exhaust fan

Share on (62269106565):


Price:

Quantity:


Product Overview

Description


Product Description

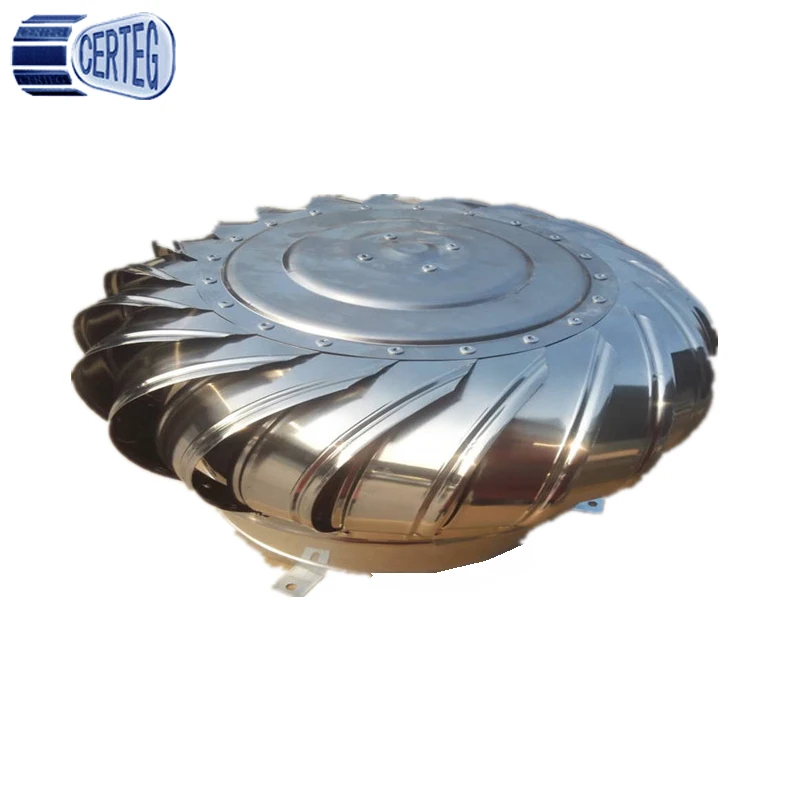

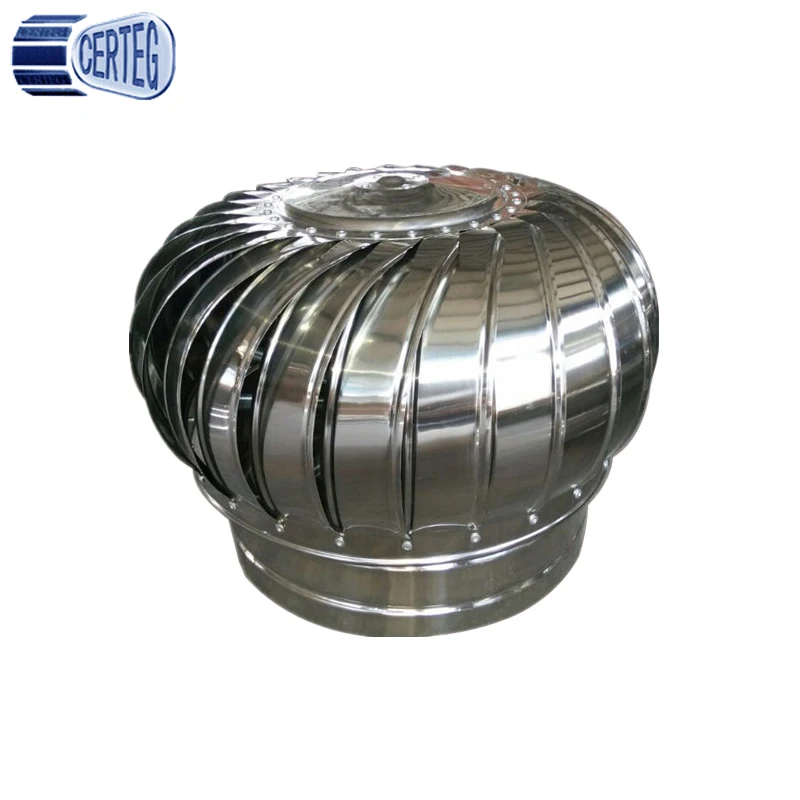

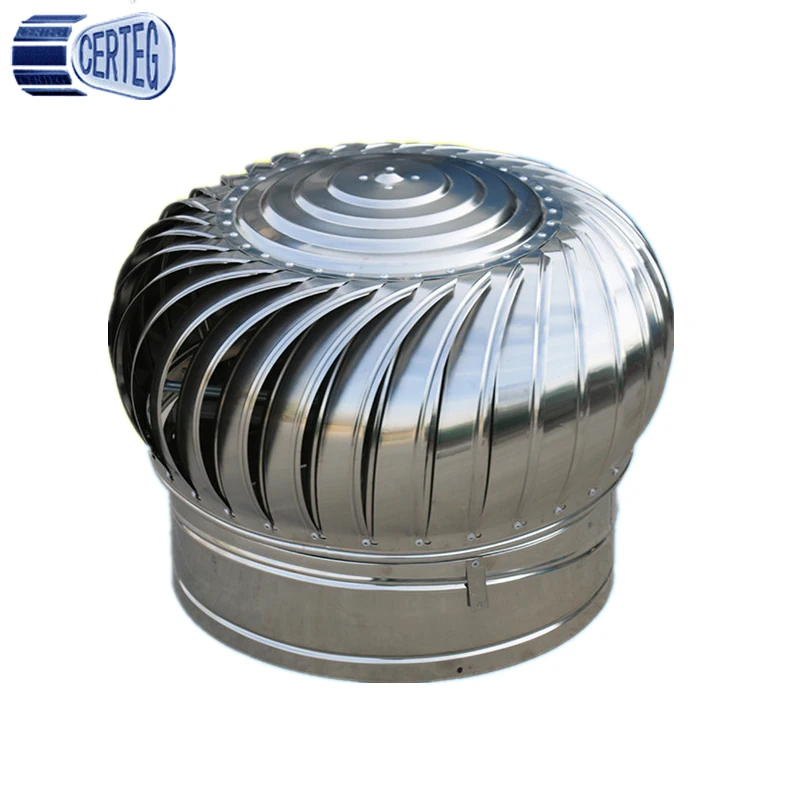

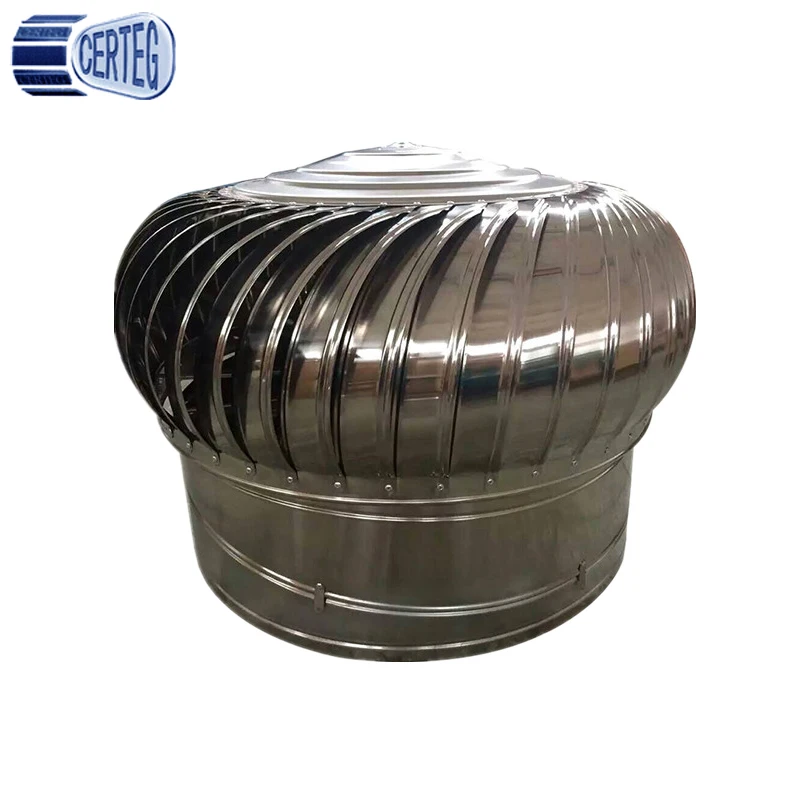

     We are engaged in providing finest quality Turbine Roof Ventilation, which is used for  exhausting stale and hot air from buildings. In addition, it lets these air and gases to reinstate at low level with fresh air at surrounding temperature. Our turbine roof ventilators are the proven method of achieving natural ventilation. The turbines are economical and are built from prime quality stainless steel metal.

Advantages

Light weight and sensitive revolving.
No energy cost ,noiseless, efficient exhausting.
Rust resistant and anti-corrosive.
Removes moisture build up in winter.
Low maintenance and easy installation.
Wide range of colors to match with any roof.

Ventilator Detail
Product NameTypeMaterialPacking BoxNet WeightGross Weight
LengthWidthHeight
cowl Turbovents75Aluminium alloy270mm270mm350mm1.0kg1.4kg
cowl Turbovents110Aluminium alloy270mm250mm350mm1.0kg1.4kg
cowl Turbovents150Aluminium alloy280mm280mm350mm1.35kg1.9kg
cowl Turbovents200Aluminium alloy350mm350mm350mm1.8kg2.4kg
cowl Turbovents250Aluminium alloy400mm400mm360mm2.3kg3kg
cowl Turbovents300Color Steel Plate430mm430mm360mm2.95kg3.99kg
roof Turbovents500stainless steel 630mm630mm580mm8.8kg10.5kg
roof Turbovents600stainless steel 730mm730mm640mm10.2kg12.8kg
roof Turbovents680stainless steel 880mm880mm750mm14.5kg18.5kg
roof Turbovents880stainless steel 880mm880mm750mm17kg21kg




Application

Used for stove's smoke and gas ventilation's top
Home chimney cowl , factory workshoop

300mm 500mm 600mm ,680,880mm use for fatory workshop everywhere
75mm ,100mm,150mm ,200mm,250mm ,300mm home cowl in Russia, Norway,Poland,etc.
