High sensitive Real Time gprs Multipoint 4g gps Data Logger alarm system gprs

Product Overview

Description

High sensitive Real Time gprs Multipoint 4g gps Data Logger alarm system gprs

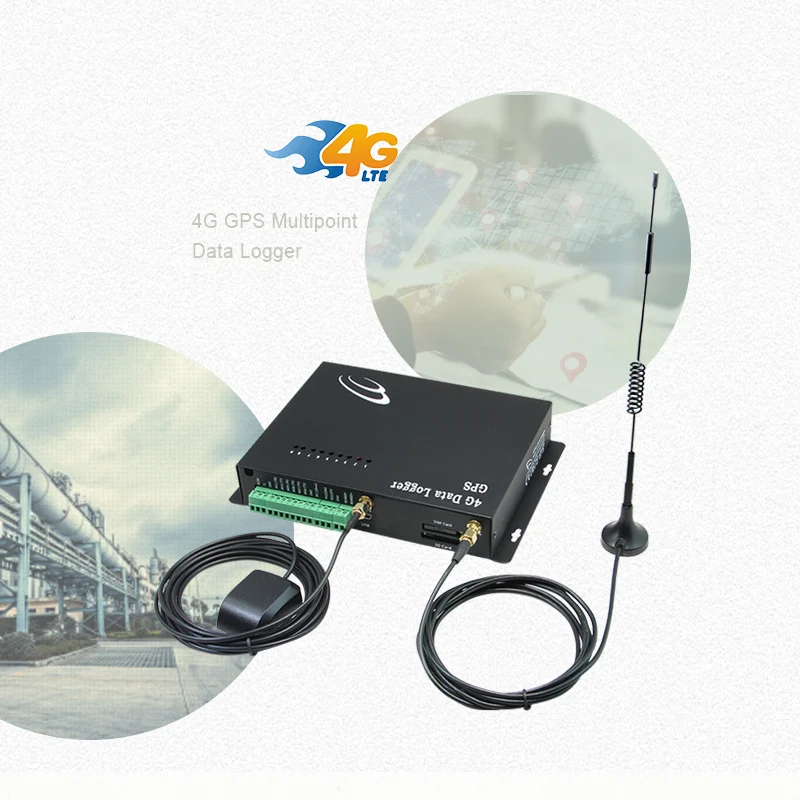

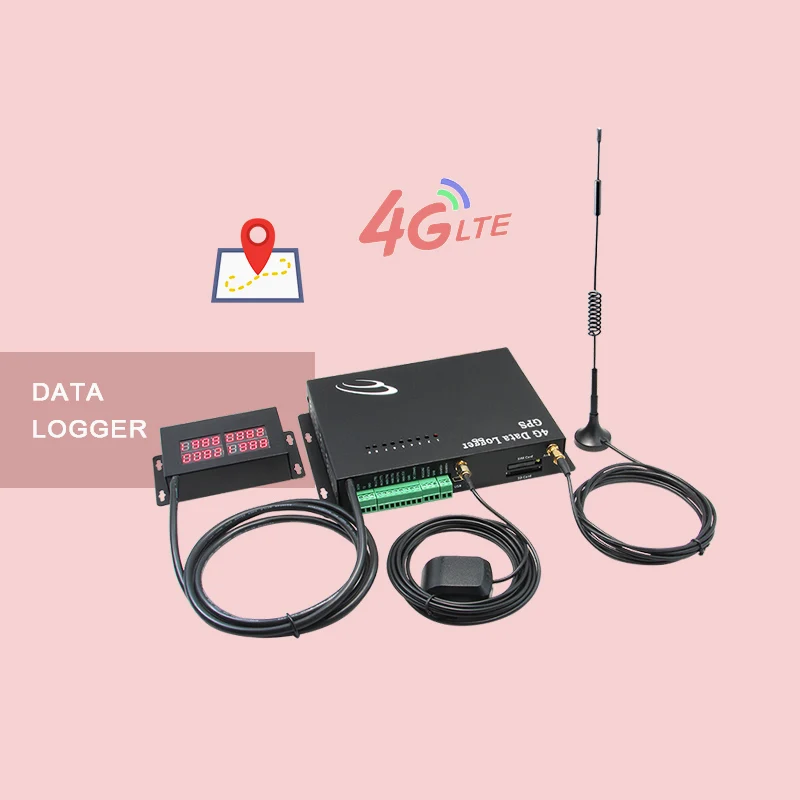

GSX8-HV-4GP is a data collector with temperature, humidity, analog, pulse, digital, GPS channels.
Data is delivered via 4G mobile network.



GSX8-HV-4GP uploads GPS data via 4G mobile network.
All channels can be configured with alarm levels.







[detail]
It is a Temperature and Humidity Data Logger with built-in module supporting worldwide 4G mobile network.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.









Overview:
* real time GPS data
* 8 Temperature Sensors (max.)
* 1 Humidity Sensor
* 8 Analog Channels (max.)
* 10 Digital Inputs
* 4 Pulse Channels
* 4 Relay Outputs
* RS485 Data In
* 32GB SD memory card slot

Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.





Specification
Power Input -- 9 ~ 15VDC	Data Upload -- On Schedule / Manual Request / Alarm Triggered	Protocol -- [temp - UDP & TCP], [GPRS - UDP & TCP]	Certificate -- CE, RoHS
Display Type --Analog and  Digital	Internal Data Record -- Average 30000 records (4MB)	Alarm Trigger -- Digital Alarm / AD Level High or Low / Power Loss	Digital Channel -- Alarm Dry Contact
Signal Type -- 4~20mA or 0~5VDC	Alarm Trigger -- Digital Alarm / AD Level High or Low / Power Loss	Data Logging Interval -- Programmable (1 ~ 60 minutes)	Pulse Channel -- On/Off Switching
Data Transmission --GPRS, SMS, gsm	Output  --5VDC	Data Upload Interval -- Programmable (5s ~ 24 hours)	Temperature Channel -- -55 ~ 125 °C
Industrial Protocol -- Modbus	Modbus Device Port -- RS485	Modbus Device Support --16 data registers	Application --  industrial







Features
1) Real Time 4G Data Upload with GPS
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup





Free Software:
[1] Setup software is bundled for routine configuration via USB port locally
[2] Centre software is also provided for receiving data via 4G mobile network.

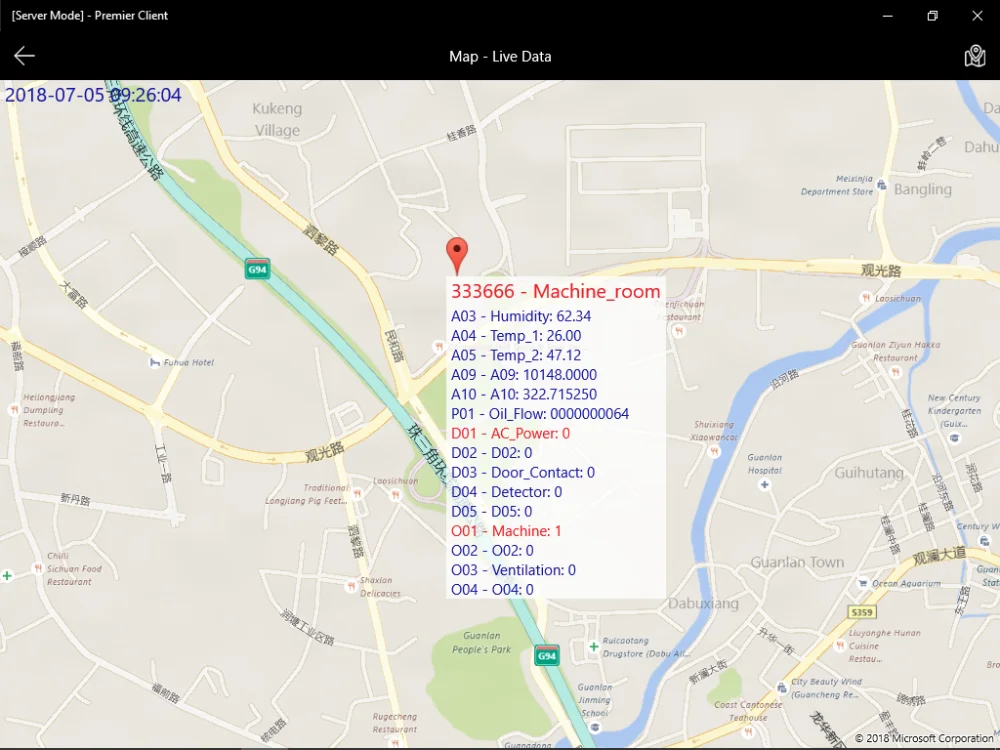

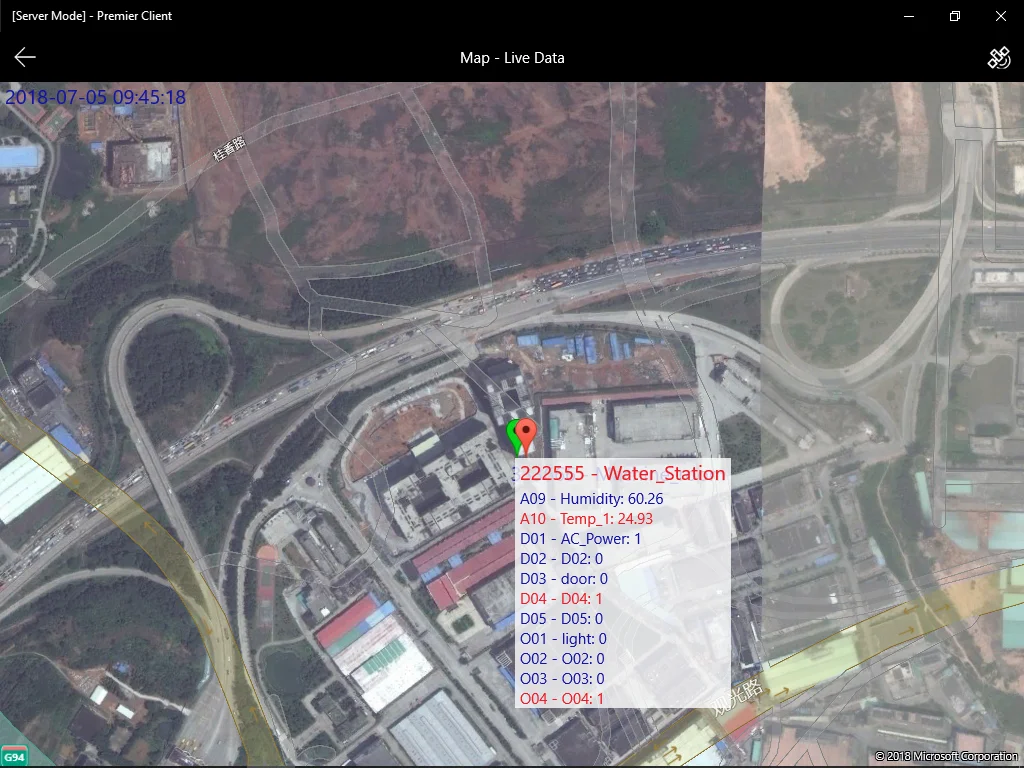

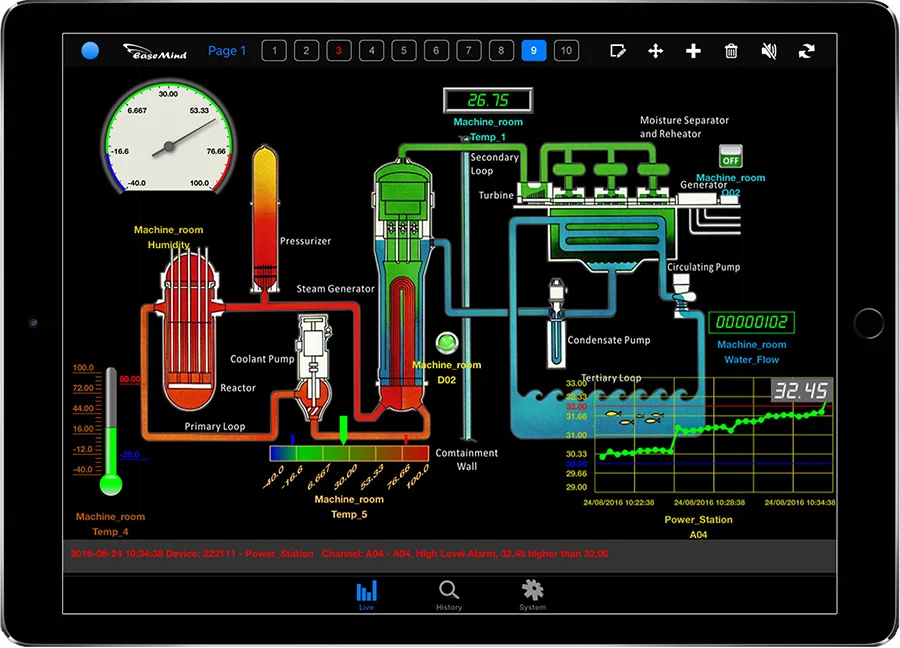

[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display

















[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
