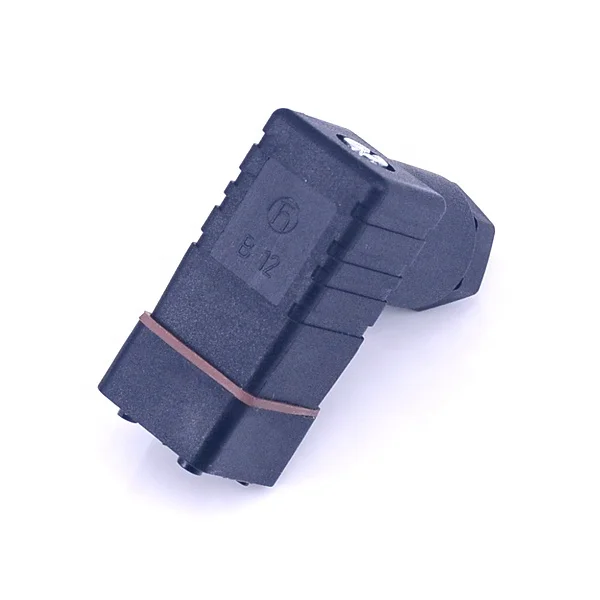

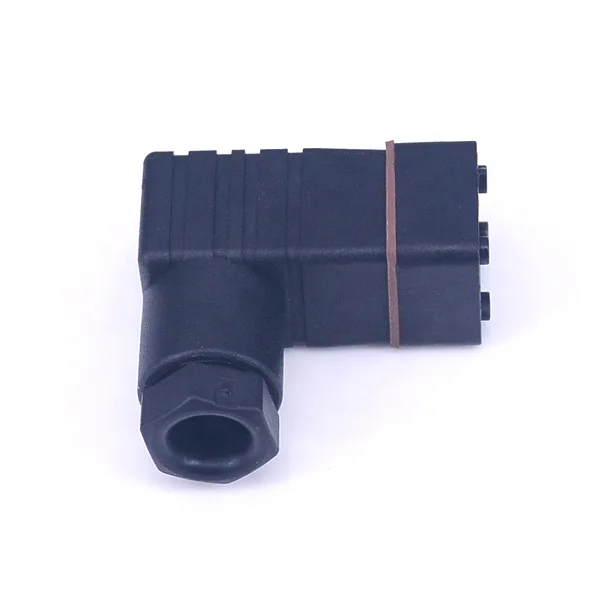

GDS307 DIN 43650 Hirschmann Connector

Product Description

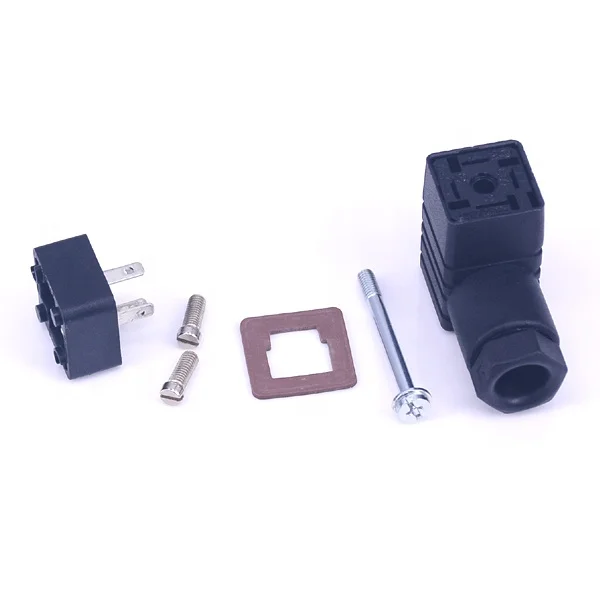

Cable socket with central screw M 3x28

Type

GDS 307 schwarz/black

Number of contacts

3+PE

Cable gland

PG 7

Conductor size

Max.0.75mm²

Standard

Industrial standard(9.4mm)

Housing color

black

Construction type

C

Pin dimensions

2.8mmx0.8mm,3.6mmx0.8mm

Rated voltage

UC 250V

Rated current

6A

Contact resistance

Less than 4 mohm

type of termination

screw

Suitable cables

4.5mm to 6mm diameter

Mounting

Central screw

Contact surface material

Sn

Contact bearer material

PA

Housing material

PA

Protection class (IEC 60529)

IP 65

Pollution severity

3

Temperature range

-40 to +125℃

Housing inflammability class

94 HB

Contact bearer inflammability class

94 V-2
