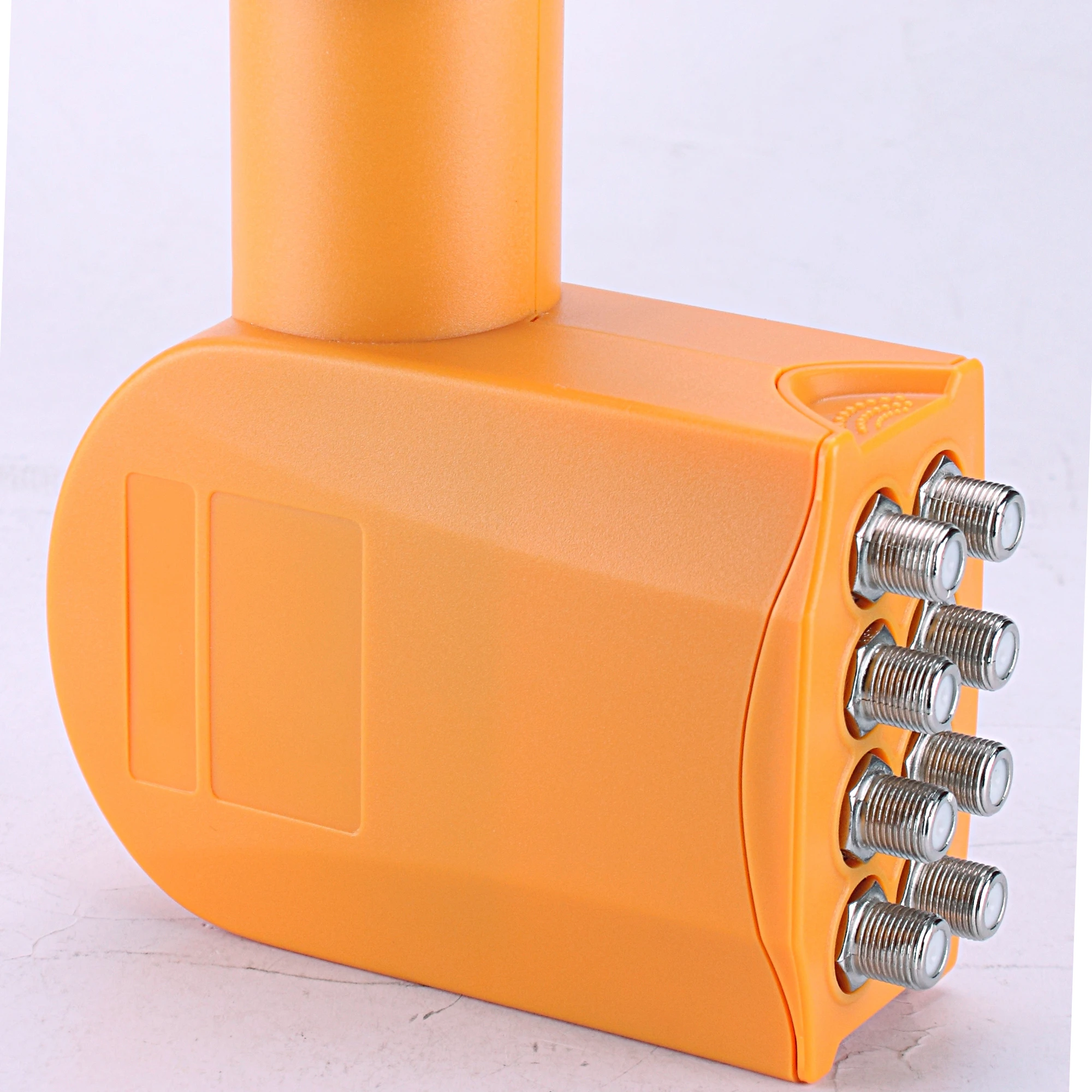

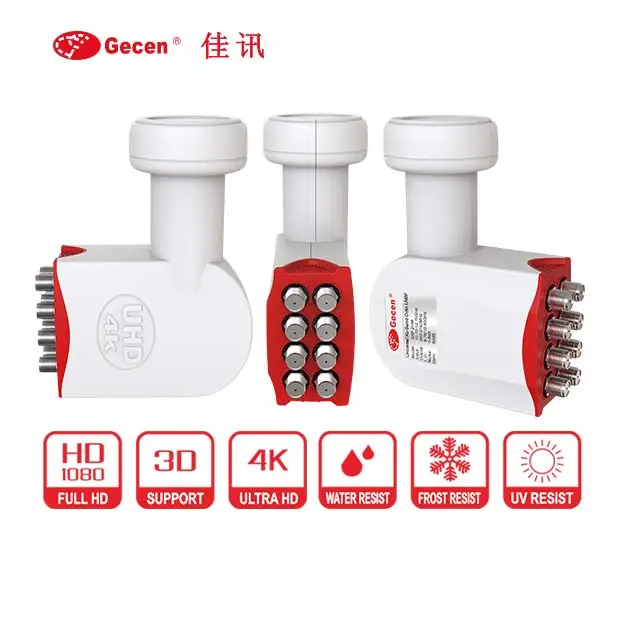

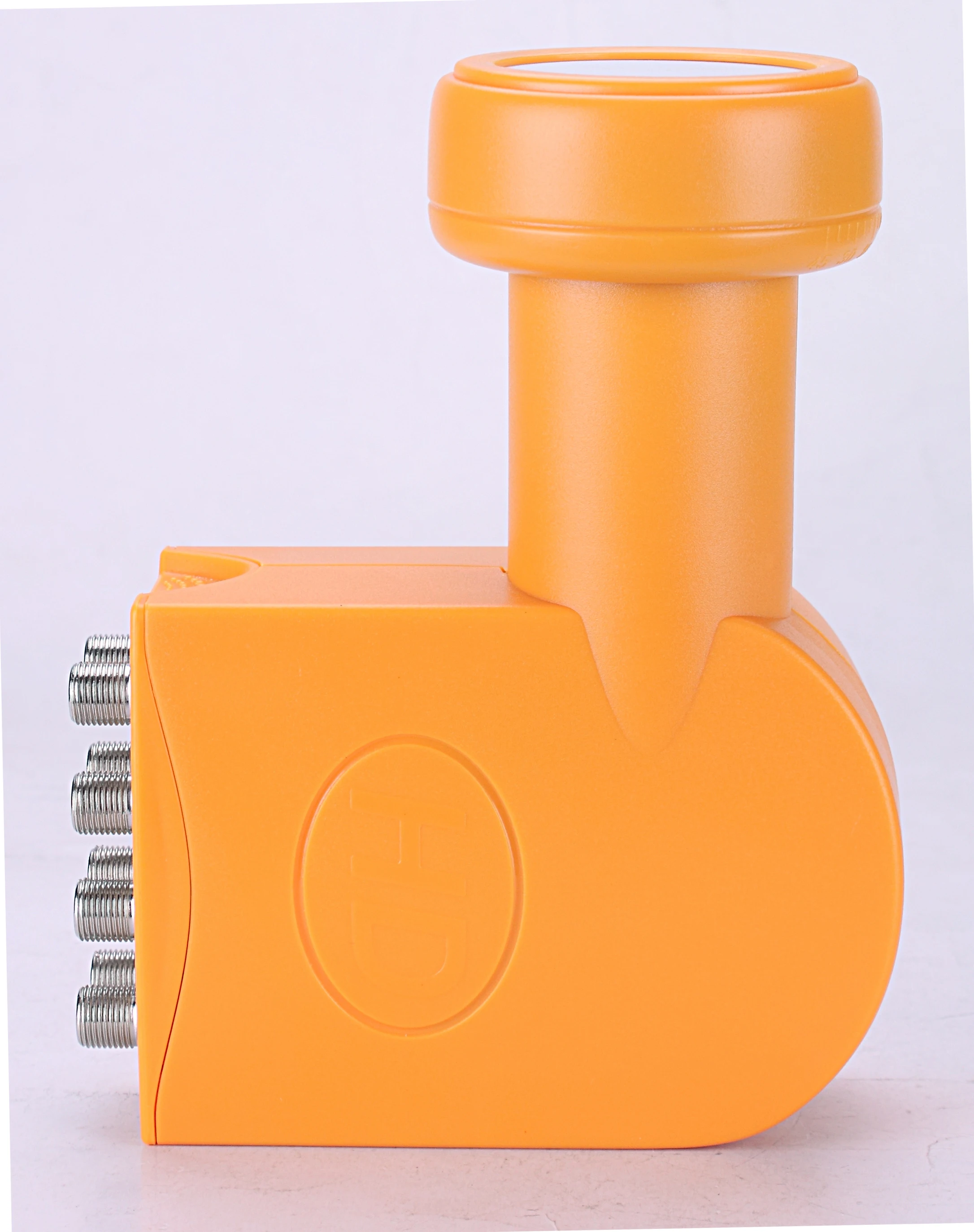

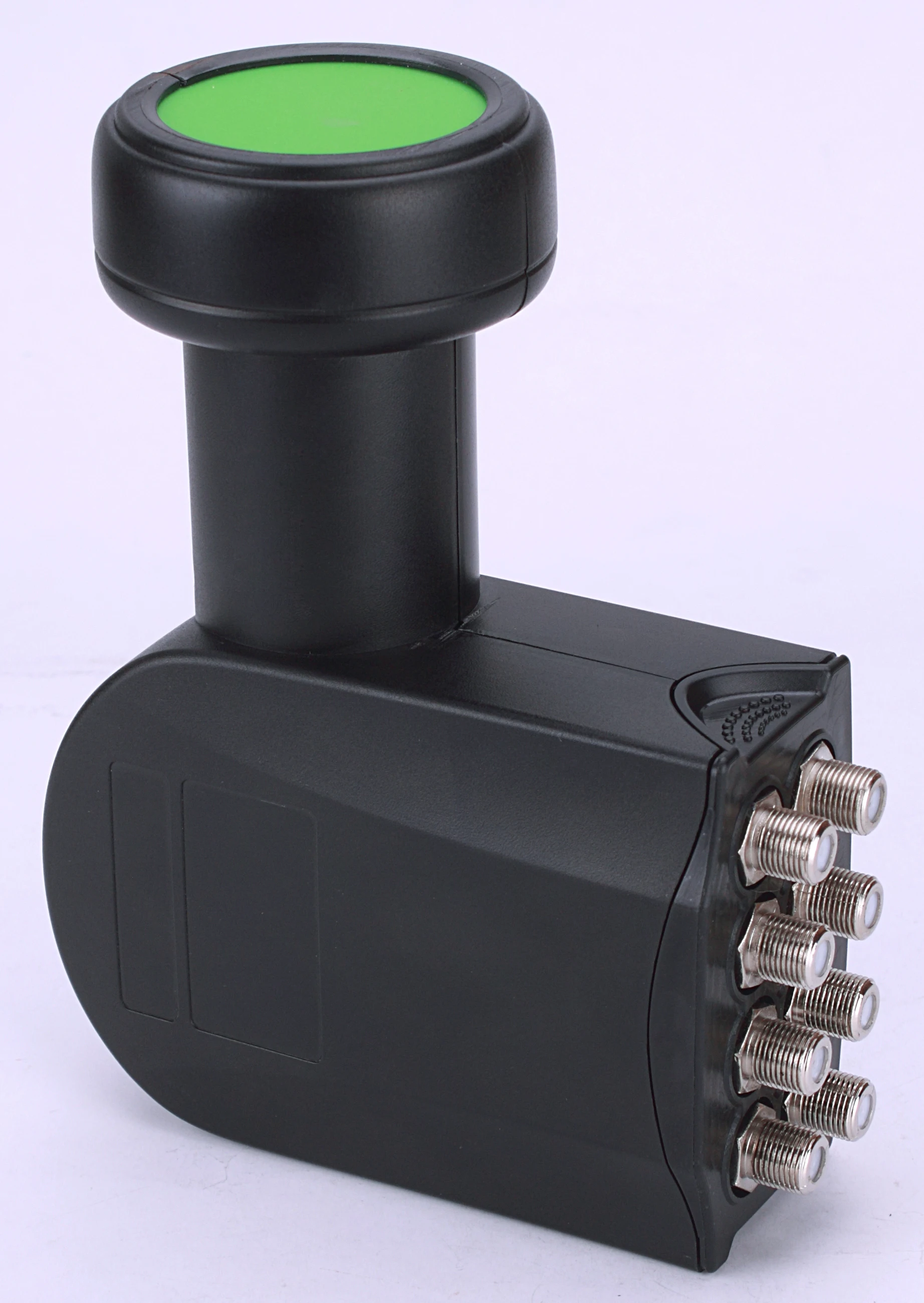

hd universal Octo lnb low noise 1db GKF 2168 8ports/8output
- Category: >>>
- Supplier: Zhuhai Gecen Electronic Co. Ltd.
Share on (62269378141):
Product Overview
Description

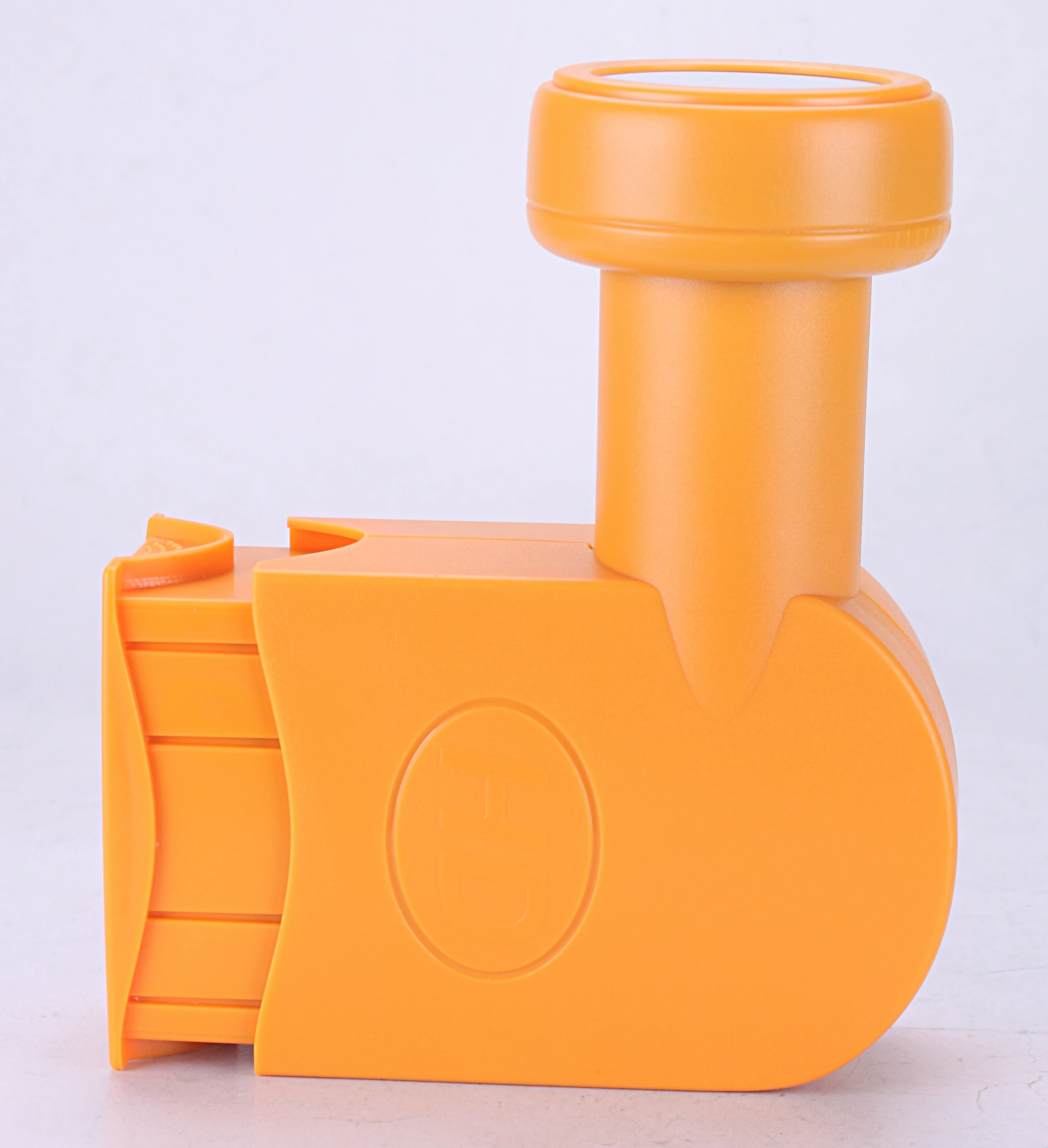

hd universal OCTO lnb low noise 1db GKF-2168
Features:
1.Full coverage of Ku-Band for Analog and Digital reception
2.Low noise figure
3.Easy installation
4.Low power consumption
5.High quality weather protection
Specifications
Item
| Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | L.O. Phase Noise | -50dBc/Hz@1KHz |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
| Noise Figure | Low Band:0.6dB(Typ.) High Band:0.6dB(Typ.) | Output VSWR | 2.0:1(Max.) |
| Conversion Gain | 60dB(Typ.) | Output Power | 0dBm (Min.)(at 1dB gain compression) |
| Gain Flatness | ±0.5dB/26MHz | Connector Type | 75Ω Female Connector |
| Cross POL. Isolation | 25dB(Typ.) | DC Current Consumption | 160mA (Typ.) |
| L.O. Frequency | Low Band:9.75GHz High Band:10.60GHz | Low/High Band Switching | Low Band: 0 Hz High Band:22KHz±4KHz |
| L.O. Frequency Stability | ±1.0MHz(Max.)@+25°C ±2.0MHz(Max.)@-30°C~+70°C | POL. Switching Voltage | 10.5~14.0 V @VP 16.0~20.0 V @HP |
| Operating Temperature | -30°C~+70°C |

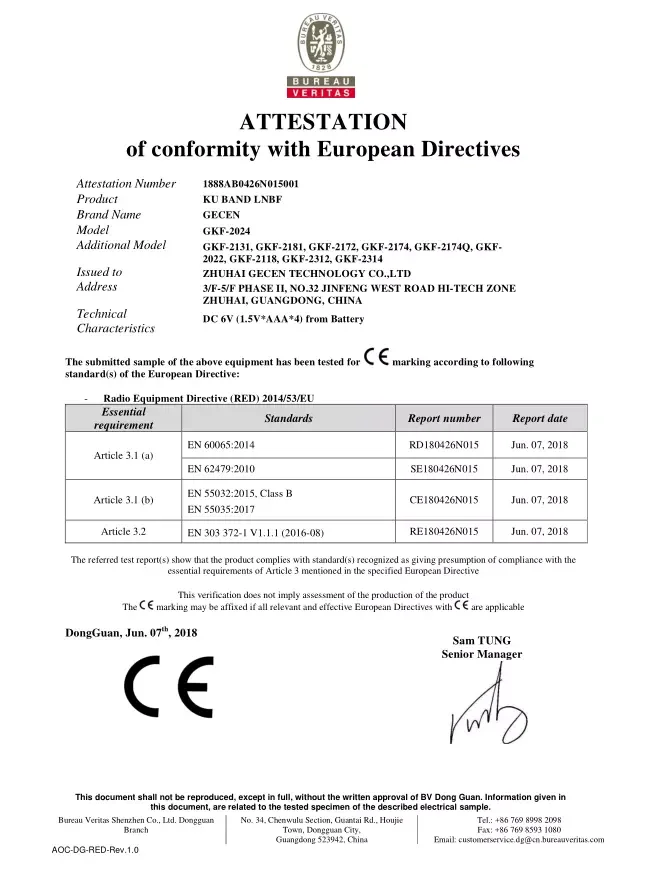

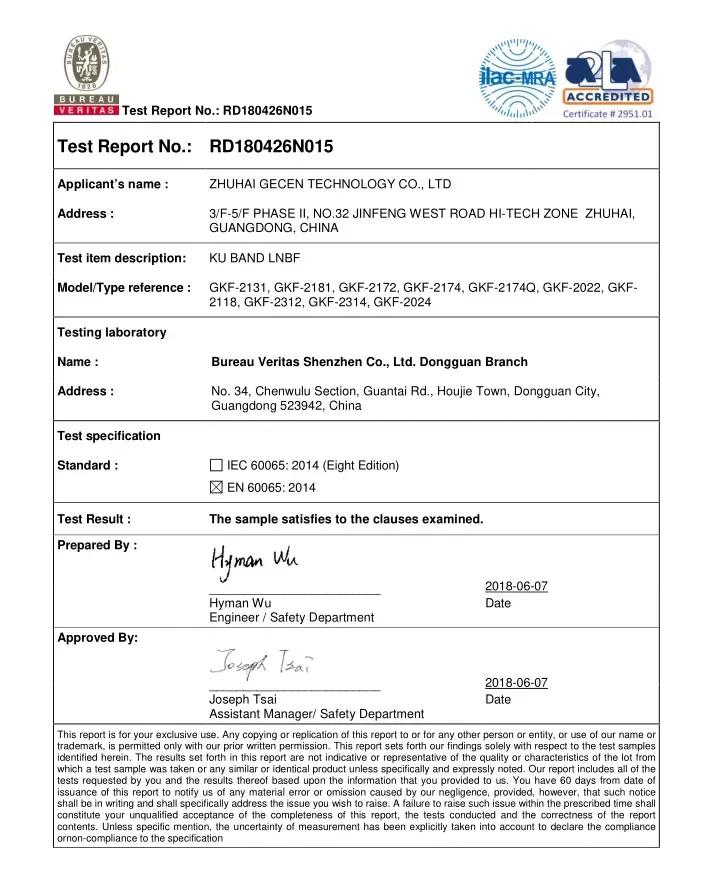

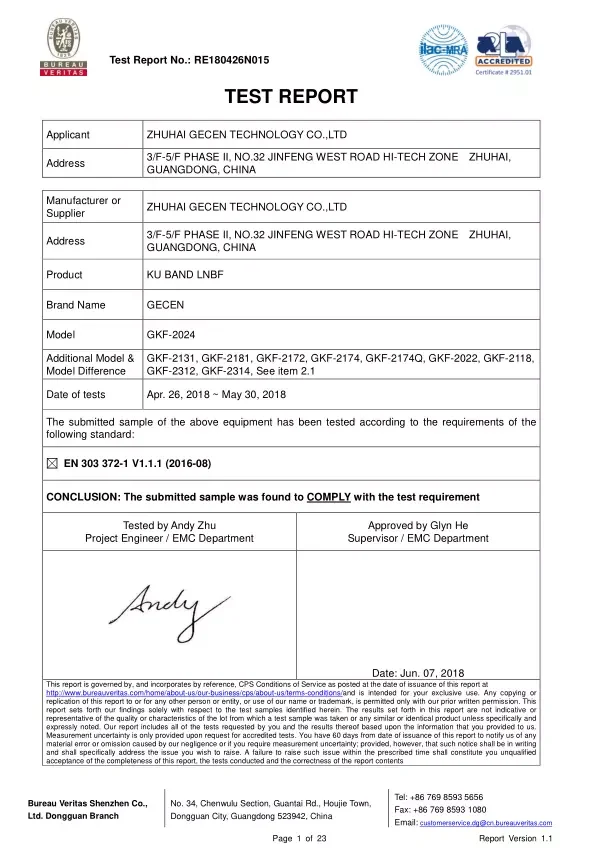

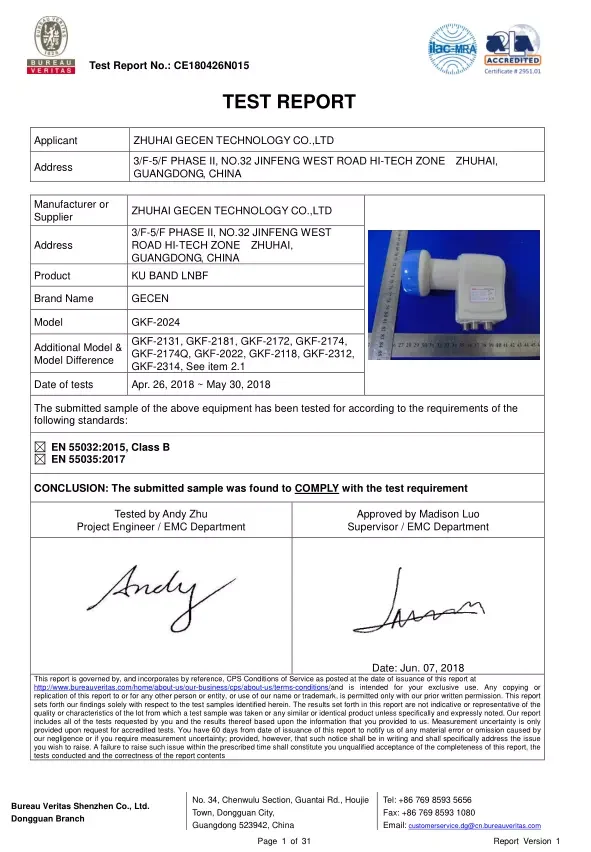

LNB CE/Report
FAQ
Q1. Can I have a sample order
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
