Fully Automatic Horizontal Packing Machine For Chopsticks Toothpick Napkin Flow Film Bag Packaging

Product Overview

Description

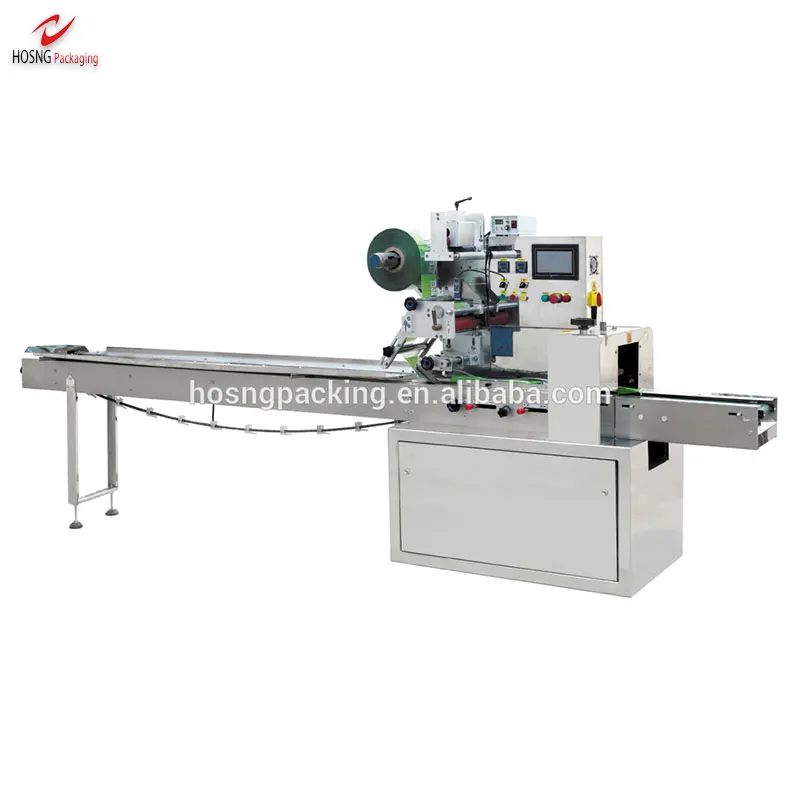

HS-350A Fully Automatic Horizontal Packing Machine

Product Description



Technical parameter:

Model	HS-250	HS-250A	HS-350	HS-350A	HS-350X	HS-350XA
Packing speed	40-230 bag/minutes
Bag length	65-190/120-280mm	90-220/140-330mm	65-190/120-280mm	90-220/140-330mm	65-190/120-280mm	90-220/150-330mm
Bag width	30-110mm		50-160mm		30-160mm
Bag height	Max. 40mm	Max. 60mm	Max. 40mm	Max. 60mm	Max. 40mm	Max. 60mm
Film width	60-250mm		60-350mm		Max. 350mm
Thickness of film	0.03-0.07mm
Packing material	OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL
Power specification	3.4kW/220V,50-60Hz
Machine Dimension	(L)3770*(W)640*(H)1350		(L)4020*(W)770*(H)1450
Machine weight	500KGS		600KGS
Optional device	Printer,Air filling device,Feeder,Tidier,Alcohol spray device

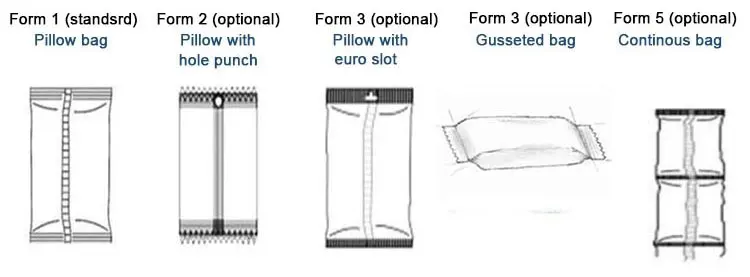

Range of package & bag type

It’s suitable for the pillow type package of each kind of solid products such as biscuit, instant noodle, bread, egg roll, moon cake,medicine, metal parts and paper box/ wooden box, etc.

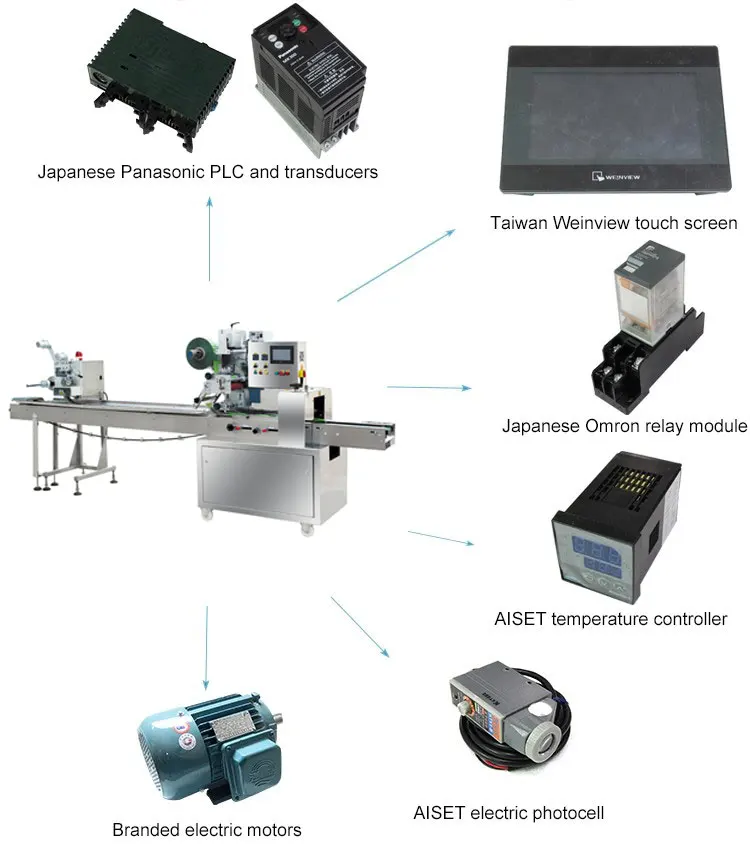

The transducer also with the machine from Panasonic brand to keep machine work more stable.

1. Main performance and structural features

*It’s convenient in bag length control with advanced dual frequency conversion design;

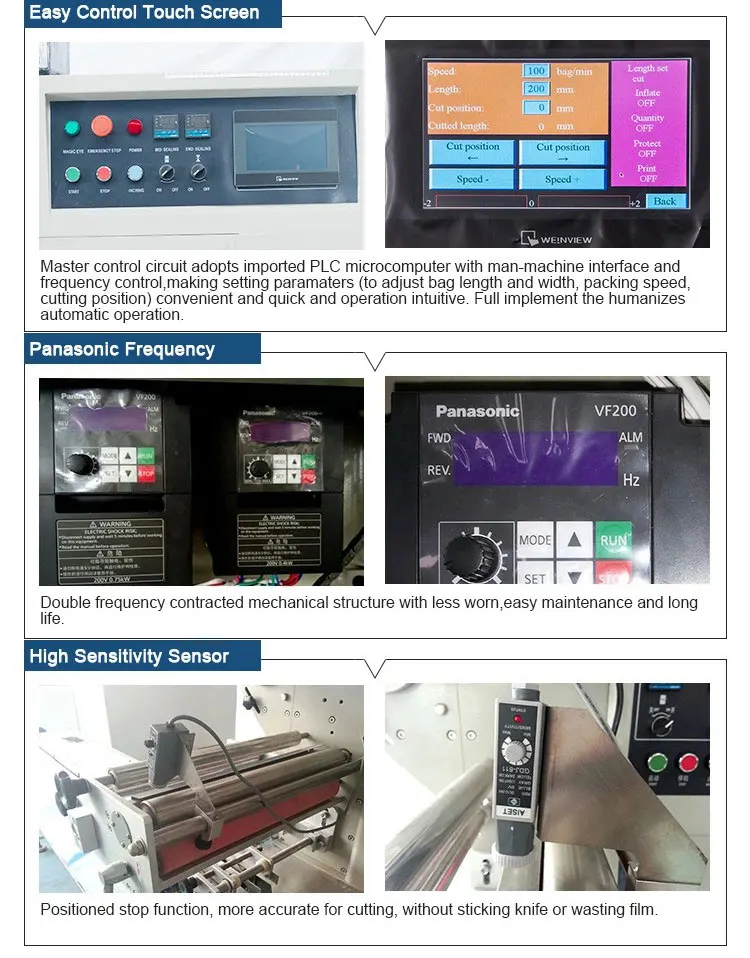

*Reasonable complete machine design and stable performance; simple in operation with PLC full computerization;

*Precise sealing and cutting with high precision photoelectric tracking system;

*Positioned stop function without sticking to the reamer and wasting the roll film

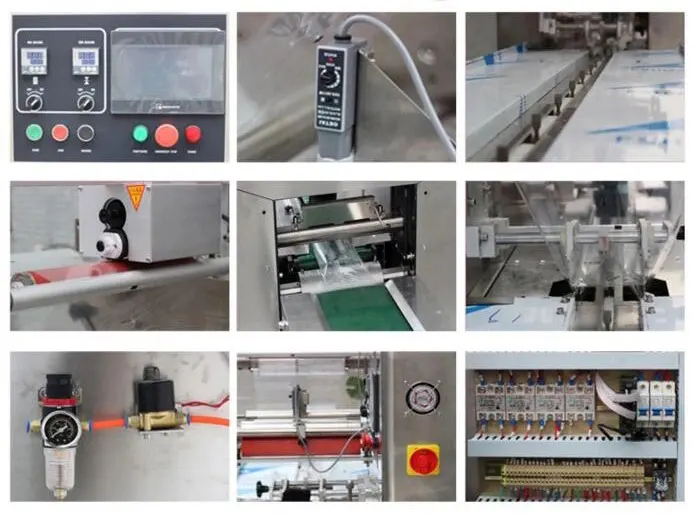

Machine detail







* Hosng packaging Machinery can customize the suitable one for you according to your requiredment.<<Just Tell us : Bag Size required.>>
