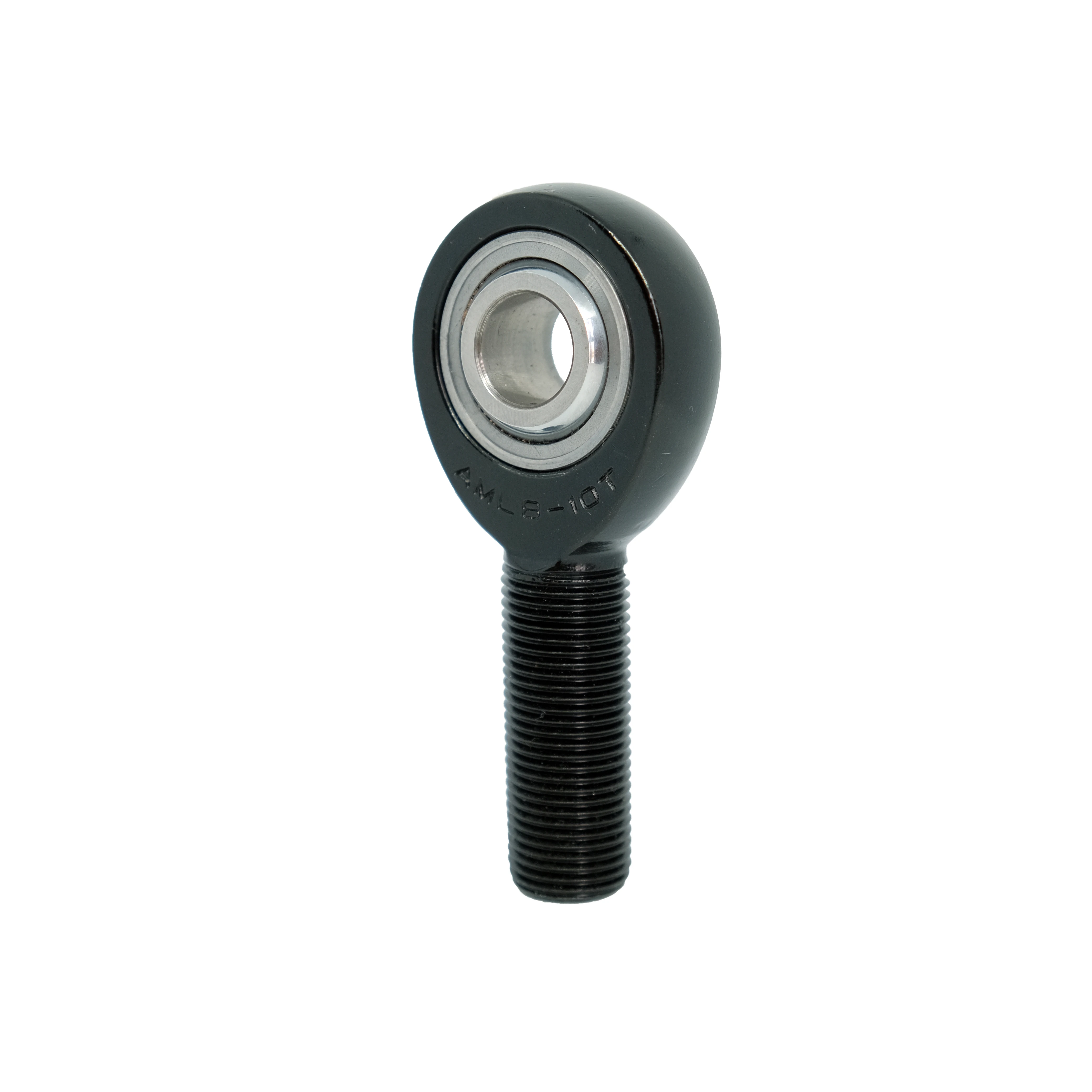

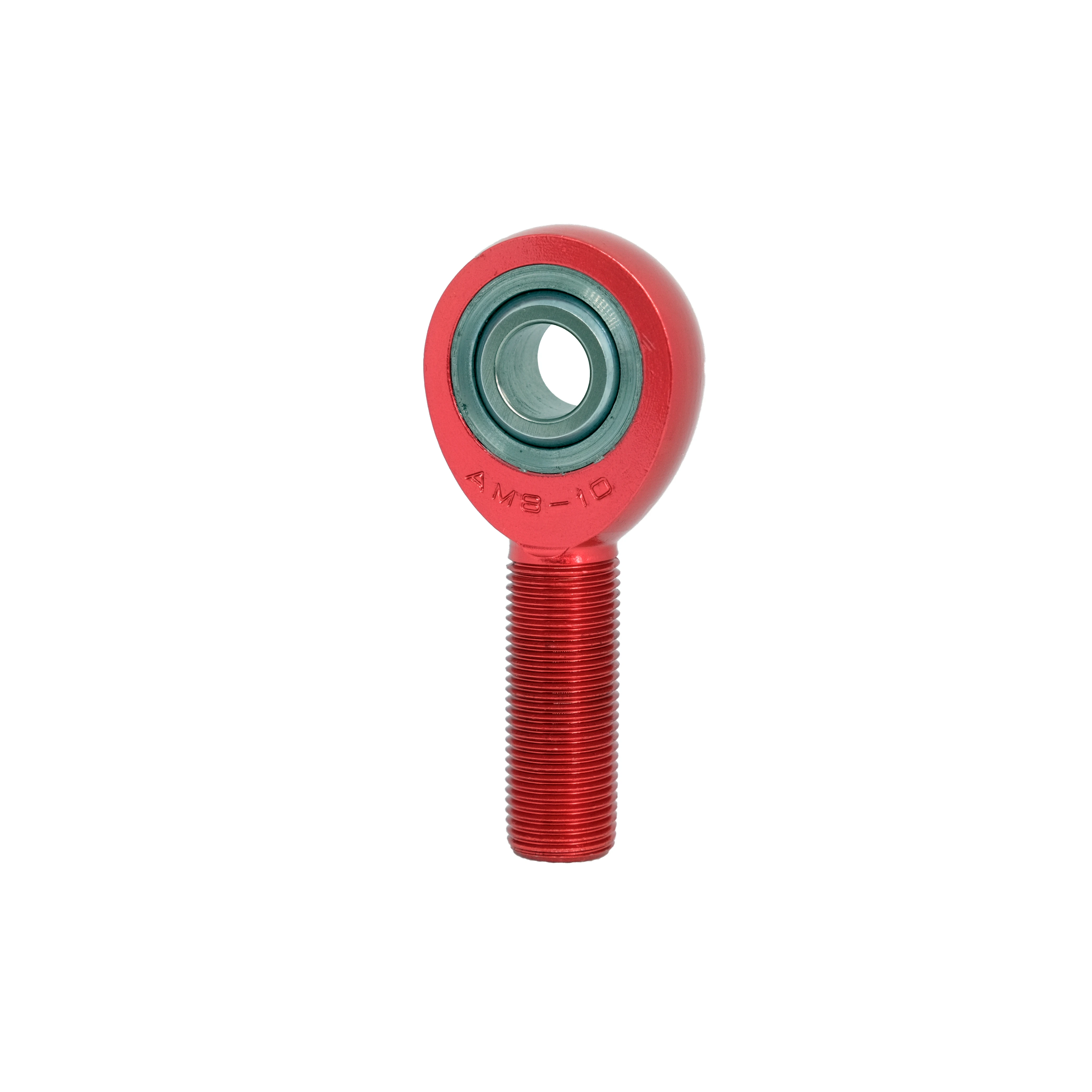

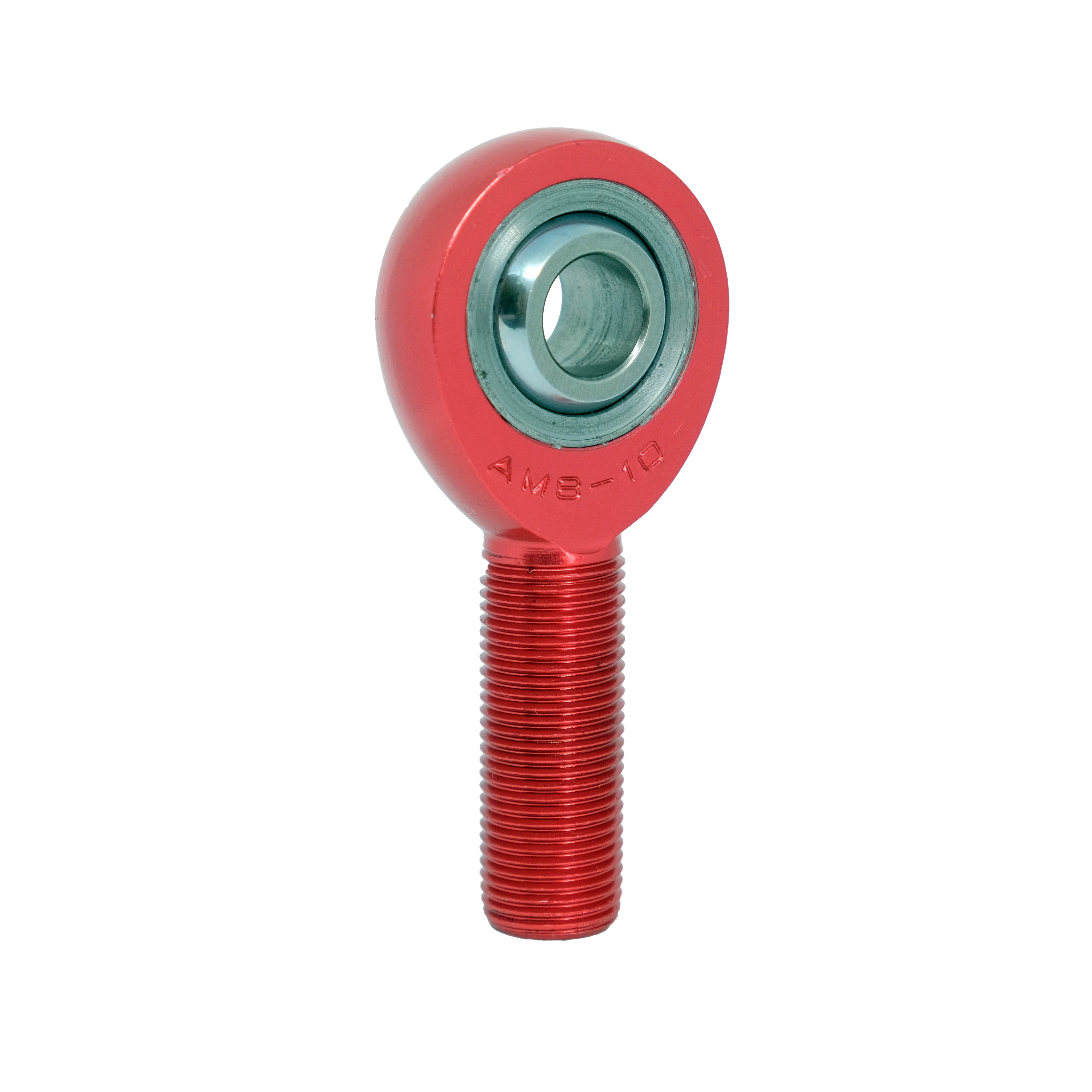

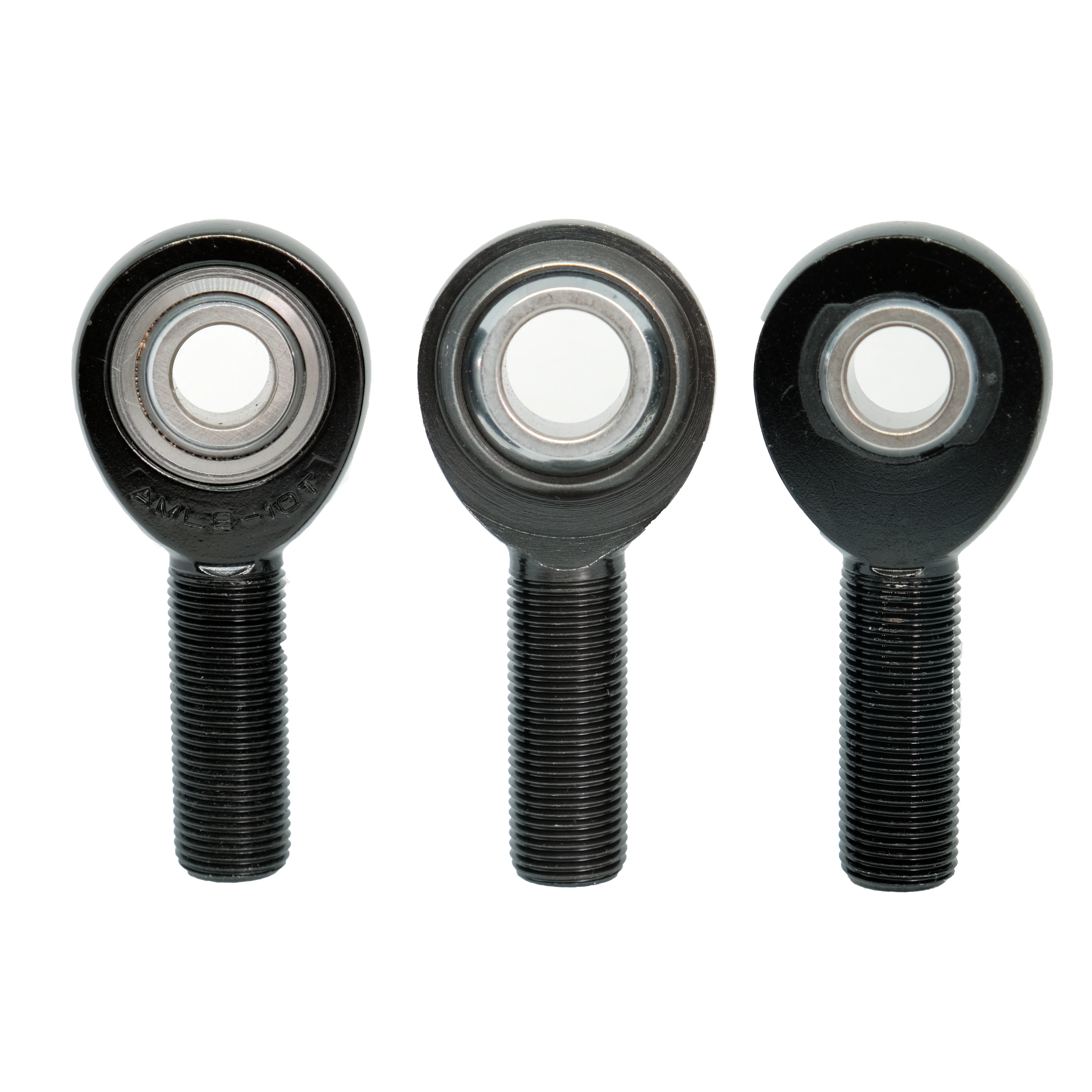

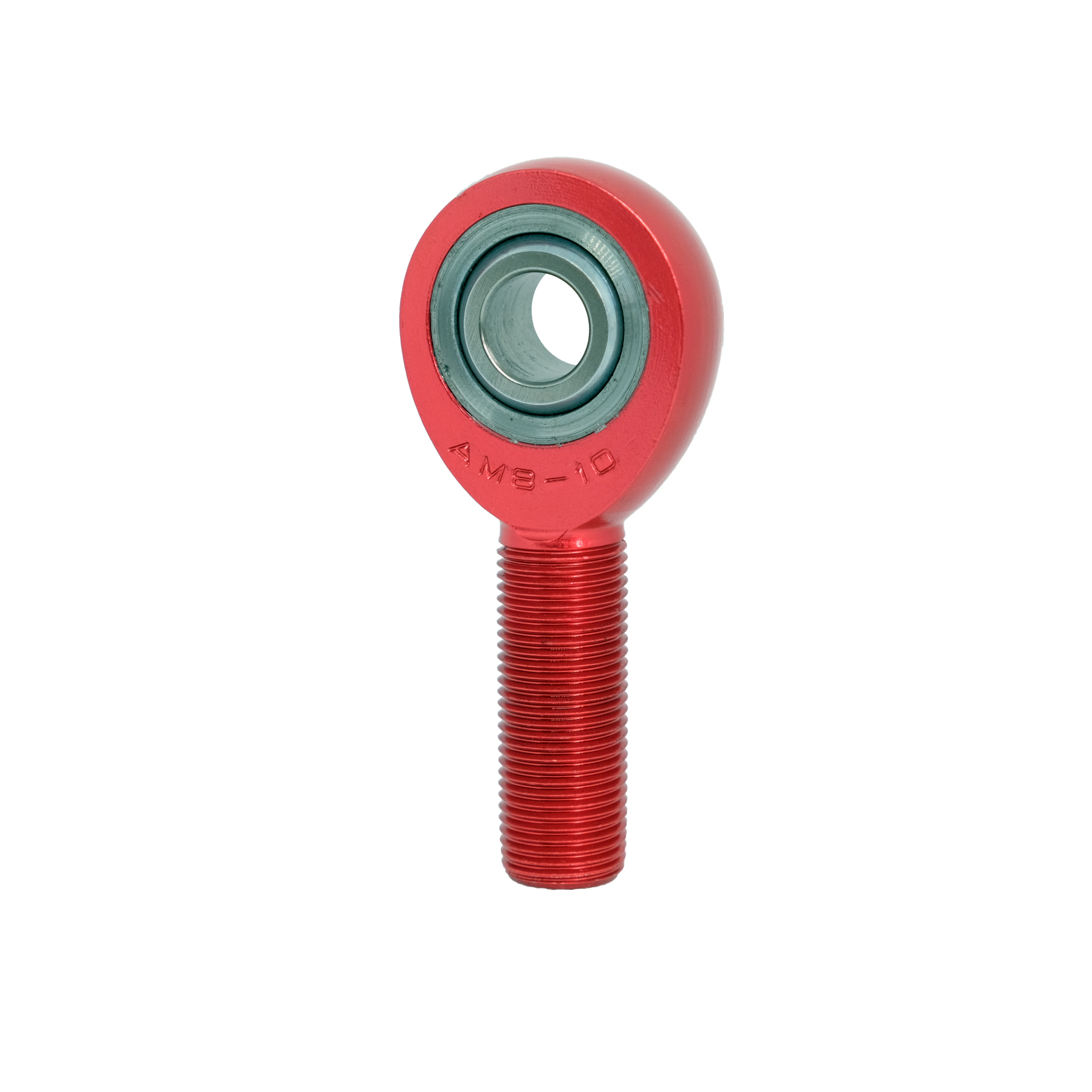

Концы стержня из алюминиевого сплава с наружной резьбой ALJM12T
- Category: >>>
- Supplier: Shanghai Yueshang Machine Components Co. Ltd.
Share on (62269450023):
Product Overview
Description
Top Quality Ball Joint Rod End Aluminum Alloy Steel Bearings ALJM12T
| MATERIALS |
| |||||||||||
BALL | BODY | RACE |
| ||||||||||
52100 STEEL | ALUMINUM | STEEL ALLOY |
| ||||||||||
Rc 56 MIN. HARD | 7075-T6 | HEAT TREATED |
| ||||||||||
HARD CHROME PLATED | HARD ANODIZED RED | ZINC PLATED, CHROMATE TREATED |
| ||||||||||

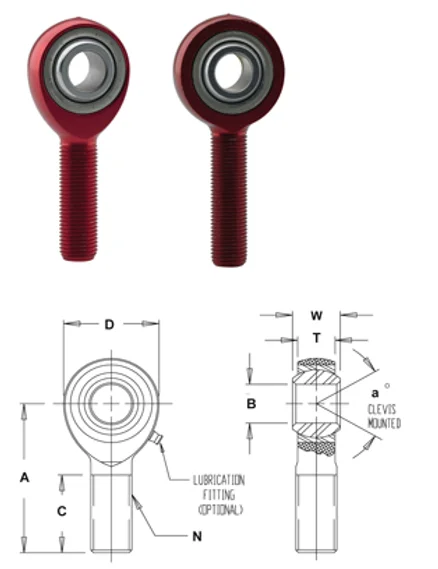

MALE ROD ENDS | B DIA. | D DIA. | W WIDTH | T WIDTH | BALL DIA. | A LGTH | N THD. | C LGTH | a° MIS ANGLE | ULT. STATIC RADIAL LOAD (lbs.) | APPROX. WEIGHT (lbs.) |
| |
RIGHT HAND PART NO. | LEFT HAND PART NO. | ||||||||||||
+.0015 -.0005 | +.010 -.010 | +.000 -.005 | +.005 -.005 | REF. | +.015 -.015 | UNF 3A | +.062 -.031 | REF. |
| ||||
ALJM3 | ALJML3 | .1900 | .625 | .312 | .250 | .437 | 1.250 | 10-32 | .750 | 13 | 1,360 | .022 |
|
ALJM4 | ALJML4 | .2500 | .750 | .375 | .281 | .500 | 1.562 | 1/4-28 | 1.000 | 16 | 2,465 | .034 |
|
ALJM5 | ALJML5 | .3125 | .875 | .437 | .344 | .625 | 1.875 | 5/16-24 | 1.250 | 14 | 2,850 | .050 |
|
ALJM6 | ALJML6 | .3750 | 1.000 | .500 | .406 | .719 | 1.938 | 3/8-24 | 1.250 | 12 | 4,208 | .078 |
|
ALJM7 | ALJML7 | .4375 | 1.125 | .562 | .437 | .812 | 2.125 | 7/16-20 | 1.375 | 14 | 4,534 | .091 |
|
ALJM8 | ALJML8 | .5000 | 1.312 | .625 | .500 | .937 | 2.438 | 1/2-20 | 1.500 | 12 | 7,698 | .140 |
|
ALJM8H | ALJML8H | .5000 | 1.500 | .625 | .500 | .937 | 2.625 | 1/2-20 | 1.562 | 12 | 10,150 | .140 |
|
ALJM10 | ALJML10 | .6250 | 1.500 | .750 | .562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 8,516 | .240 |
|
ALJM10H | ALJML10H | .6250 | 1.750 | .750 | .562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 16,200 | .268 |
|
ALJM12 | ALJML12 | .7500 | 1.750 | .875 | .687 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14 | 13,319 | .300 |
|
ALJM12H | ALJML12H | .7500 | 2.000 | .875 | .687 | 1.312 | 3.000 | 3/4-16 | 1.750 | 14 | 23,390 | .300 |
|
Shanghai Yueshang Machine Components Co., Ltd was established in Shanghai on 2012, based on a factory which has manufactured bearings for more than 25 years. The colleagues of R&D department have very long time experience, more than 35 years. Our customers, including domestic and global, all have good and stable cooperative relationships with us because we all focus on one thing, high quality. We are looking forward to have your contact and give you back the best products and services. It’s a win-win situation.
1.What's your MOQ?
Re:The MOQ of most of our products is 12 pc.
2.What are your payment terms?
Re:We accept T/T,Western Union,Paypal,Alipay and bank transfer.There are different payment methods in different countries and regions.
3.What's your packing way?
Re:Neutral packing and accept customer's special packaging demand.
