Price:$0.95 - $2.25

Quantity:


Product Overview

Description


 Super September custom make PCB membrane keyboard PCB membrane switches round torch circuit board















Membranes Switches - Technical Specifications:
















































Electrical Characteristics:



Circuit Rating:



35V(DC),100mA,1W







Contact Resistance:



10Ω ~500Ω(variable depending on tail length & material used)







Insulation Resistance:



≥100MΩ 100V DC







Dielectric Strength:



250V Rms(50-60Hz 1min)







Contact Bounce:



≤5ms



Mechanical Characteristics:



Operating pressure:



Plane type: 57g~284g(2~10OZ)
touch-type\\Tactile type: 170g~450g(6~16OZ)







Switch Stroke:



Planar type: 0.1~0.5mm
Tactile type: 0.6~1.5mm







Life Expectancy:



Planar type ≥ five million closures
touch-type\\Tactile type ≥ one million closures



























Environmental parameters:



Operating Temperature:



-40℃~+80℃







Storage Temperature:



-40℃~+85℃







Humidity:



40℃,90%~95%,240 hours, Vibration: 20G, max

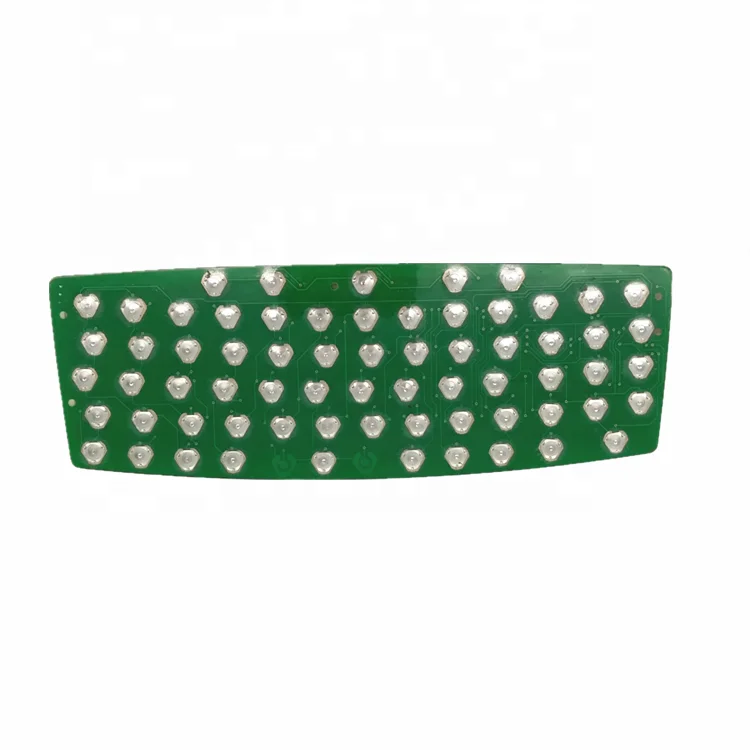

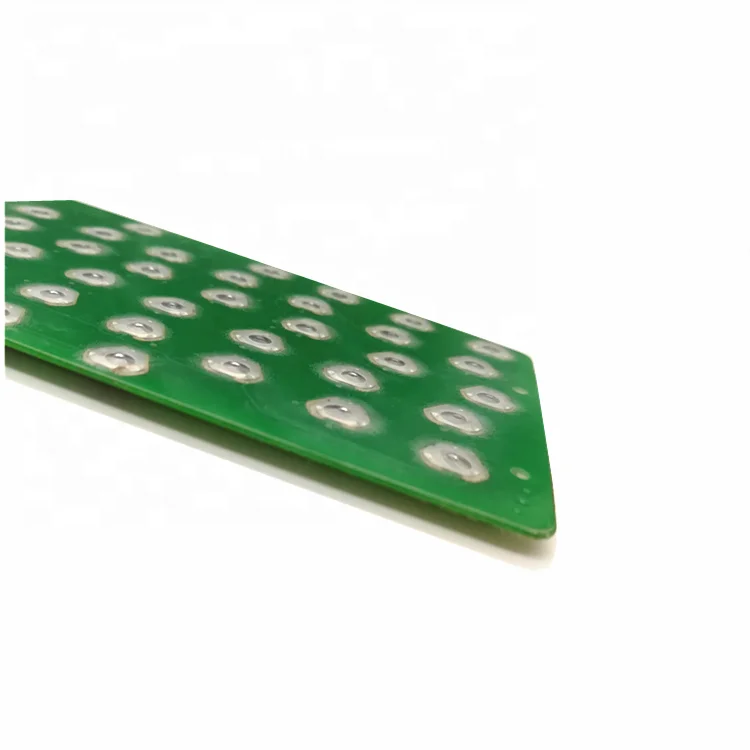

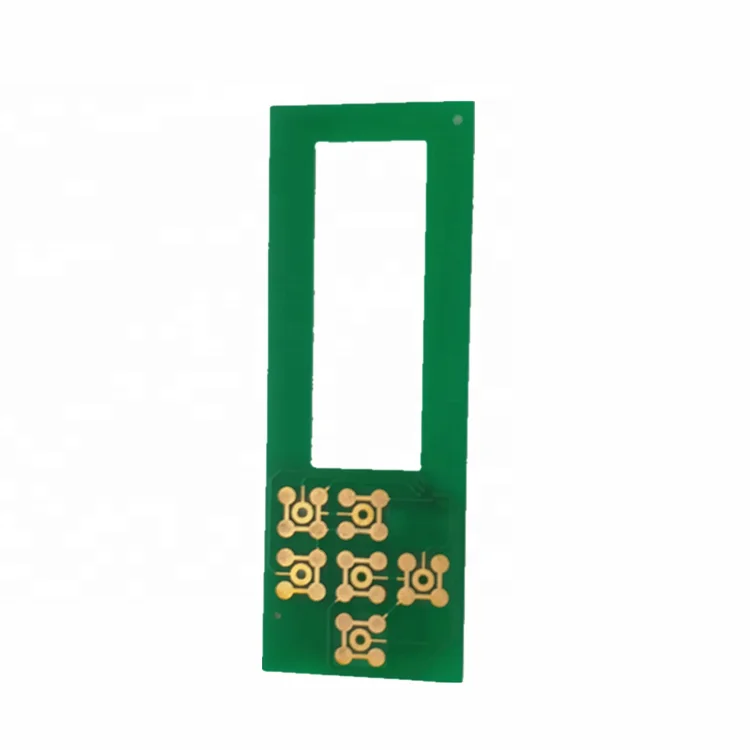

PCB Membrane Switches


A printed circuit board, or PCB, is used to mechanically support and electrically connect electronic components using conductive pathways. PCBs are very durable, inexpensive, and have proven to be highly reliable.  Additionally, the same feature options available to a flex membrane switch may also be applied to a PCB.





1.Tactile & Non-Tactile


2 Rigid Printed Circuit Board


3. Embedded LED’s, Resistors & sensors


4.Fiber Optic Backlighting/ Electroluminescent Backlighting/LGF&LED  Backlighting


5. Able to make to customer’s waterproof requirement & UV protection design


6. ESD Anti-Static Design: using Aluminum Foil, Printing AG or C plasma , ITO Film anti-static





Printed Circuit Board:




  • Conductor: 0.5, 1, or 2oz copper (double-sided)

  • Base film: 0.5, 1, or 2mil polyimide or 2, 3, 5 mil polyester

  • Cover film: 0.5 or 1mil polyimide or 1mil polyester

  • Minimum trace width: 0.1mm

  • Minimum space between trace: 0.1mm

  •  Minimum hole size: 0.15mm

  • Assembled with male connector

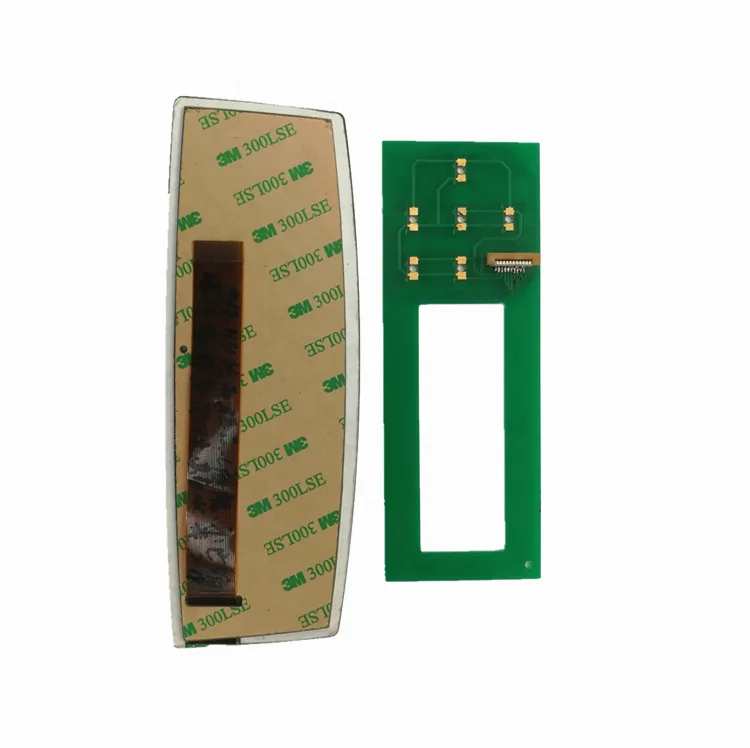

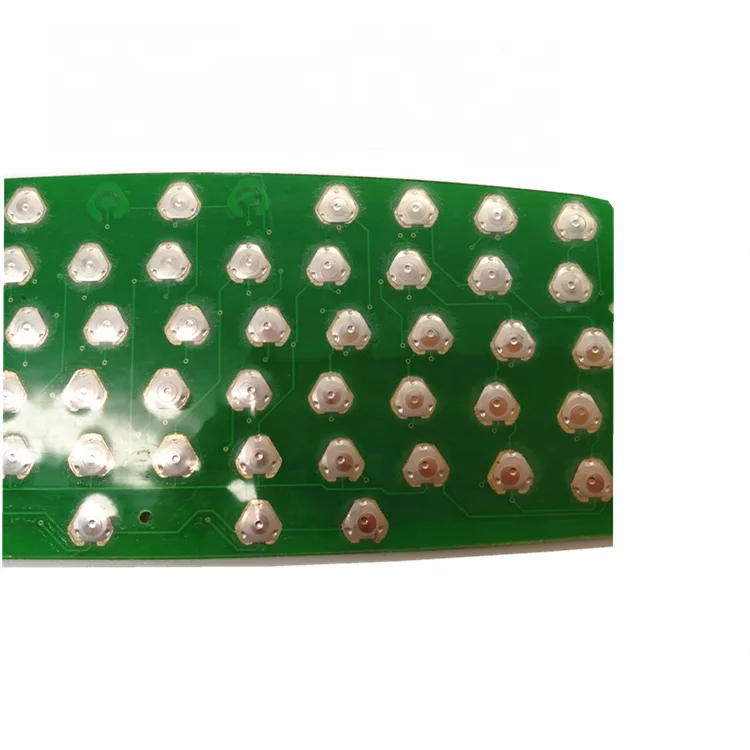

UTCRMS081463UTCRMS081466UTCRMS081461UTCRMS081456FAQ20190822111433 674UTC-01UTC_02UTC_03
