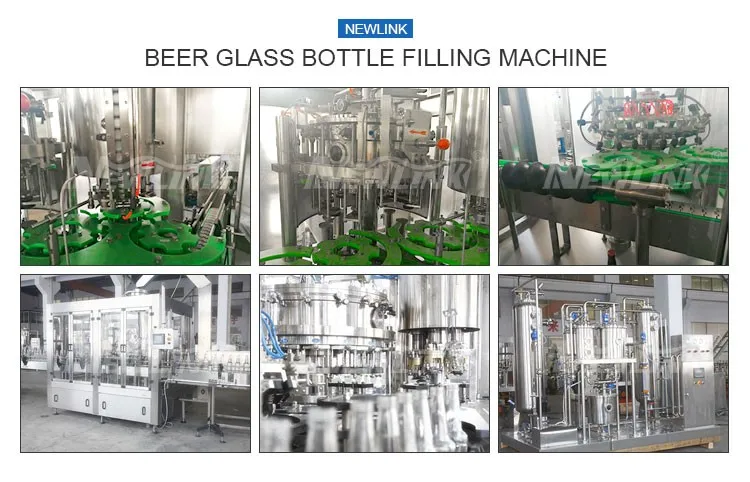

350ml Glass Bottle Beer / Lager Filling Packing Machine

Product Overview

Description

Glass Bottle Beer / Lager Filling Packing Machine



 Structural Features:

1, The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

2, Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

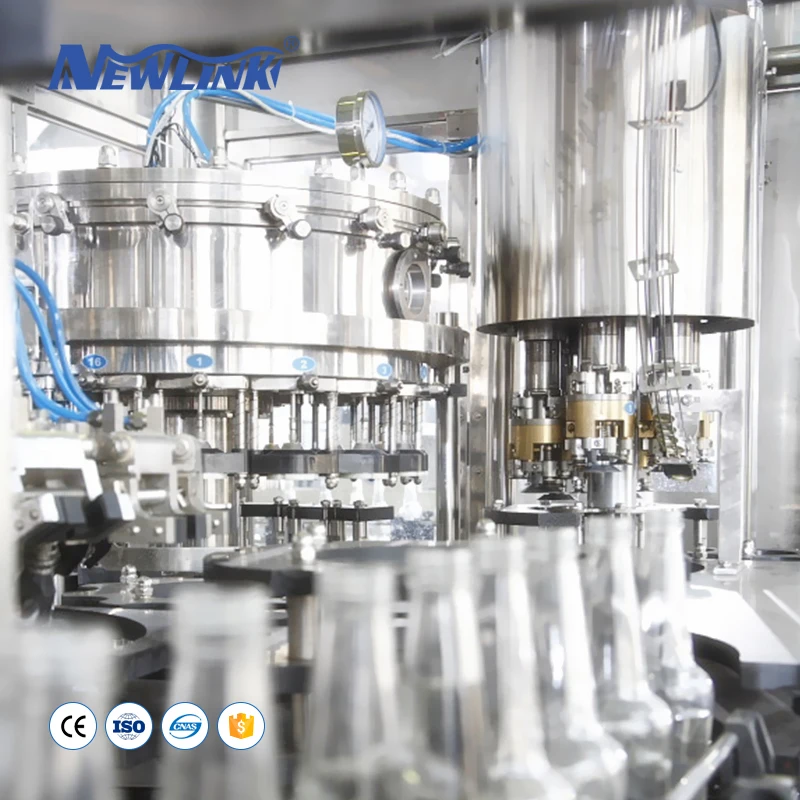

3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.

5, Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.

6, Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.

7, With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.

8,All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.

9, Manually dry oil lubrication system to make sure equipment maintenance is more convenient.

10, The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

Techical parameter



Model	DGF12/12/6	DGF18/18/6	DGF24/24/6	DGF32/32/8
Production capacity(500ml)	1000-1200B/H	2000-3000B/H	4000-5000B/H	6000-8000B/H
Total power	1.5Kw	1.5Kw	3.75Kw	5.6Kw
Weight	2000Kg	2400Kg	3000Kg	3500Kg
Overall dimension	1700x1100x2300mm	1830x1320x2300mm	1950x1580x2500mm	2100x1850x2500mm
