Vertical Stationary Dairy TMR Feed Mixer Machine 12m3 Husbandry Equipment Cow Livestock Feeder Equipment Q345B Steel JOINTTECH
- Category: >>>
- Supplier: Qingdao JointTech Machinery Inc.
Share on (62269800146):
Product Overview
Description
Product Description
Model | STMR-03 |
Capacity | 3m3 |
L*W*H(mm) | 2600x1800x2100 |
Auger Quantity | 1 |
Blade Quantity | 7 |
Power(KW) | 11KW |
Voltage | 380V-440V 50Hz 3Phases |
Max Load | 800kg |
Mixing Time | 15-20 Min |
Machine Weight | 1600kg |

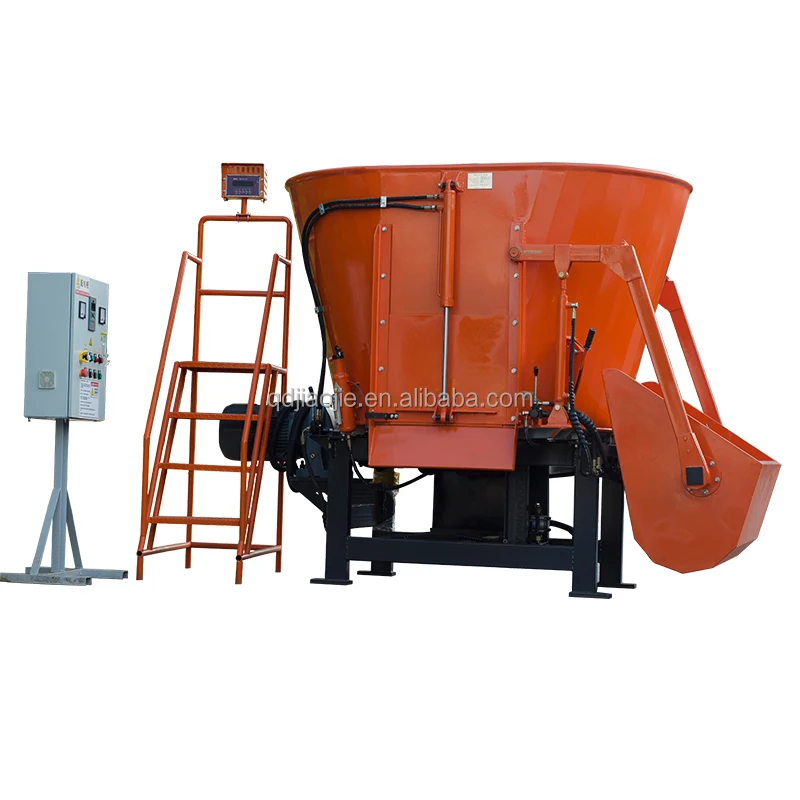

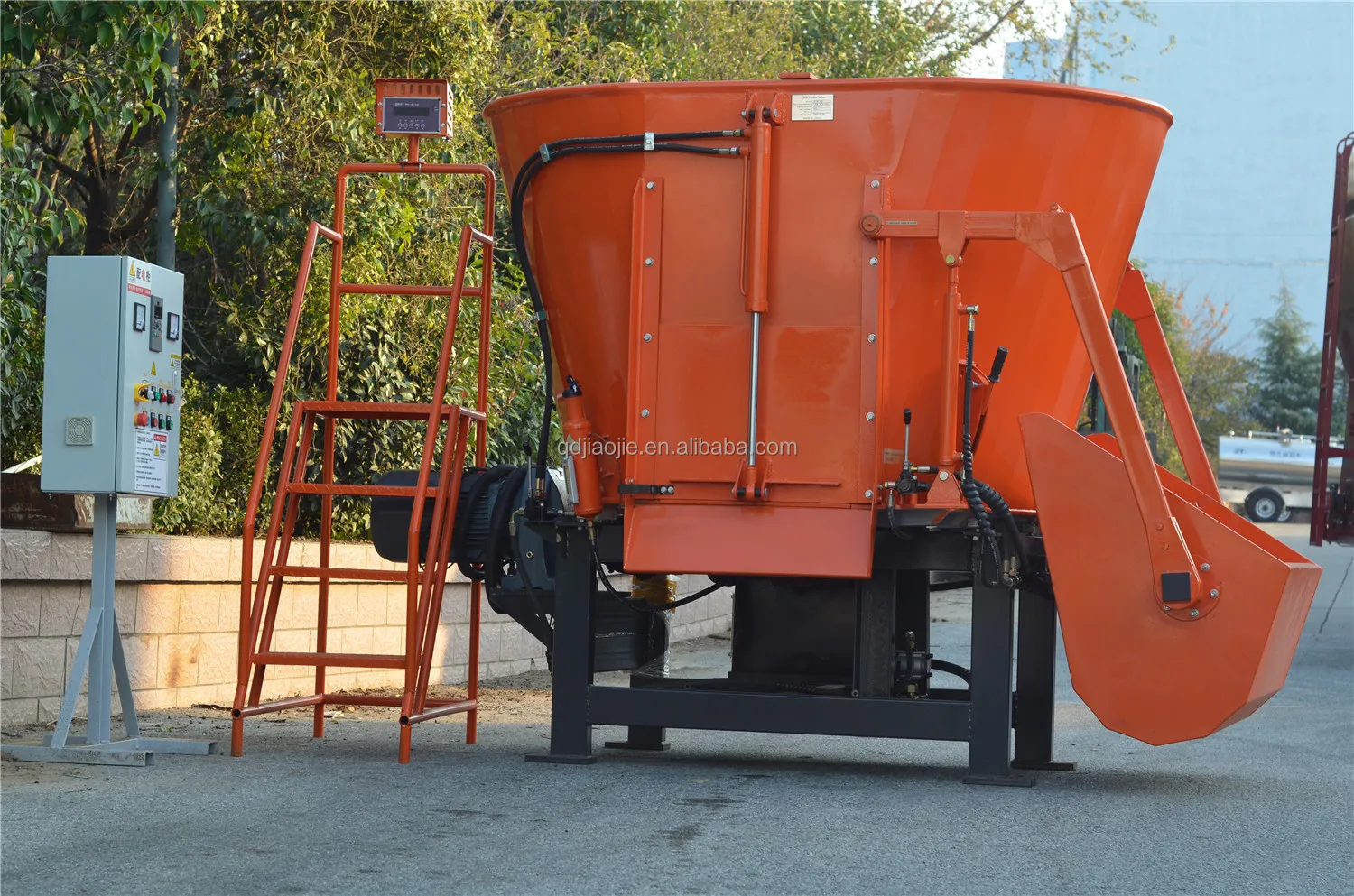

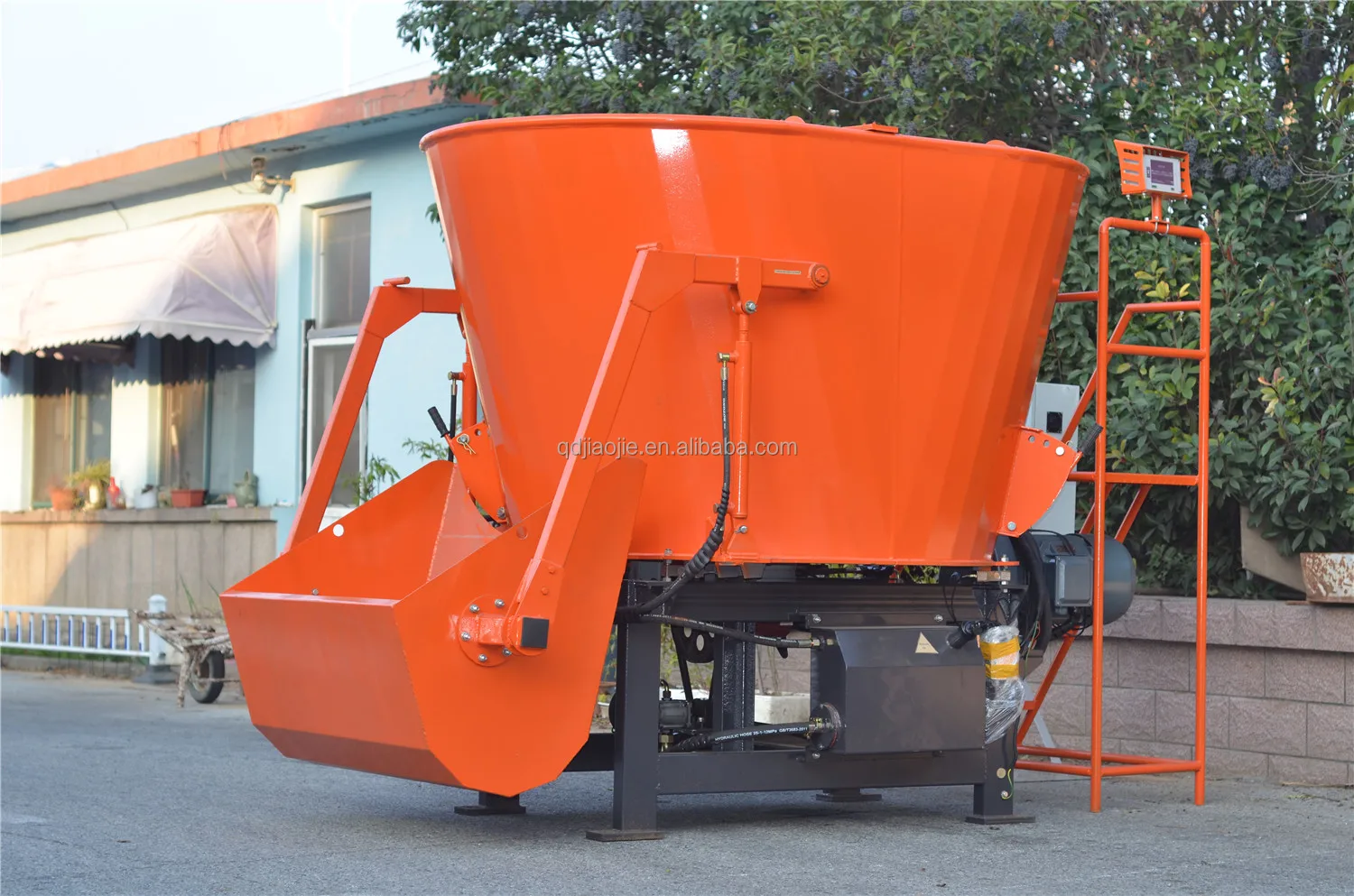

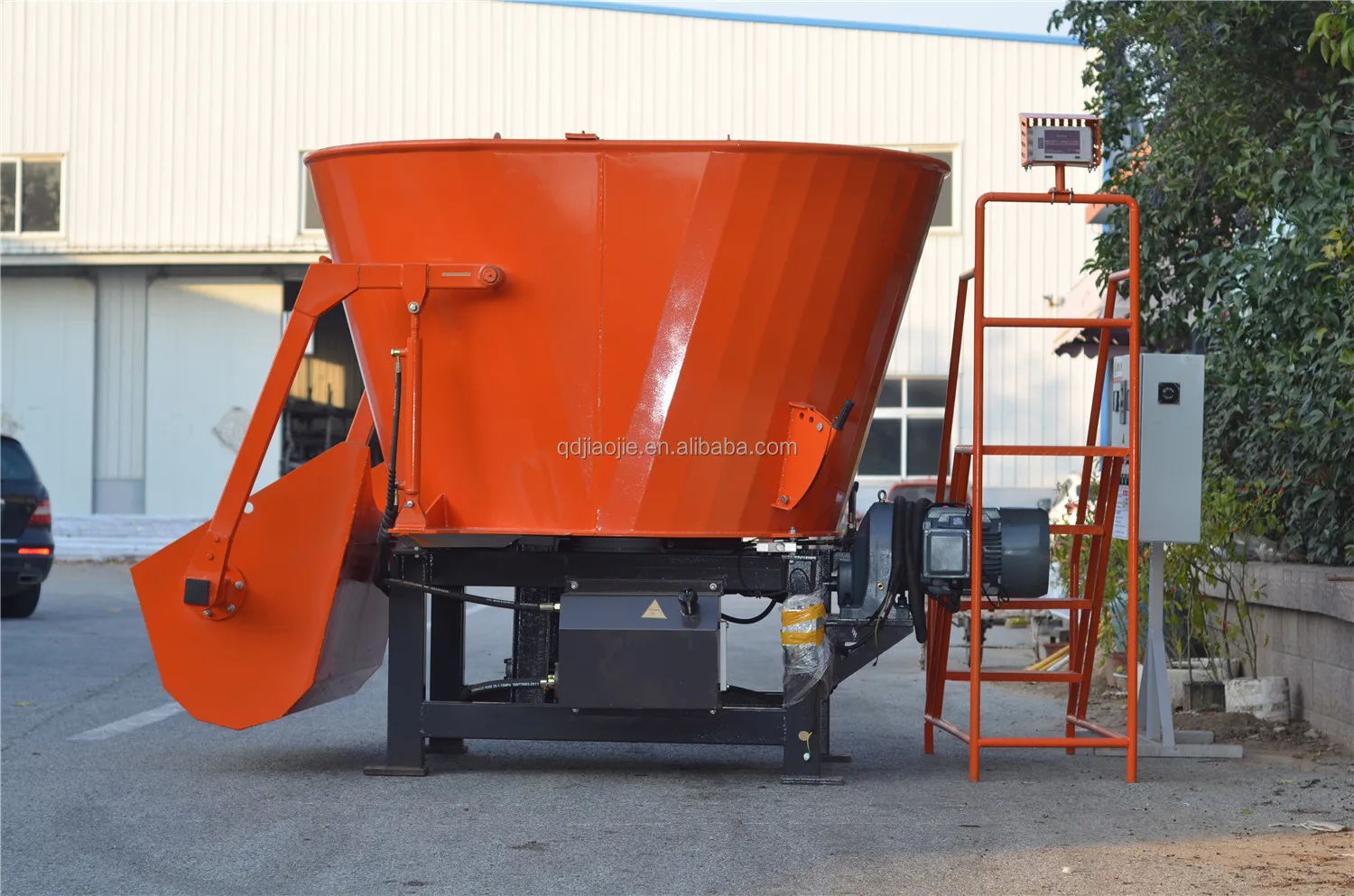

STMR-03 is a stationary feed mixer, featuring a single vertical auger and a loading arm. All feed can be loaded into the mixer by the loading arm. The mixed feed is discharged by the chain conveyor into a spreader, a robot, or onto a belt system. This diet feeder is suitable for both large and small-scale livestock breeders and is available in volumes ranging from 5-36 m³.
A mobile mixer wagon may not prove to be the best solution for every agricultural business. However, every farm definitely wants a feed mixer. Mixing feed right then and there – that is made possible by the stationary mixer made by JointTech. Whether it is used as a feeding system for automatic feeders, as a processing unit for straw pelletization or other stationary applications - the stationary mixer can be perfectly adapted to the specific requirements and conditions of every barn.
A mobile mixer wagon may not prove to be the best solution for every agricultural business. However, every farm definitely wants a feed mixer. Mixing feed right then and there – that is made possible by the stationary mixer made by JointTech. Whether it is used as a feeding system for automatic feeders, as a processing unit for straw pelletization or other stationary applications - the stationary mixer can be perfectly adapted to the specific requirements and conditions of every barn.
Stationary Feed Mixer Specification
Model | Capacity | Size(cm) LxWxH | Auger | Cutting Blade | Power | Loading Weight | Mixing Time |
STMR-05 | 5m3 | 300x170x212 | 1 Set | 7 Sets | 15KW | 1500Kg | 20 Min |
STMR-07 | 7m3 | 316x189x238 | 1 Set | 9 Sets | 15KW | 2100Kg | 20 Min |
STMR-09 | 9m3 | 346x216x264 | 1 Set | 9 Sets | 22KW | 2700Kg | 20 Min |
STMR-12 | 12m3 | 366x216x303 | 1 Set | 9 Sets | 30KW | 3600Kg | 20 Min |
STMR-14 | 14m3 | 486x186x236 | 2 Set | 14 Sets | 15KW*2 | 4200Kg | 20 Min |
STMR-16 | 16m3 | 516x216x233 | 2 Set | 18 Sets | 22KW*2 | 4800Kg | 20 Min |
STMR-20 | 20m3 | 546x216x263 | 2 Set | 18 Sets | 30KW*2 | 6000Kg | 20 Min |
STMR-24 | 24m3 | 581x216x303 | 2 Set | 18 Sets | 30KW*2 | 7200Kg | 20 Min |
Detailed Images
1.Material:Q 345 B Steel
(Box bottom steel thickness: 16 mm Box side steel thickness: 8 mm )
2.Cutting blade material: Q 345 B,thickness is 8 mm,Hardness is 55-58

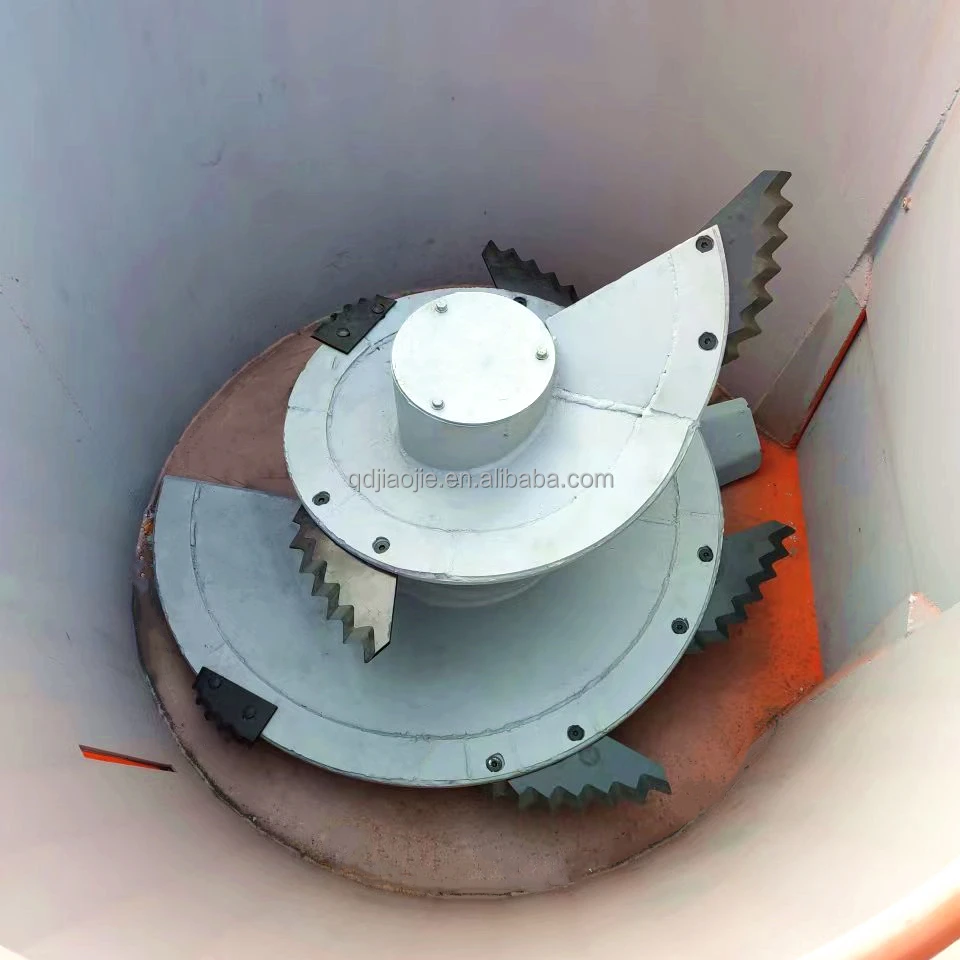

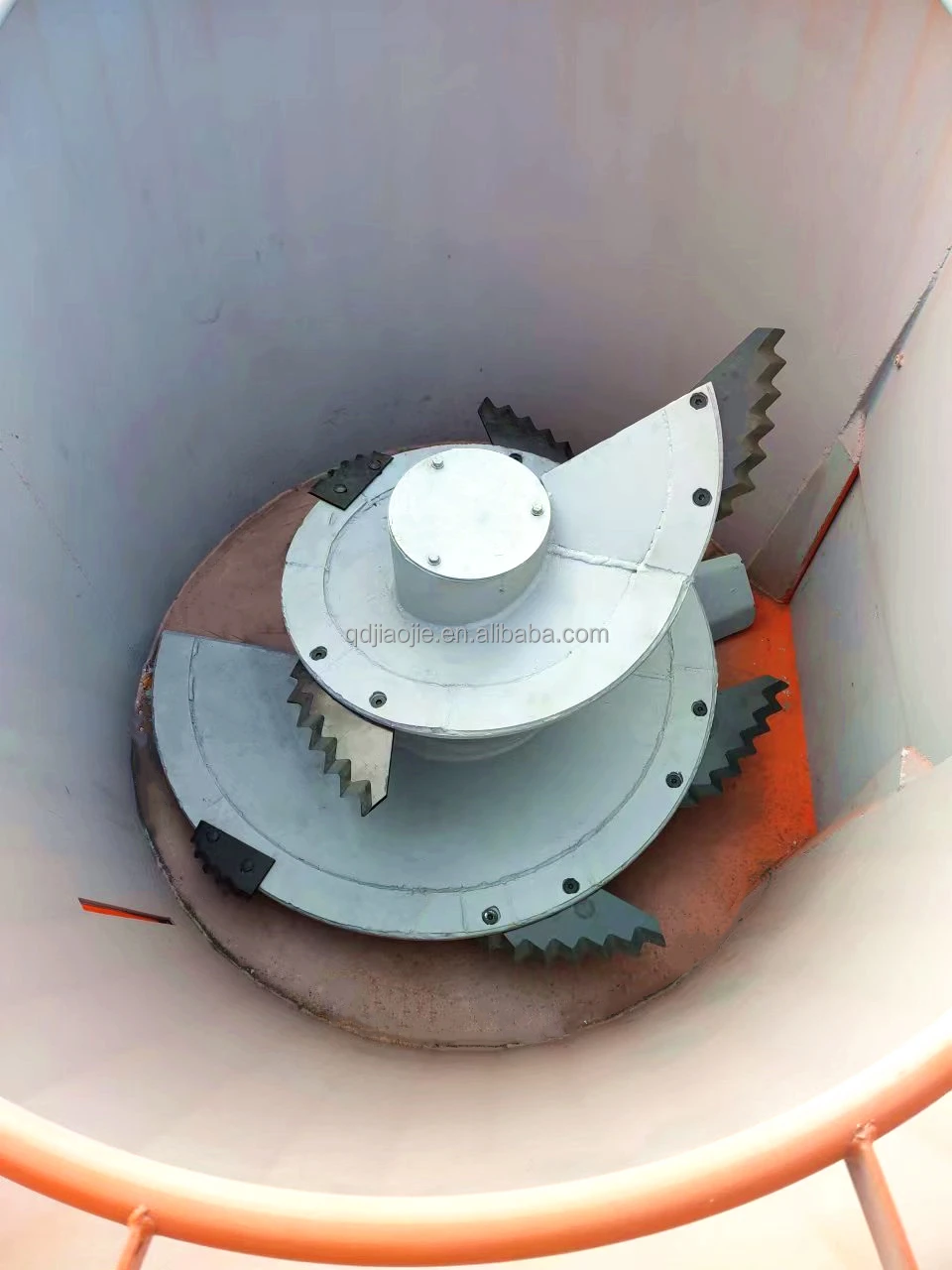

The vertical mixer auger and the canted container ensure that the feed is mixed through perfectly. The distance from the mix container to the auger has been selected to ensure that all feed components are reliably shredded and mixed trough.

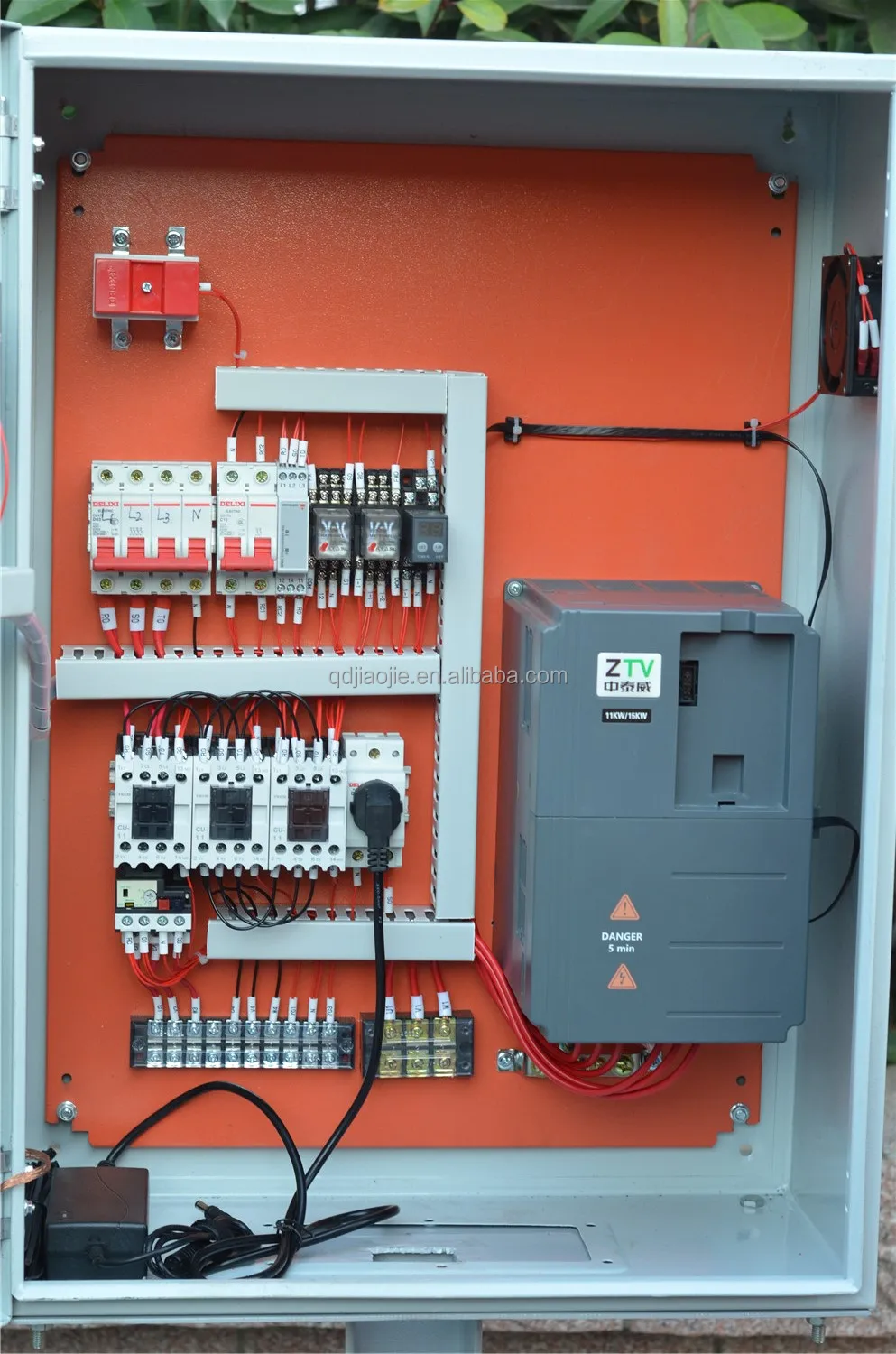

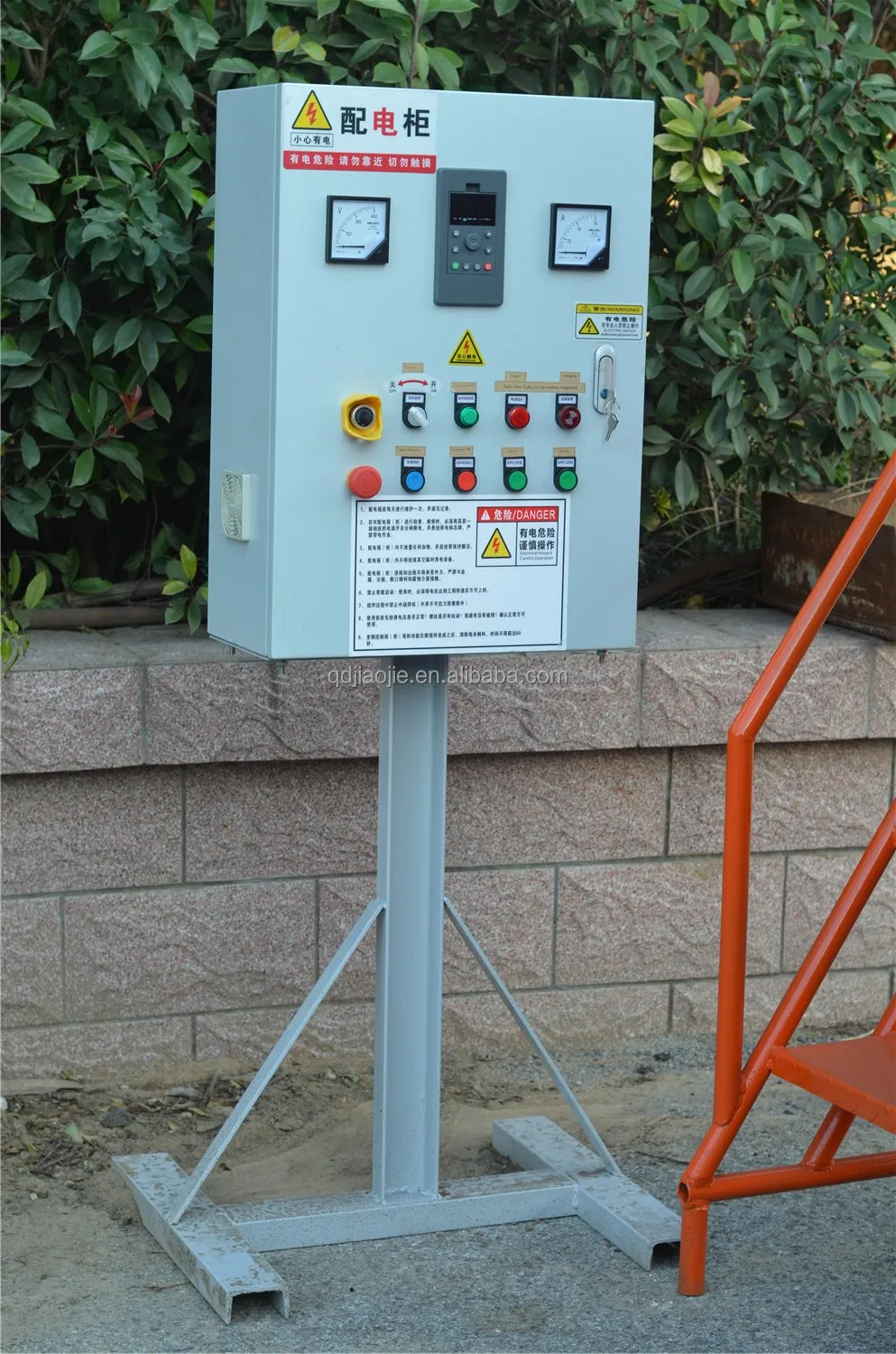

3.Electric Meter Box:Best Brand in China

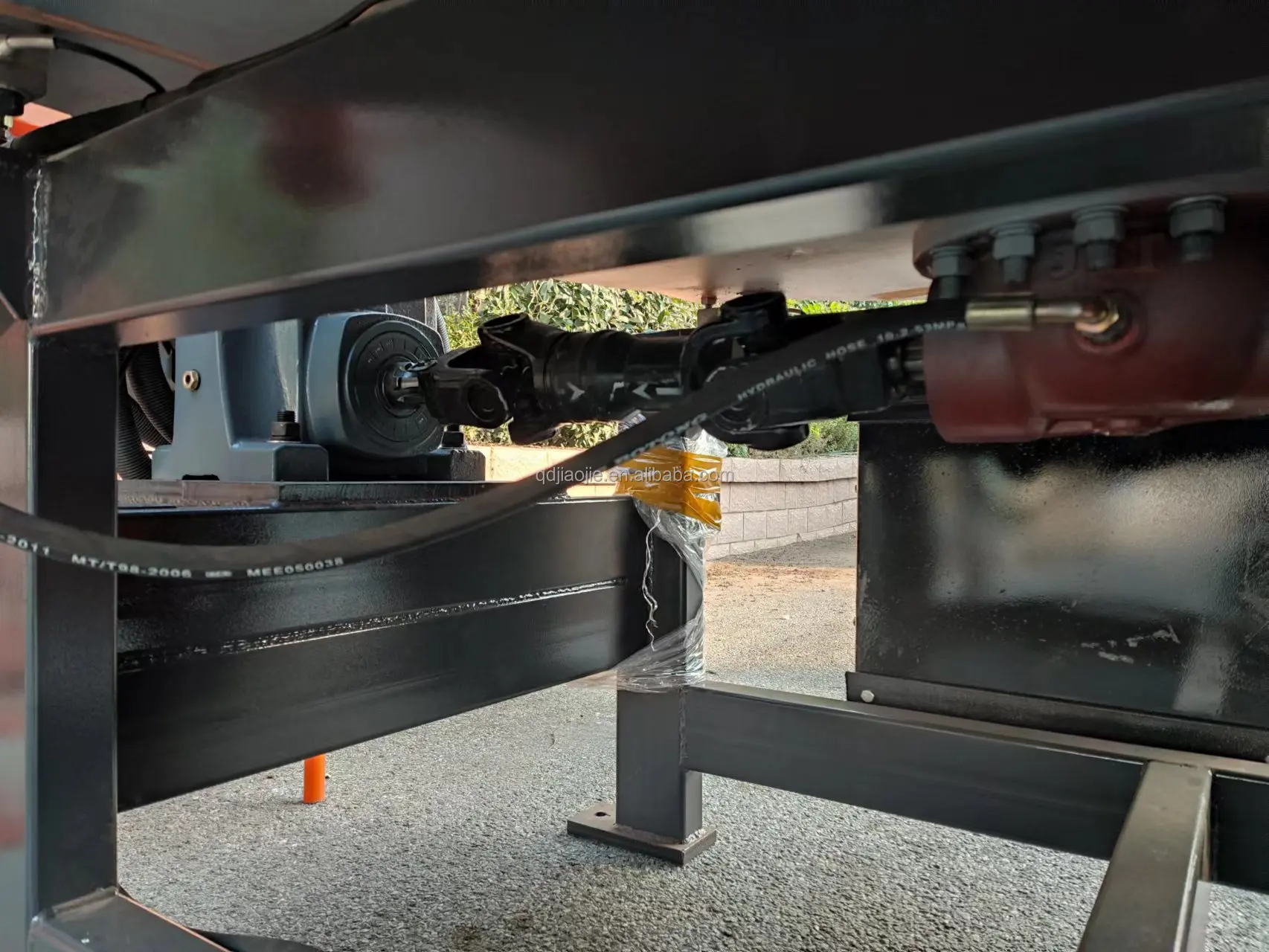

4.Reducer,drive shaft, and motor
Make the mix auger working at a constant speed, 26 rpm/m,so that the feed is evenly mixed

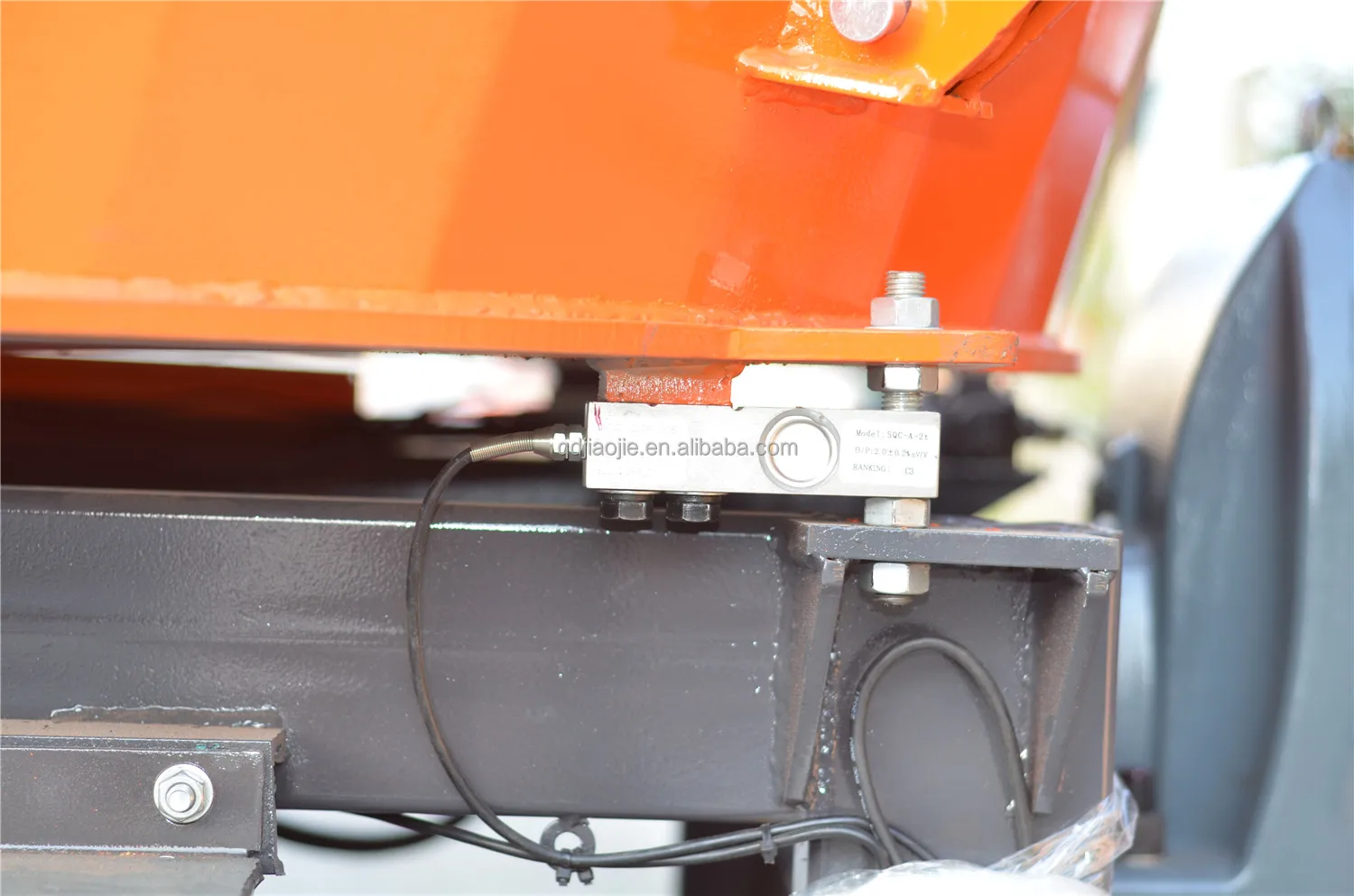

5.Weighing Sensor:Four(At each corner)
The creation of a constant mixed ration is additionally simplified through the use of an electronic weighing system.The
electronic additive scale guarantee continous mixing of the individual components.

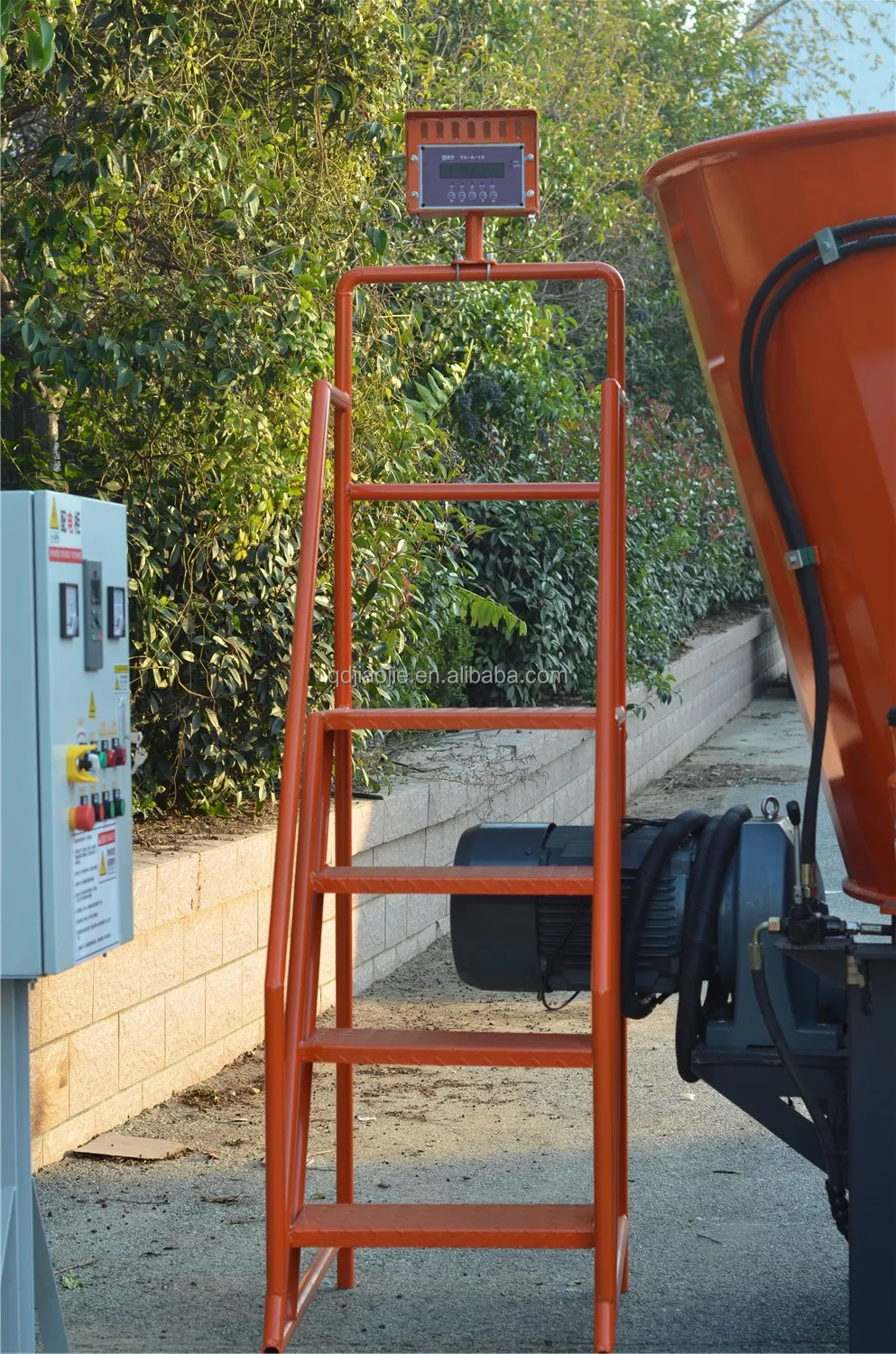

6.Portable Ladder
The ladder is independent, it can be moved, to let the operator observe the condition inside the box.
7.Discharge Door Control Rod
Hydraulic control, simple operation, push and pull

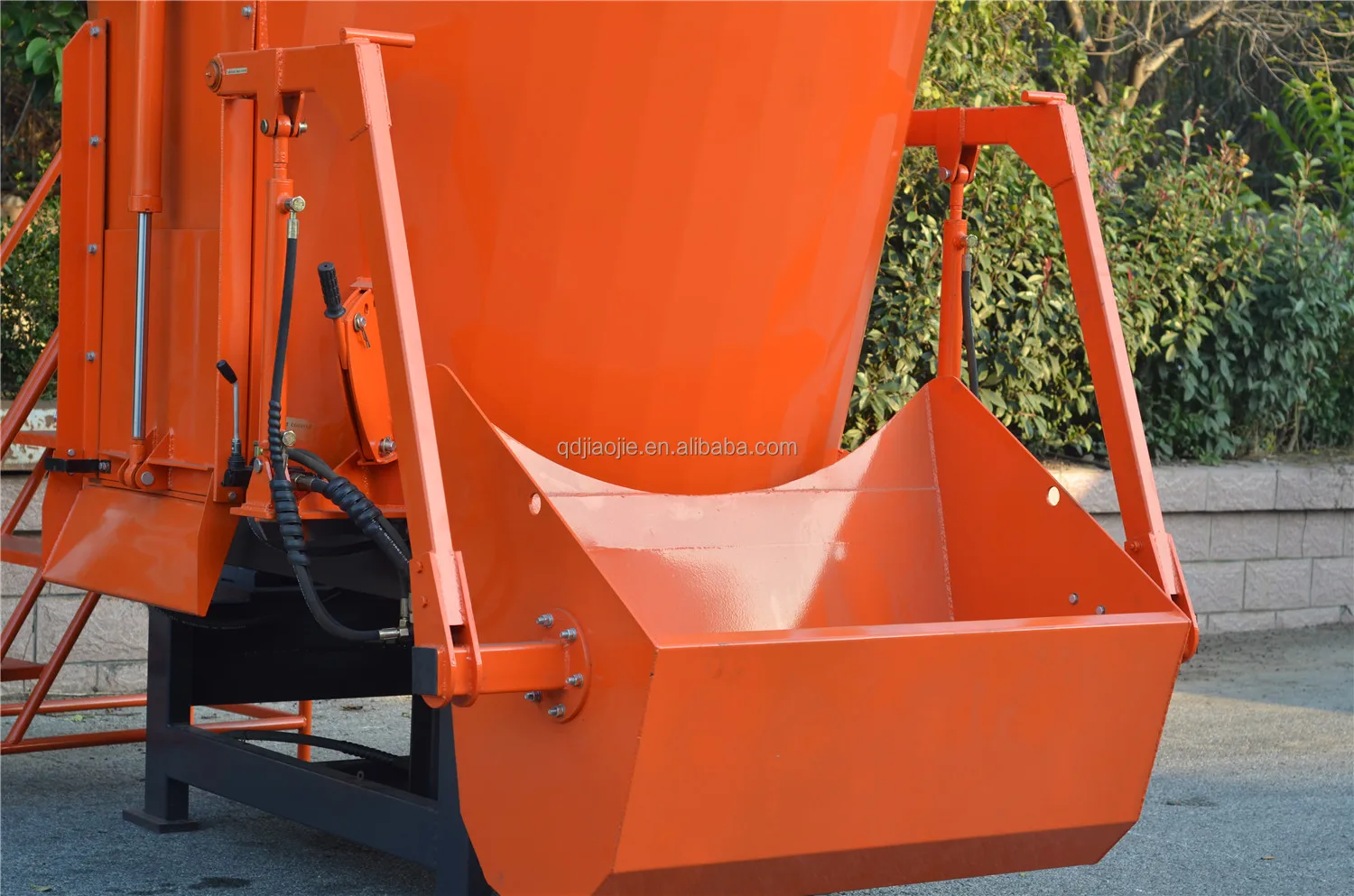

8.Loading Arm Control Rod
Hydraulic control, simple operation, push and pull

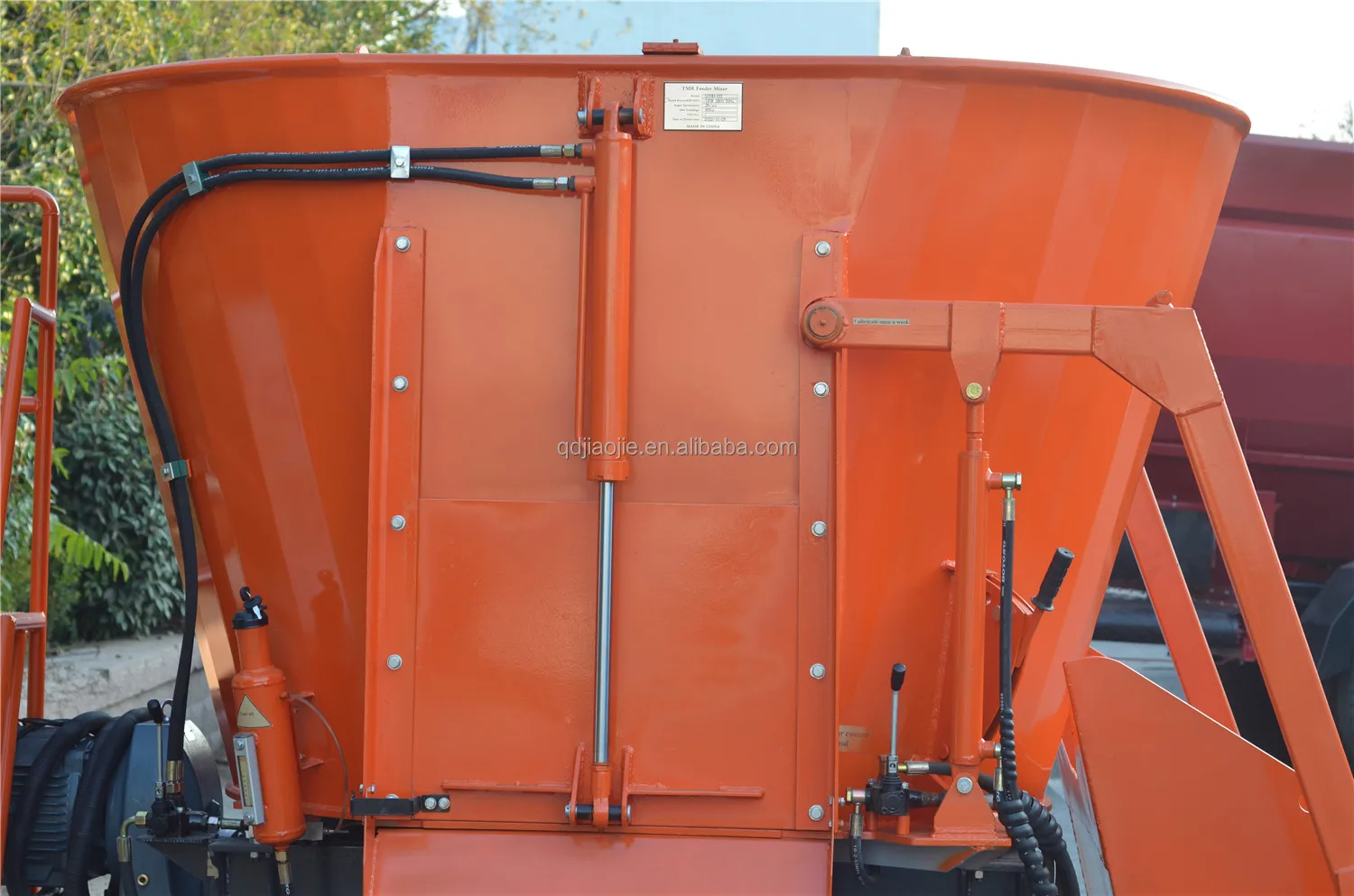

9.Hydraulic oil cylinder
Control the discharge door and loading arm
10.Motor
11KW efficiency motor, VFD(Variable-frequency Drive)start, the leftovers on the auger can be thrown away at high speed

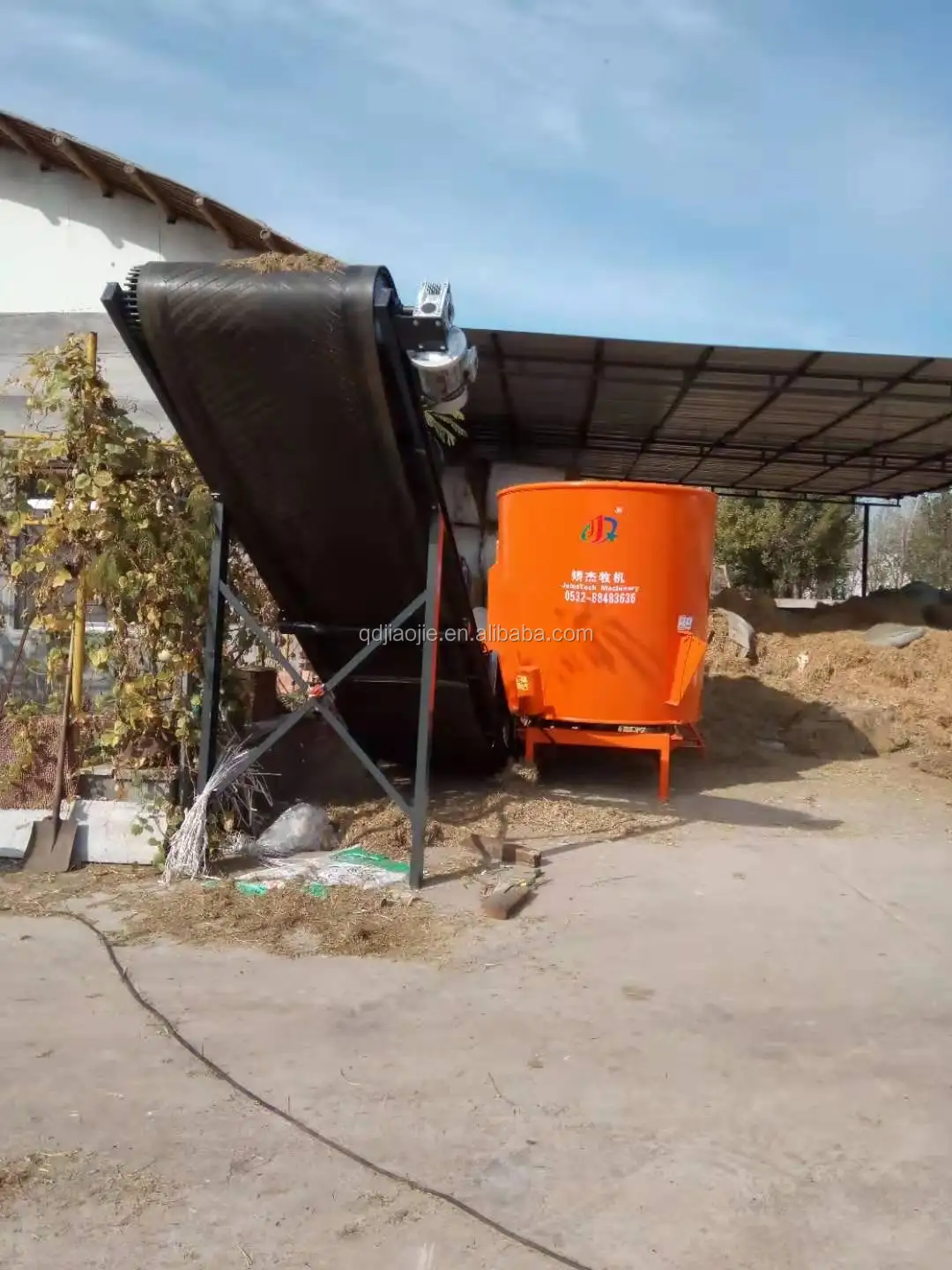

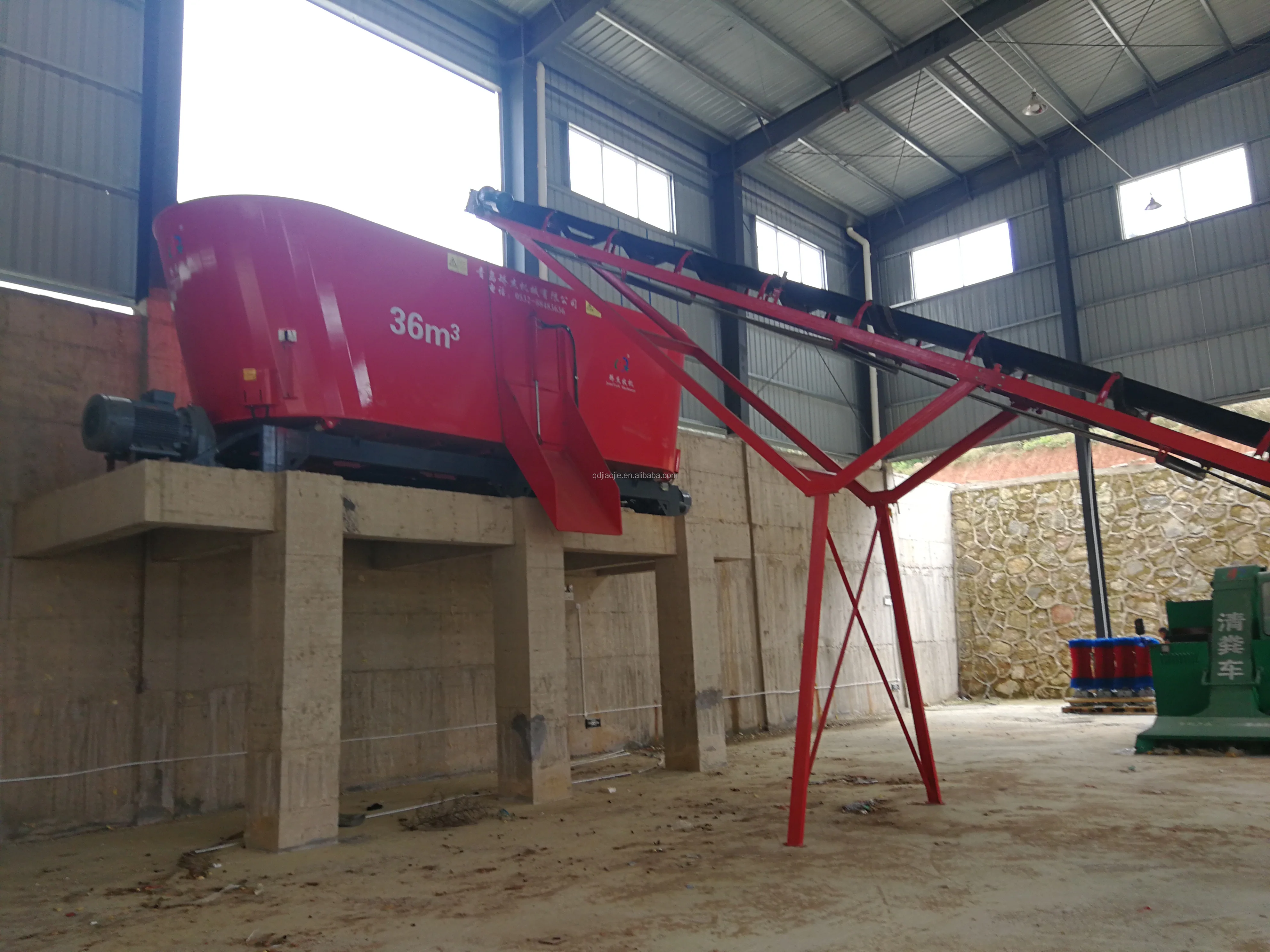

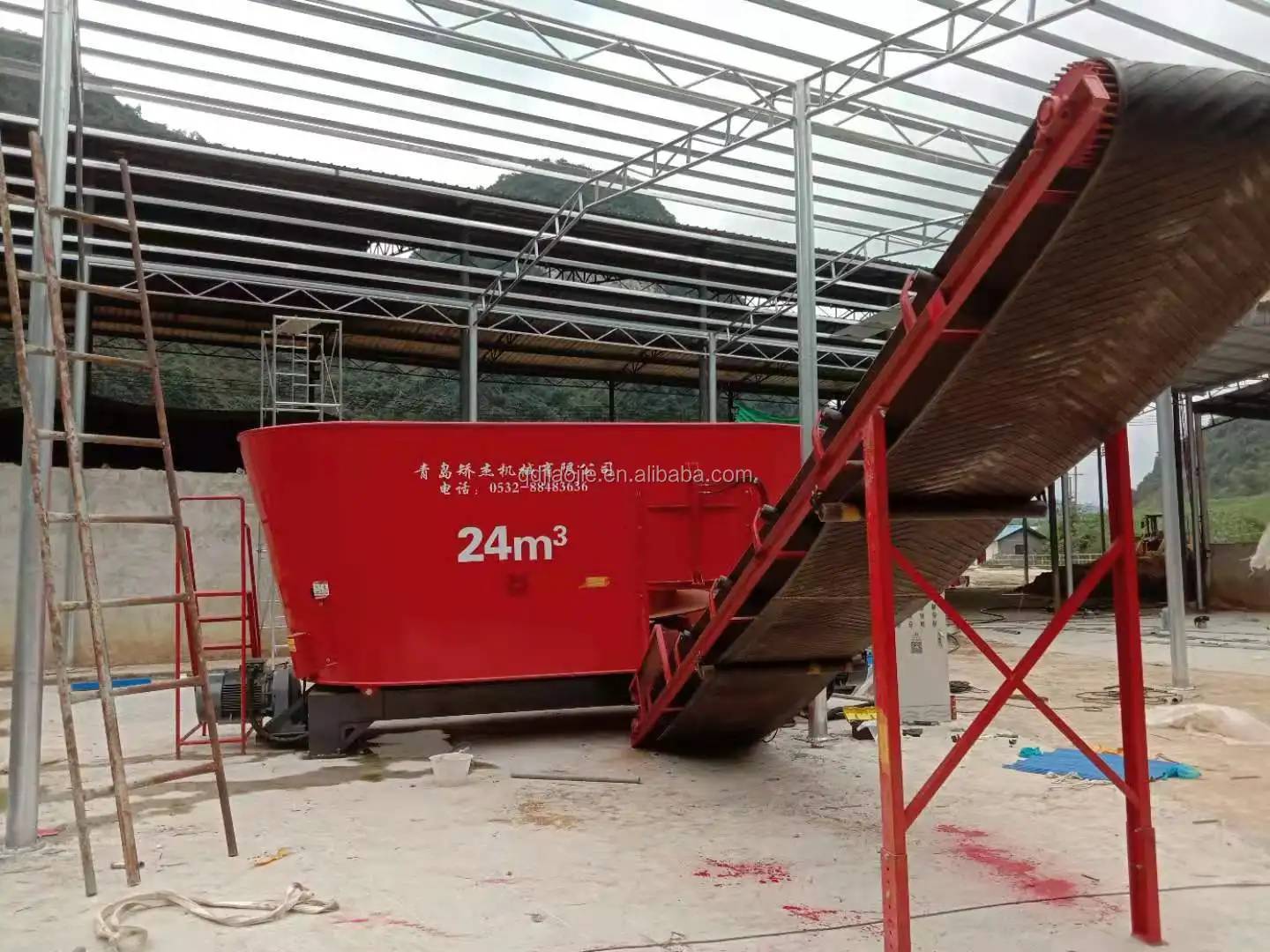

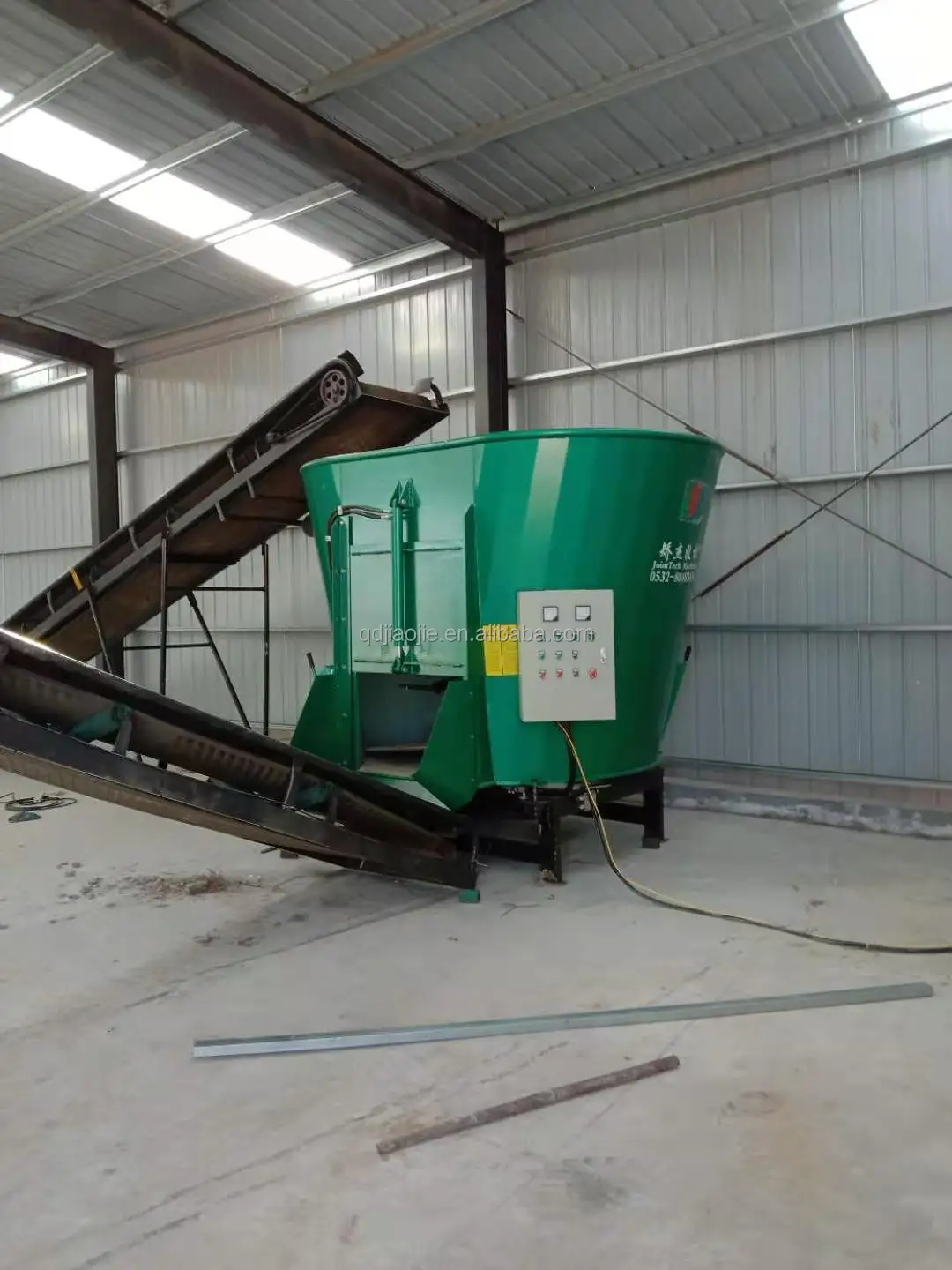

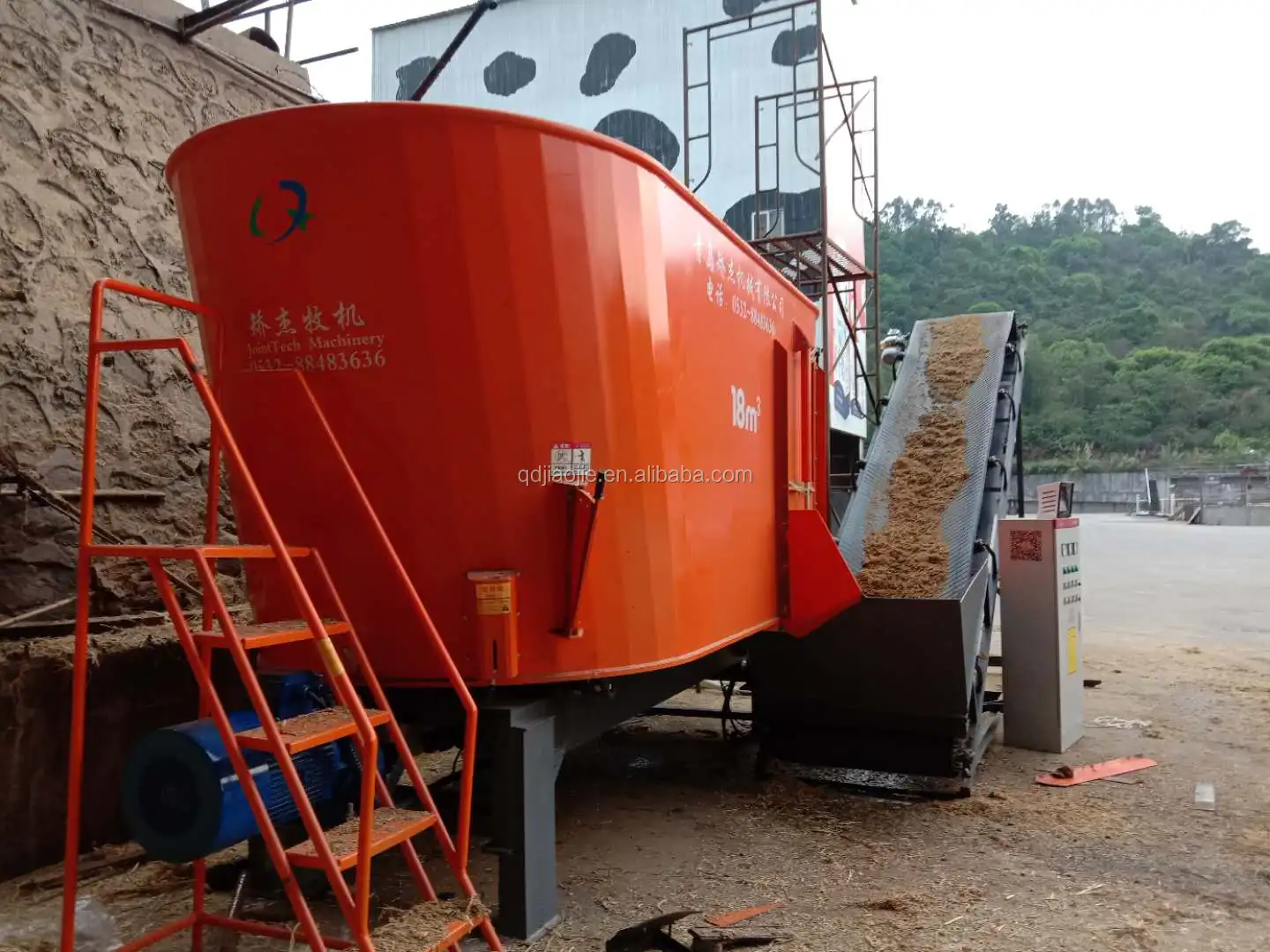

Client Case
Our Service
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Qingdao JointTech Machinery Inc. is located in Laixi,Qingdao City,close to Qingdao Airport and Qingdao Port.It is a professional manufacturer of dairy farm machiney equipment.It owns 2 factory, it is a modern machinery equipment manufacturer integrating design, production, sales and service.
Main product including TMR Feed Mixer,Cow Dung Removal Machine,Feeding Machine,Calf Feeder,Sand/Rice Husk Spreader,Silage
Reclaimer,Milk Cooling Tank,Drinking Water Trough,Cow Hoof Trimming Machine and so on.
The production process of the product is:
CNC cutting of raw materials, welding, assembly, grinding, painting, testing and inspection. We are seriously responsible for each
details and parts, because after many years of hard work, we have created the production concenpt of JointTech Machinery's"Details
determine success or failure."
Our product are positioned in medium and high-end equipment, learn from foreign and our own mature products,products have been
exported to more than 20 countries,and product are well received by customers.
As a manufacturer,we We can provide you with excellent products,best price and fast delivery.We sincerely hope to establish a
pleasant and long-term cooperative relationship with you.
Main product including TMR Feed Mixer,Cow Dung Removal Machine,Feeding Machine,Calf Feeder,Sand/Rice Husk Spreader,Silage
Reclaimer,Milk Cooling Tank,Drinking Water Trough,Cow Hoof Trimming Machine and so on.
The production process of the product is:
CNC cutting of raw materials, welding, assembly, grinding, painting, testing and inspection. We are seriously responsible for each
details and parts, because after many years of hard work, we have created the production concenpt of JointTech Machinery's"Details
determine success or failure."
Our product are positioned in medium and high-end equipment, learn from foreign and our own mature products,products have been
exported to more than 20 countries,and product are well received by customers.
As a manufacturer,we We can provide you with excellent products,best price and fast delivery.We sincerely hope to establish a
pleasant and long-term cooperative relationship with you.
