slew drive solar panel tracking system solar energy tracker
- Category: >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (62269879887):
Product Overview
Description
Product Description

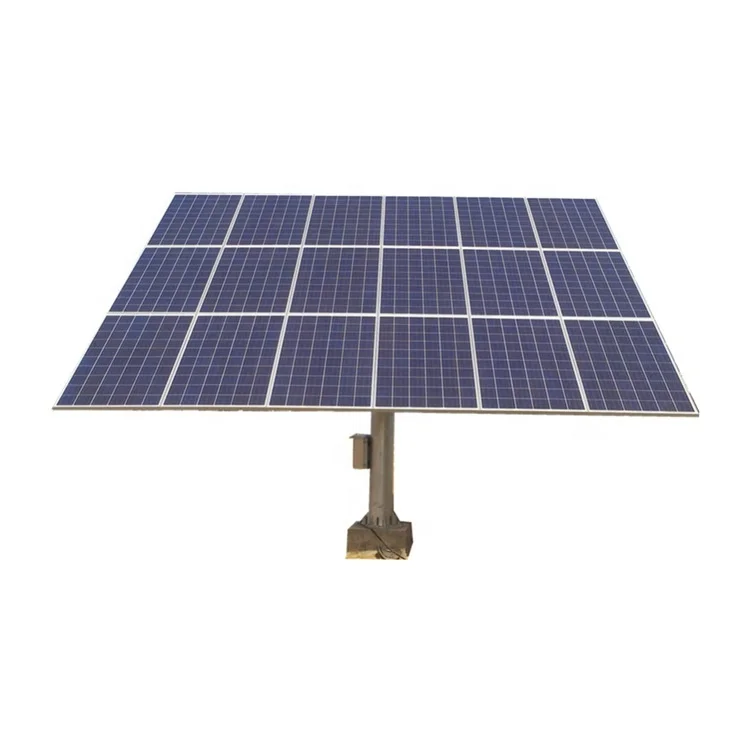

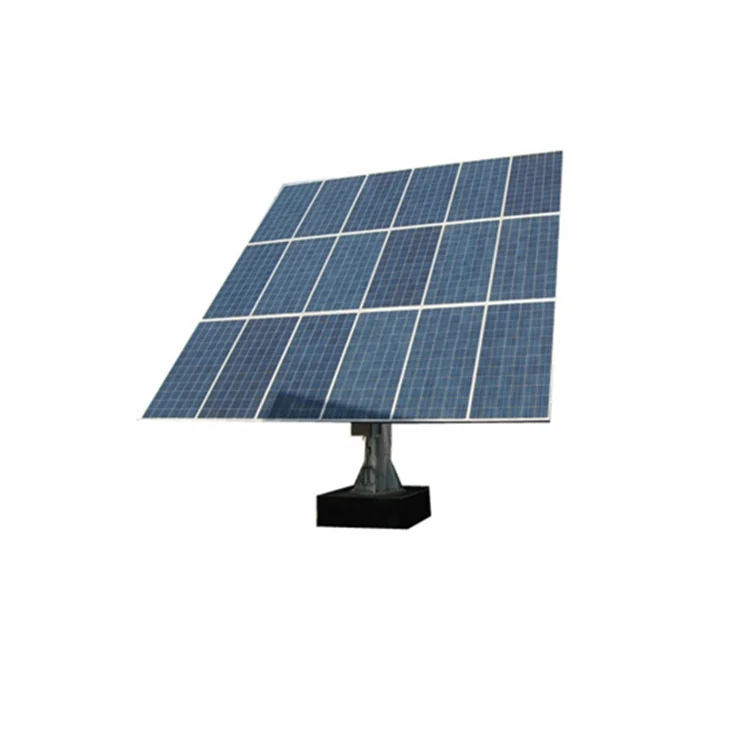

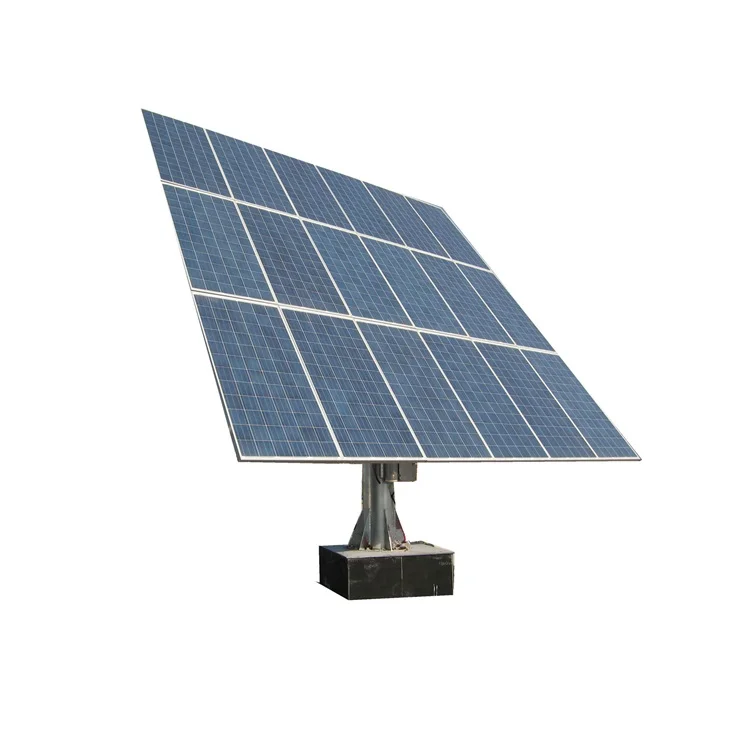

5kw 2-axis Solar tracking system
The solar tracking system uses high-precision astronomy algorithm to calculate the angle of the sun ,combined with high performance microcontroller (DSP core),making the system accurate and reliable ,no rainy day interference,using international first-line brand tilt sensor,real-time closed-loop feedback tracking angle increase electricity generation 30%-50% ,compare with the fixed bracket PV system.
Comparison

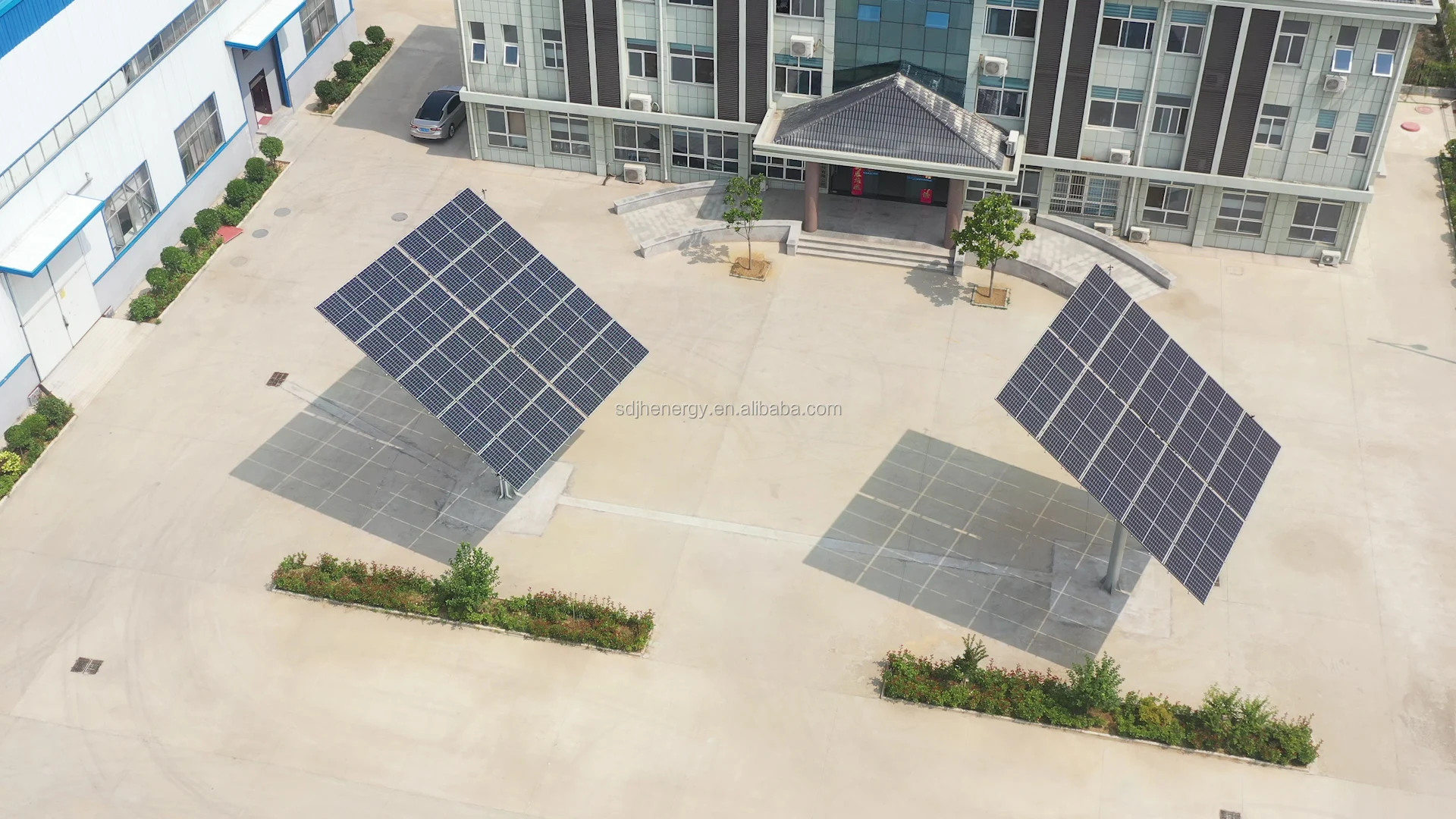

Our technicians adjust the left dual axis system to fixed,the right running normally.The following data is the comparison between fixed solar system and dual axis solar tracking system.
Product Paramenters
Fixed
Dual axis
From the following data,we can conclude that :113/79.1=1.428,
which means ,the power generation of the dual axis system increased by 42.8% compared with fixed system.
Time | Dual axis (Kw.h) | Fixed (Kw.h) |
5：00 - 6：00 | 0.17 | 0.05 |
6：00 - 7：00 | 4.8 | 0.57 |
7：00 - 8：00 | 8.75 | 2.96 |
8：00 - 9：00 | 10.02 | 5.78 |
9：00 - 10：00 | 10.5 | 8 |
10：00 - 11：00 | 10.6 | 9.56 |
11：00 - 12：00 | 10.6 | 10.3 |
12：00 - 13：00 | 10.75 | 10.67 |
13：00 - 14：00 | 10.78 | 10.2 |
14：00 - 15：00 | 10.48 | 8.79 |
15：00 - 16：00 | 10.12 | 7.08 |
16：00 - 17：00 | 9.2 | 4.09 |
17：00 - 18：00 | 5.73 | 0.75 |
18：00 - 19：00 | 0.5 | 0.3 |
Total | 113 | 79.1 |
Rainy day
sunny day
Project | Value | Project | Value | ||
Control Method | Astronomical | Ipone APP | Optional | ||
Accuracy | ≤ 1° | Back Tracking | YES | ||
Azimuth tracking | -120°～+120° | Elevation tracking | 30°～90° | ||
Normal Wind protection | 17m/s | Operation under Max wind speed | 35m/s | ||
Power supply | AC:220v/AC380v | Driving Power | 90*2 | ||
Mechanical Lifetime | >25year | Daily power consumption | 0.5kwh | ||
Operating Temp | -25℃～65℃ | Weight | 900kg | ||
Meterial | hot galvanized | Wind protection | Optional | ||
GPS positioning | Optional | Communication | RS485-MODBUS | ||
Protection degree | IP65 | Standards | GBT 29320-2012 | ||
Remote function | Yes | Data protection | Yes | ||
Certification | CE,CQC, ISO9001, ISO14001, OHSAS18001 | ||||
Details Images

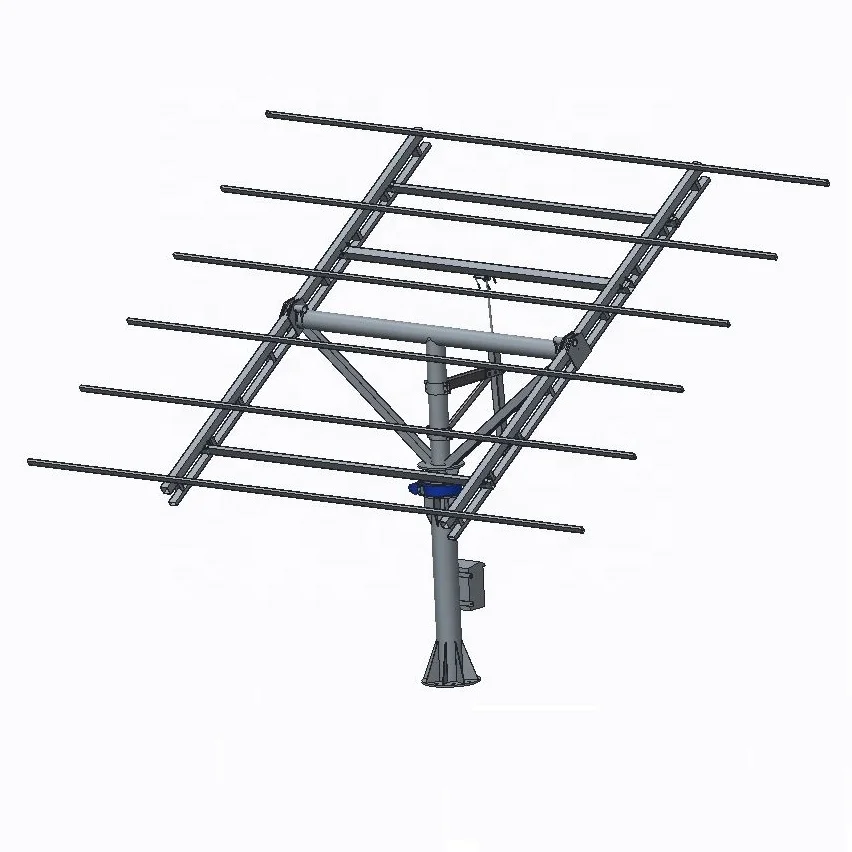

Q235B Hot galvanized steel
88um Hot-dipped zinc to ensure 25 years life
Manufacturing Technique
Our company independently develops the cloud platform ,which can upload and save the data in real time to the cloud control center .Users can view the tracking data and remote control in real time through the computer client or mobile APP.
Remote control
RS485-MODBUS standard communication interface, the computer software can read the device at any time
the following information:
(1)Sun angle, inclination angle, operating status.
(2)Actuator, inclination, limit, communications fault alarm.
(3)Remote start, stop, reset, manual, wind, snow, rain.
the following information:
(1)Sun angle, inclination angle, operating status.
(2)Actuator, inclination, limit, communications fault alarm.
(3)Remote start, stop, reset, manual, wind, snow, rain.
Back tracking
Self-developed back tracking algorithm to further improve the efficiency of power generation to ensure that the solar panels has always been working in the shadowless state, increase the solar power generation and prolong its service life.
International first-line brand electrical components
Selection of international first-line brand inclination sensor, real-time closed-loop feedback tracking angle,automatic tracking, without human intervention.
Manual adjustment functions
Tracker with aviation plug,easy installation and commissioning,with manual control mode you can manually adjust the tracking angle,the controller has a power station running,stop,night,returnstatus indicator.
Automatic leveling function
Wind-resistant design, automatically flat to the initial position at night, the system has a wind speed
protection interface, support for external wind speed sensor, at any time to control the system into the
mechanical maximum wind conditions.
protection interface, support for external wind speed sensor, at any time to control the system into the
mechanical maximum wind conditions.
Company Profile
SHANDONG JINHONG ENERGY is a high-tech enterprise. Committed to research and application of new energy products and provide one-stop system solution services for customer. The company has successively launched solar photovoltaic tracking system, solar water pumping system, solar fixed bracket system, solar street light, solar micro energy storage system, noise reduction equipment and other series of products. In addition, we provide customized product which strictly in accordance with IS0 9001 and industry standards for R&D and production. Our mission is to provide quality, reliable and cost-effective system solutions for customers.
Our Advantages
Our R&D design team has 18 years experience and more than 20patents in the field of solar tracking system.
Factory
Our factory covers an area of 266400 ㎡.The total investment reached 120 million us dollars.
Warehouse
Company using the ERP enterprise resource planning and OA office automation,ensure that the entire production process achieve quality control,finished storage and waiting for delivery.
Work shop
With high intelligence and automated production workshop,the company annual production capacity reach to 800MWp solar system.
Certifications
FAQ
1.What is your terms of payment?
Payment ≤1000USD,100% in advance.Payment ≥1000USD,50%T/T in advance,balance before shippment.
2.Are you a manufacturers?
Yes, we have our own factory. All solar systems are self-designed.Welcome to visit our company
3.How long is your delivery time?
Generally,solar tracker system is 5-10days shipped if in stock ,if not ,30days is required.
