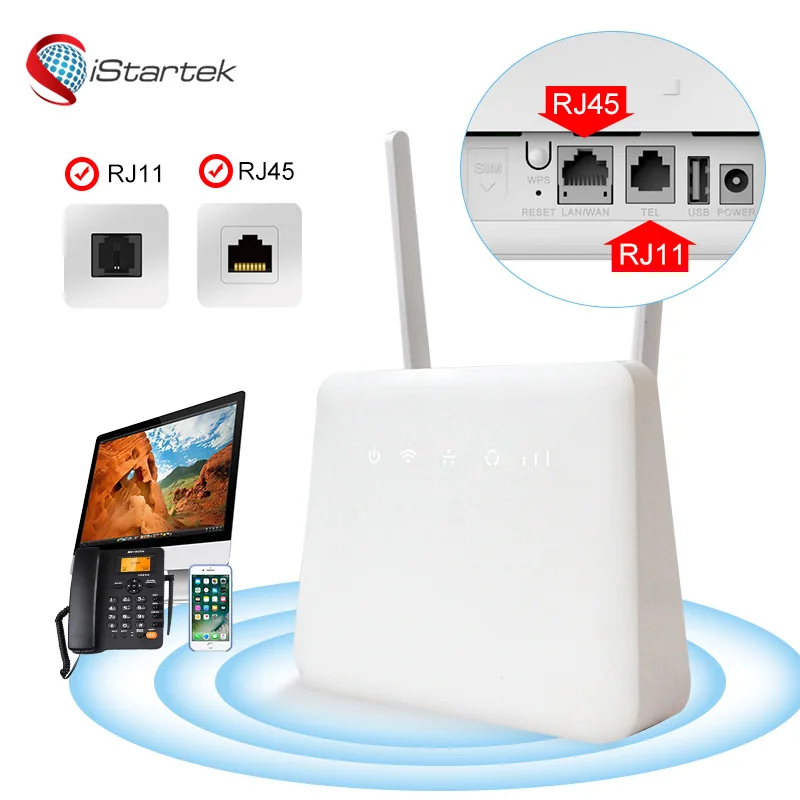

5g cheap prices white label Volte RJ11 port dual band wifi 3g/4g wireless router with 4 sim card slot
- Category: Wireless Networking >>>
- Supplier: Shenzhen iStartek Technology Co. Ltd.
Share on (62270001965):
Product Overview
Description
Click us: The web price is not including any 3G or 4G or 5G module, which means you can not get the Internet by inserting a SIM card. Because the different country has different operators, here need to install different 3G or 4G or 5G module. If you want to order here and also need the 3G or 4G, Please sent us an inquiry immediately. We will give you a big discount.
5g cheap prices white label Volte RJ11 port dual band wifi 3g/4g wireless router with 4 sim card slot
WR11S Advantages
 |
4G Signal to WIFI Signal |
 |
4G Signal To Lan |
|||
 |
2.4G, 300Mbps WI-FI Rate |
 |
Support 3G 4G LTE Network | |||
 |
Support VOLTE Function |
|
Use ZX297520V3E Chip |
|||
|
|
Support WPS, VPN, Port Mapping |
 |
Support 32 MAX Terminates |
Specification
1.1 Basic Specifications
| Item | Description |
| Dimensions | 120mm (H) x 150mm (W) x 50mm (D) |
| Power Supply |
Input: Universal range 100V~240V AC Output: 12V DC/1A |
| Power consumption | <12W |
| Memory | RAM 512Mb / ROM 1GMb |
| Slic | slic Le9641 |
| USIM/SIM Slot |
2FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal |

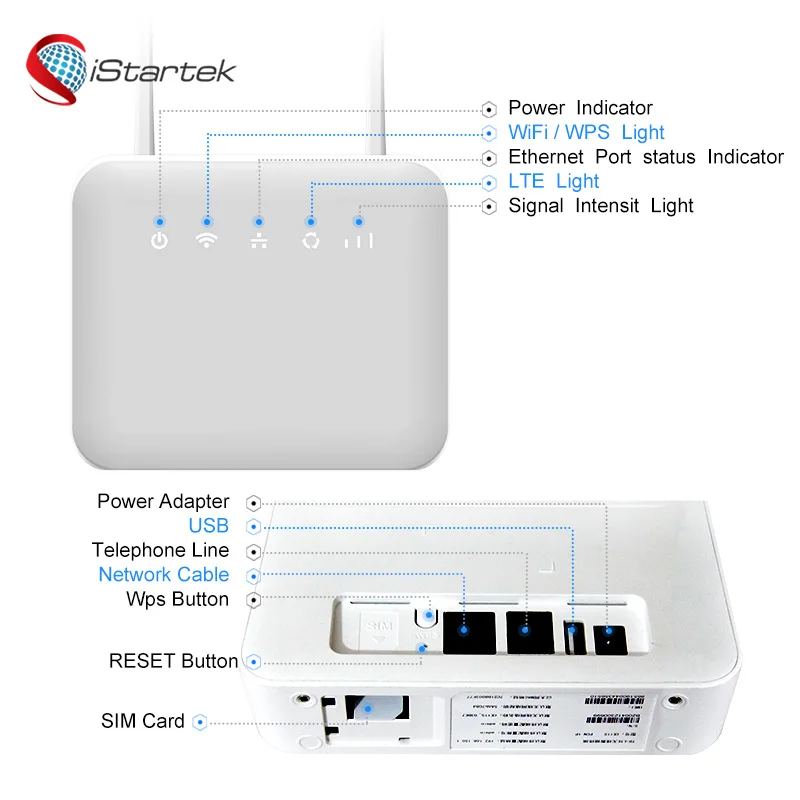

| LED Indicators |
Power LED×1 WPS/WLAN LED×1 LAN LED×1 LTE Internet LED×1 Signal LED×3 |
| WPS Button | WPS Button×1 |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| Ethernet Port | RJ45×1, 10/100M auto-sensing, LAN/WAN |
| Voice Port | RJ11×1 |
| USB Port | USB 2.0×1 |
| Antenna |
4G/3G/2G:Internal Antenna OR External antenna(optional); WIFI: Internal Antenna |
| ESD | ESD Protection circuit; Contact±4KV, Air±8KV |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -25℃ ~ 70℃ |
| Operating Humidity | 5% ~ 95% |
1.2 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS |
| Bands(Max) |
Four standard configurations(Optional): WR11S-Xce(Asia): LTE:B1/B3/B5/B8/B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39
WR11S- P (Asia): LTE:B1/B2/B3/B5/B7/B8/B28A/B28B/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900
WR11S-E (Europe & Africa): LTE:B1/B2/B3/B5/B7/B8/B20/B28A/B34/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900
WR11S-A (Latin America): LTE:B2/B3/B4/B5/B7/B8/B28A/B28B/B66;WCDMA:B2/B4/B5/B8;GSM850/GSM900/GSM1800/GSM1900
More bands can be customized. |
| Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(upload speed); LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(upload speed); WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(upload speed); TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(upload speed); EDGE: Max 236.8kbps(DL)/ Max 118kbps(upload speed); GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(upload speed); GSM: Max 9.6kbps (DL)/ Max 2.7kbps (upload speed); |
Coupon
Products Pictures
Company Infomation
FAQ
1. Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2. Do you accept PCBA orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3. Do you provide firmware support?
Sure thing, unlike other companies that are buying solutions from the design company, we have our own firmware development team to support you in 100%.
4. Do you....?
Maybe, why don't you contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
