60L/min Laboratory Diaphragm Vacuum Pump 220V 50Hz
60L/min Laboratory Diaphragm Vacuum Pump 220V 50Hz

60L/min Laboratory Diaphragm Vacuum Pump 220V 50Hz

Share on (62270047649):


Price:

Quantity:


Product Overview

Description


60L/min Laboratory Diaphragm Vacuum Pump

220V 50Hz

Features

1. Oil free, clean exhausted air by built- in filter .
2. Automatic cooling exhaust system ensures 24 h operation continuously.
3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.
4. TEFLON surface treatment, anti-gas corrosion.

Speicification



ModelGM-1.0A
Pump Head2
Speed of Evacuation60 L/Min
Ultimate pressure≥0.08 Mpa
 Vacuum200mbar
Pressure≥30Psi,Positive or Negative pressure
Inletφ6 mm
Outletφ6 mm
Working Temp.7—40℃
Body Temp.<55℃
Noise Level<50 dB
Motor Power160W
Power consumption220V,50Hz
DiaphragmNBR
ValvesNBR
Net Weight10 Kg
External Size (LXWXH)300*160*235mm
G.W.11 Kg
Package Size380*340*270mm



Application

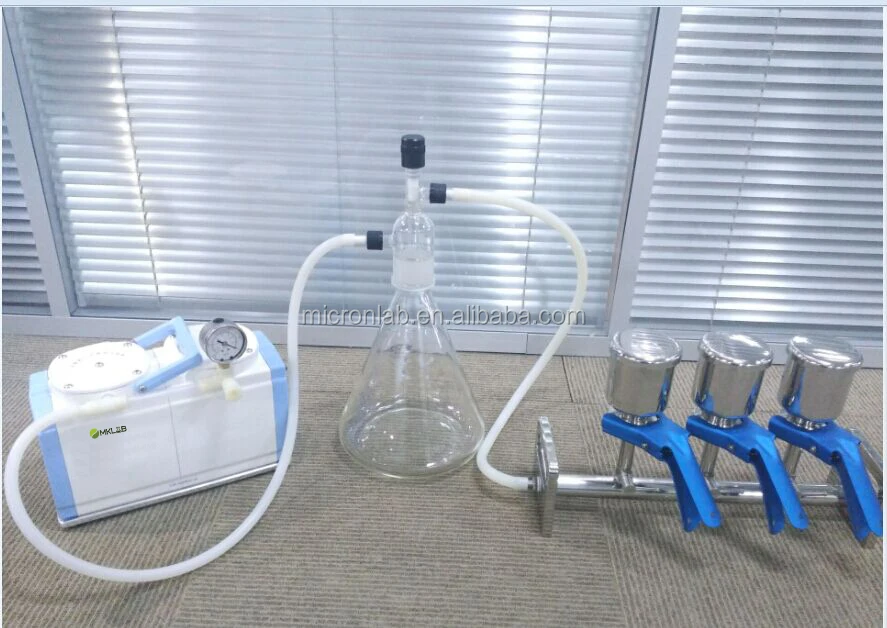

application 1.jpg

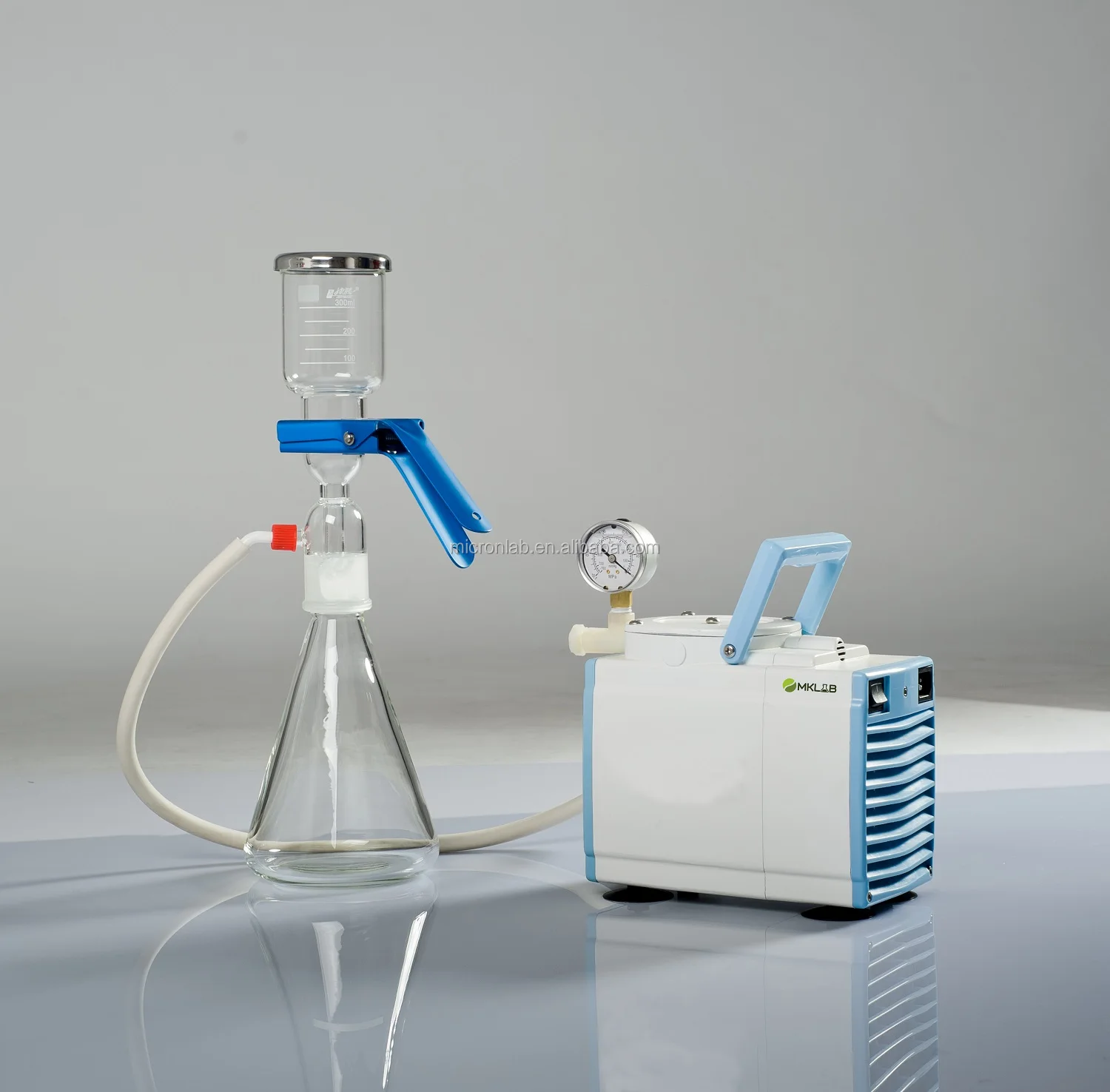

application 2.jpg
