Product Description

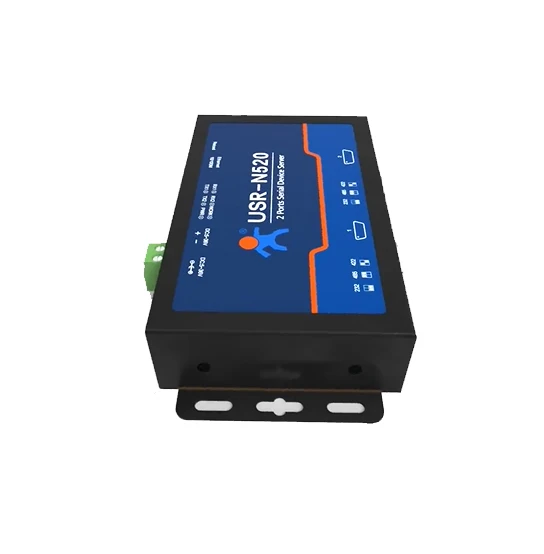

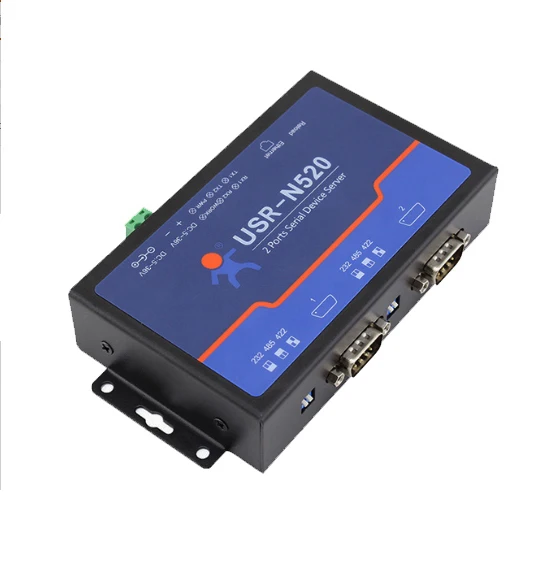

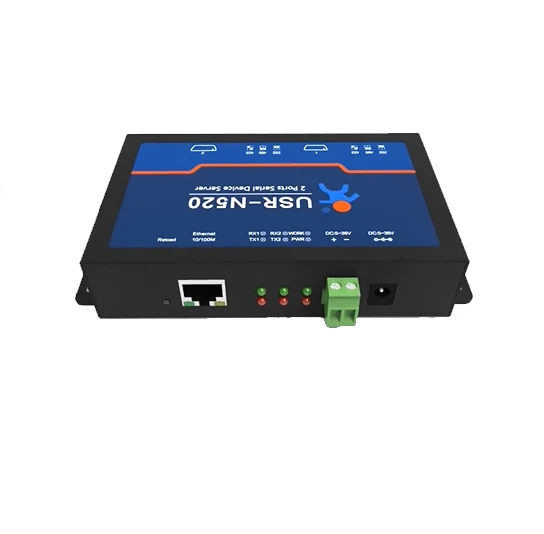

Industrial Dual Port Serial RS232 RS485 RS422 to Ethernet Data Gateway with Modbus RTU function

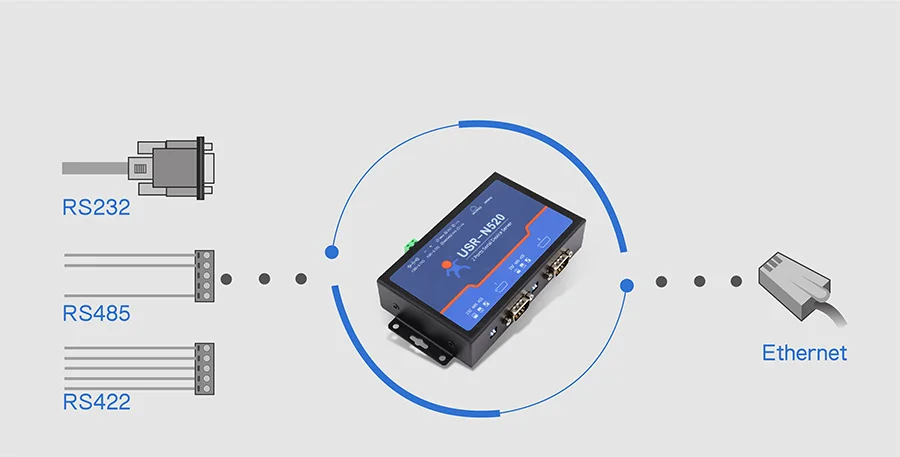

USR-N520 is a Ethernet Data Gateway, which can realize transparent transmission between TCP/UDP data package and RS232/ RS485/ RS422 interface. The device has unique functions such as network printing,Modbus multi-host polling and watchdog mechanism. USR-N520 is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.

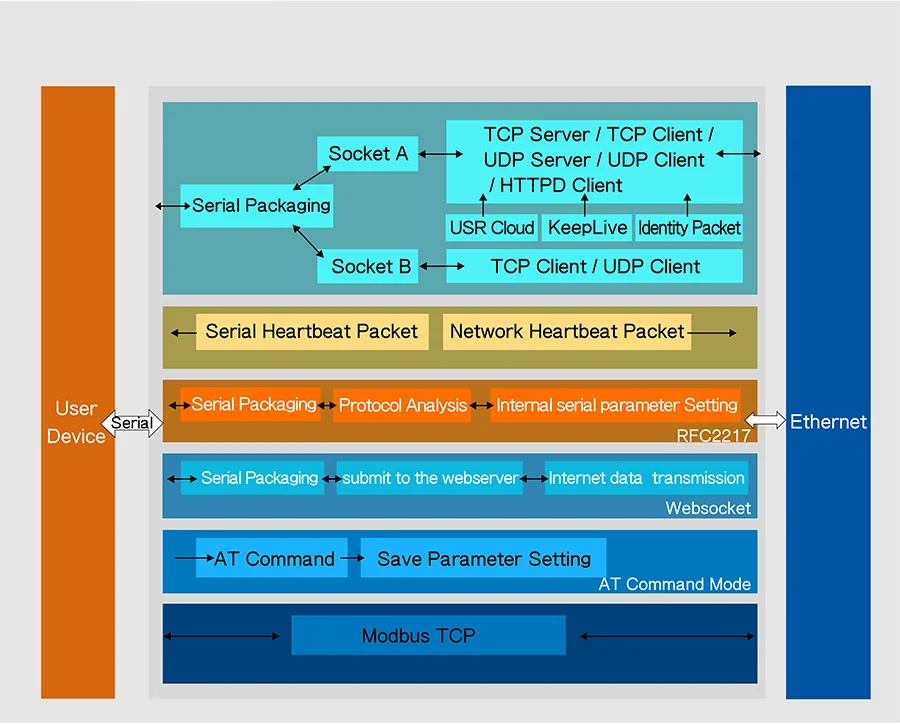

Function Overview

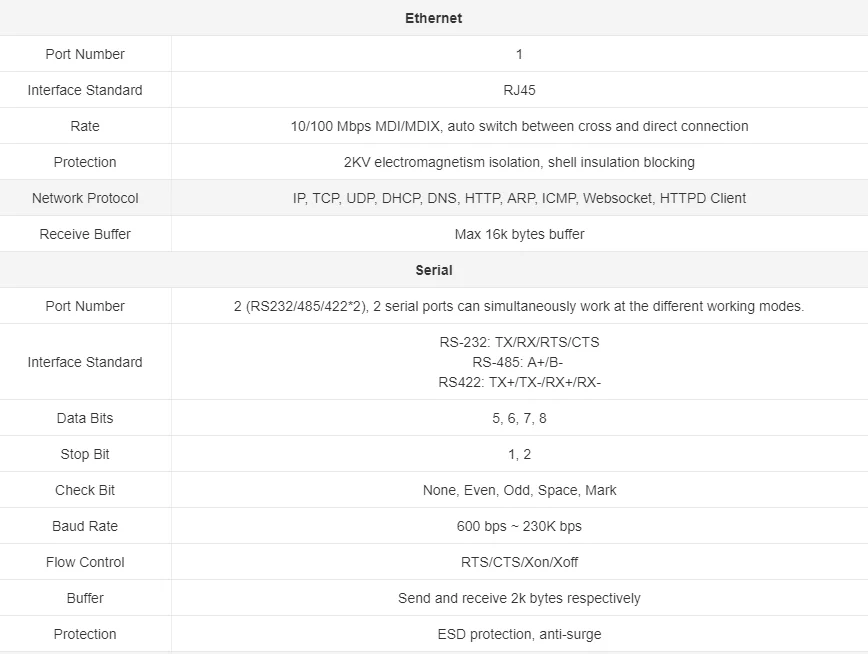

Feature


Industrial Solution
TI Cortex M4 Solution, work temp at -40·85C
Power Supply
DC/Terminal type 5V~36V
Serial Port

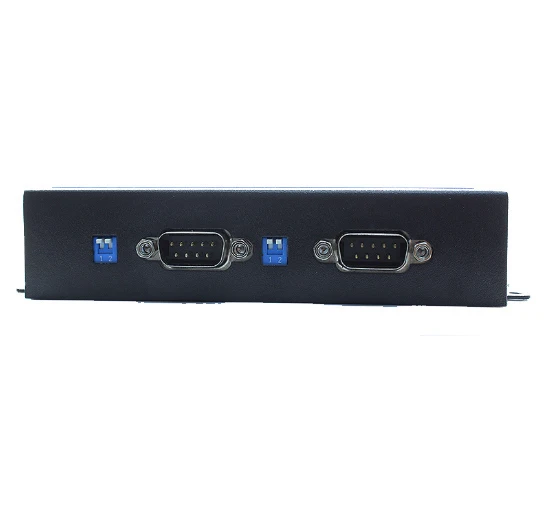

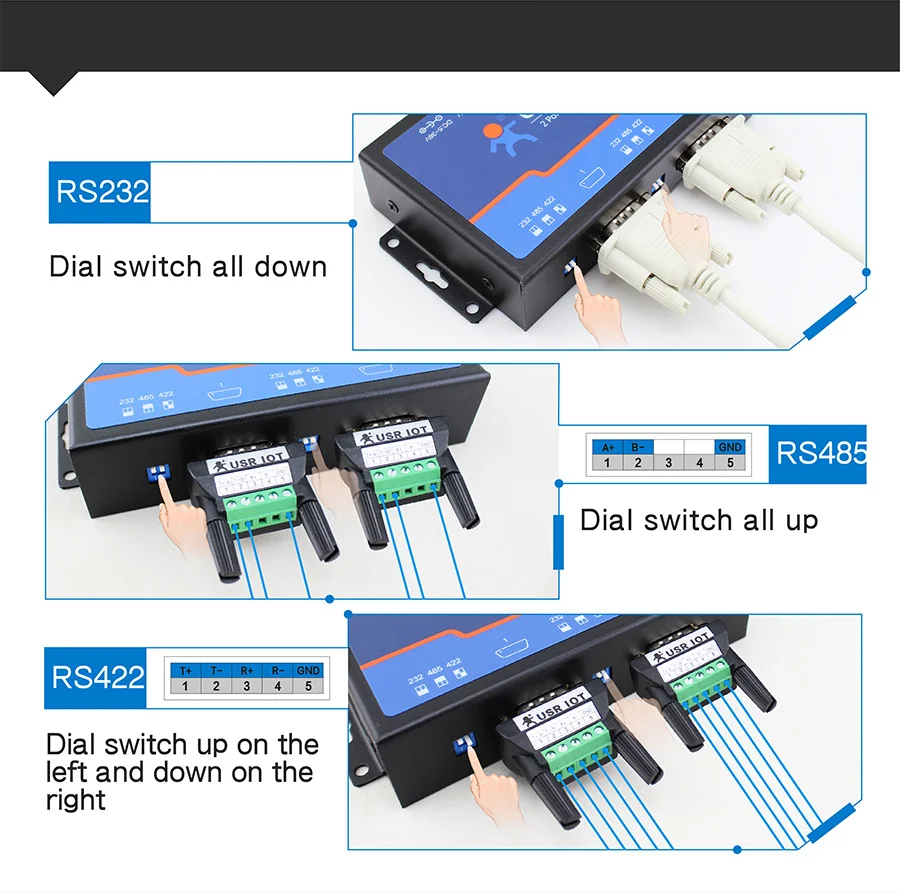

Two serial port, Supports RS232/RS485/RS422, 3-in-one port
Flow Control
Hardware CTS/RTS, Software: XON/XOFF can be avaliable
Modbus Gateway
Modbus TCP to Modbus RTU, Modbus Polling
Advanced Function
Network Printing, Customized web page, web socket, modify MAC
Certification
CE/FCC/RoHs/WEEE
Work Mode
TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client
Built-in web page
Customzied web page is acceptable


Point 1
1.Can distinguish which serial port connects to the device via port number.

2.Reload button,one key to restore default settings


 3.Support time-out restart

Point 2

1. Data transmission between serial port and web page
2. Supports keep alive function, rapidly detect dead links
3. Serial port can work independently at the same time

4.Identification package/Heartbeat package
