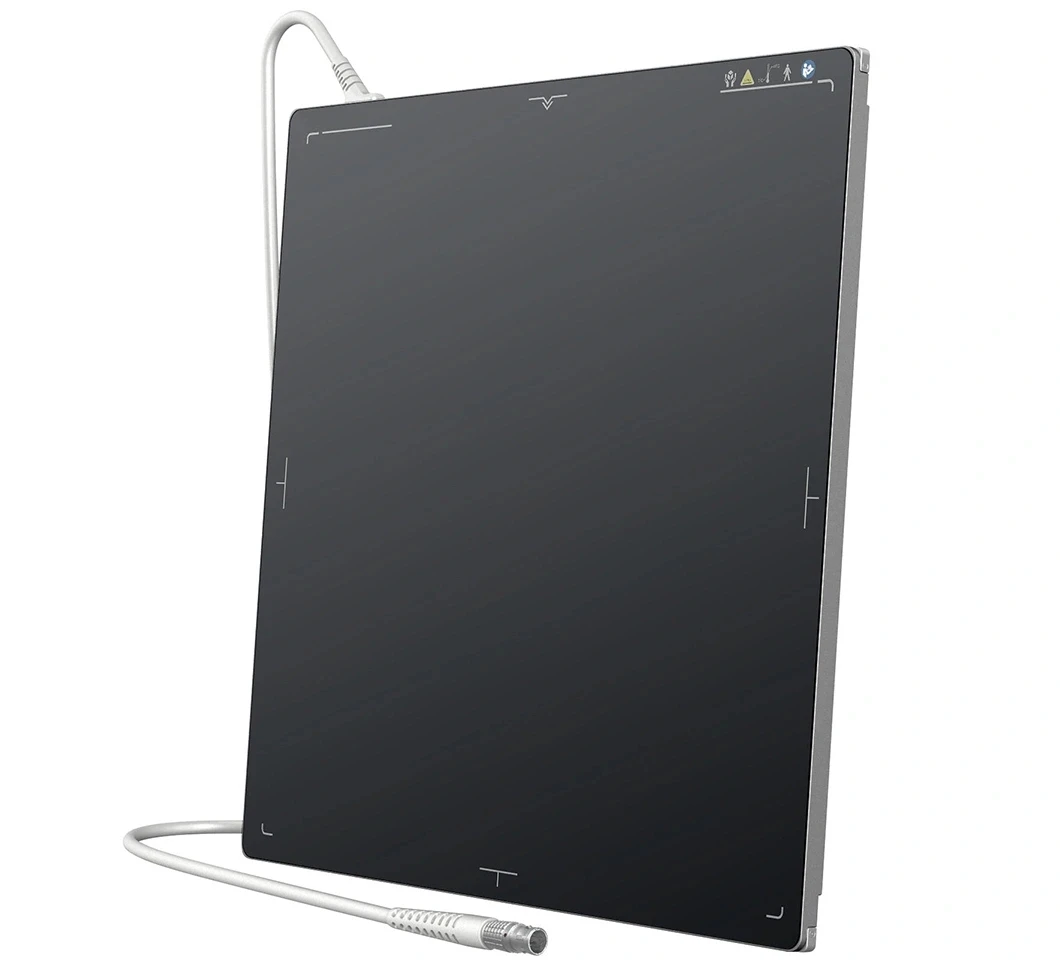

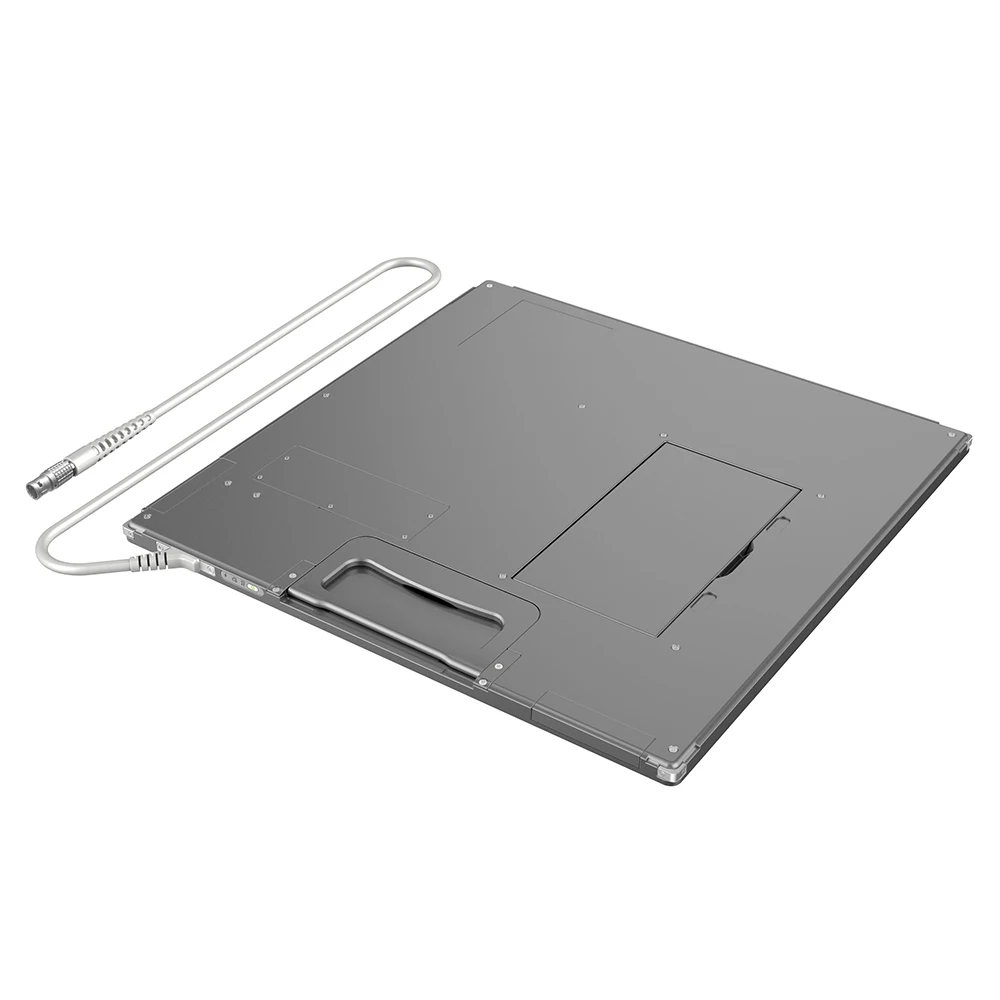

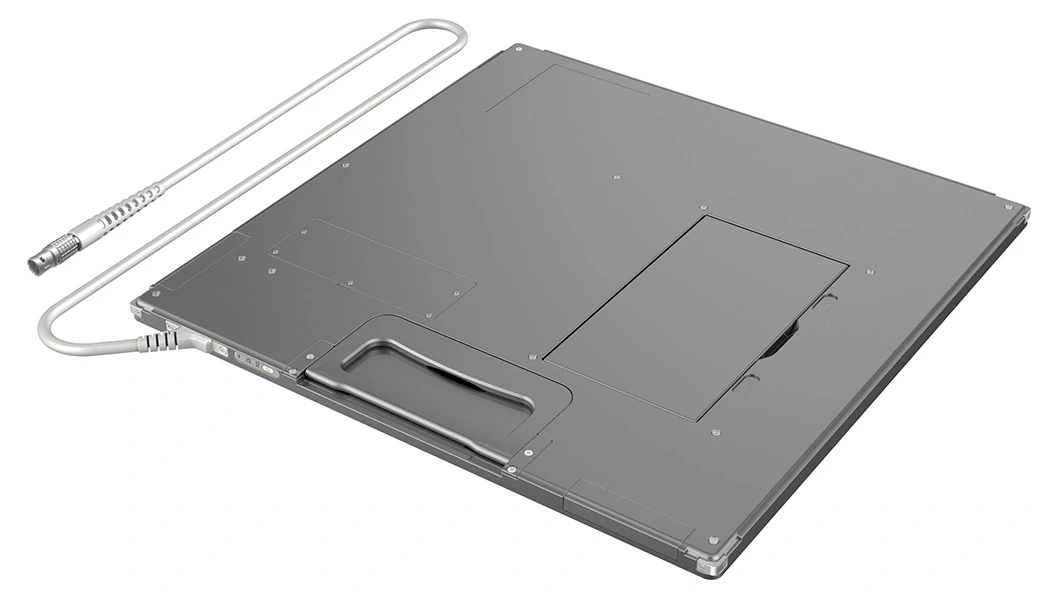

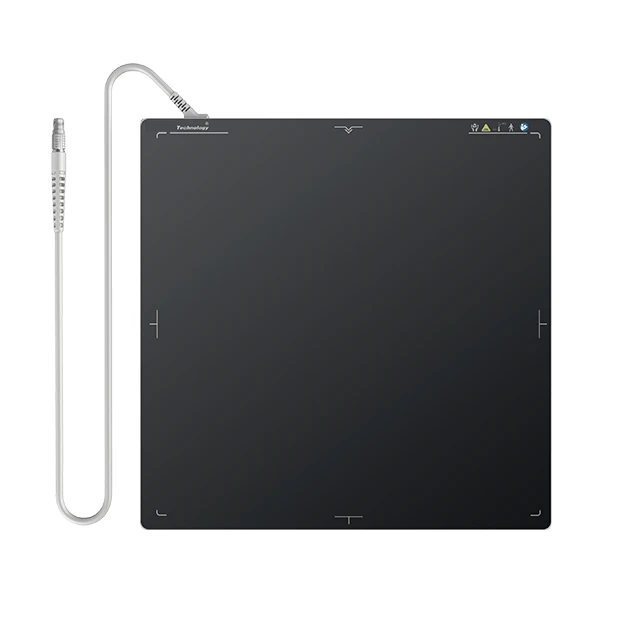

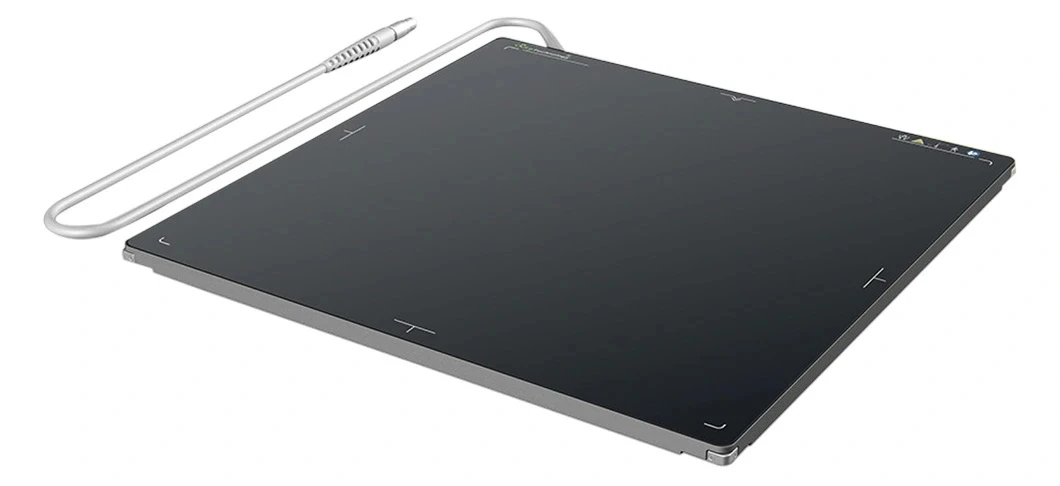

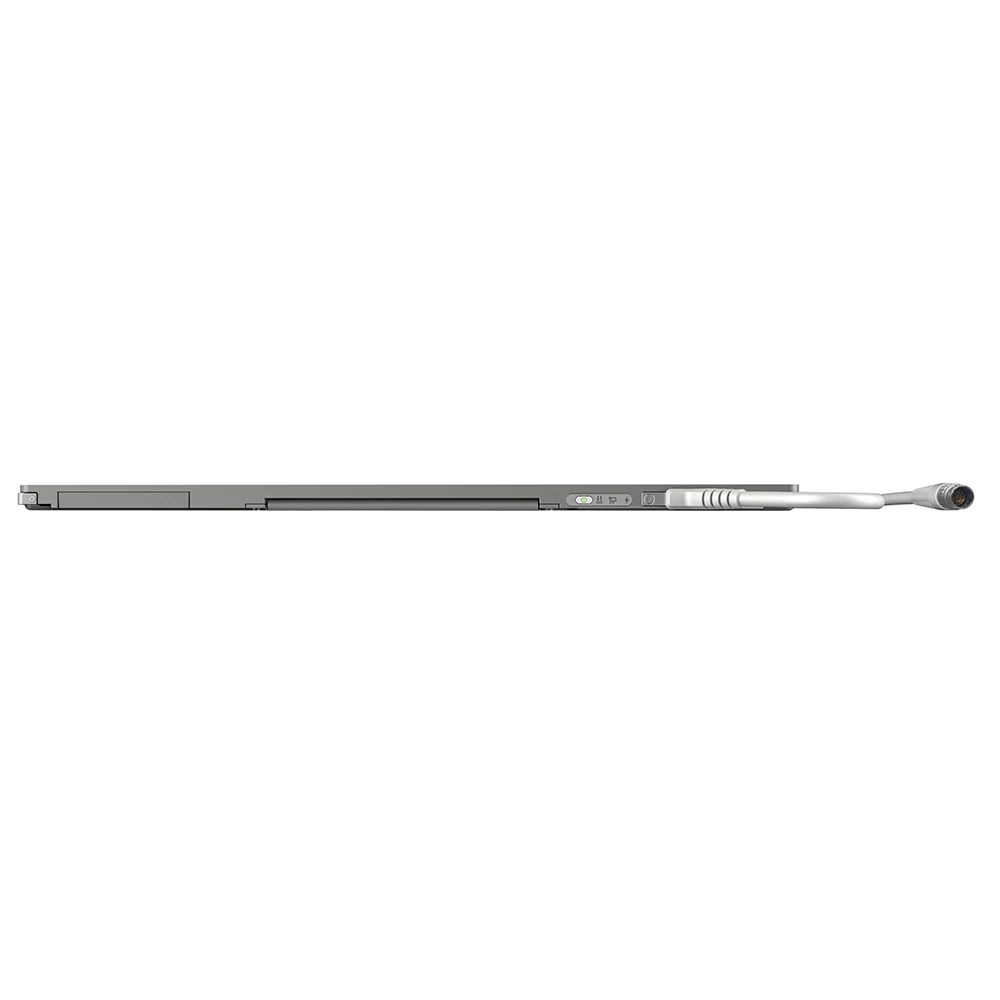

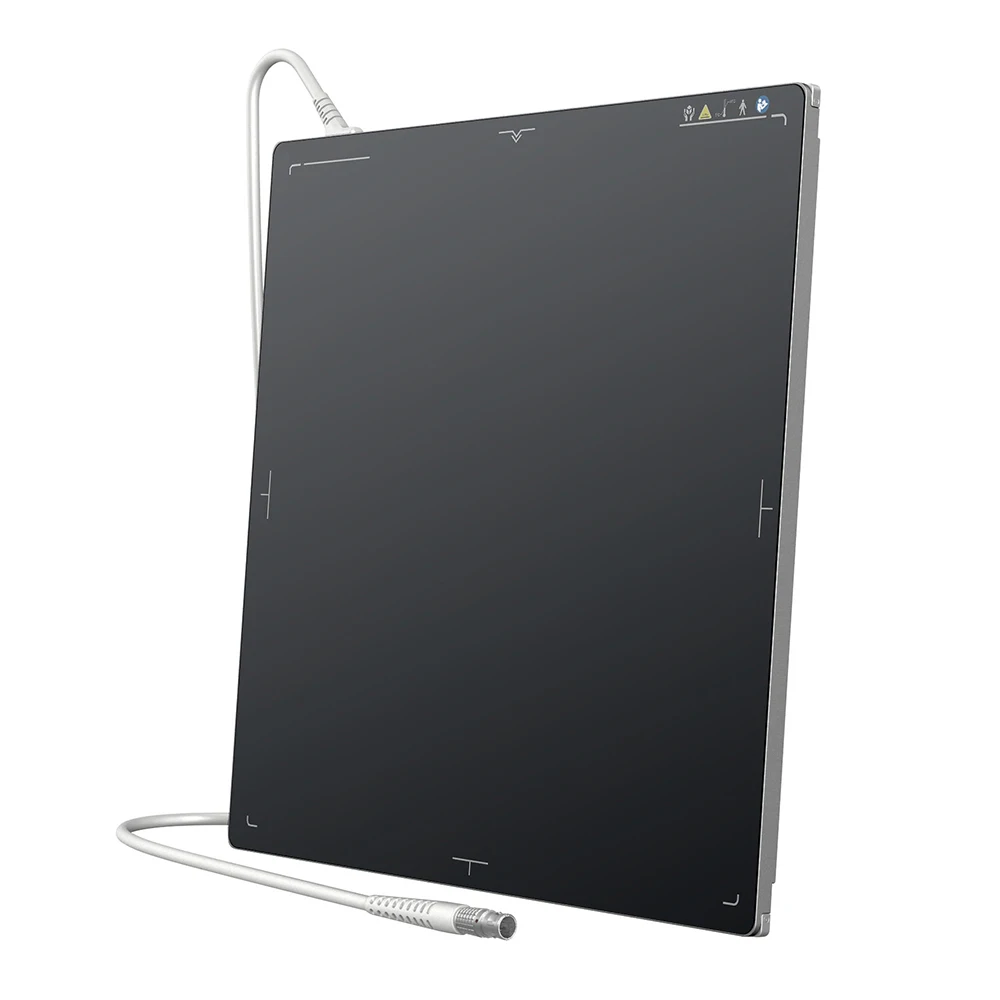

Venu 1717X 17*17 Inch X Ray Flat Panel Detector for Digital Radiography
Venu 1717X is a 17×17 inch, tethered cassette-sized FPD for radiographic imaging. It features a 139 μm pixel pitch with direct deposition CsI, and with a reliable AED enables a smart workflow. It is the optimal choice for a high-end DR system.
Features
1. Cassette detector per ISO 4090, fits in bucky
2. 139 μm pixel pitch, with 16 bit ADC for more image details
3. Direct deposition CsI for better image quality with lower dose
4. Stable iSync+ Automatic Exposure Detection (AED)
5. Highly reliable, flexible tether
6. Supports a fast and efficient workflow
Features
1. Cassette detector per ISO 4090, fits in bucky
2. 139 μm pixel pitch, with 16 bit ADC for more image details
3. Direct deposition CsI for better image quality with lower dose
4. Stable iSync+ Automatic Exposure Detection (AED)
5. Highly reliable, flexible tether
6. Supports a fast and efficient workflow
Technical specifications | ||
Detector Technology | Amorphous Silicon | |
Scintillator | Csl | |
Active Area (inch) | 17 × 17 | |
Pixel Matrix | 3072 × 3072 | |
Pixel Pitch (um) | 139 | |
Spatial Resolution (lp/mm) | 3.6 | |
AD Conversion (bit) | 16 | |
Power Dissipation (W) | 30 | |
Data Interface | GigE | |
Trigger Mode | AED (optional) / Software / Prep | |
Preview Image Time (s) | 3 | |
Full Image Time (s) | 5 | |
Dimensions (mm) | 460 x 460 x 15 | |
Weight (kg) | 4 | |
Operating Temperature (°C) | 5~35 | |
Storage & Transport Temperature with Package (ºC) | -10 ~ 55 | |
Operating Humidity (% RH) | 30~80 (Non-Condensing) | |
Storage & Transport Humidity with Package (% RH) | 10~90 (Non-Condensing) | |
Images

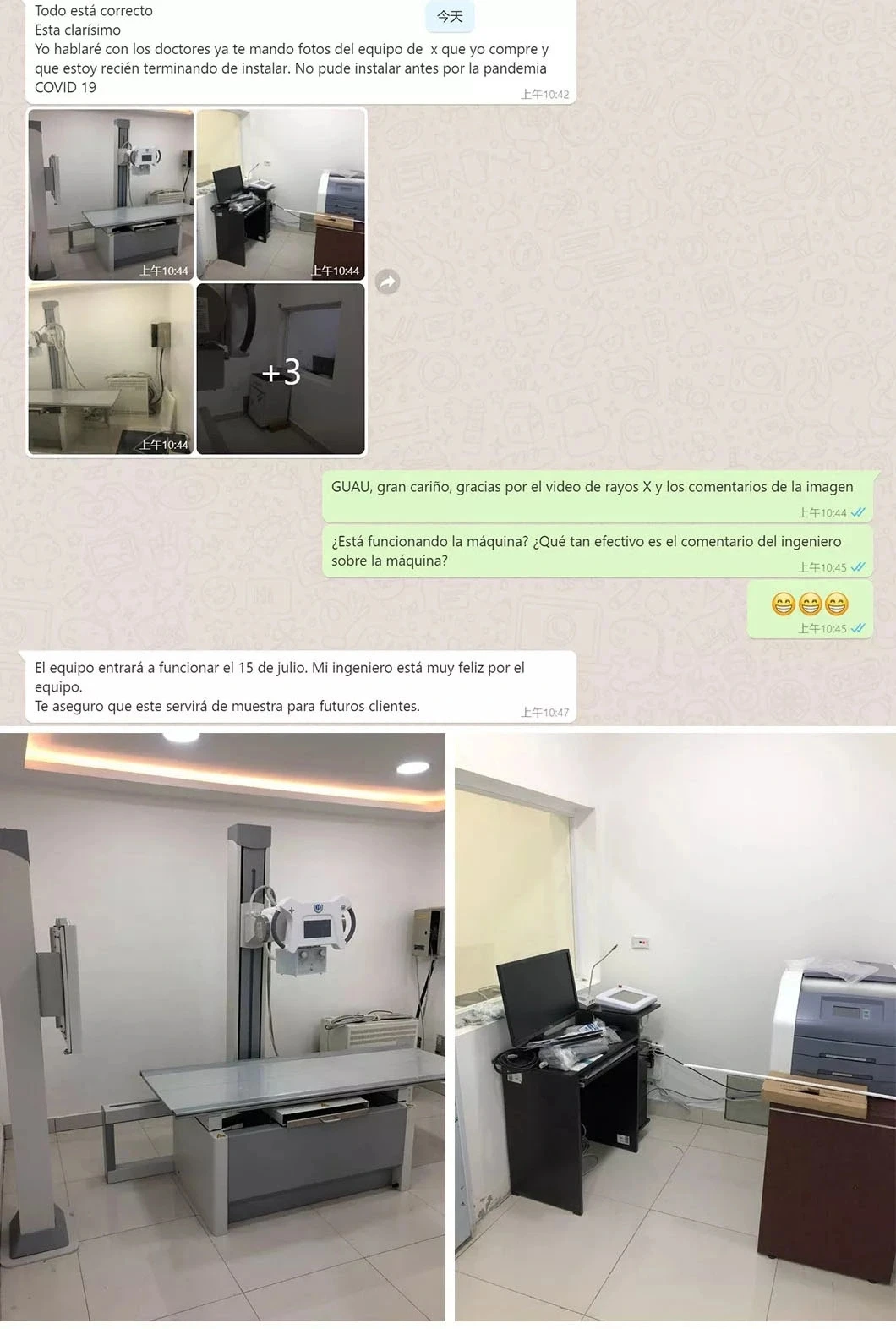

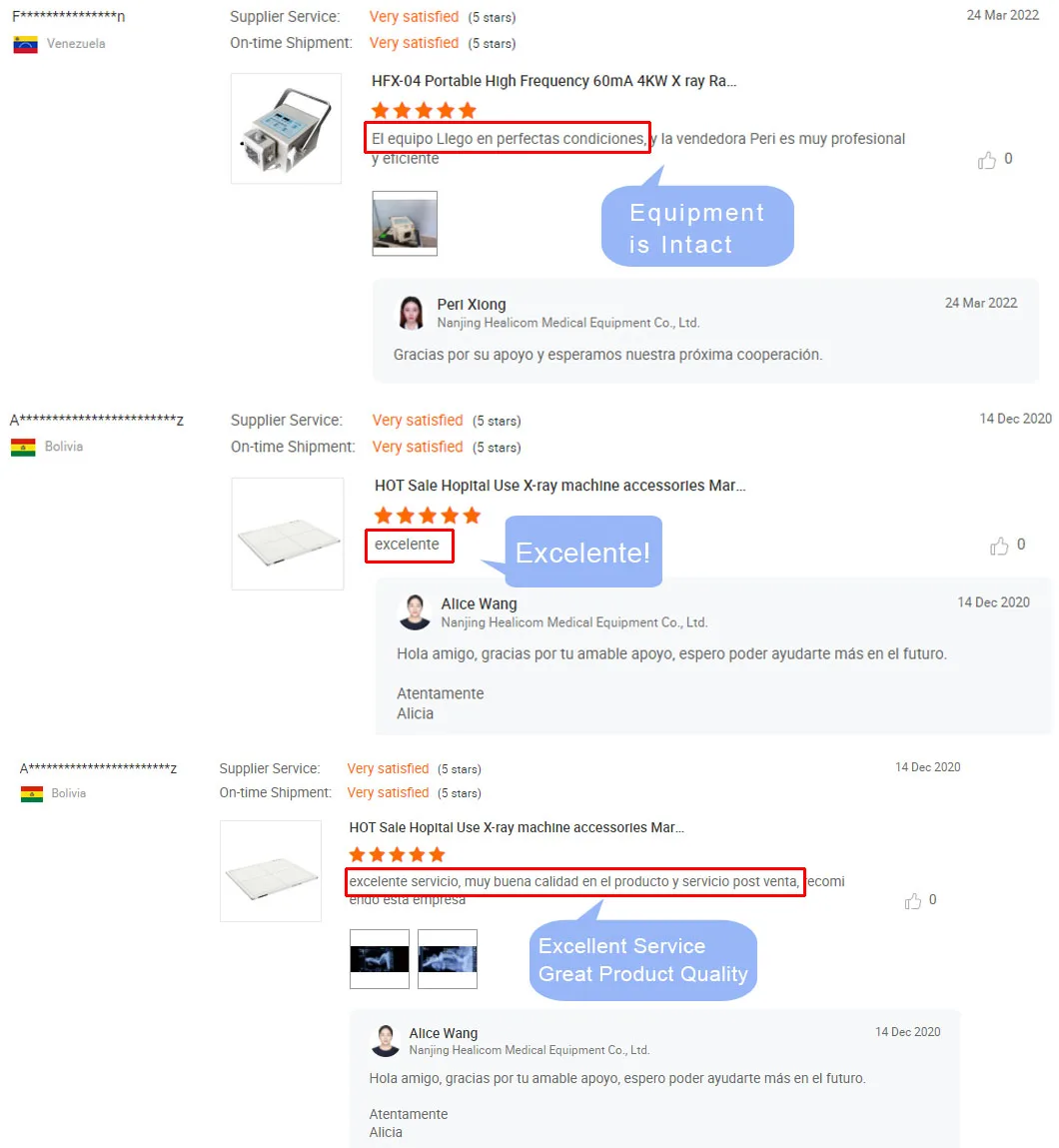

Customer Feedbacks
