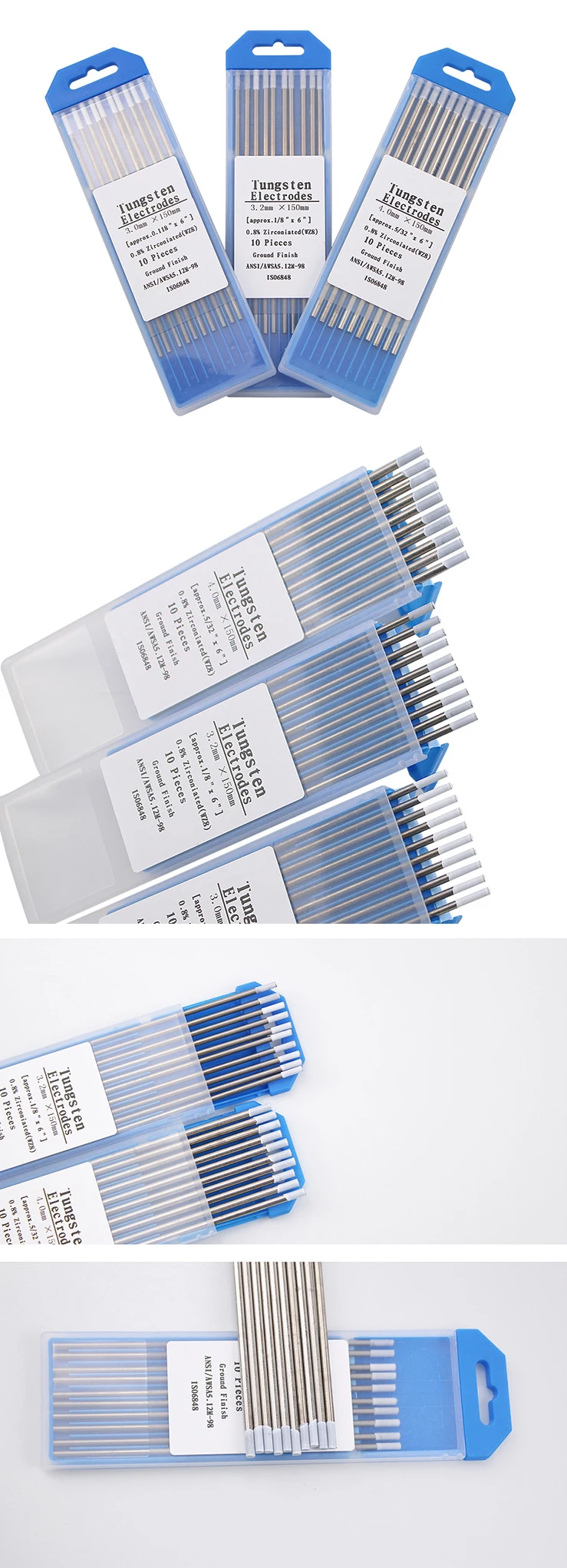

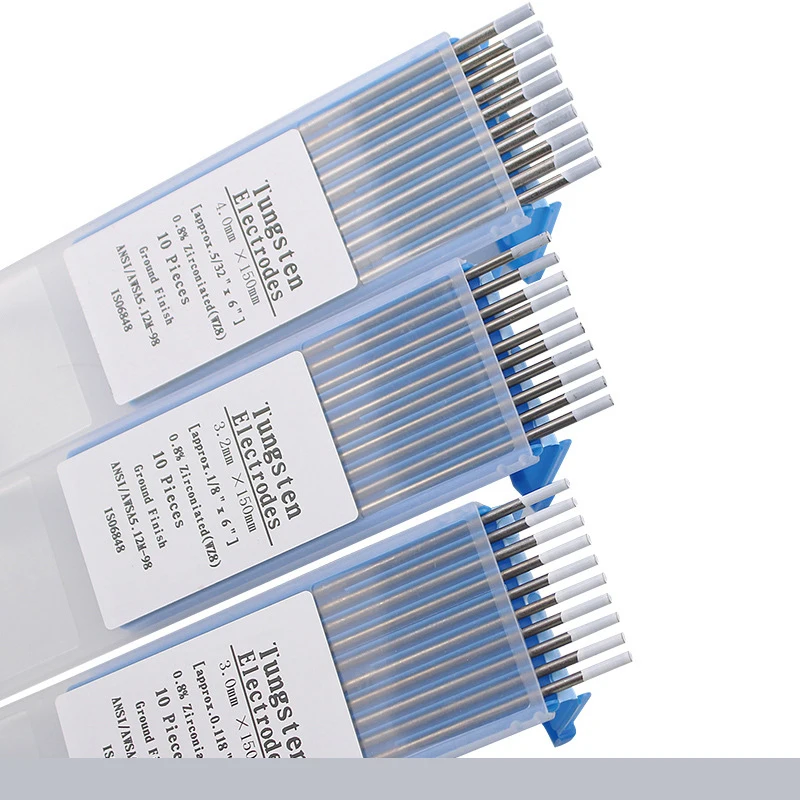

WZ8 white head argon arc welding tungsten electrode tungsten needle 1.6/2.0/2.4/3.0/3.2*150
- Category: >>>
- Supplier: Foshan Deshi Electric Appliance Technology Co. Ltd.
Share on (62270309191):
Product Overview
Description
Product Details Show
Chemical Composition:

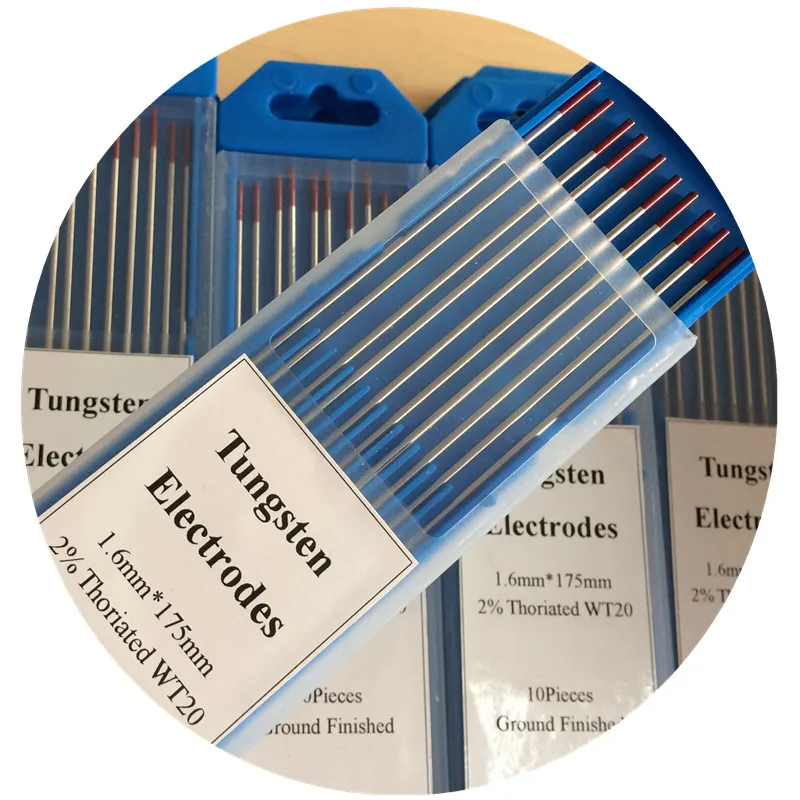

Tig welding 2% thoriated tungsten electrode WT20
| tungsten electrode composition | Color mark | ||||
| Grade | Dioxide | Dioxide in % | Impurities % | tungsten % | |
| WT10 | ThO2 | 0.80-1.20 | ≤0.02 | Remainder | Yellow |
| WT20 | ThO2 | 1.70-2.20 | ≤0.02 | Remainder | Red |
| WT30 | ThO2 | 2.80-3.20 | ≤0.02 | Remainder | Purple |
| WT40 | ThO2 | 3.80-4.20 | ≤0.02 | Remainder | Orange |
| WC20 | CeO2 | 1.80-2.20 | ≤0.02 | Remainder | Grey |
| WL10 | La2o3 | 0.90-1.20 | ≤0.02 | Remainder | Black |
| WL15 | La2o3 | 1.40-1.60 | ≤0.02 | Remainder | Gold |
| WL20 | La2o3 | 1.90-2.10 | ≤0.02 | Remainder | Blue |
| WZr3 | ZrO2 | 0.15-0.50 | ≤0.02 | Remainder | Brown |
| WZr8 | ZrO2 | 0.70-0.90 | ≤0.02 | Remainder | White |
| WP | - | - | ≤0.02 | 99.8 | Green |
| WY | YO2 | 1.80-2.20 | ≤0.02 | Remainder | Sky blue |
| WS2 | YO2 | 1.80-2.20 | ≤0.02 | Remainder | Turquoise |
Size:
Tig welding 2% thoriated tungsten electrode WT20
| Diameter | Diameter tolerance | Length | Length tolerance | |
| mm | inch | mm | mm | mm |
| 1 | 1/25 | (+/-)0.01 | 50,75,150,175 | (+/-)1.0 |
| 1.2 | 6/125 | (+/-)0.01 | 50,75,150,175 | (+/-)1.0 |
| 1.6 | 1/16 | (+/-)0.02 | 50,75,150,175 | (+/-)1.0 |
| 2 | 2/25 | (+/-)0.02 | 50,75,150,175 | (+/-)1.0 |
| 2.4 | 3/32 | (+/-)0.02 | 50,75,150,175 | (+/-)1.0 |
| 3 | 3/25 | (+/-)0.03 | 50,75,150,175 | (+/-)1.0 |
| 3.2 | 1/8 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 4 | 5/32 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 4.8 | 3/16 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 5 | 1/5 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 6 | 15/64 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 6.4 | 1/4 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 8 | 5/16 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
| 10 | 2/5 | (+/-)0.04 | 50,75,150,175 | (+/-)1.0 |
Note:When you need other tungsten electrodes, please send us the inquiry including
designation and length*diameter.
Appliaction&Feature
Tig welding 2% thoriated tungsten electrode WT20
Application
tungsten welding electrode:
1. It used when arc welding with the Tungsten Inert gas (TIG) process or when plasma welding.
2. In both processes the electrode, arc and weld pool are protected from atmospheric contamination by an inert gas.
3. It used because it can withstand very high temperatures with minimal melting or erosion.
4. it made by powder metallurgy and are formed to size after sintering.
Feature of
• Low electronic function
• Good conductivity
• Good electron emission ability
• Good mechanical cutting performance
• High elastic modulus, Low vapour pressure
• High recrystallization temperature |  |
Advantage:
Tig welding 2% thoriated tungsten electrode WT20
Due to different batches, the appearance, packaging and data of the product are subject to the actual product.
