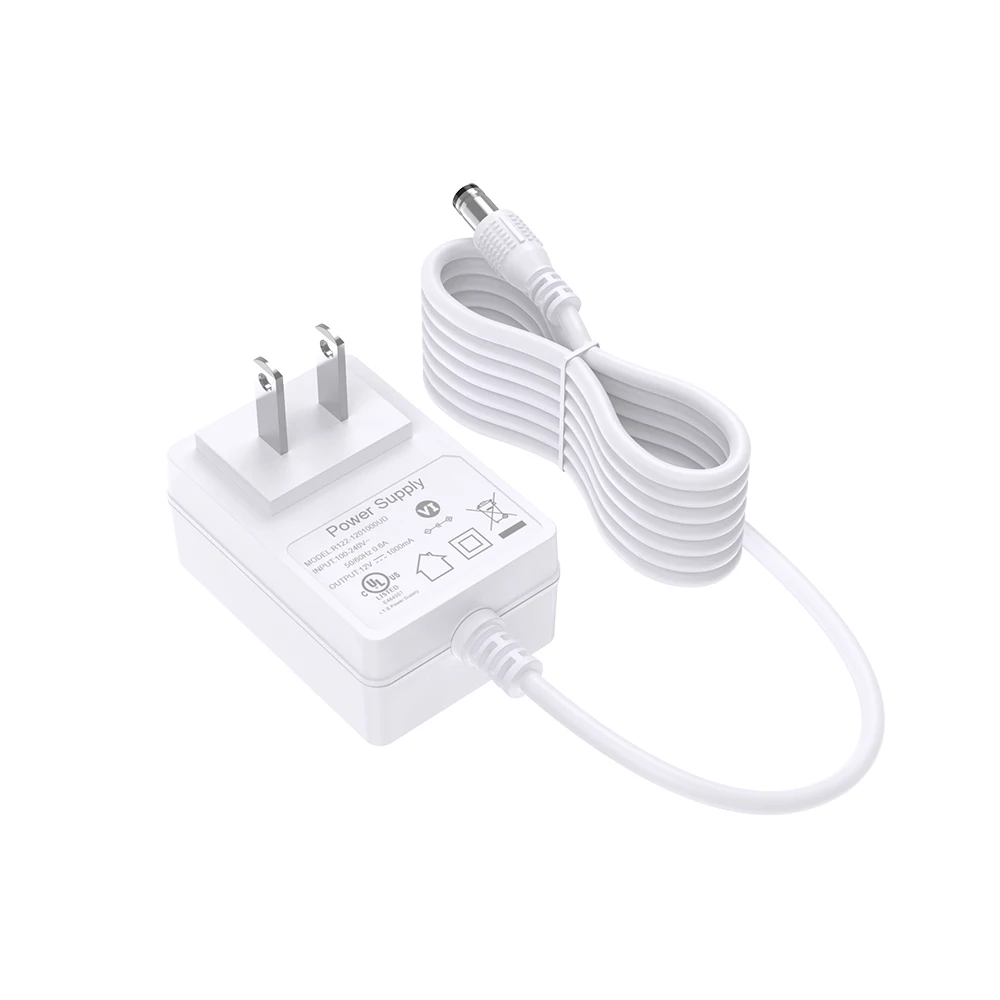

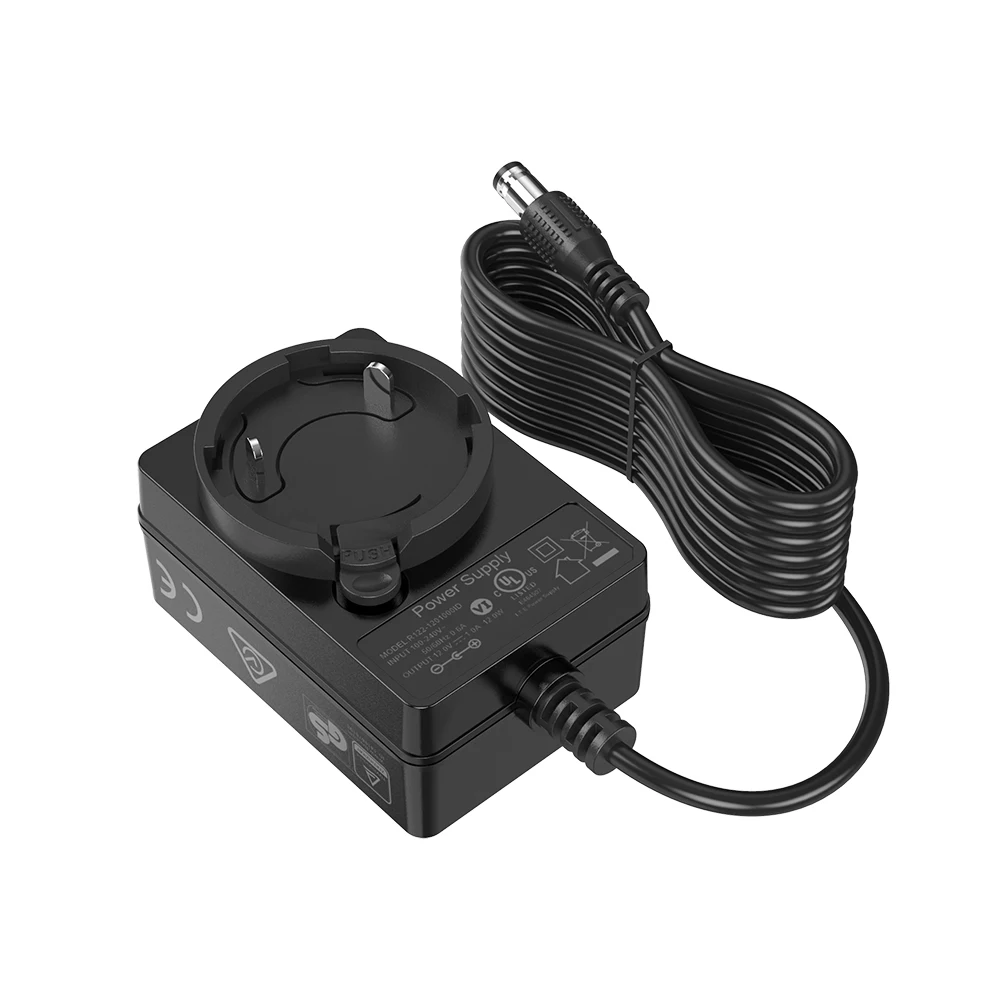

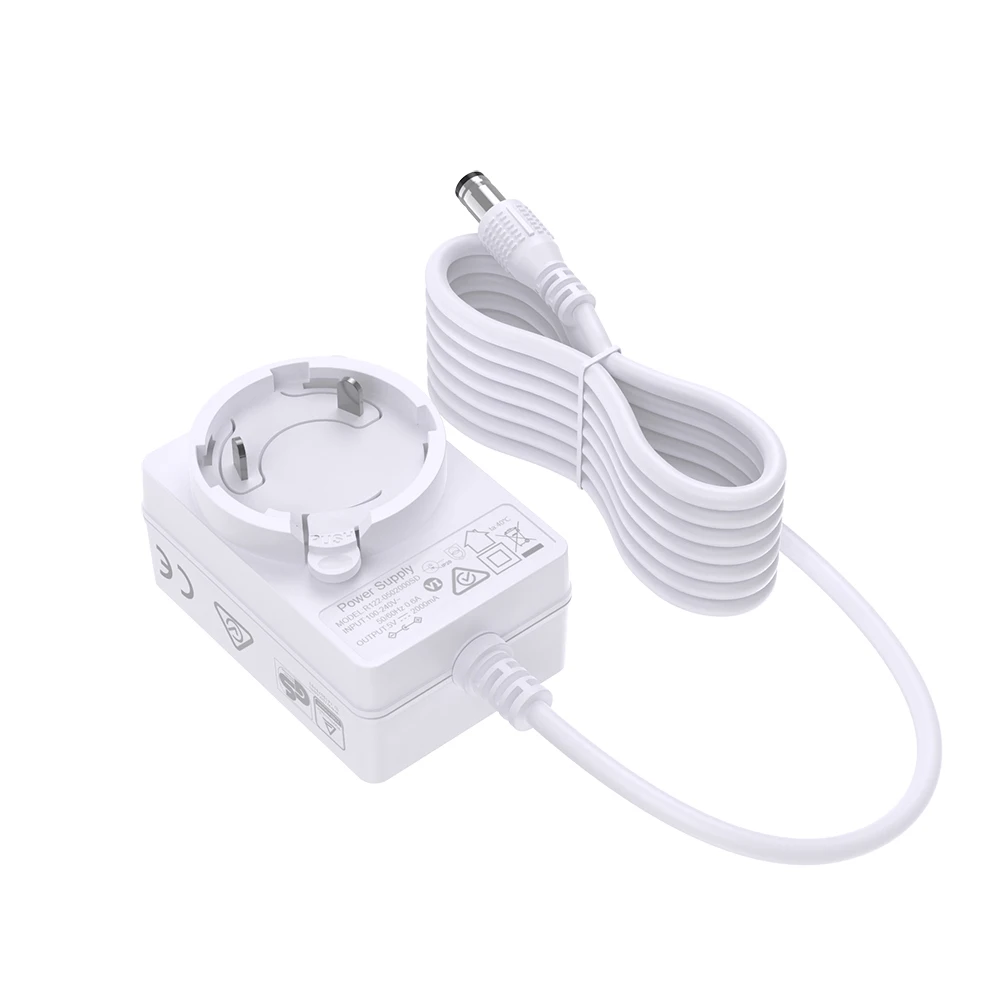

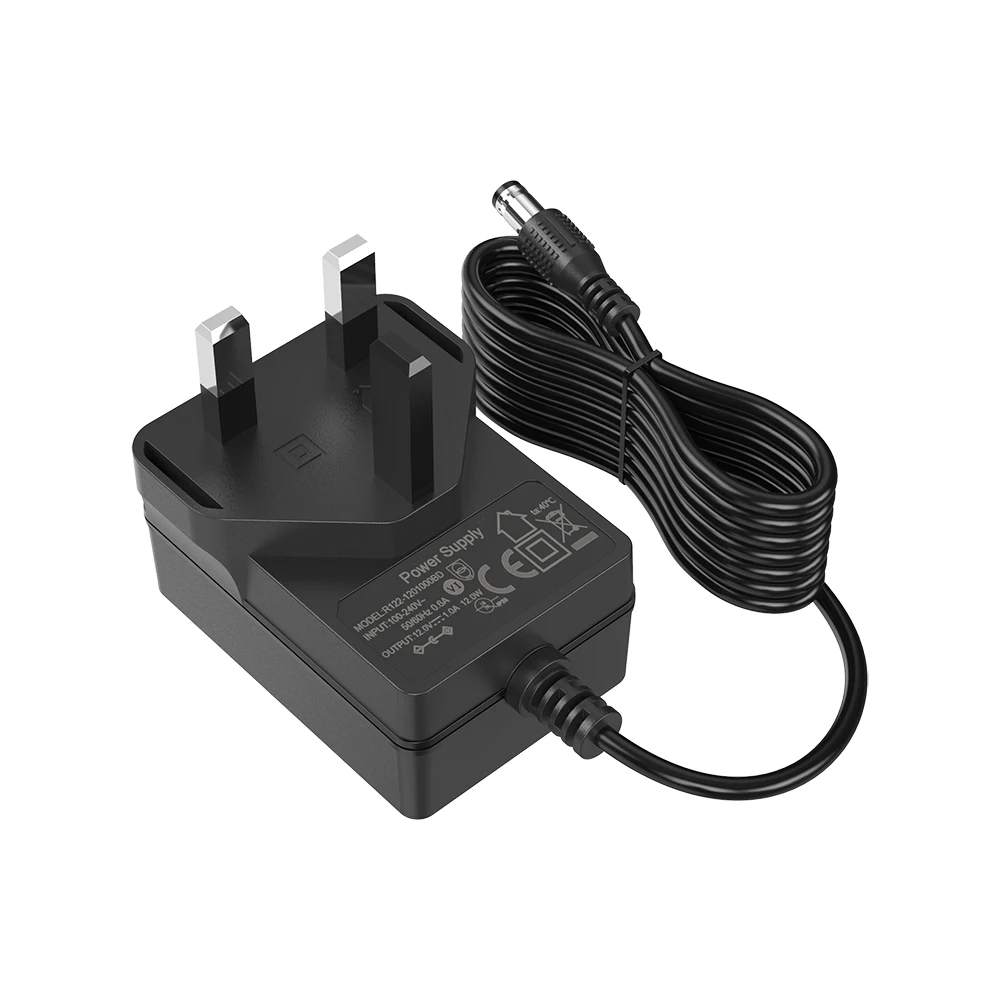

12V 1500mA Class 2 Interchangeable Switching Power Supply ac/dc PSU for Digital Photo Frame 12V 1.5A dc detachable power adapter
- Category: >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (62271751529):
Product Overview
Description

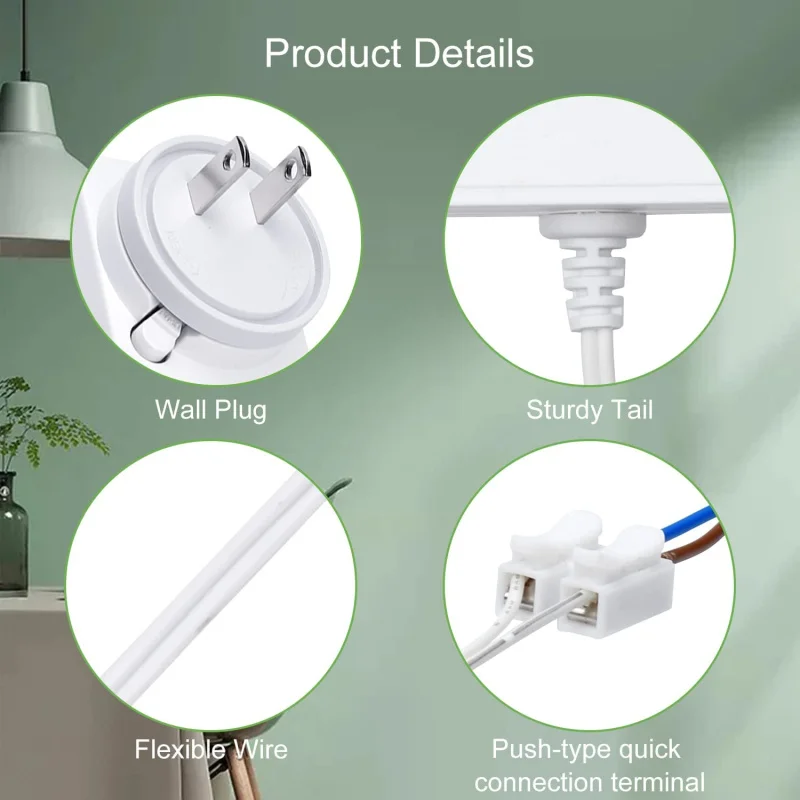

Details Images
* Input: 100-240VAC 50/60Hz
* Output: 12V 1.5A max +/-5% tolerance
* Class II starand, indoor use only
* More units for 18W series: 5V/9V/12V/15V/24V available

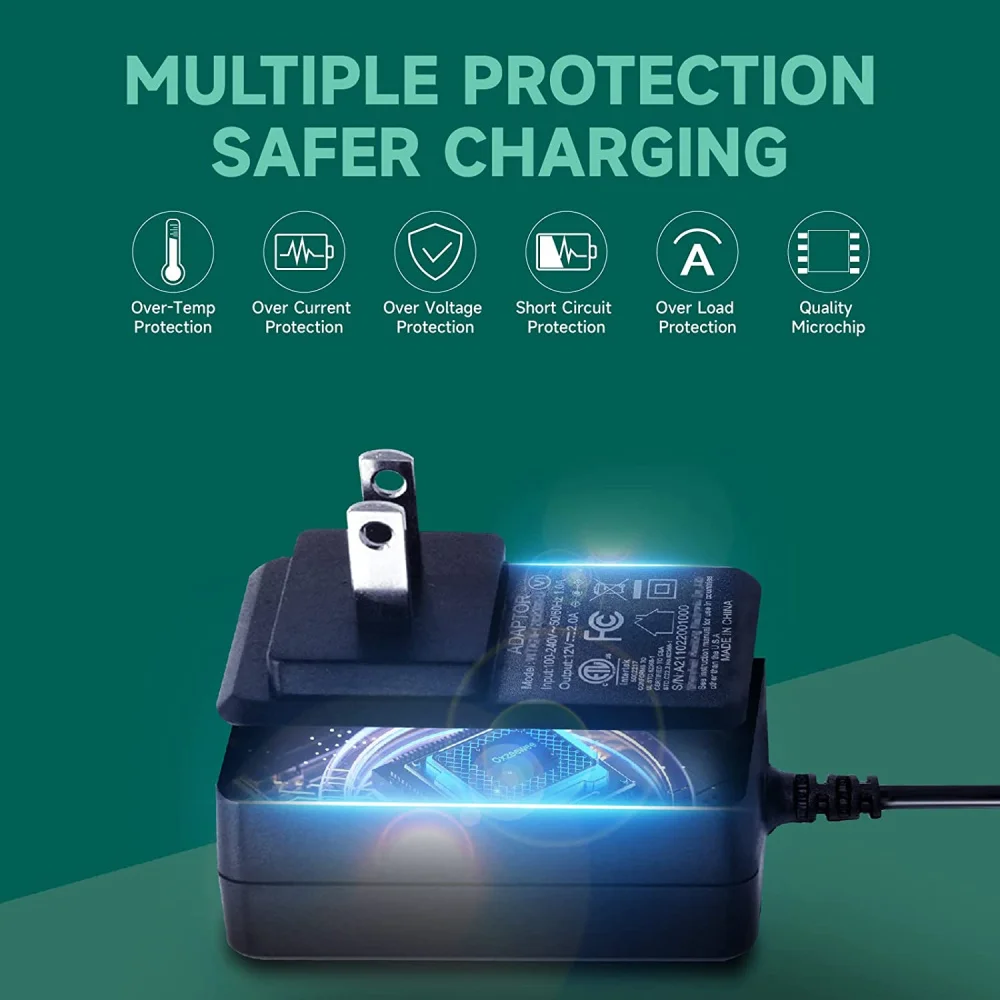

* Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
* Wide compatibilities: LED Strip Lights, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, Humidifier, HUB, Keyboard, BT Speaker, Monitor, Webcam, DVR, NVR, audio/ video power supply
* Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
* Wide compatibilities: LED Strip Lights, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, Humidifier, HUB, Keyboard, BT Speaker, Monitor, Webcam, DVR, NVR, audio/ video power supply
Products Description
* Size: L52.5xW39xH25.5mm (LxWxH)
* Weight: 95g
* Color: Black, White (optional)

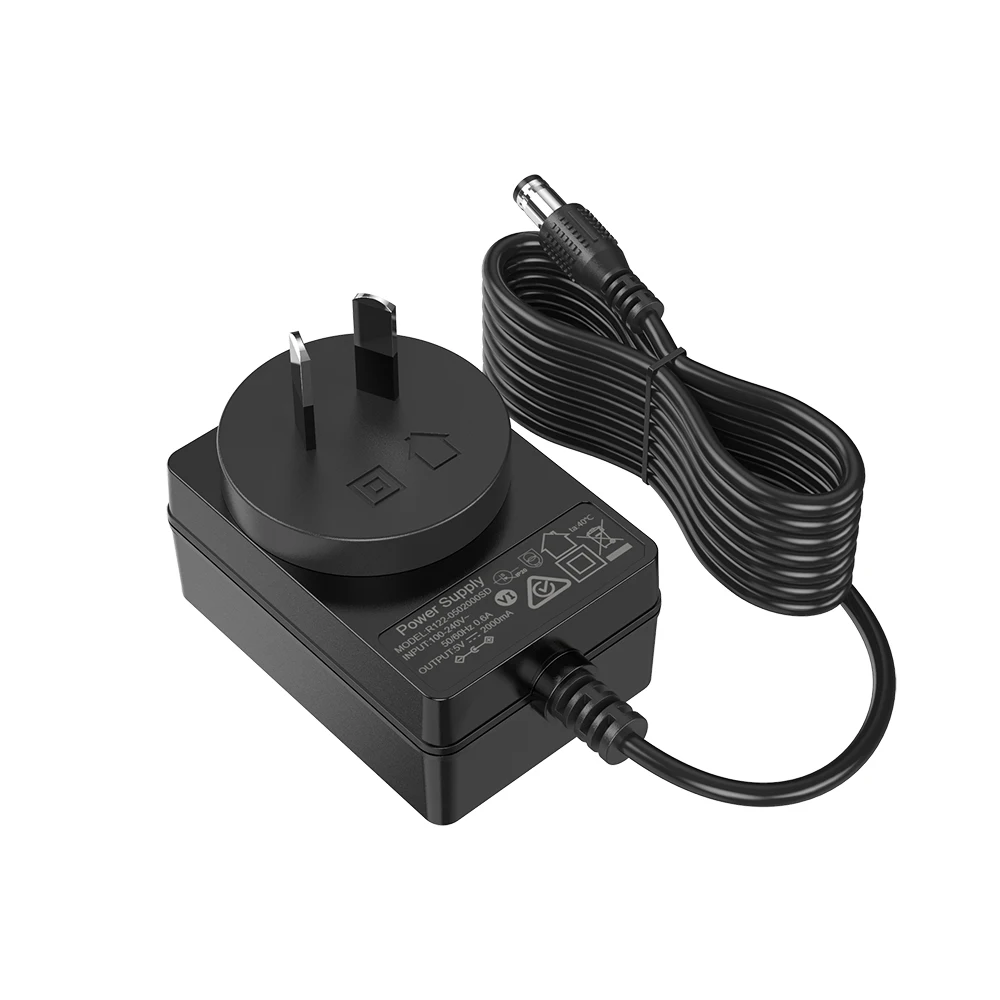

* Universal plugs: US/EU/AU/UK/JP and more
Item | 12V 1.5A AC/DC Power Adapter | ||
Model | Compatible Battery | CB-S120150 | |
INPUT | Input | 100-240VAC 50/60Hz | |
Output | Output | 12VDC / 1.5A | |
Features | Ripple & Noise | <120mV | |
Charging | Energy star level | Eup 2.0, Doe VI, CEC VI, CoC V | |
Efficiency | >86% | ||
Installing | Available for the system of Safety Class I/II | ||
Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing | |
Storage Temp | -20 ~ +85℃ (Refer to "Derating Curve") | ||
Storage Humidity | 20 ~ 90% RH non-condensing | ||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
Cooling Method | by NTC (natural cooling) | ||
Safety&EMC | Safety Standard | UL 62368, ETL 62368, EN 62368, EN 61558 | |
Safety Approvals | UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us. | ||
EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 | ||
MTBF | 5K hrs min. MIL-HDBK-217F (25℃) | ||
Machanicals | DC Connectors | USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available | |
Dimension | L52.5xW39xH25.5mm (LxWxH) | ||
Packing | 95g; 150pcs/16.5Kg/0.056CBM | ||
Certifications
Wide Compatibilities

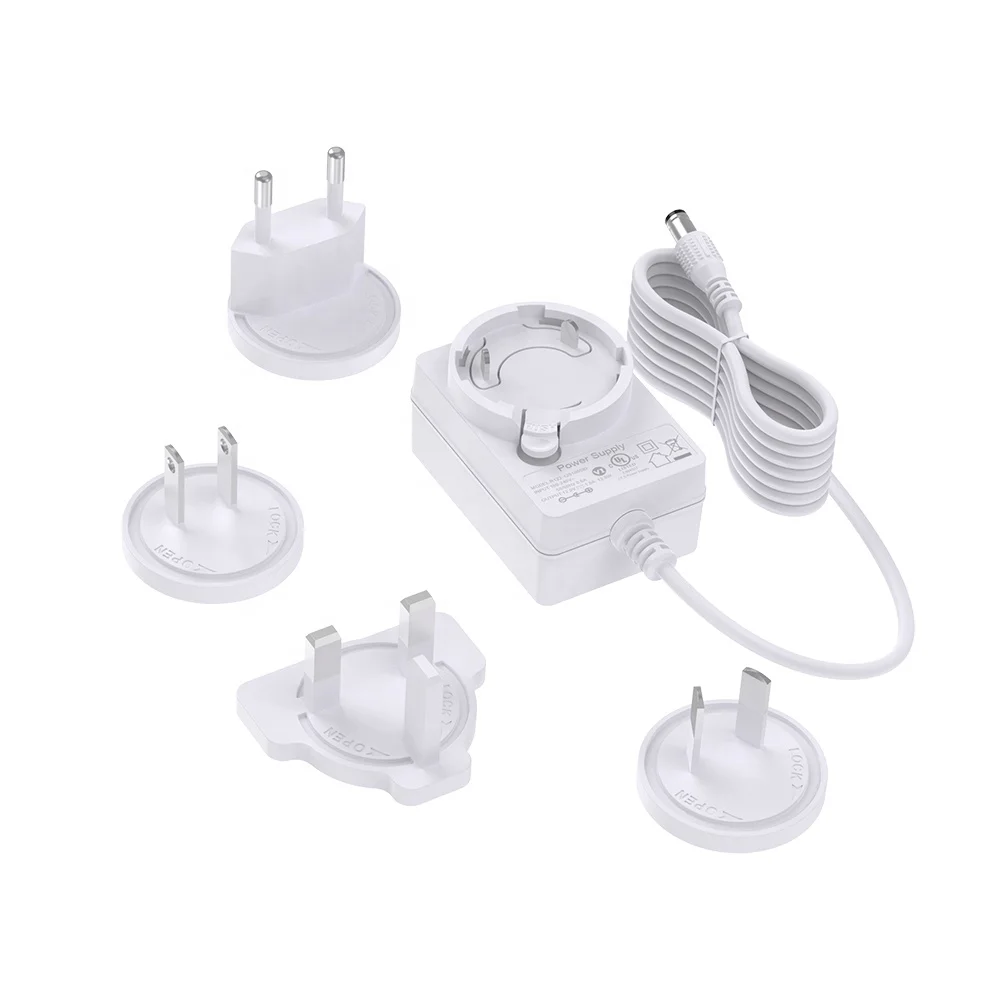

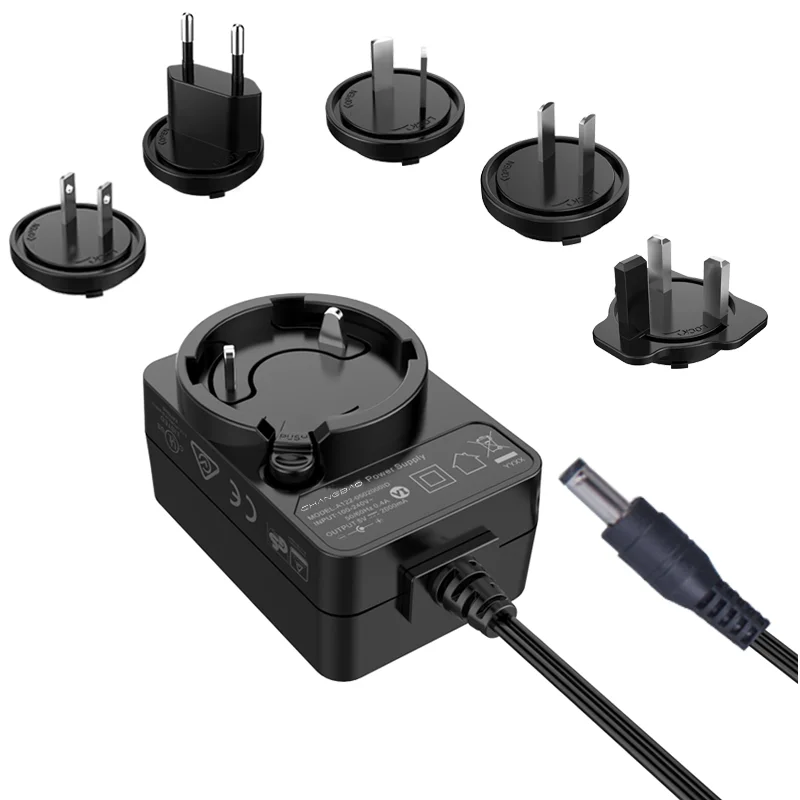

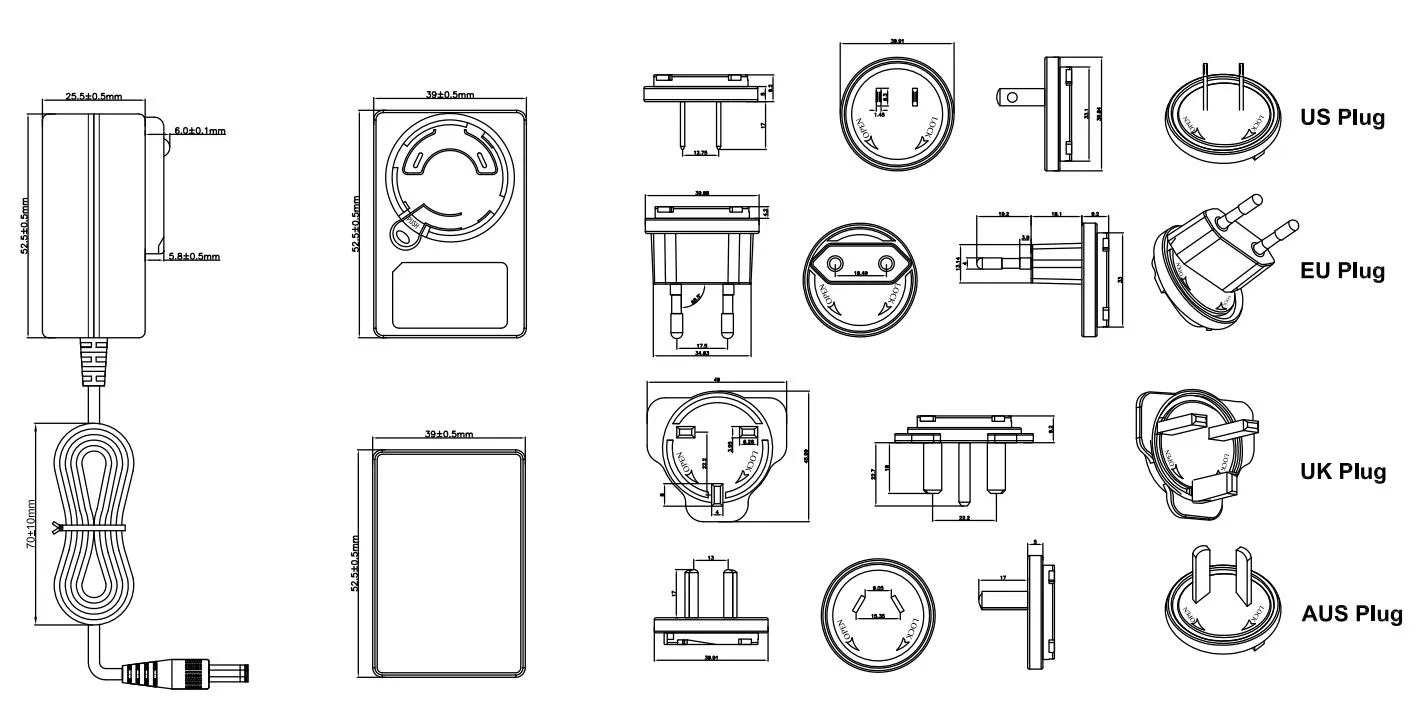

More Plugs Alternative
Product packaging
1. PE bag+ Small white box + Carton
2. PE bag+ Honeycomb cardboard + Carton
3. We support the customized packing, customer need to provide file in AI format
4. All the master cartons that we used in the good quality as exporting standard
1. For samples & small quality usually we use traceable international Express service, like DHL, UPS, FEDEX, EMS, TNT, etc. You can receive it within 3-5 days or 5-7 days after we deliver the goods, different country the transport time is different.
2. Shipping by Air or by Sea
3. It is available to deliver the goods to your forwarder warehouse in China.
FAQ:
Q1: What is the warranty for your product?
A1: We guaranteed for 2 years, any quality problem happened in this period of time for our reason, we will send the replacement parts in next order.
Q2: How soon can I get samples for test to check quality?
A2: We can provide 1-2pcs free samples. The lead time for our regular products is 3-5 days. For customized products need 10-15 days. We will also customized nice product to meet your requirement.
Q3: Can you accept OEM&ODM service business?
A3: Yes, we can. Our month supply ability is 500000pcs. Our R&D team can customize the special product as your needs. You can visit our website to learn more about our excellent R&D team, and you will believe you can get satisfied product.
Q4: Do you accept small quantity orders?
A4: Yes, we can. But no doubt that the more the amount of you order, you will get more discounts if you have a regular monthly order volume, we also would like to give you the appropriate discount.
