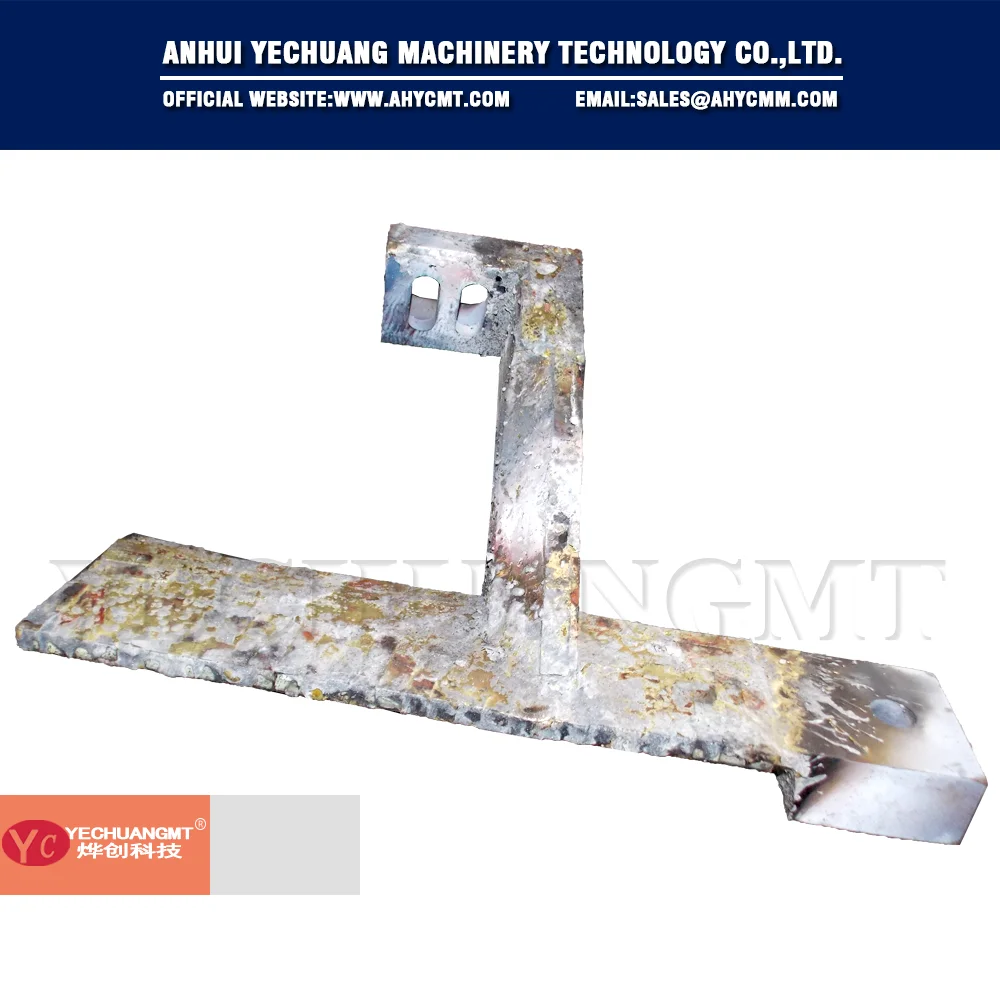

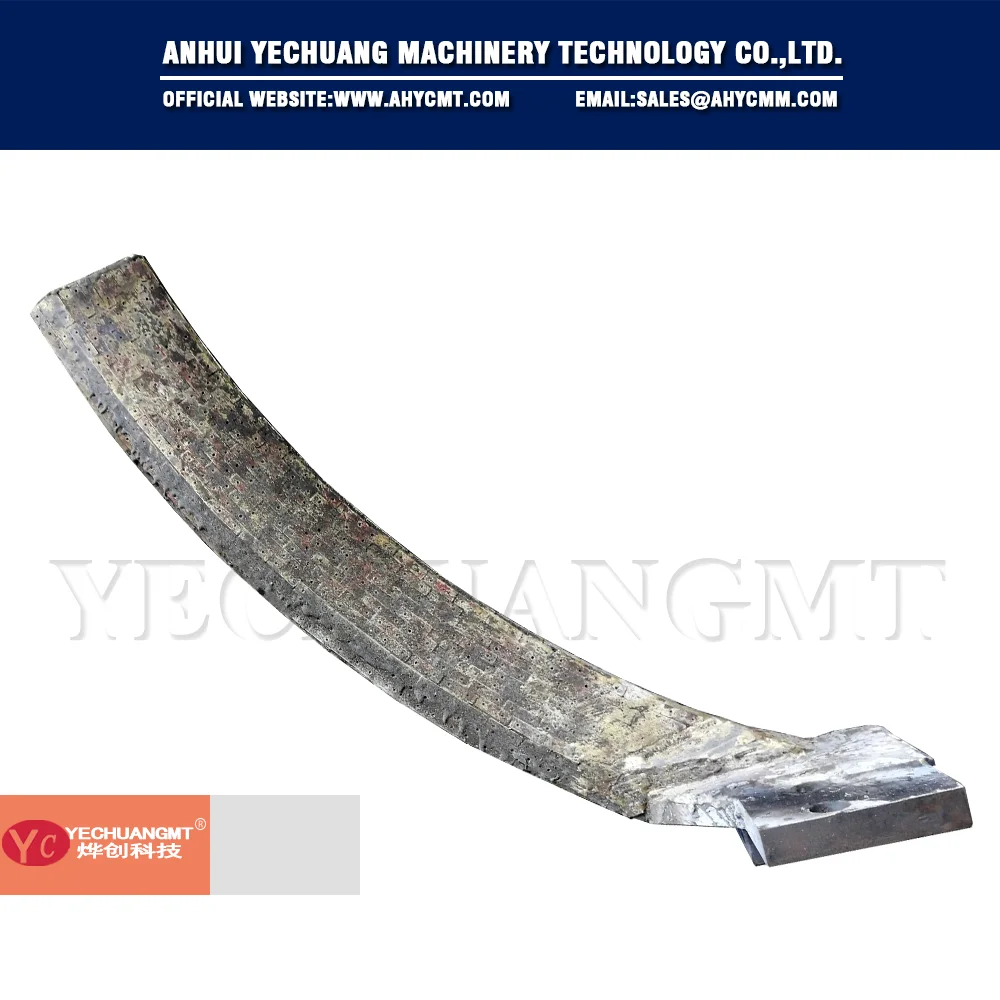

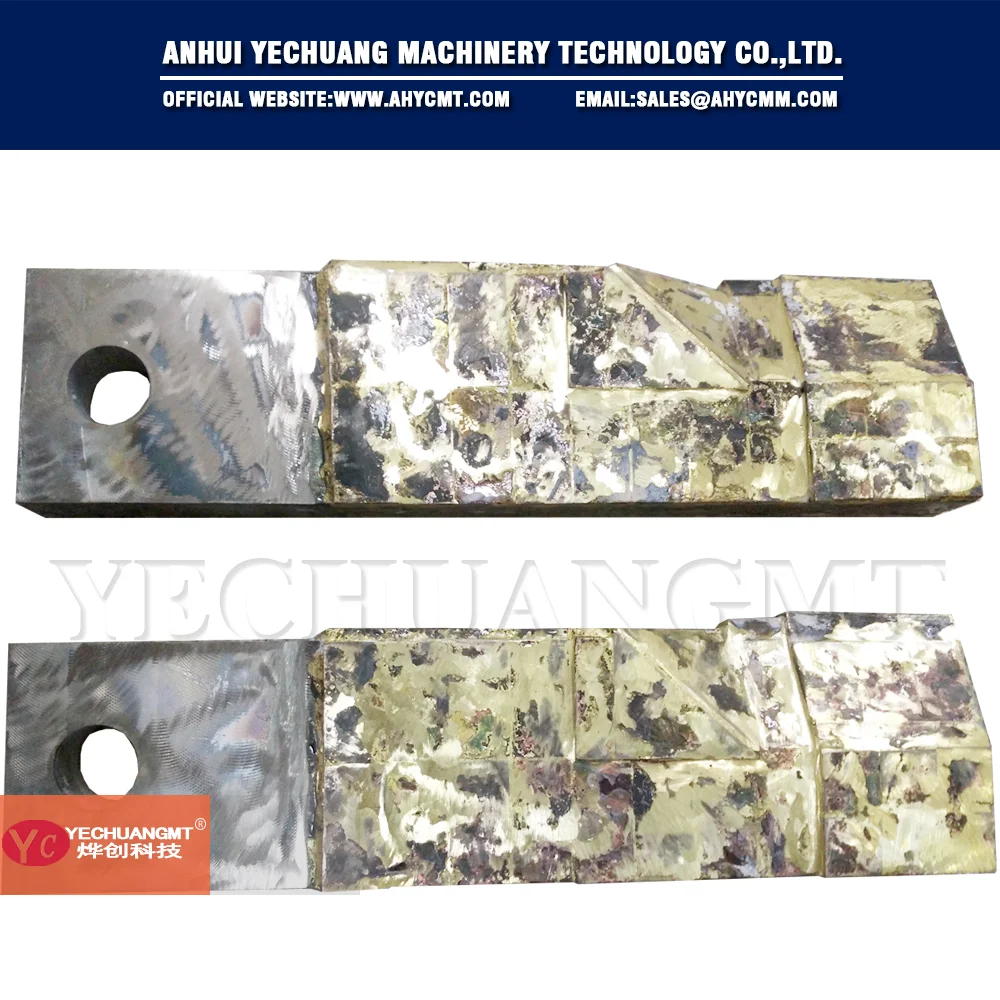

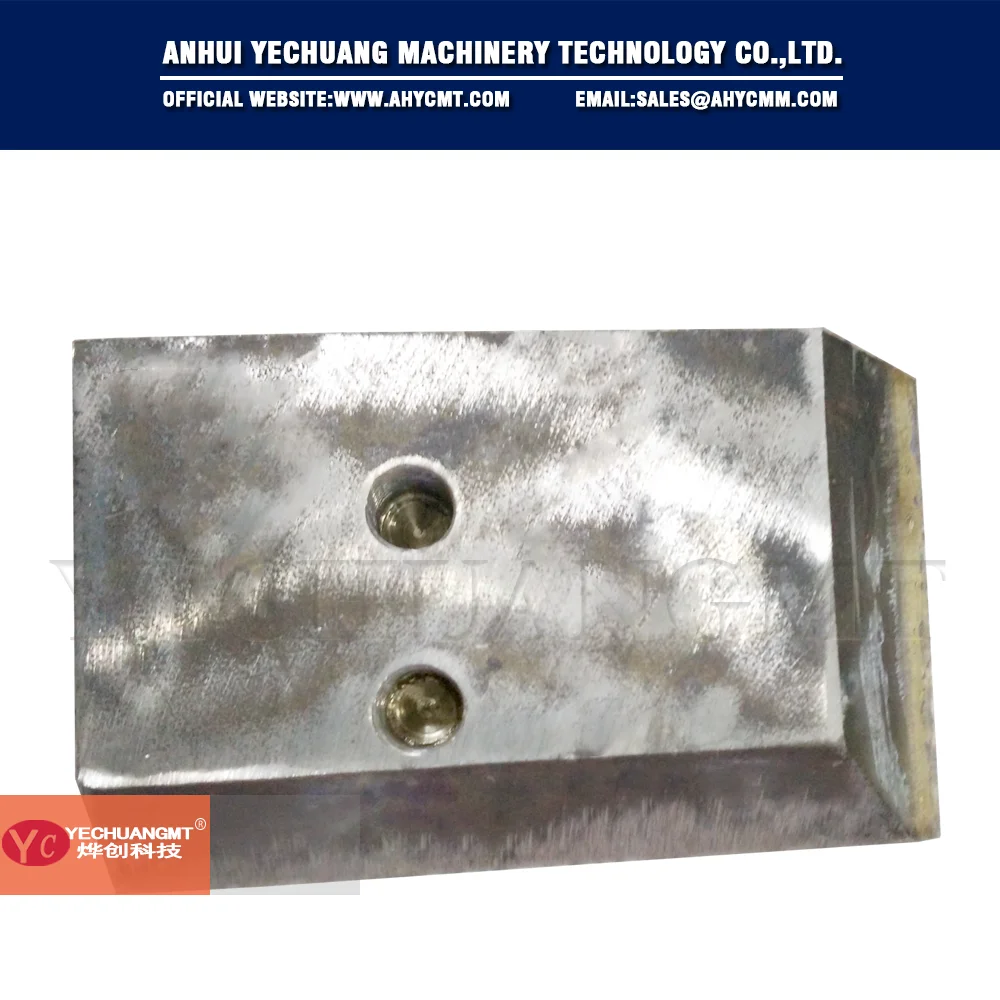

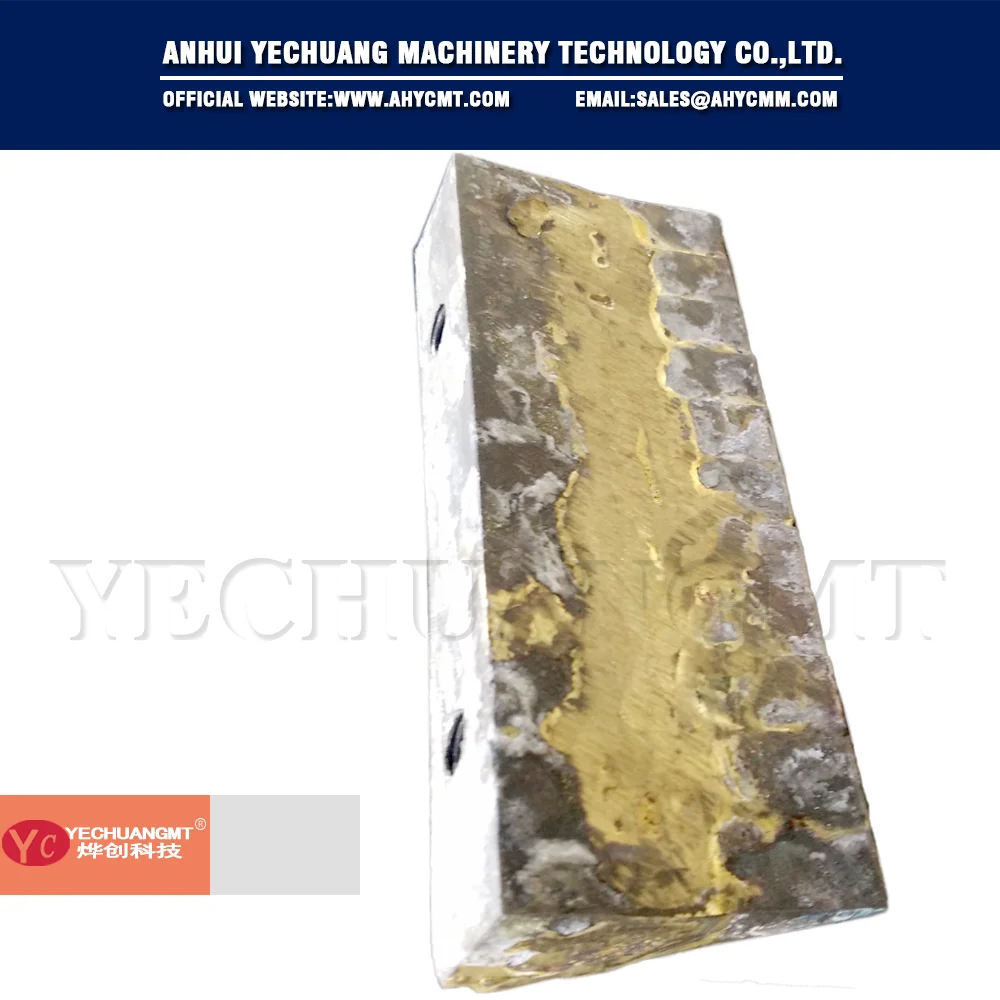

German R Series Intensive Mixer Scraper and Blades for Model R15
- Category: >>>
- Supplier: Anhui Yechuang Machinery Technology Co. Ltd.
Share on (62271965467):
Product Overview
Description
Product Description
Specifications
1.Casting Iron,Casting Steel,Tungsten Carbide,Ceramic
2.Machine Center,CMM,LFC,Hardfaced Welding
3.Application:D Series & R Series Intensive mixers
4.Exported to Southeast Asia,Middle East,Africa and Europe
5.Professional Perfomance Mixer and Mixer Parts Supplier
6.Factory Price & OEM Service
Hi-Chrome Mechanical Properties | ||||||
HRC | AK(J/cm ²) | Micro structure | Flexural strength | |||
58-64 | ≥2.5 | M+C | >700 ak N.M/CM2 | |||
Chemical Composition (%) | ||||||||||||||||
C | Si | Mn | Cr | P | S | Mo | Cu | Ni | ||||||||
1.7-3.2 | 0.3-1.2 | 0.3-1.0 | 10-28 | ≤0.10 | ≤0.10 | Micro- | Micro- | Micro- | ||||||||
Tungsten Carbide(WC) Mechanical Properties | ||||||
Micro-hardness(MPa) | Elasticity Modulus(GPa) | Compressive Strength(MP) | Coefficient of thermal expansion | |||
17800 | 71.0 | 56 | 3.84×10-6/℃ | |||
Main Composition (%) | Impurity Content(%) | ||||||||||||||
W | Total C | Free C | Residual Slag of Chlorination | Fe | Cr | V | Ti\\Ta\\Nb | Co\\Ni\\Mo etc. | |||||||
95-96 | 3.9 ±0.1 | ≤0.08 | ≤0.1 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | |||||||
Grades | ISO Standard | Flexure Strength(N/mm²) | Hardness(HRA) |
YG6 | K20 | 1900 | 90.5 |
YG6x | K15 | 1800 | 92.0 |
YG6A | K10 | 1800 | 92.0 |
YG8 | K30 | 2200 | 90.0 |
YG15 | K40 | 2500 | 87.0 |
Ceramic Main Technical Index | ||||||||||||||
Alumina Content | Density | Rockwell hardness | Compressive strength | Facture toughness KΙC | Bending strength | Thermal conductivity | Thermal expansivity | |||||||
≥95% | ≥3.5 g/cm3 | ≥80 HRA | ≥850 Mpa | ≥4.8MPa•m1/2 | ≥290MPa | 20W/m.K | 7.2×10-6m/m.K | |||||||
Lost Foam Casting Production Line
We have brand new LFC process prodution line,which could realize yield of 1000 tons per year.
Machine Center
We have 10 sets of CNC milling machines and other CNC machine centers.They could provide high-precision machining and ensure the production period according to the customers' requirements.
Manual Welding with Tungsten Carbide Alloy(WC) and Copper Welding Process.
All of our tungsten carbide alloy wearing parts are handmade,which largely guarantees the high quality and long service life of the products.
Detailed Image
Other Products
SS Material Mixing Blades
Cover Disc
Bottom Liner Plate
Packing & Delivery
RV24 Blades and Scrapers (SS904L) Exported to Russia
RV24 Blades and Scrapers (SS904L) Exported to Russia
DE18 Bottom Tool Scraper/Blades/Cover Disc etc Exported to Poland
Our Service
1 | OEM Manufacturing welcome: Product, Package... |
2 | Sample order. |
3 | We will reply you for your inquiry in 24 hours. |
4 | After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, timely contact us, we will offer the solve way for you quickly. |
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods with PE films and plywood boxes. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers' benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
