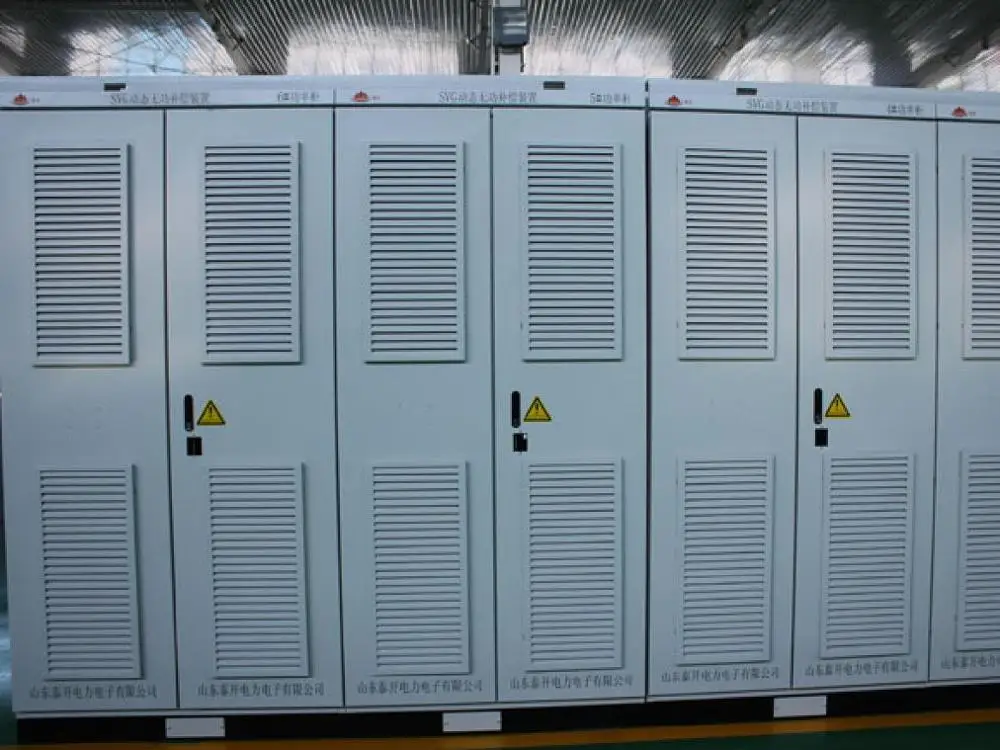

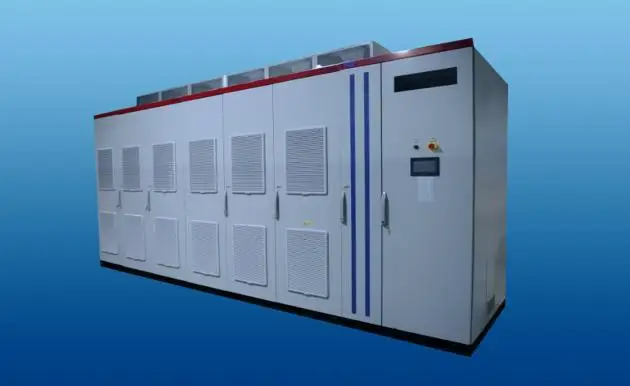

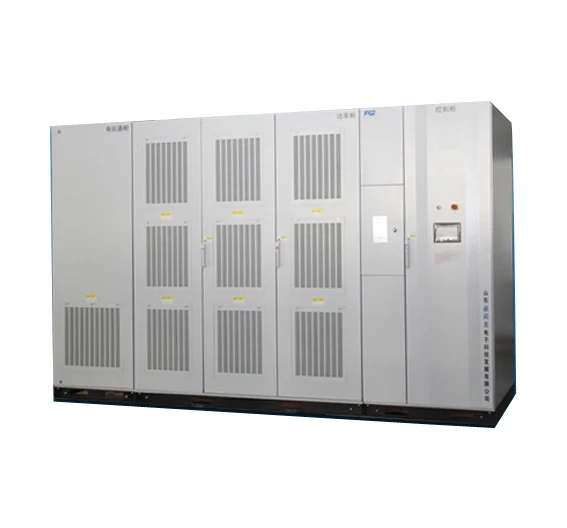

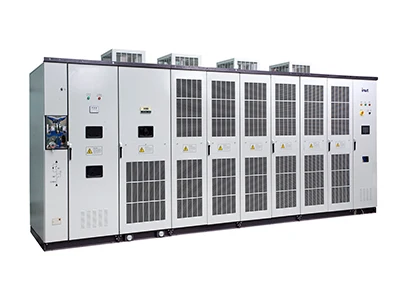

35kv High Voltage Mvar Generator Statcom
- Category: >>>
- Supplier: Anhui Zhongdian Electric Co. Ltd.
Share on (62272092737):
Product Overview
Description
Product Description
35KV Statcom static synchronous compensator
Static Synchronous compensator series using IGBT as the core power modules which can quickly and continuously provide capacitive or inductive reactive power, achieve constant reactive power, constant voltage and constant power factor control through the assessment point, and ensure the power grid is running stable, high efficiency and high quality. In the power distribution network, the small capacity FGSVG can significantly improve the power quality (improve the powerfactor, overcome phase imbalance, eliminate voltage flicker and fluctuation, restraining harmonic), if it is installed in some special loads (such as electric arc furnace).
Specification
Rated voltage | 35KV | |
Operating frequency | 50Hz/60Hz | |
Electrical connection | Three-phase four-wire/ three-phase three-wire | |
Compensation Capacity | 1MVAr~50MVAr | |
Compensation mode | Either three-phase compensation or single-phase compensation | |
SVG module response time | <5ms | |
MTBT | >100,000 hours | |
Controller | DSP+FPGA | |
Switching frequency | 12.8K | |
Capacitor control interface | 14 ways | |
Communication mode | Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting USB data download. | |
Control connection | Fiber or electrical connection | |
Weight | Refer to the model selection table. | |
Level of protection | IP20 | |
Cooling method | Air cooling | |
Noise | <50db | |
Installation method | Cabinet mounting. | |
Ambient temperature | -20~55℃ | |
Relative humidity | Maximum 95%, without condensation | |
Altitude above sea level | ≤1,000m at rated capacity |
Stacom Function
Main Function
•\tBus voltage support
•\tReactive power support
•\tReduce the level of harmonics on the power system
•\tReduce voltage unbalance on the power system
•\tReduce the impact of oscillatory voltage transients
•\tRapidly compensating for high or low voltage events such as system faults and load rejection
•\tPower factor correction
Naming rules
Remark capacity (Mvar) means the rated maximum adjustment capacity range from inductive
reactive power to capacitive reactive power. For example C2.0/10 means the device is connect to
the 10kV power grid directly and its capacity is ±2Mvar. It can change from +2000kvar (inductive)
to -2000kvar (capacitive) continuously and smoothly.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Why choose us
1. One-stop supplier globally.
2. Nearly 20 years professional experiences in electrical appliance industry.
3. Professional online technology support for perfecting your power energy solution free.
4. Experienced sales service,oompetive price.
5. Reliable quality and warranty assurance: 12 month or more
5. Whatever big or small order, we can provide you one-to-one service.
6. Based on mutural benefit,creat win-win business and long relationship .
Factory

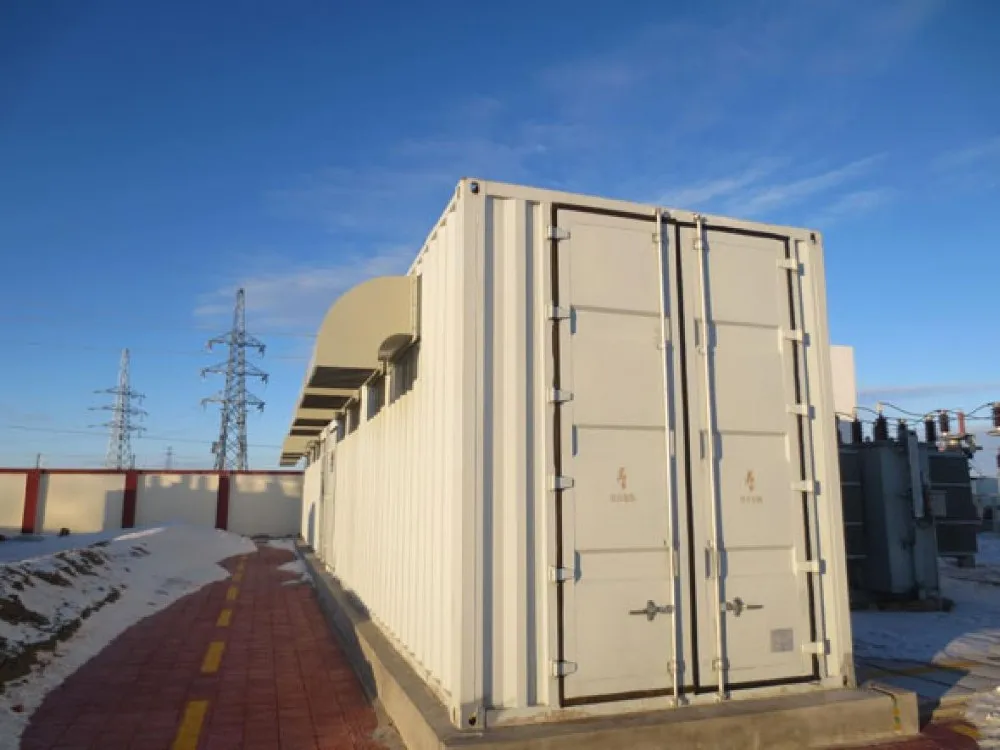

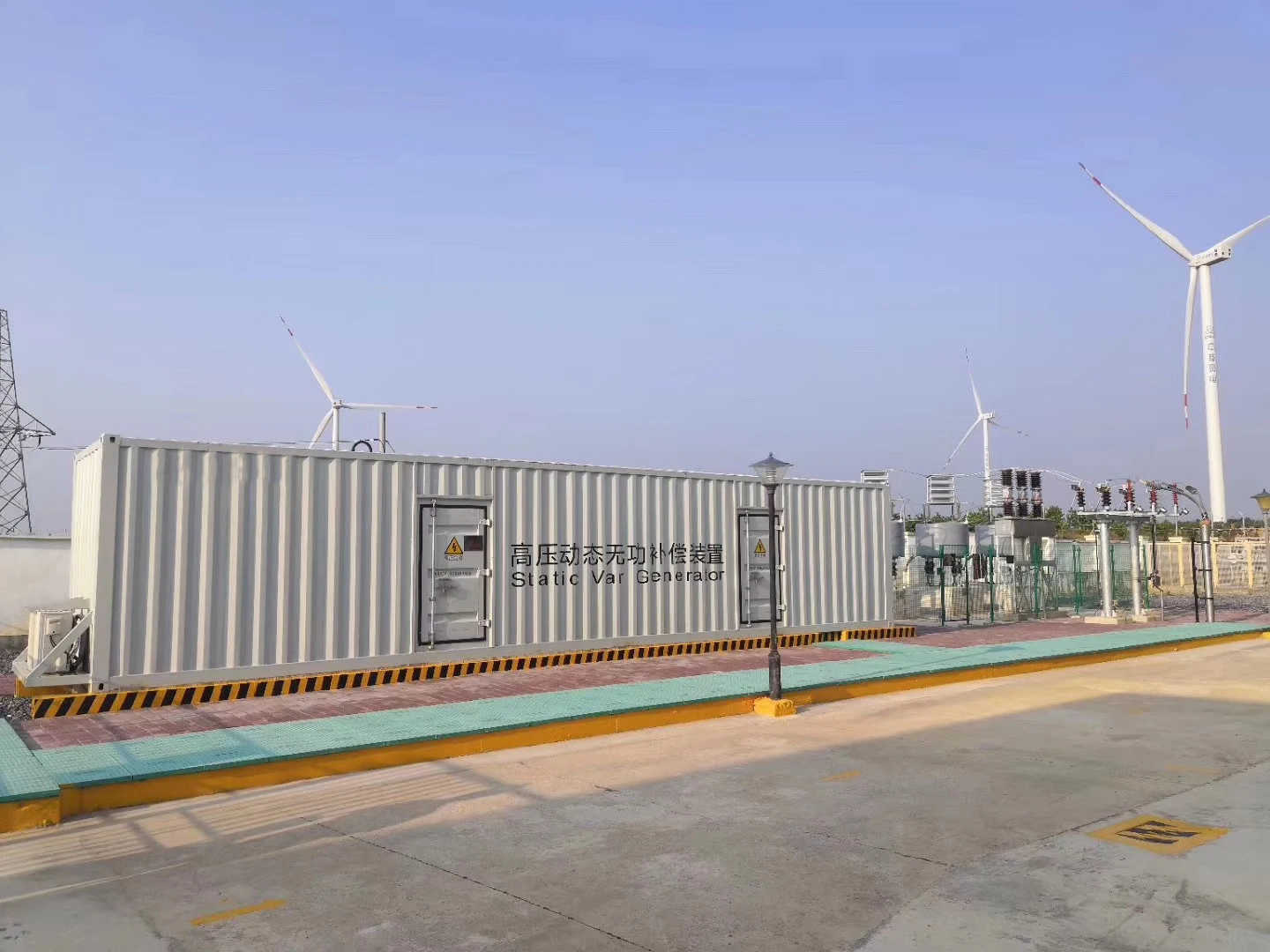

Our device for Huaihe river project
workshop
workshop
