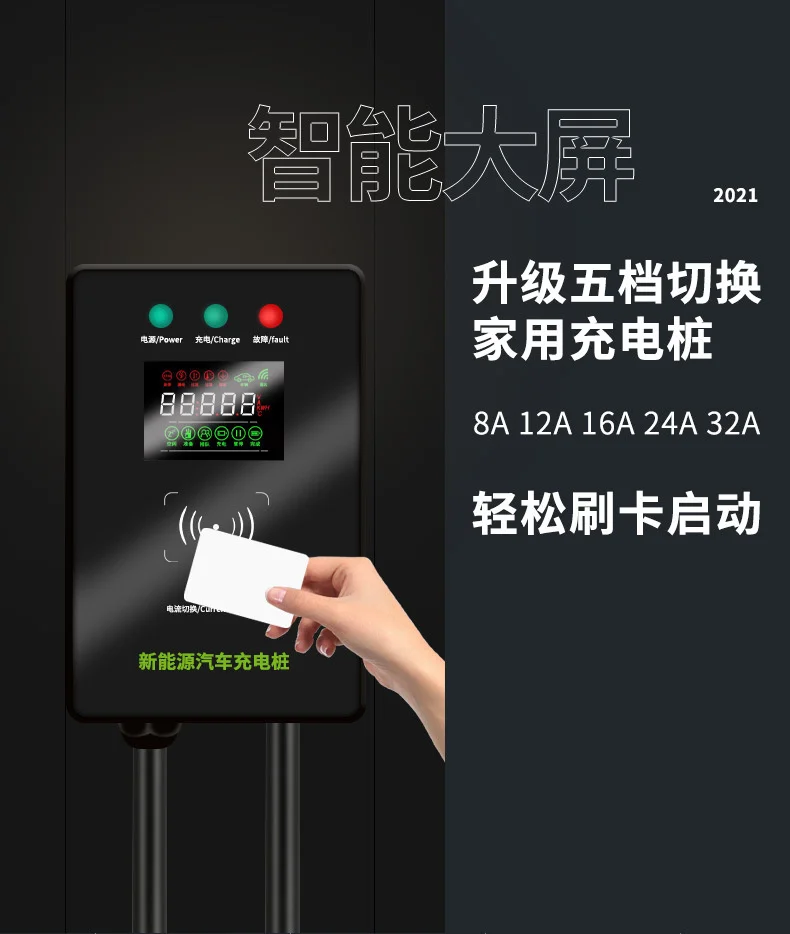

32a type 2 floor mounted charging stations electric car charger station European IEC 62196 2 AC/AC 7KW EV Charger
- Category: >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (62272178416):
Product Overview
Description
* Gun type: Type 2 IEC62196-2
* Waterproof Class: IP68
* Dimension: L230xW150xH70mm
* Weight: 3.3kg
* Dimension: L230xW150xH70mm
* Weight: 3.3kg
* Standard cable length: 5m long
* Assembling way: Wall mounted / pole
* Assembling way: Wall mounted / pole
* Metal pole optional
* Comply with all EV Cars
Products Description

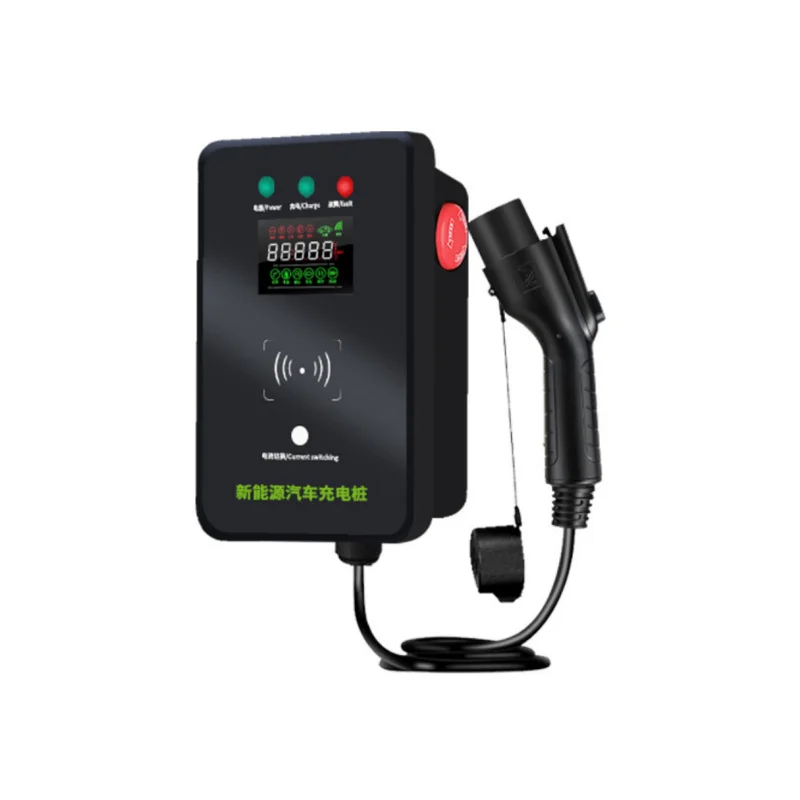

EV Charger Model | CB7000-2AT2 (Type 2 wall mount 7KW ev charger) | |
Version | Home Charger (please contact if need the commerical ev charger) | |
Electric Features | ||
Input | 175V-265V (Single Phase) 50/60Hz | |
Max Output Power | 7.0kW(single phase) | |
Max Output Current | 32A | |
Standard Cable length | 5m / 16.4ft (6m, 7m, 8m or customized length available ) | |
Operation Environment | ||
Storage Temperature | -25℃ ~ +85℃ | |
Operation Temperature | -10℃ ~ +65℃ | |
Relative humidity | 0-95% non-condensing | |
Maximum altitude | <2000m | |
Waterproof Class | IP65 | |
Cooling Method | Natural Air Cooling | |
Mounting way | Wall-mounting bracket/Ground-mounting pole (optional) | |
Function & Accessories | ||

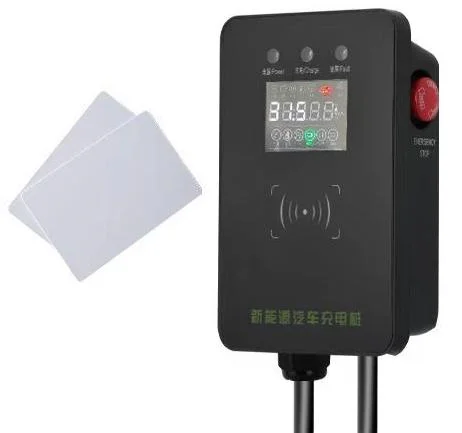

RFID | Yes(with NFC) | |

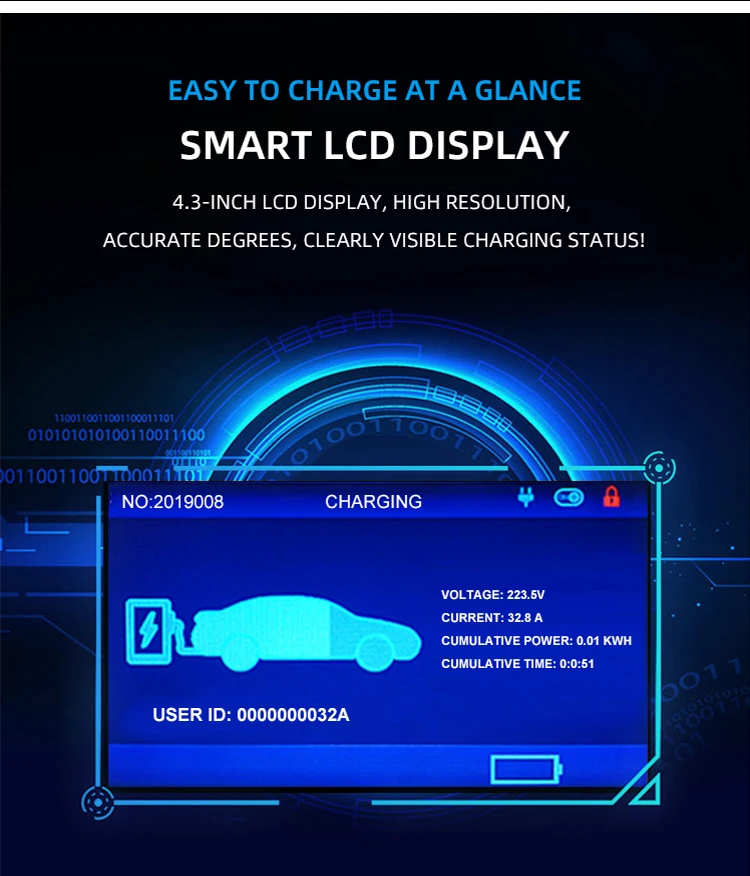

LCD | 4.3-inch color display(3.0-inch display area ) | |
RCD | Type A / Type A+6mA | |
LED Indicator light | Yes | |
Intelligent Power Ajustment | Yes | |
Ethernet / WIFI / 4G | Optional | |
Certification | CE RoHS | |

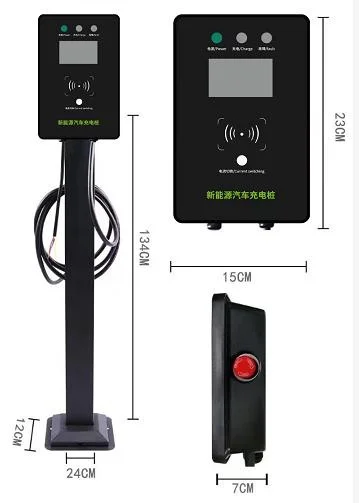

Machanical Drawing | ||
Measures (LxWxH) | 230x150x70mm (excluding the metal stand ) | |
N.W./G.W. | 3.2KG / 4.2KG | |
Master Carton Packing | 350x300x173mm (LxWxH), 1pc each carton | |

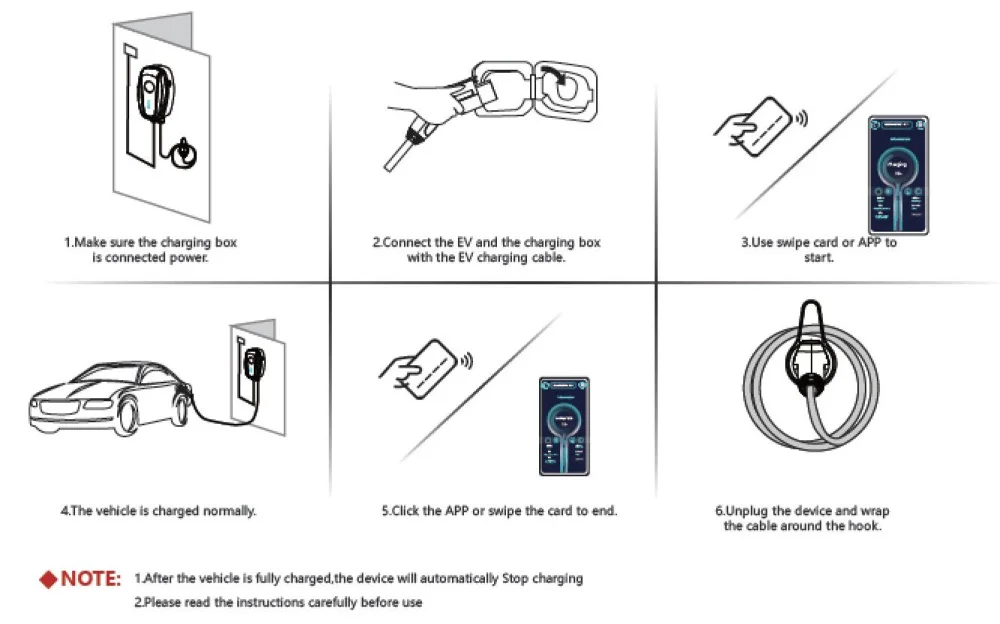

How to charge for 3 options?
A. Automatic start charging
1. Turn on the power switch, the display shows the standby state, then starting completed;
2. As shown, plug in the charging plug, the charging station indicator shows green, when the charging lamp flashes, it means that the charging has started;
3.after charging is completed, pull out the cable and insert the cable into the socket or on the cable hook.
B. Button start charging
1. Turn on the power switch, the display shows standby, start complete;
2. As shown, plug in the charging plug, the charging station indicator shows green, press the right button of the charging station, when the button lights up as shown, the charging lamp flashes and flashes, indicating that charging has started;
3. After charging is completed, please press the button, pull out the charging cable, insert the cable into the socket or store it on the cable hook.
C. Swiping start charging (RFID)
1. Turn on the power switch, the display shows the standby state, start the completion;
2. As shown, plug in the charging plug, the charging station indicator shows green, use the charging card to start charging, when the charging lamp flashes, it means that charging has started.
3. Please re-swipe the card again and the charging is completed, then put the cable back into the socket or on the cable hook

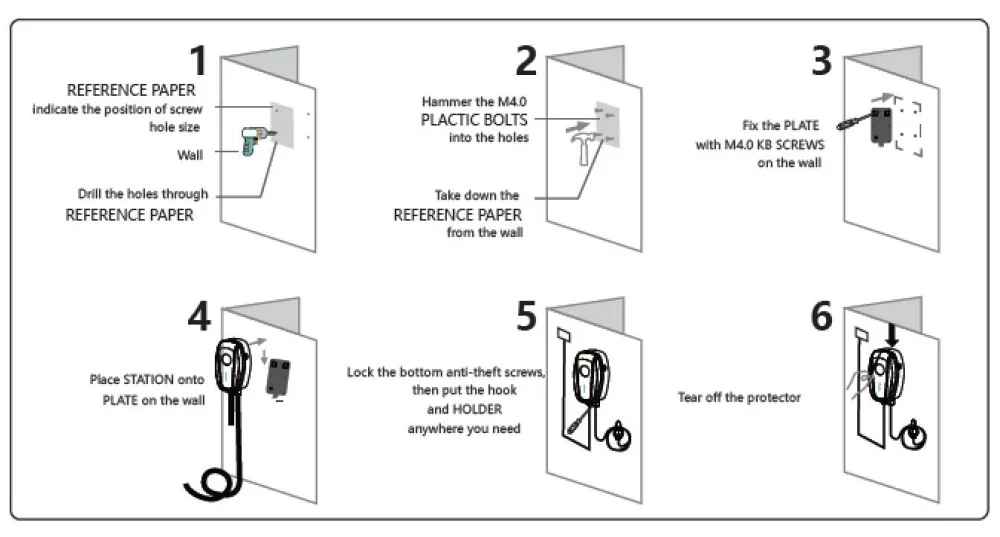

How to install
How to know the charging status

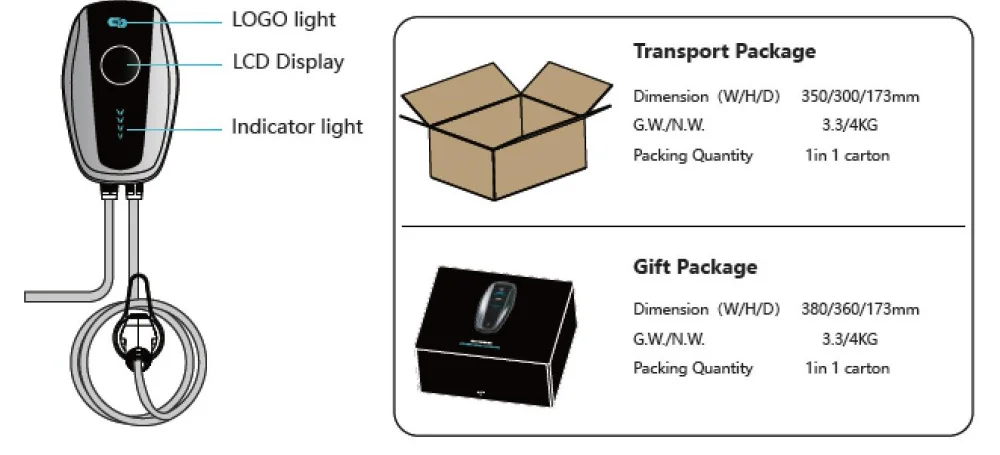

Packing
Charging equipment assembly × 1
Wall mounting plate × 1
Fixed pegboard bolts and screws × 4
Contactless IC card (Optional) × 2 (optional)
Instruction × 1
Charging station installation board × 1
Backplane locking screw × 4

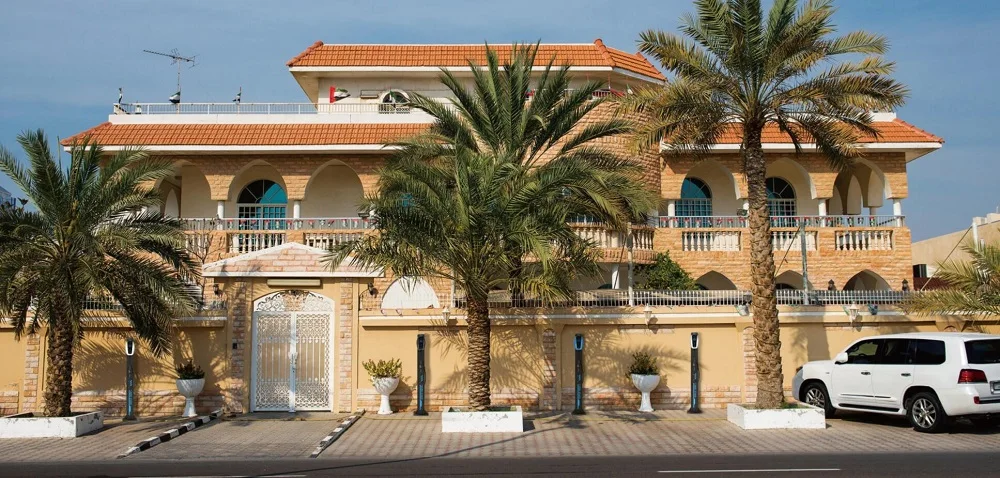

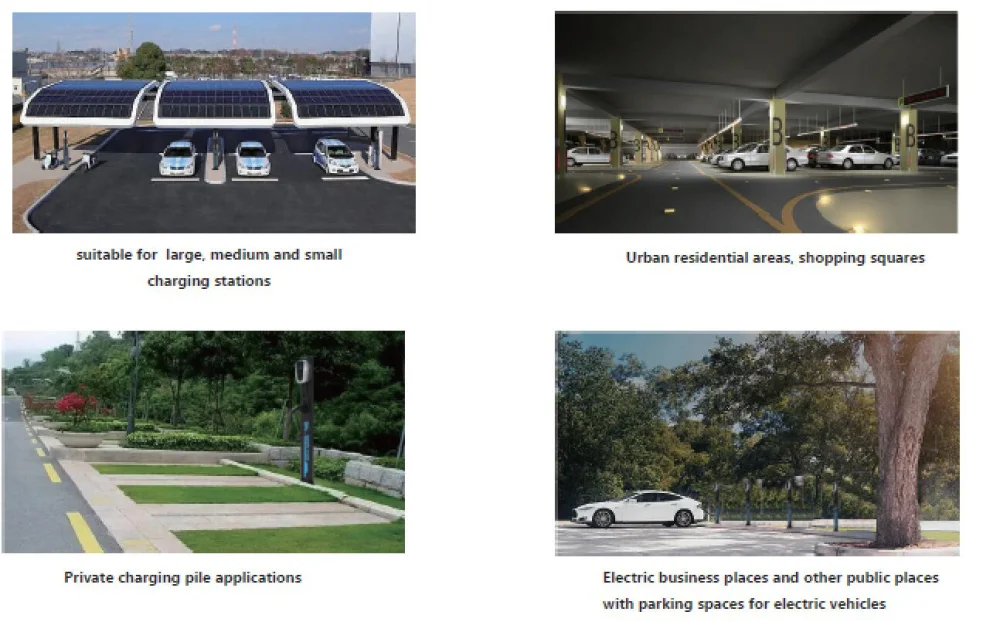

Charging Station Scene
FAQ
Here are some customer’s common questions about our products :
1. What is your terms of payment?
We will recommend our customer to use different terms of payment based on difference in quantity of order.
Less than 5000 USD, generally choose to pay on Alibaba
More than 5000 USD, generally choose telegraphic transfer or Alibaba
If you need the detailed terms of payment, pls contact us.
2. I want to know more infos about your reputation.
d. We are Amazon Vendor.
b We are the Good Supplier recommended by Alibaba.
c. We have 5 stars in Transaction Level, which is already the highest level in this industry.
d. We have strong development, and supply high quality ev charger with good reliability.
3. I think T/T payment is not very safe for me, and L/C is a little trouble. Any advices?
You can have a try with Alibaba Trade Assurance. This is a new service released by the Alibaba.com, that means the account of payment is guaranteed by Alibaba !
It is very easy and safe:
a. You just need to confirm the order on Alibaba, and arrange the payment to Alibaba (not to us).
b. Alibaba notice us to send the goods to you after received your payment.
c. If you received the right goods in agreed time, Alibaba will send the money to us
d. If you didn't receive the right goods, Alibaba will return the money to you.
More and more customers on Alibaba are using this payment method to ensure the safty of their fund. What do you think?
More information about Trade Assurance, pls contact us or look up
4. Do your products have quality certification? How long is the warranty time?
All of our EV charging products posses with CE, TUV certifications, J1772 products posses with FCC certification (have been apply for ETL/UL certification). Generally speaking, the warranty time is 1 year.
5. How do you deliver your goods to me? How long will it take?
We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air or Sea shipment. If not have the special requirements, the weight of products less than 50kg will be arranged by express (5-9 days), the weight of products more than 50 kg will be arranged by Ocean freight (30-45 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3 days to 10 days due to the quantity of order, the level of busyness in production line.
6. Can we require you to print our trademark into your products? Do the color of plug and cable can be customized made according to our requirements?
We support OEM production, but the order quantity must be more than 100pcs.
The color of plug and cable can be customized made any colors on the basis of your requirements, the order quantity must be more than 200pcs.
7. We need to connect the industry plug to J1772 plug with 7m length of cable, however, we don’t find the similar products in your website.
The products displayed in our website are mainstream products, we can connect any two kinds of plug, but some of which need certain quantity to be customized connection. If more detailed requirements, pls contact us.
8. How is your product quality? In case of problem occurs, what should I do?
Firstly, we sell our products for many years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will supply the new one for free.
If any problems are not in the above-mentioned answers, you are welcome to contact us directly, we will quickly respond to solve the problem with carefulness and patience.
