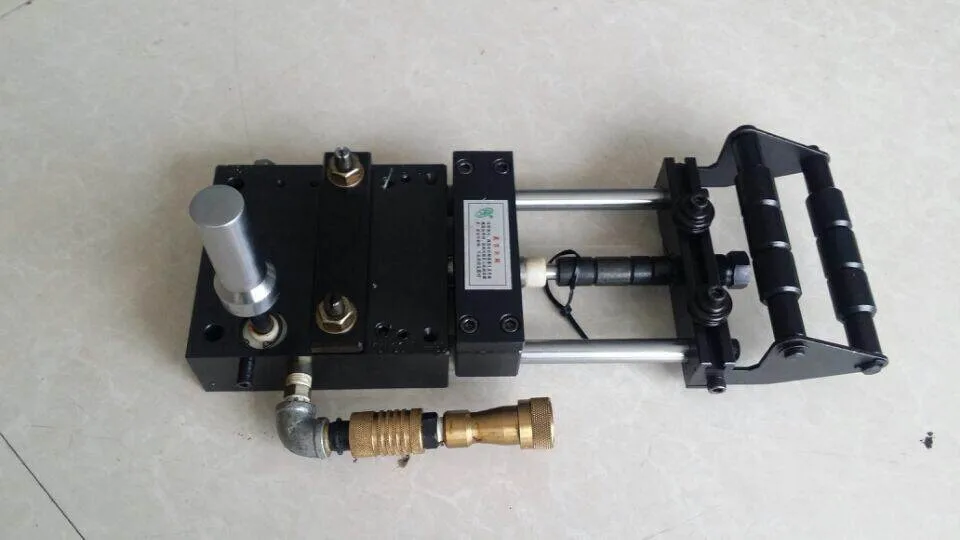

Low Price Air Feeding Machine With Pneumatic Feeder For Power Press Stamping Line

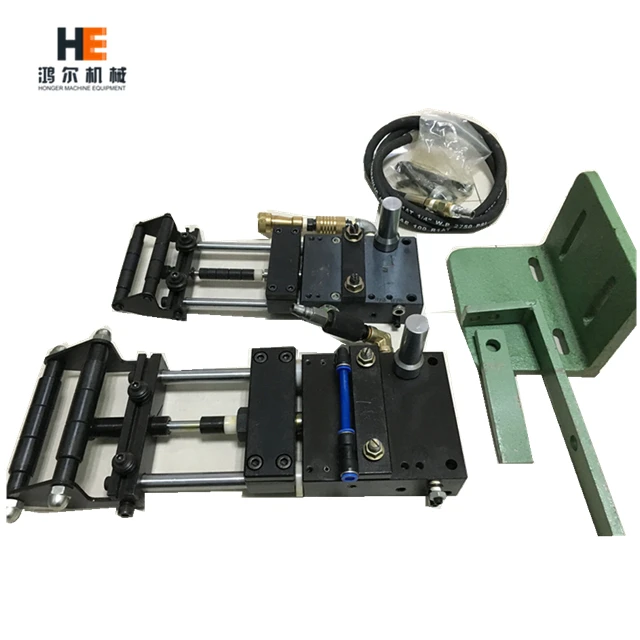

Photo Show
Description
AF Air Feeder
1, Suits for sheet metal coil up to thickness 3.0mm, width 400mm. The speed is 12m/min.
2, Used in metal stamping line installed on press machine;
3, Works for material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;

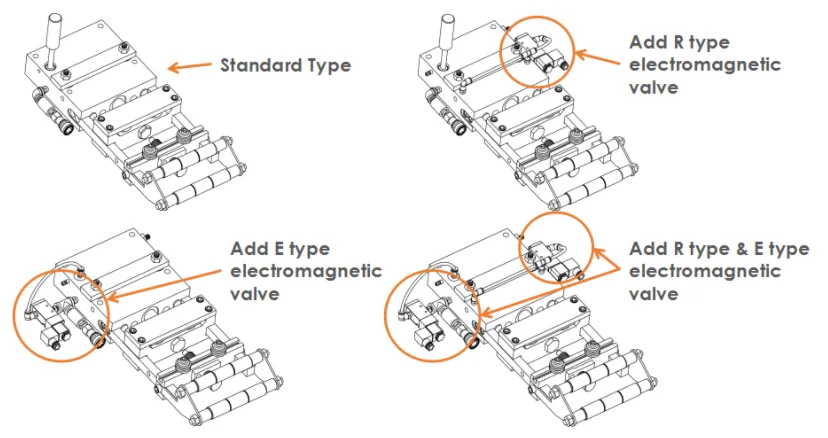

4, E type & R type magnetic valve are optional. Gerenally, AF 1C-AF 7C is in standard type without magnetic valve.
Specification
Model
AF-1C
AF-2C
AF-3C
AF-4C
AF-5C
AF-6C
AF-7C
Max Coil width(mm)
50mm
65mm
80mm
100mm
150mm
200mm
250mm
Coil thickness(mm)
0.5mm
0.8mm
1.2mm
1.5mm
2.0mm
2.0mm
2.5mm
Feed length(mm)
50mm
80mm
80mm
130mm
150mm
200mm
250mm
Speed(m/min)
12m/min
Air consumption
26.5L/mm
38.5L/mm
47L/mm
58.6L/mm
100.5L/mm
108.5L/mm
152L/mm
Pneumatic pressure
4.5kg/cm2
Application
Air pneumatic coil feeder machine is for automatic feeding equipped with press machine when metal stamping. It is cheap cost and can increase the capacity compared with manual feeding. It can feeding most of the metal coil steel sheet like aluminum, copper, stainless steel, carbon steel, mild steel strip, wire, etc.
