YT H4E professional thickness measuring instrument micron paper thickness measurement thickness gauge for plastic film
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (62272342034):
Product Overview
Description

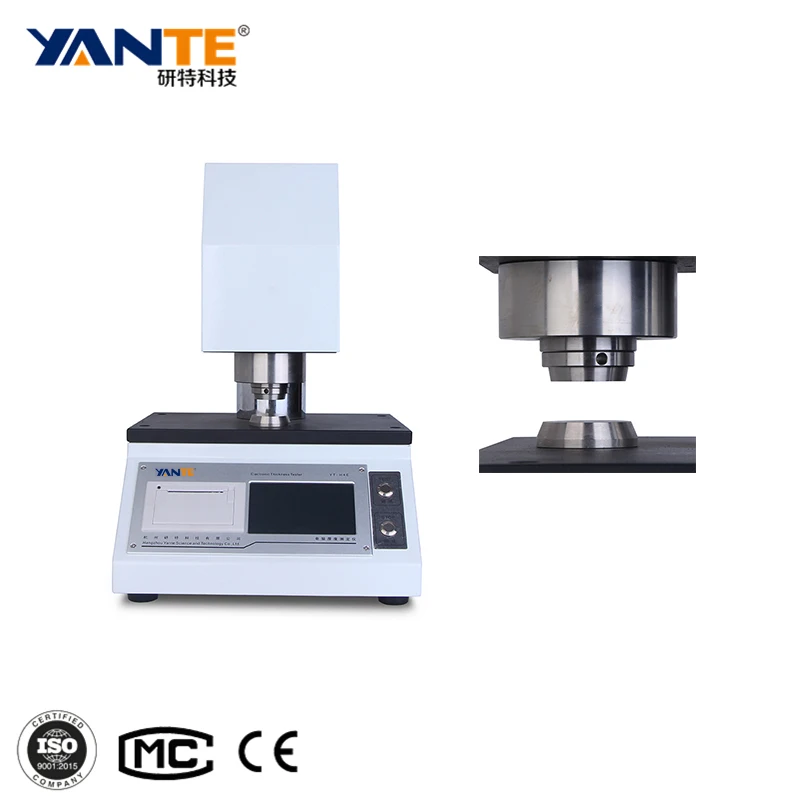

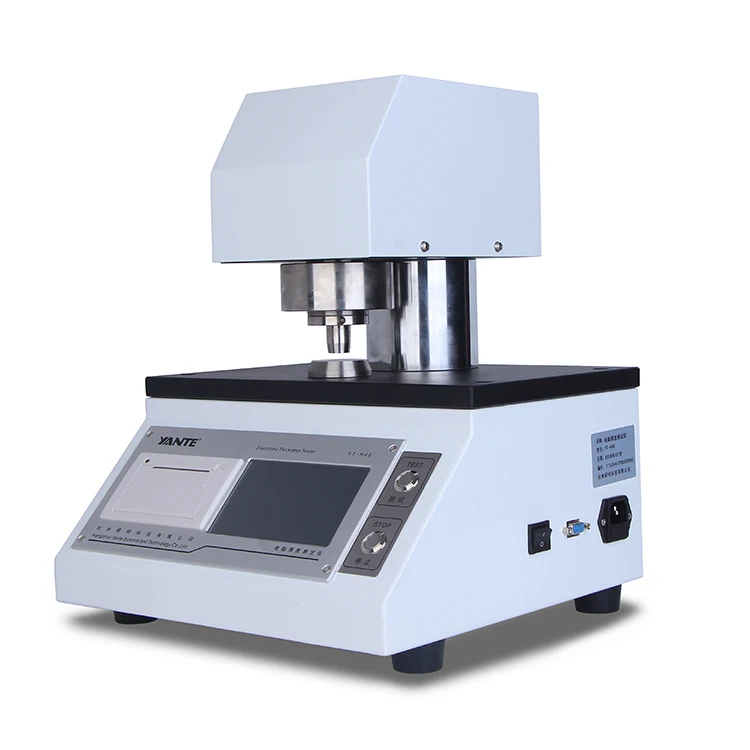

YT-H4E
Electronic Thickness Tester instrument for paper and cardboard thickness measurement, widely used in paper, cardboard, toilet paper and other sheet materials, corrugated board thickness measurement; paper, packaging, scientific research and product quality supervision and inspection industries And the ideal test equipment for the department.
Application Function
Thickness measurement
Power Supply | AC (100~240)V (50/60)Hz 50W |
Working environment | (10~35)℃, humidity< 85% |
Measuring Range | 0~5mm |
Resolution | 0.001 mm |
Indicating Accuracy | ±0.0025 or ±0.5% mm |
Indication Variation Accuracy | ≤0.0025 or ≤0.5% mm |
Parallelism Between Surfaces | ≤0.002 mm |
| Contact area | 200±5 mm2 |
| Contact Pressure | 100±10 kPa |
Head Descent Speed | 0.5-10 , Adjustable mm/s |
Display | Touch Screen |
| Communication interface | RS232 interface |
| Built-in thermal printer | |
Dimension | 320(L)×320(W)×410(H)mm |
Net Weight | 25kg |
Application Range
Paper type :various types of paper
Cardboard type : all kinds of cardboard
Toilet paper type: toilet paper
Product Features
One-click test, easy to understand
The motherboard adopts the latest technology and new design. The CPU adopts 32-bit ARM processor, which improves the processing speed of the instrument and makes the calculation data more accurate and fast.
5-inch color touch screen, Chinese display, touch buttons, making operation easy to understand
Adjustable head rise and fall speed
Automatic measurement, statistics, print test results, and data retention
Thermal printer core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.
The instrument is equipped with a standard RS232 interface, which can be used with PC software for communication (optional)
Optional accessories(Purchase separately)
RS232 interface and computer software 1set
Standards
GB/T 451.3 GB/T 24328.2 QB/T 1055 ISO 534
