Manual Round Corner Cutter Paper Cutting Machine with Rule price
- Category: >>>
- Supplier: Jctprint Machinery Co. Ltd.
Share on (62272922479):
Product Overview
Description
Manual Round Corner Cutter Paper Cutting Machine with Rule
Product Description
1. Application
Angle corner cutter is used in soft packaging bags, trademark tags, business cards, books, packaging, decoration, documents, documents, bags, cards to cut the round corners.
2. Specifications

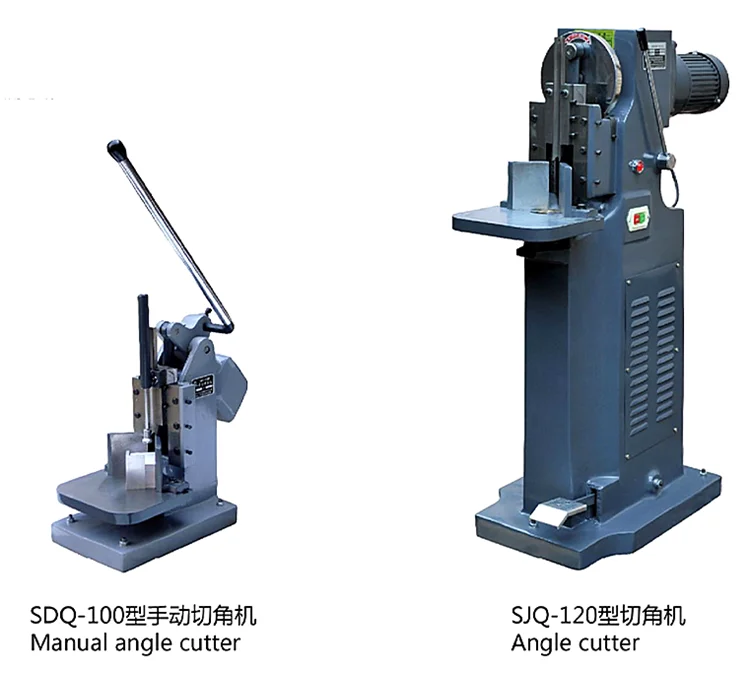

Model | SDQ-100 | SJQ-120 | PJQ-100 |
Max cutting height | 110mm | 110mm | 110mm |
cutting speed | 50Times/Min | 90Times/Min | 90Times/Min |
Voltage | / | 220V/380V | 220V/380V |
Power | / | 750W | 1100W |
Net weight of the machine | 95kg | 260KG | 300kg |
Dimension | 720*420*720mm | 1050*550*1350mm | 1350*650*1350mm |
automaticity | Manual | Semi-automatic | semi-automatic |
3. Features of the Corner cutter

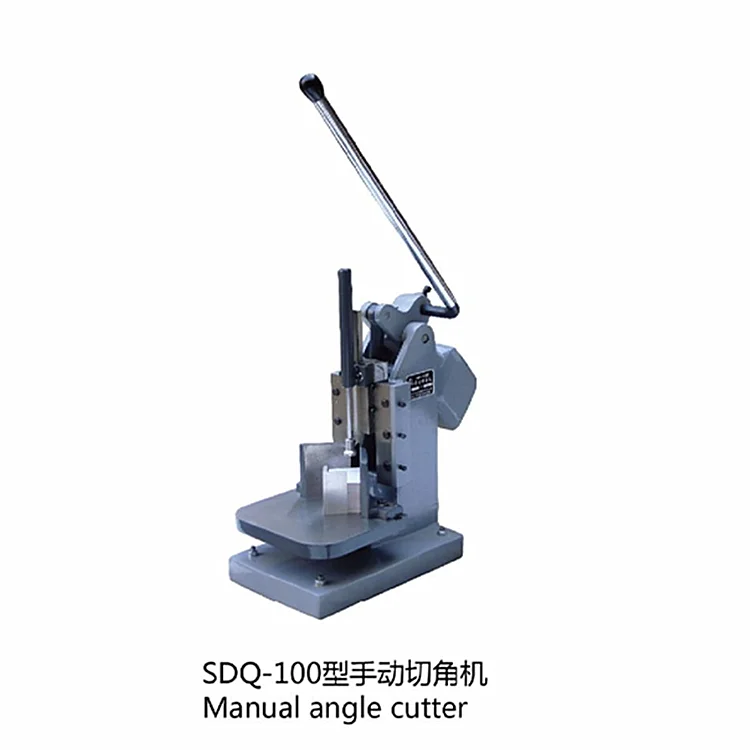

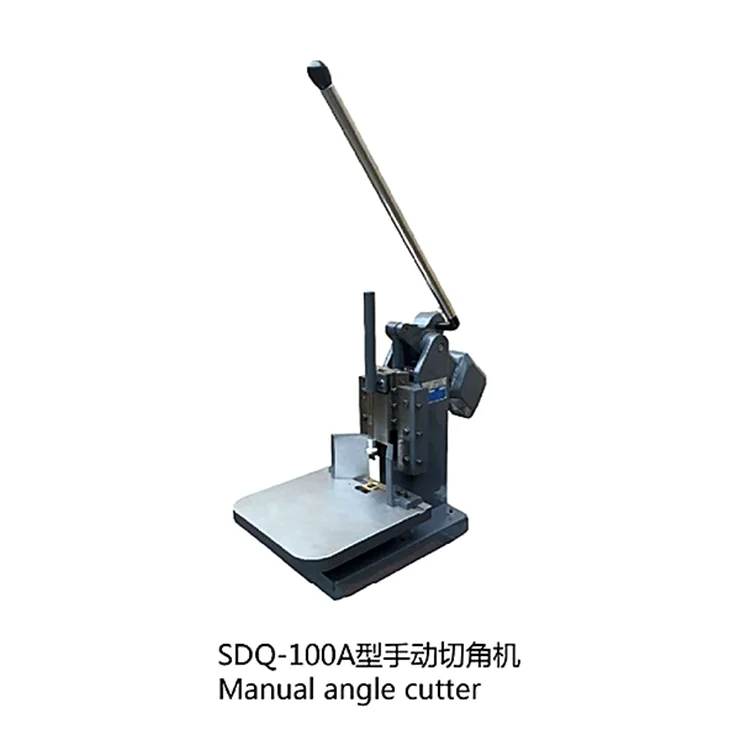

Manual Type
1). Compact and portable design.
2). Manual wood aluminum paper round corner cutter.
3). Cutting blades are replaceable.
4). Lengthened handle makes the cutting job become easy and effortless.
5.)The paper pressing device can effectively prevent the materials from moving or slipping.
6).Special bearing design results in hign durability and more fun.
7). Various optional cutting blades are available for your choice.
8). Heavy metal base helps keep the machine steady while working.
9). Ideal for cutting business cards, pvc cards, photos, books, plastic sheets, thin aluminum sheets, etc

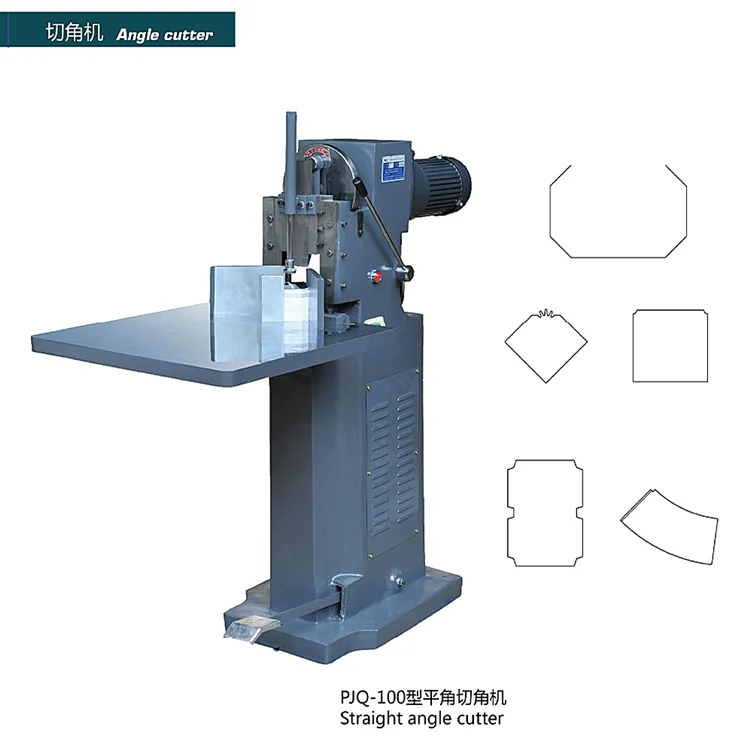

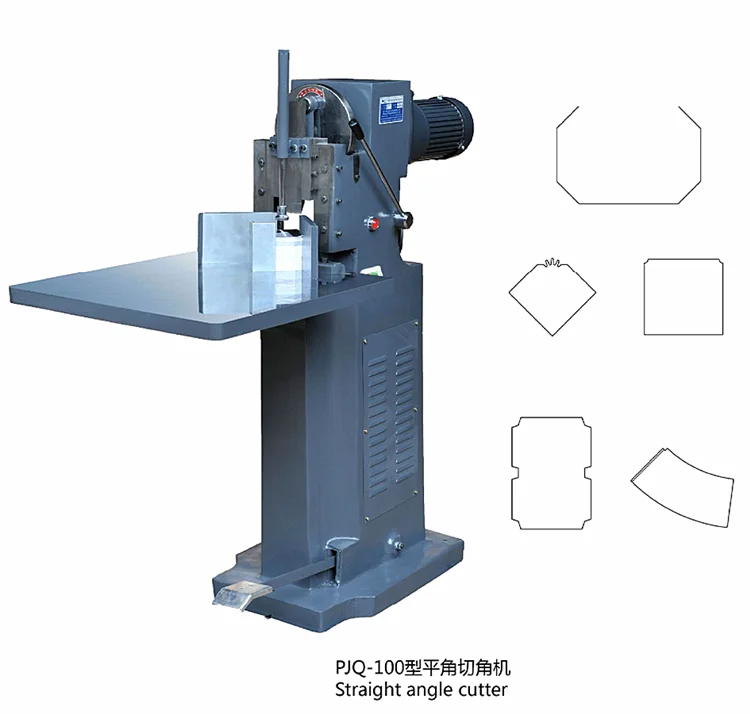

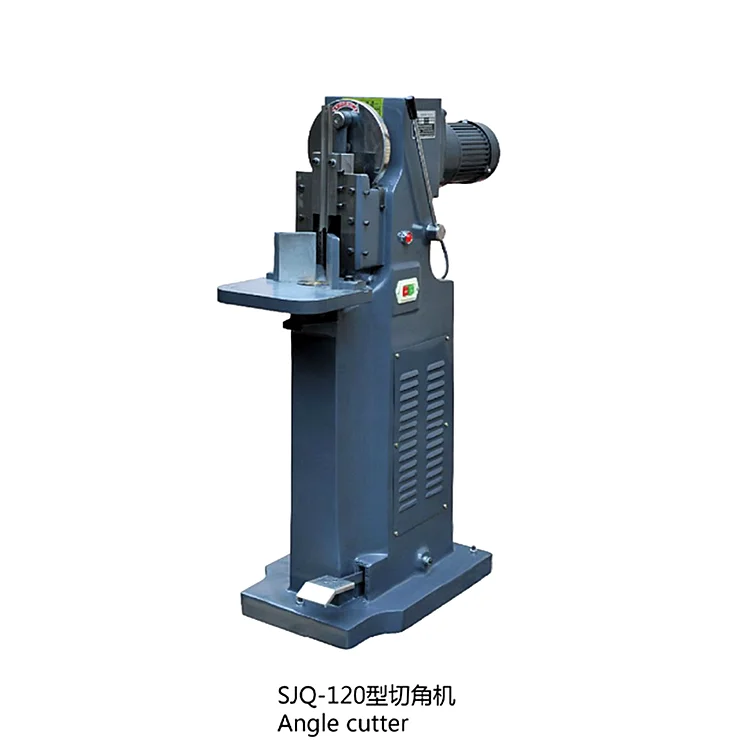

Electric Type
1).It applies to cutting various round angles and flat angles of the notebooks, logo, business cards, books and trademarks, etc.
2).Vertical design with compact structure,easy to use
3).Operated by foot switch
4).Blades can be selected from R1 to R16, Flat die and straight angel die and other sizes of dies can be customized
5).Controlled by clutch
6).Strong cutting force,labor saving,safe
4. Specification of punching dies
Optional:R1/R1.5/R2/R2.5/R3/R3.5/R4/R4.5/R5/R5.5/R6/R6.5/R7/R8/R10/R12/R14/R16/ 22mm Flat die, 60mm Flat die and straight angel die.Other sizes of dies can be customized.
The punching die is made of high-speed steel, high hardness, long service life.The die cutting product surface is smooth, and the size is unified and regular with higher efficient.

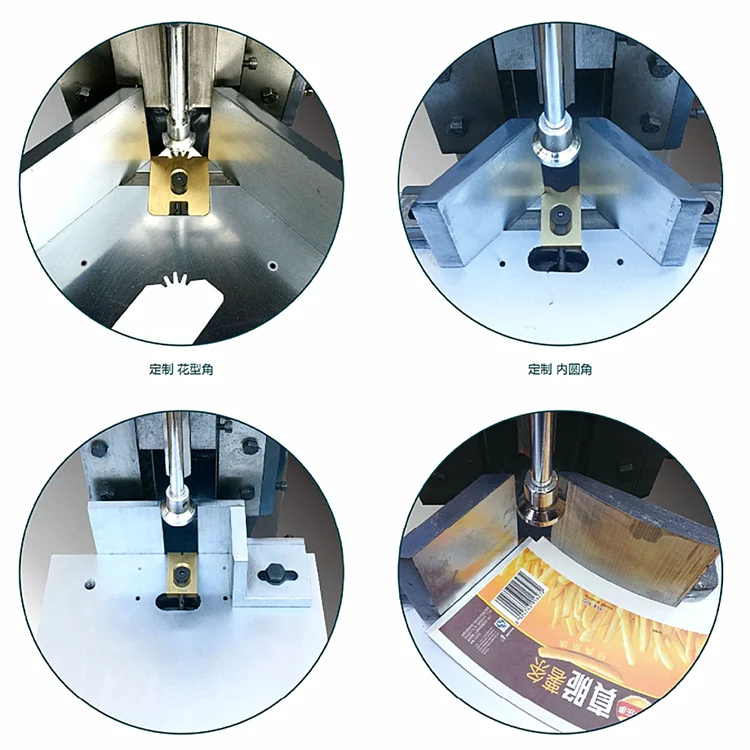

Product pictures
Company Information
FAQ
1,Are you manufacturer or Trading company?
We are manufacturer and we have been producing angel corner cutter for playing card,cup pad,notebookds and so on for more than 18years.
2, Do you have quality certificate?
Yes ,we have CE, SGS etc,so you can rely on the quality.
3,What's the delivery time?
Around 20~30days after pre payment received, however, based on order.
4.Can you provide foreign country machine installation services?
Yes,we have a after service team can provide installation services and engineers are available to solve prolems overseas.
5. Can you make punching dies which are used on your machine?
Yes,sure.Just tell your request, we can make it for you.
