Омметр Anbai Мег для сопротивления постоянного тока до 110M Ом с 0.02% точностью AT512
- Category: >>>
- Supplier: Changzhou Applent Instruments Ltd.
Share on (62272980295):
Product Overview
Description
Product Description

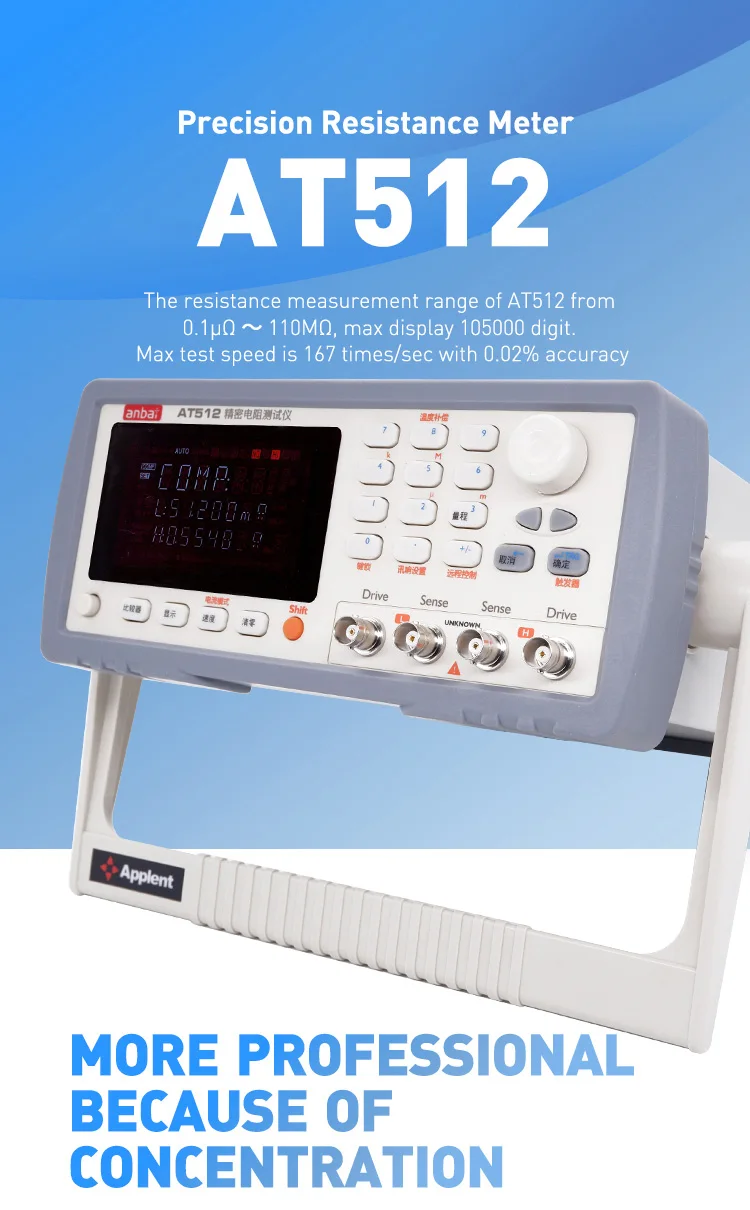

The resistance measurement range of AT512 from 0.1μΩ ~ 110MΩ, max display 105000 digit.
Max test speed is 167 times/sec with 0.02% accuracy.
suitable for measuring various high, medium and low value resistors, various switch contact resistance, connector contact resistance, relay wire coil and contact resistance, transformer, inductor, motor, deflection coil winding resistance, solder joint contact resistance Wire wrapping resistance, metal riveting resistance of cars, ships, and airplanes. printed pattern lines and hole
resistance, metal defect detection, etc.
Product Effects
Product parameter
SPECIFICATIONS | |
AT512 Precision Resistance Meter | |
Parameter | DC resistance |
Accuracy | 0.02% |
Measurement range | 0.1μΩ ~ 110MΩ |
| signal source | Current:1μA~1A |
Range | 11 range, auto & manual |
| Speed | 167 times/sec ; 30 times/sec ; 10 times/sec ; 2 times /sec |
| Display | show,ΔABS,Δ% and sorting results |
| Max display | 105,000 |
| Adjustment | open / short reset |
| Comparator | 30 groups record,display & output NG-LO, OK-IN, NG-HI beep volume adjustment |
| Trigger | Internal, Manual , External,Remote |

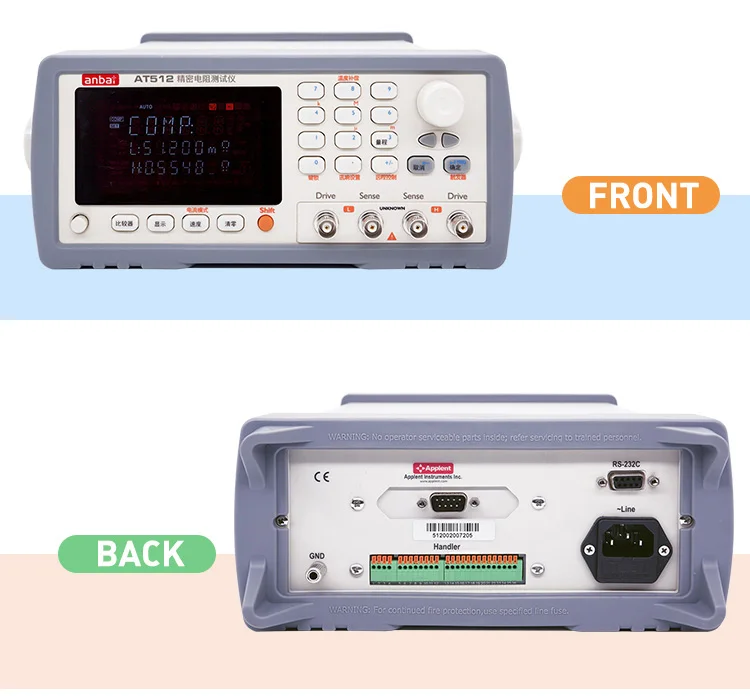

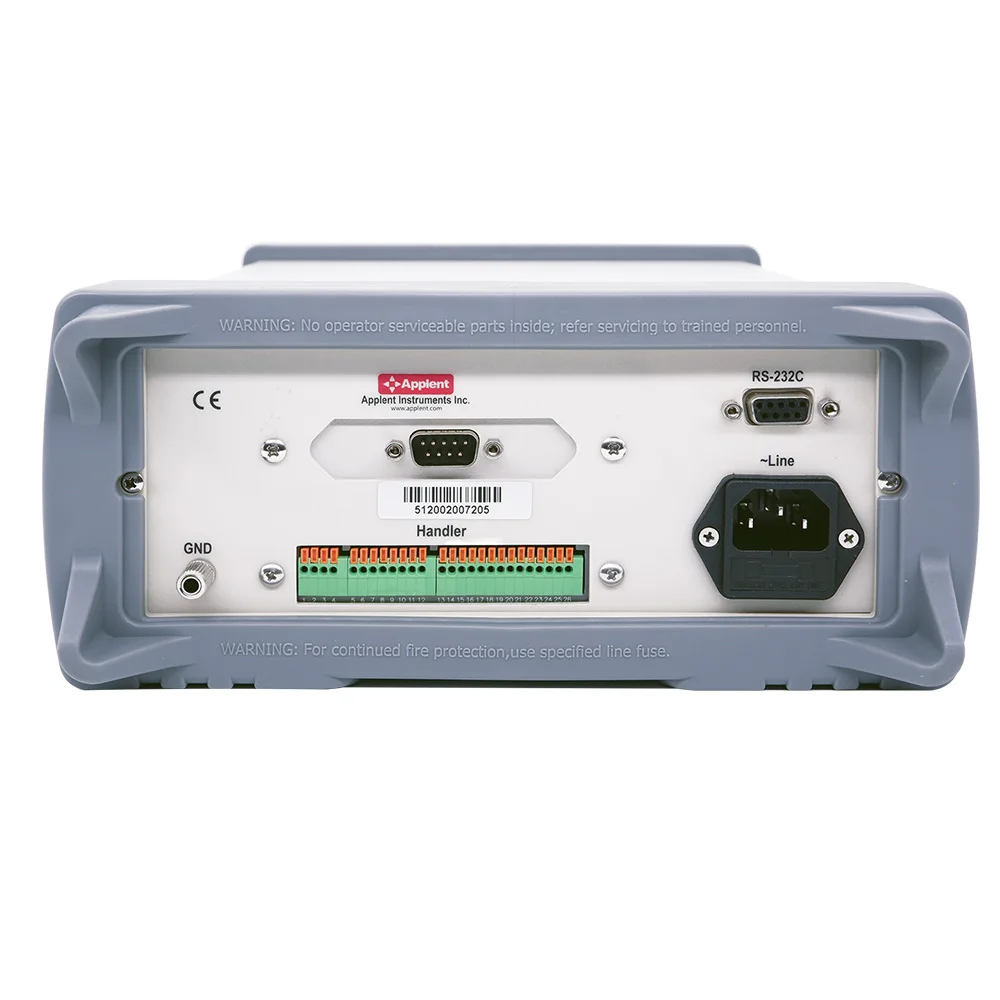

Interface | Handler(PLC),RS232C |
Test terminal | 4 terminal shielding (2 check & driving terminals) external shielding ground section |
Temperature compensation | Accuracy:0.2 ° C Range:0 ~ 80° C |

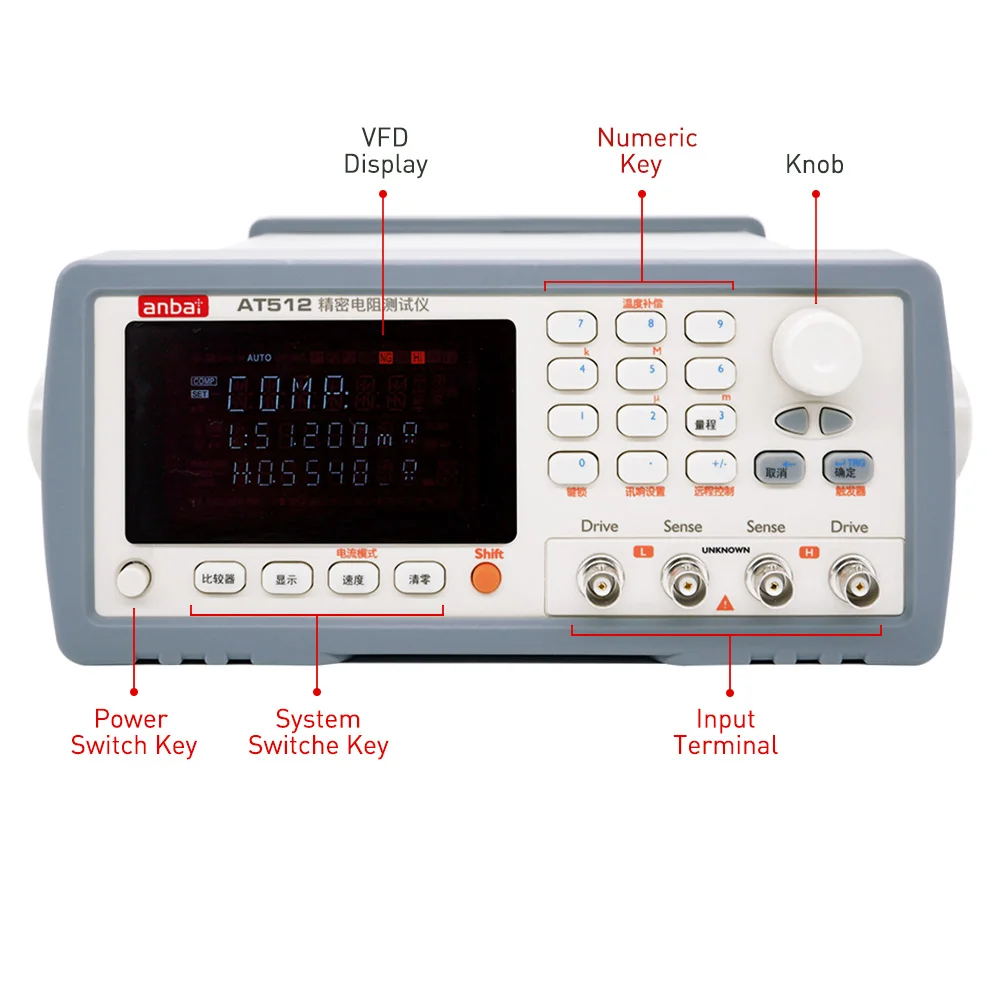

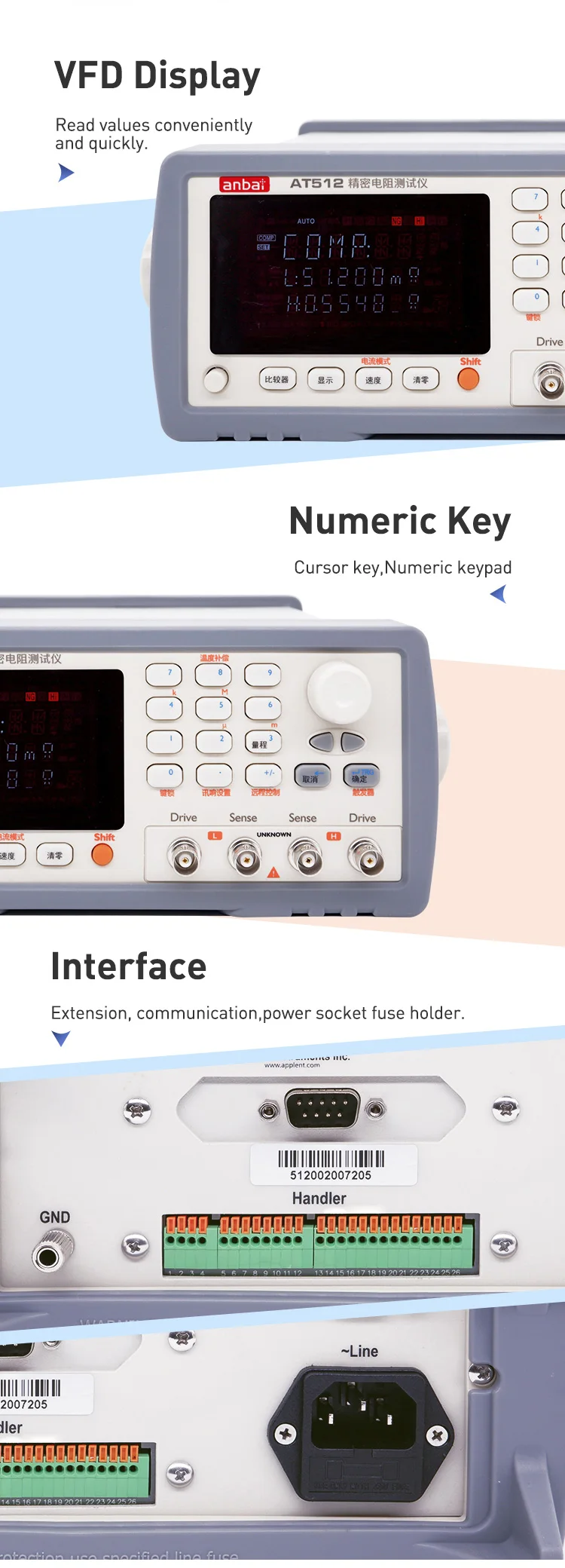

Others | 4 color VFD display Keypad lock and data hold function |
Power supply | Voltage:198VAC ~ 240VAC Frequency:50Hz Max power:15VA |

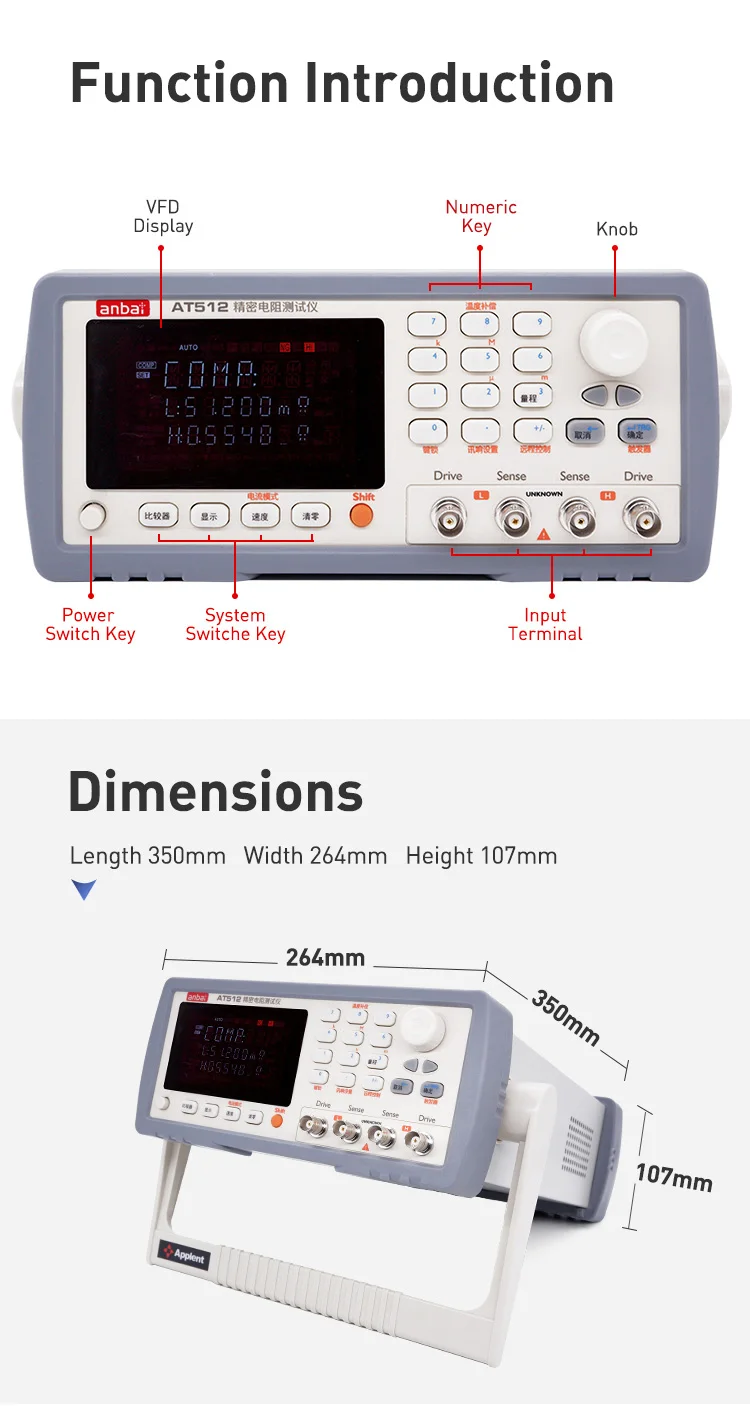

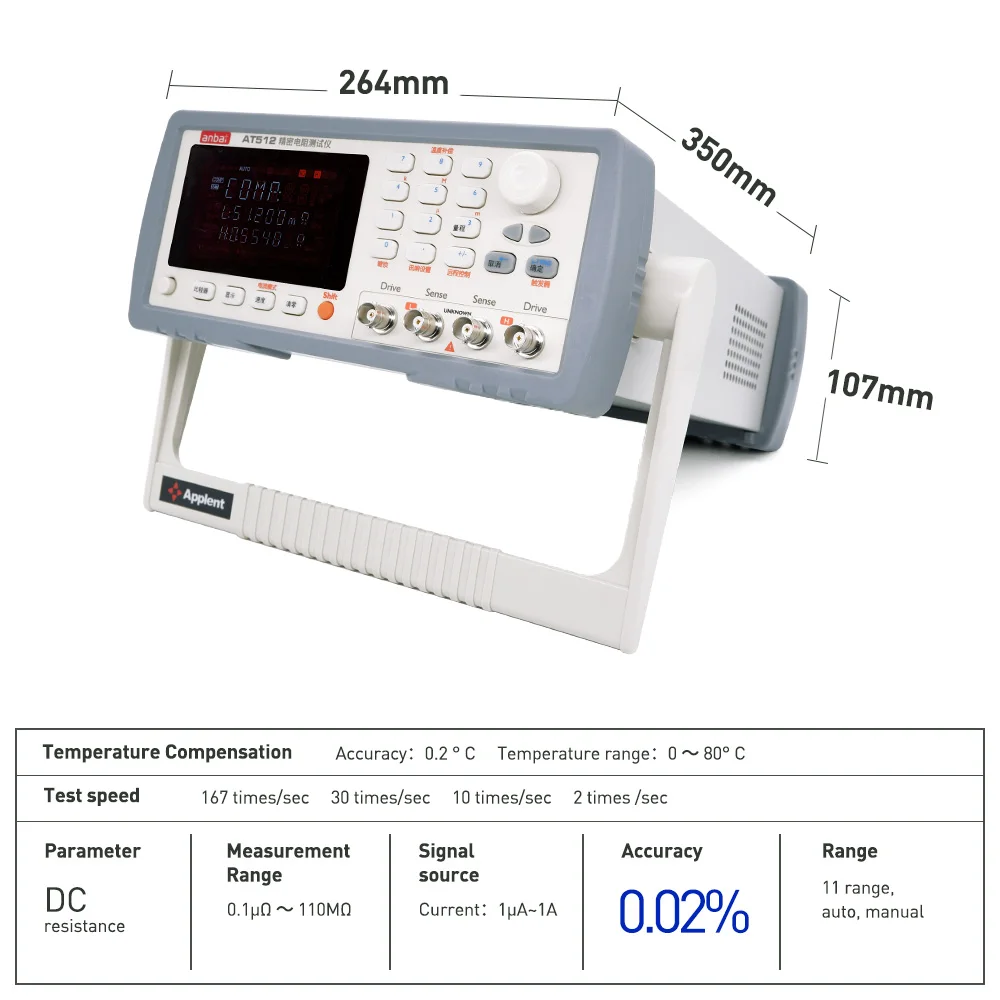

| Sizes / Weight | 264 x107 x350 mm / 4kg |

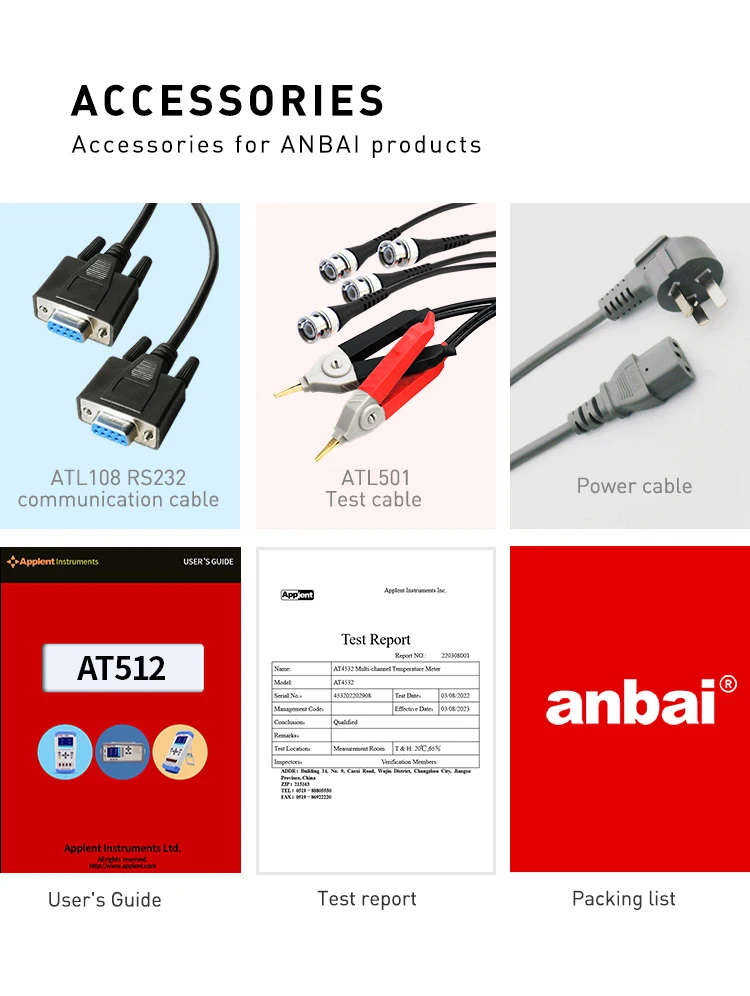

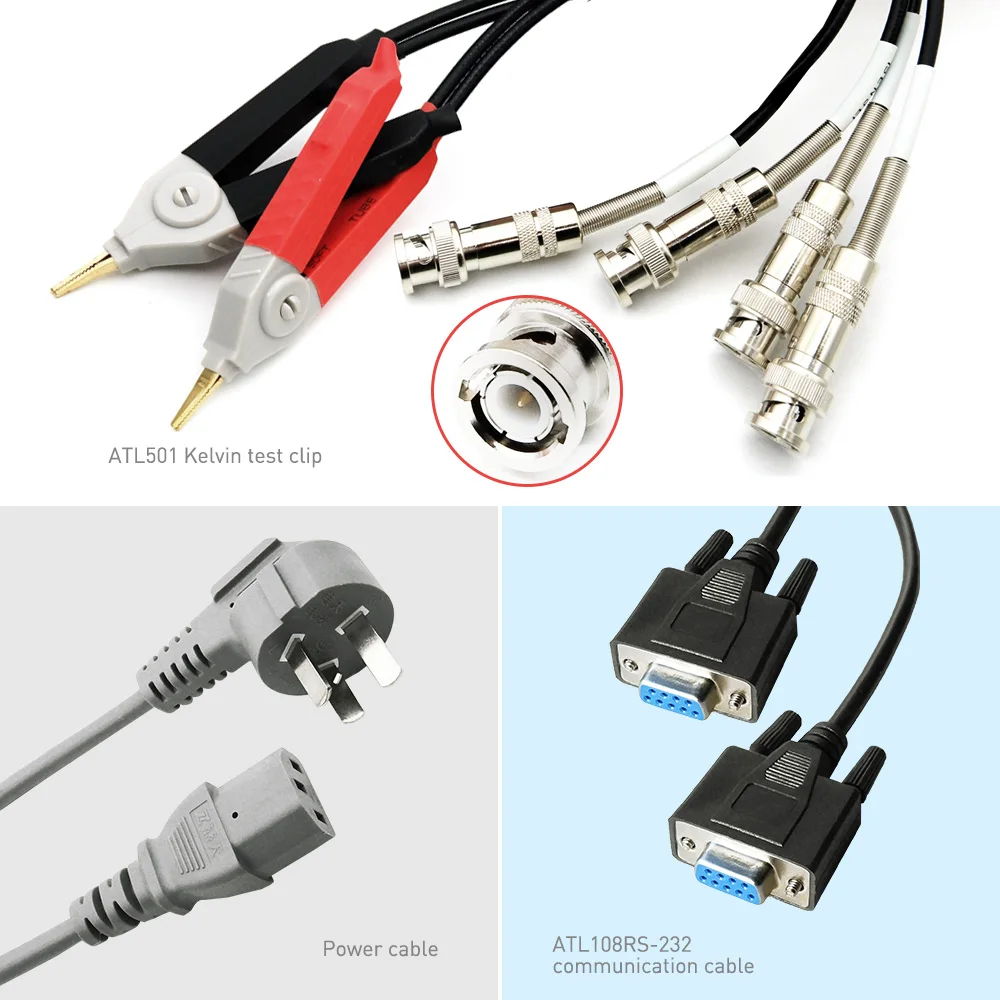

Accessories | ATL501A: Kelvin clip;ATL108;RS232 communication cable |
| Options | ATL620 meter resistance 4 -terminal clamp fixture |
Accessories
Packaging & Shipping
Certifications
Trade Shows
Company Information
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
