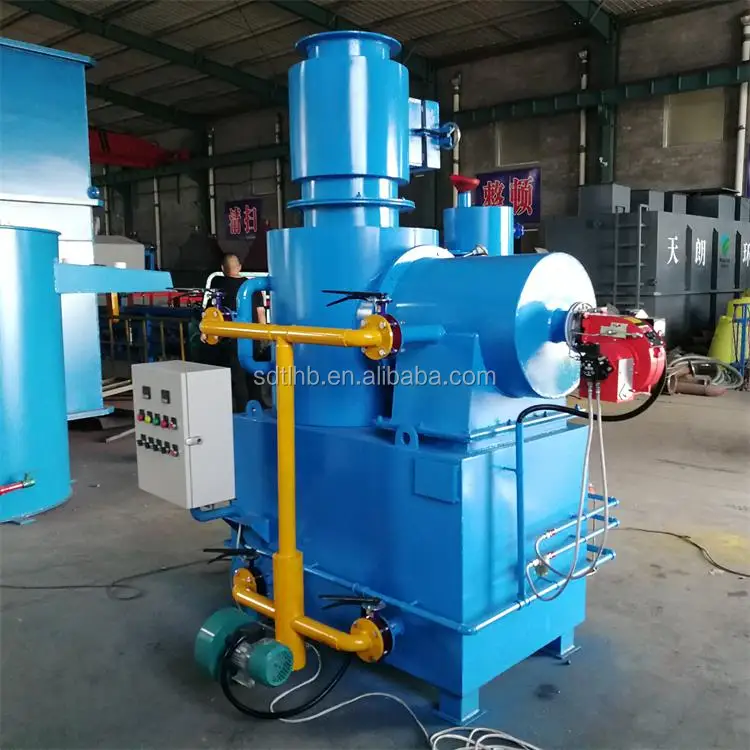

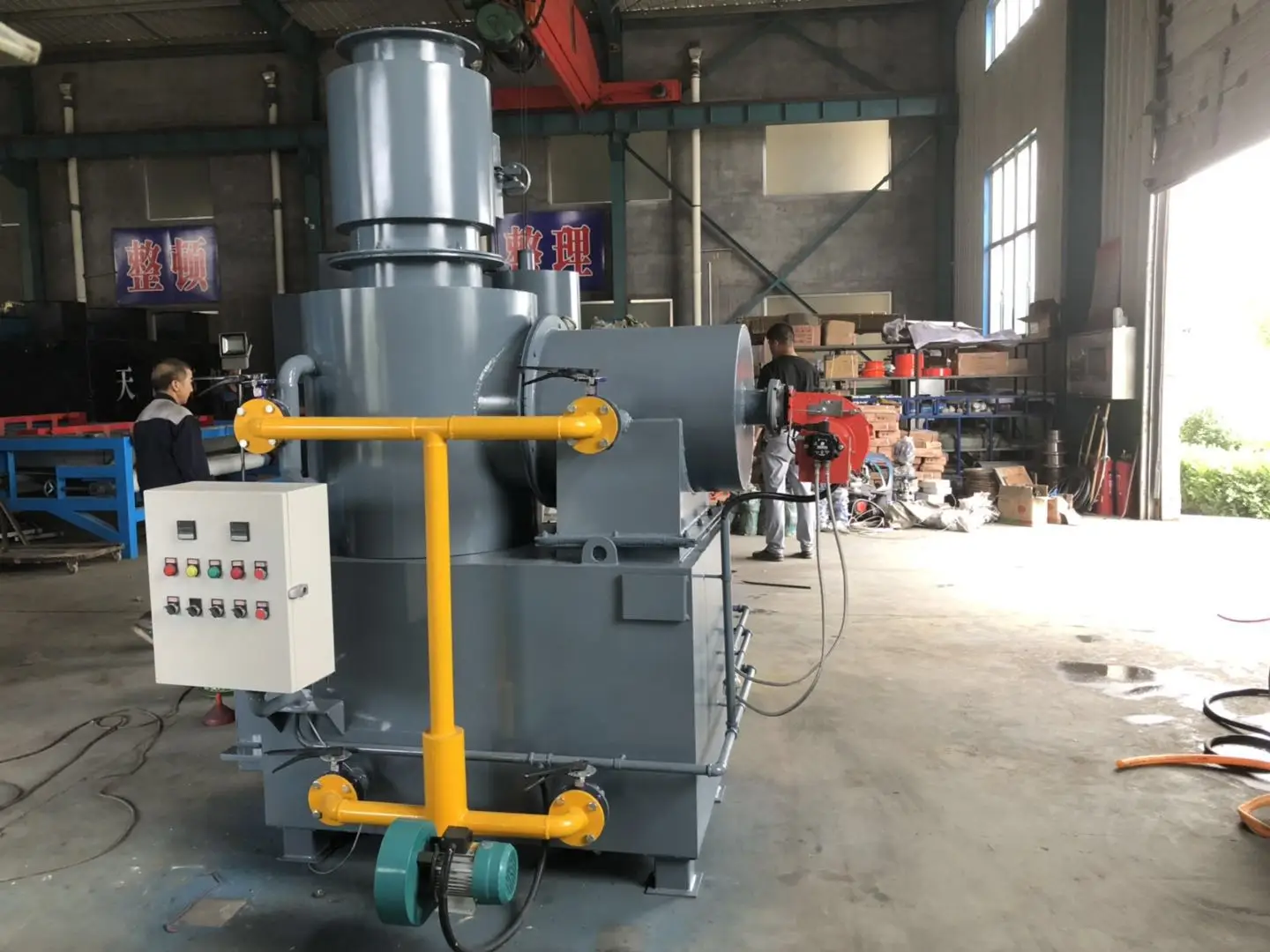

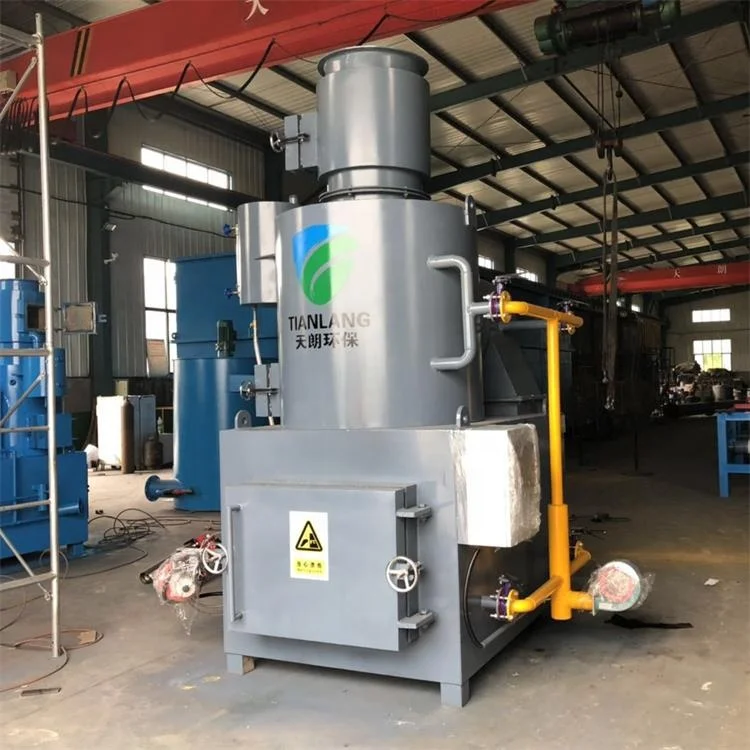

best price clinic waste incinerator machine plant with CE certificate

best price clinic waste incinerator machine plant is a kind of waste treatment method, Incinerators reduce the solid mass of the original waste by 80–85% and the volume reduced by 95–96%. The highest temperature of incinerator runing can reach 1100-1300 degrees Celsius, which can achieve the effect of sterilization and disinfection. There will be no smoke, no smell, no pollution after waste  be burning.

Poduct Application

*Medical Waste

Such as used cotton balls, sand cloth, tape, waste water, disposable medical equipment, post-operative waste, expired medicines, etc.

*Industrial Waste

Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, bags, resin, acrylic, leather, Wood flour, urea powder, melon cloth, tapes, paints, polymers and so on.

*Animal carcass cremation.

cat,dog and so on



Process Flow

There are four chambers, two combustors for friendly environment in waste incinerator. There will be no smoke, no smell, no pollution after be burning.

it was devided into :primary combustion chamber,second combustion chamber,mixture of combustion chamber ,smoke purification chamber and chimney.

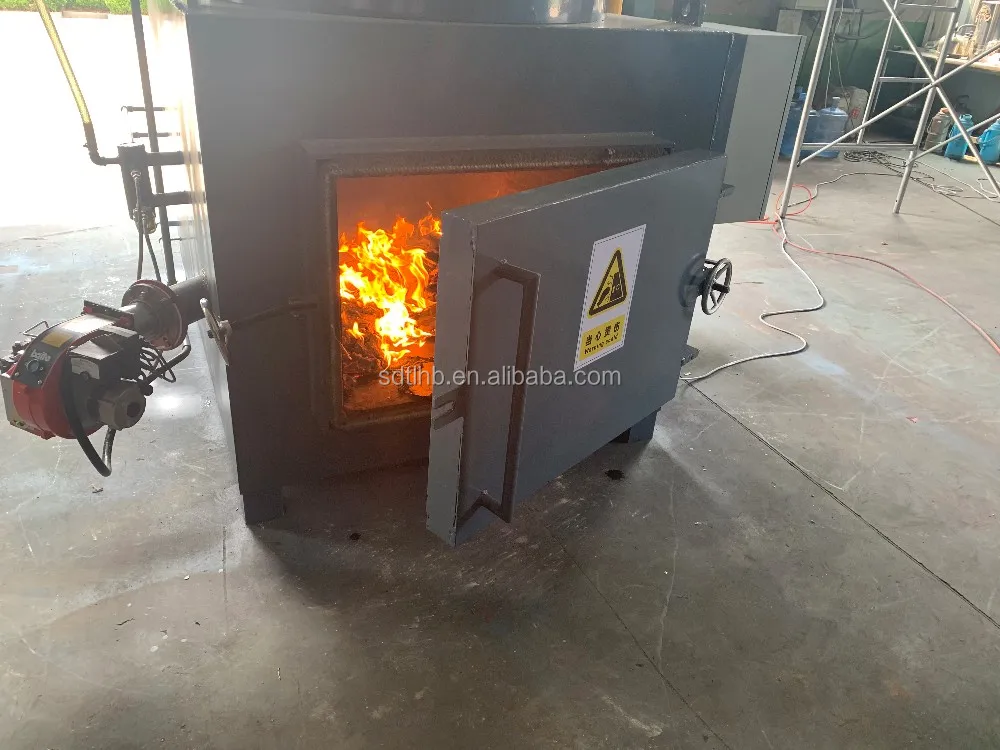

• Garbage waste enters the combustion chamber and is fully oxidized and burned to generate flue gas.


• Then the gas will enter second combustion room,burning at high temperatures to completely burn harmful gases


• By subsequent equipment to remove harmful substances such as dust and acid gases


• Finally,the exhausted gas will be no smoke,no smell,no pollution.



Advantage

 (1)   Gasifiedpyrolysis incineration is used for burning many kinds of waste.

  (2)   Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust,dioxin etc.

 (3)   Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

 (4)   Compact structure and small land occupation.





Technical Data

Model	TLFS30	TLFS50	TRLFS100	TLFS150	TLFS300	TLFS500
Buring Cpacity	30kg/time	50kg/time	100kg/time	150kg/time	300kg/time	500kg/time
Incinerator Size       mm (L*H*B)	1460*900*2350	1800*1150*3000	1800*1300*3300	2000*1400*3500	2200*1400*3800	3000*2000*4800
Waste inlet(mm)	480*600	620*800	680*900	760*960	900*1100	1080*1280
Chimney (mm)	280	280	300	300	400	460
Air blower	0.37kw	0.37kw	0.37kw	0.5kw	0.5kw	1.1kw

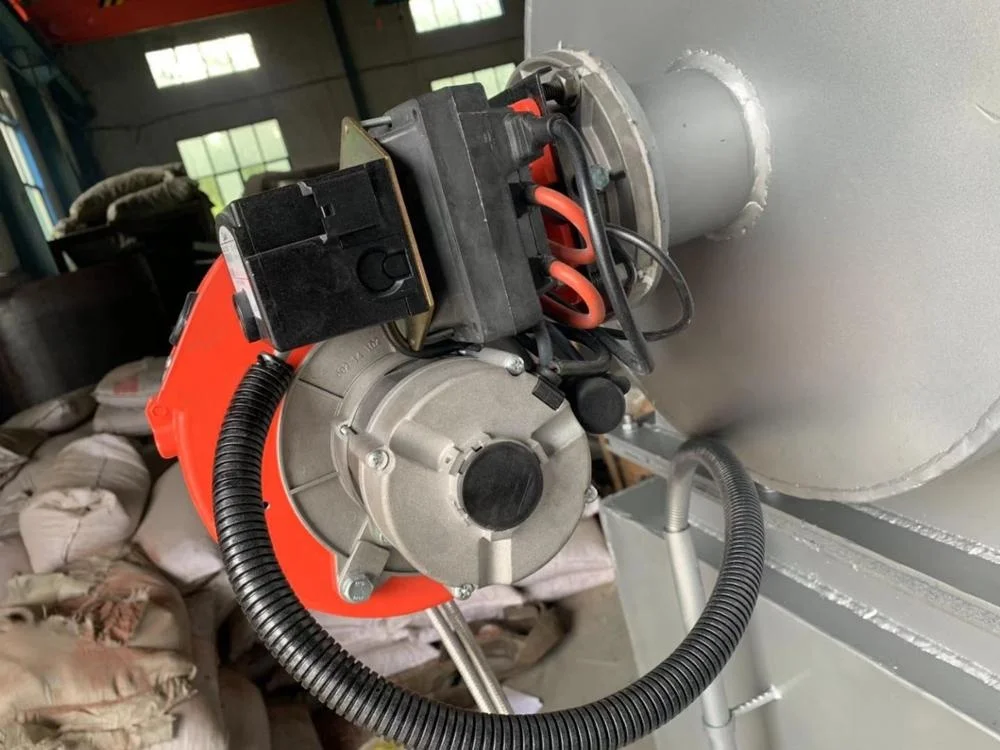

First burner	0.11kw	0.11kw	0.11kw	0.11kw	0.22kw	0.22kw
Second burner	0.11 kw	0.11 kw	0.11kw	0.22 kw	0.37kw	0.37 kw
Voltage	380v or 220v	380v or 220v	380v or 220v	380v or 220v	380v or 220v	380v or 220v

Package

By standand seaworthy package for medical/animal carcess/industrical waste incinerator

Delivery

Shandong Tianlang Environmental Protection Technology Co., Ltd., as an environmental protection equipment manufacturer, with many years experience in waste management and waterwaste trentment equipment.Products are widely used in agriculture, aquaculture, petroleum, chemical, paper, pharmaceutical, food, starch, metallurgy, electricity, coal, slaughter, printing and dyeing and other fields.During the past,we won very good reputation among our customers all over the world.

"Focus on quality, keen on innovation" is our unremitting pursuit. In the future, we will continue to provide high-quality products and prompt and sincere service for customers, and work hand in hand with you to create brilliant future.

Q:How to buy your idea products?
A:You can provide us your sewage sources,sewage quality ( COD, BOD, SS) , flow rate and ground area (connect us for more details).then our engineer will design the suitable solutions for you and prepare to give you best price.
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 3-4 weeks.
Q:How to package the sewage treatment plant?
A:We use standard seaworthy package.
Q:How to keep your equipments from corrosion?
A:We use the world-famous paint, like epoxy-coal tar pitch etc. What's more, we paint strictly according to the standard process.
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. And we will send a technicians to guide for installation and debugging. after debugging equipment, he will teach your workers how to use it and how to maintain it.
Q:How about the warranty?
A: If there is any malfunction of the equipment during the warranty period, our company promises to propose a solution within 24 hours. If it is caused by non-human causes, our company provides repairs free of charge and guarantees that the equipment is running well again.
Q:What's the certification do you have?
A: We have CE, ISO9001, OHSAS18001, ISO14001 Certifications.
