The product is stable, accurate and suitable for various working environments.
Product overview

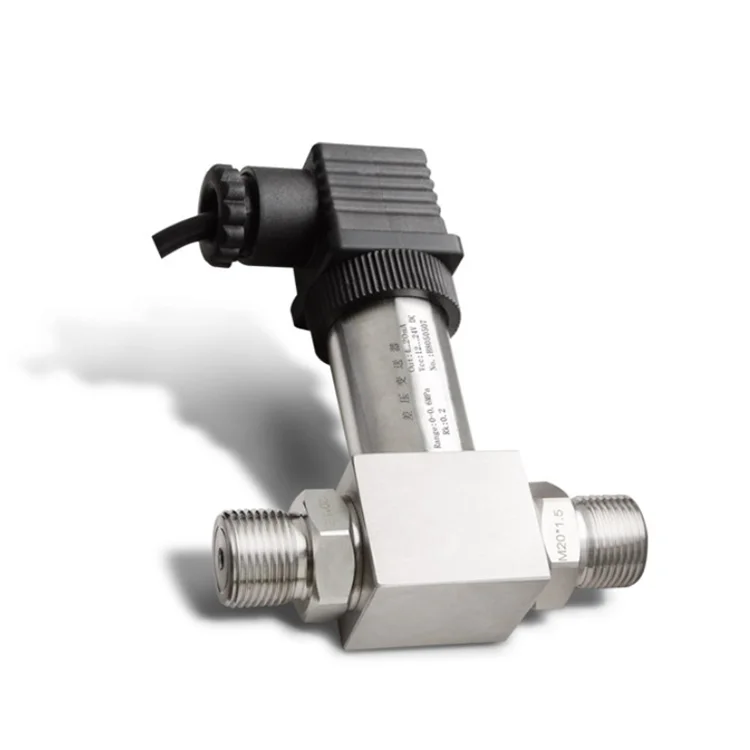

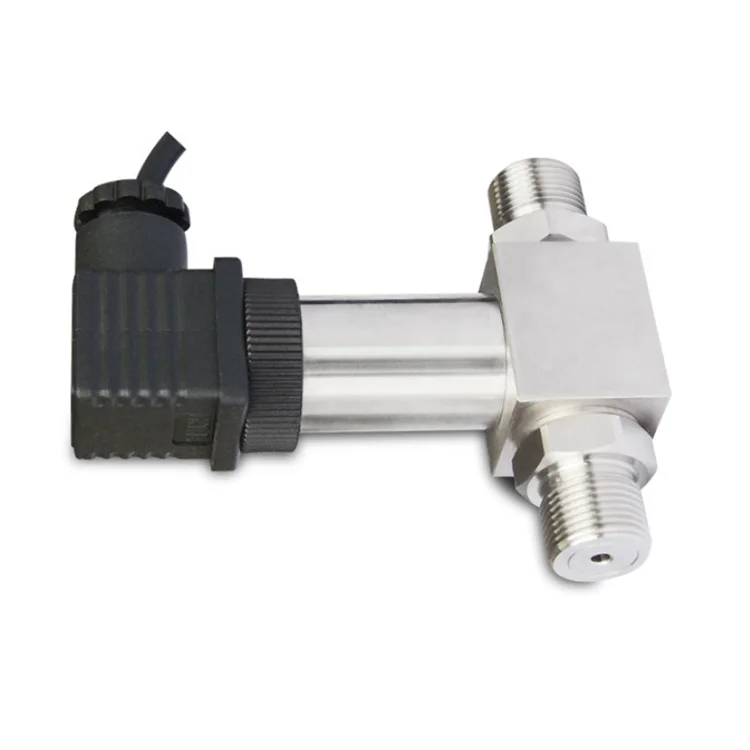

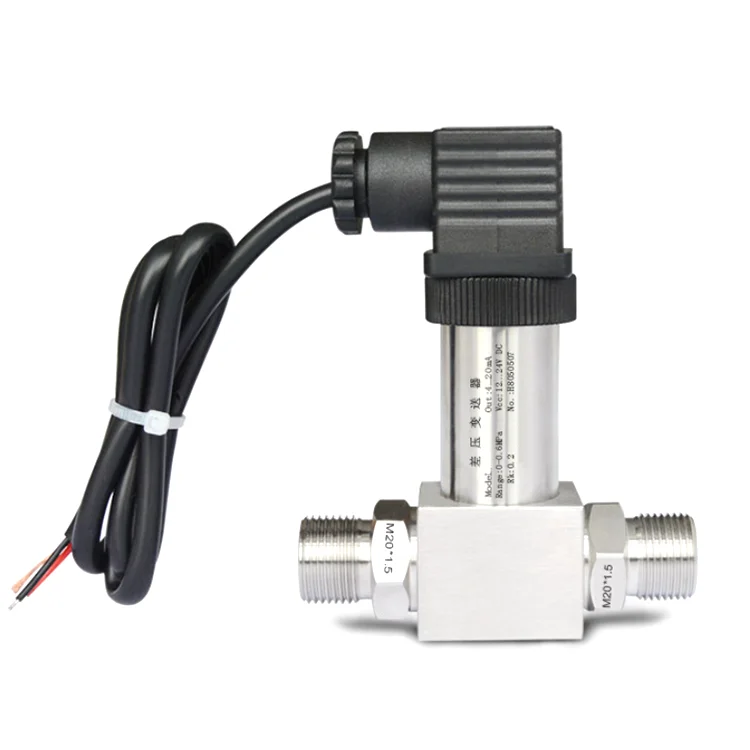

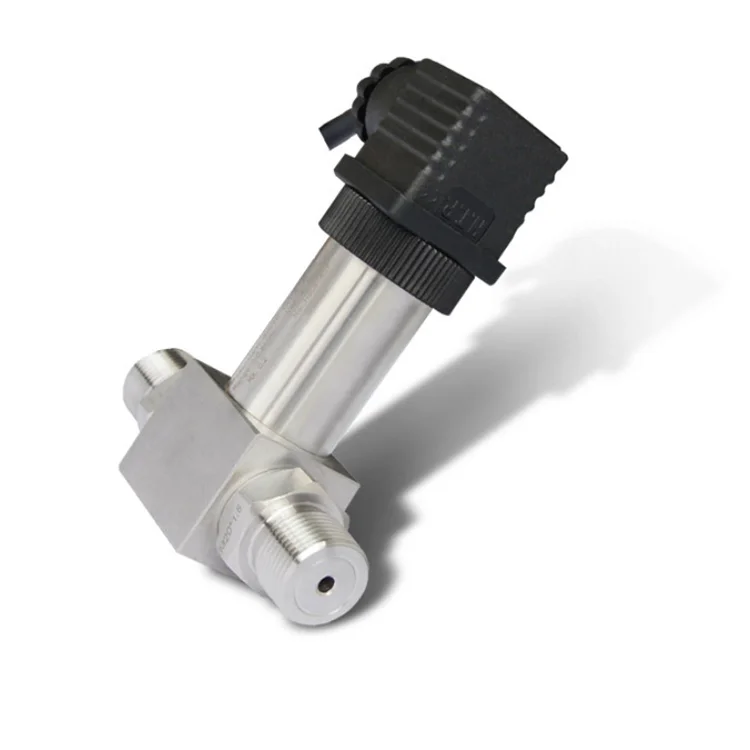

WPTG-10 Differential Pressure Transmitter is assembled using an OEM piezoresistive silicon differential pressure sensor filled with oil. The shell is made of stainless steel and has strong corrosion resistance. The two pressure ports are threaded and can be mounted directly on the measuring pipe or connected through the pressure pipe. PCM610 series have standard voltage/current output options, which can be easily installed and used. The products are widely used in the measurement and control of differential pressure, liquid level and flow in process control, aviation, aerospace, automotive, medical equipment, HVAC, etc.

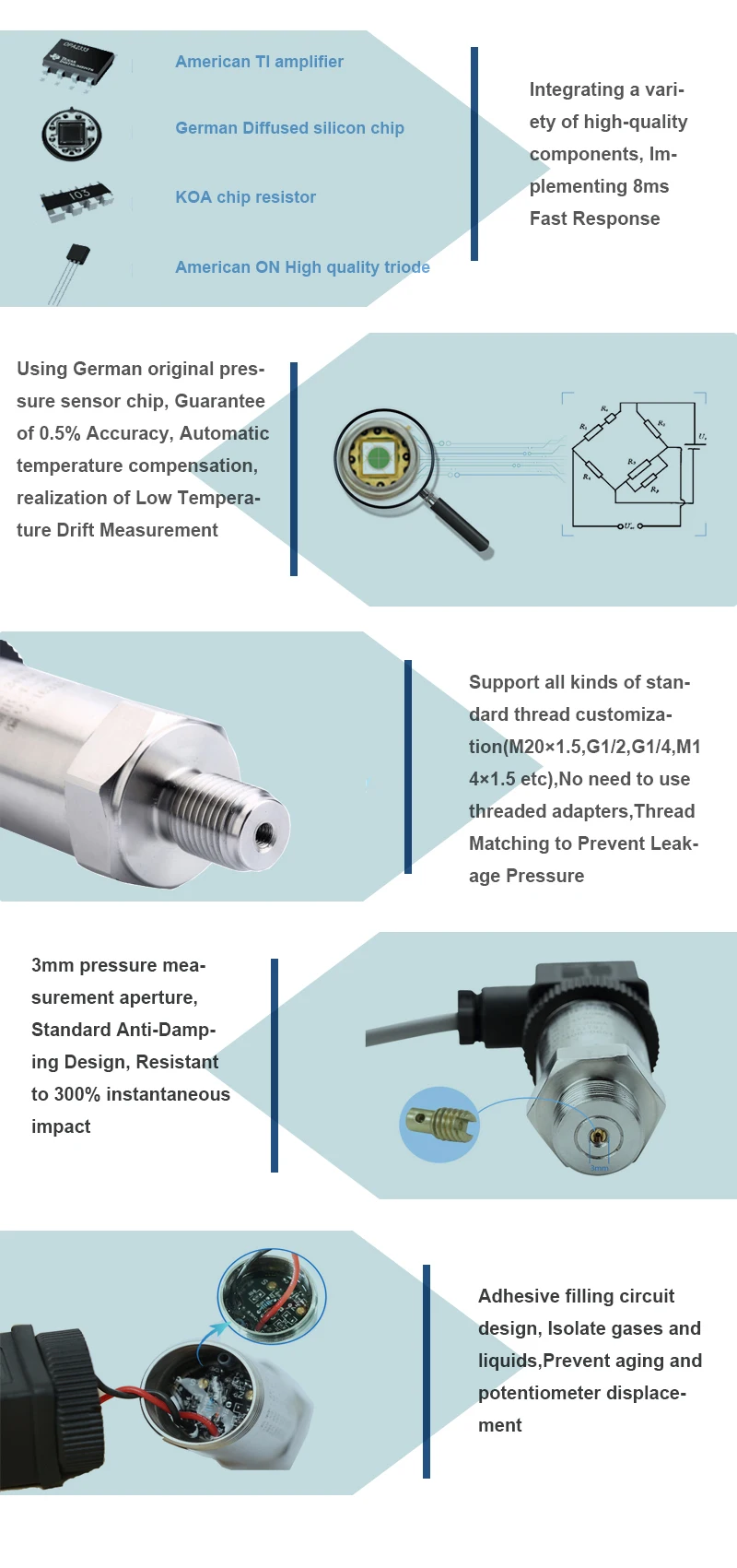

Features
v 316L stainless steel diaphragm structure
v Differential pressure measurement
v Easy to install
v Zero and full scale span adjustable externally
v Short circuit protection and reverse polarity protection
v Excellent shock resistance, vibration resistance and electromagnetic compatibility resistance
v Customization available
Performance parameters | |
Pressure range | 0~10kPa…2.5MPa |
Static pressure | 20MPa(Max.) |
Pressure reference | Differential pressure |
Supply & output | 4~20mA(16~36VDC) 1~5V, 0~5V(12~36VDC) |
Accuracy | 0.5%FS(typ.) |
Temp. drift | 1.5%FS(@-10℃~70℃) |
Response time | 1ms(Up to 90%FS) |
Service life | ≥10×106 pressure cycles |
Ambient temp. | -10℃~70℃ |
Medium temp. | -10℃~70℃ |
Storage temp. | -40℃~125℃ |
EMC-interference | IEC 61000-6-3 |
EMC-immunity | IEC 61000-6-2 |
Insulation resistance | 200MΩ/250VDC |
Shock resistance | 100g(11ms) |
Protection | IP65 |
Material | 304 |
Max. mounting torque | 25Nm |
