Spiral Vibrating Conveyor for chemical powder
Product Description

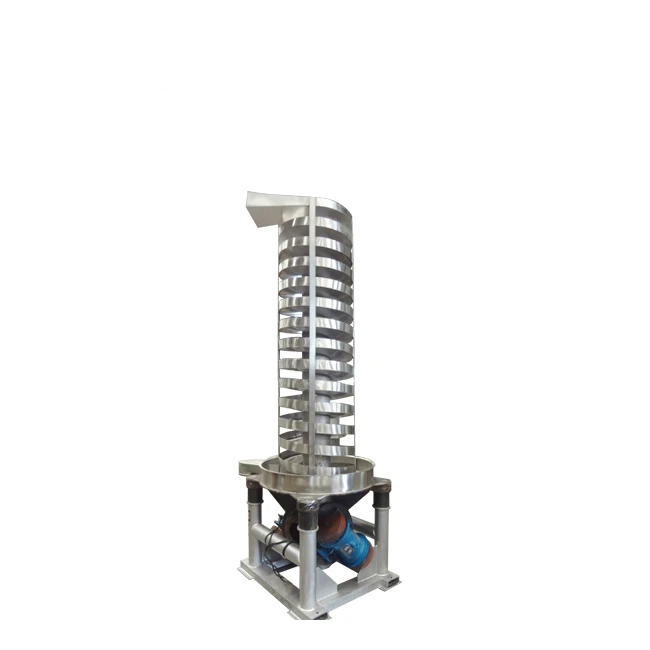

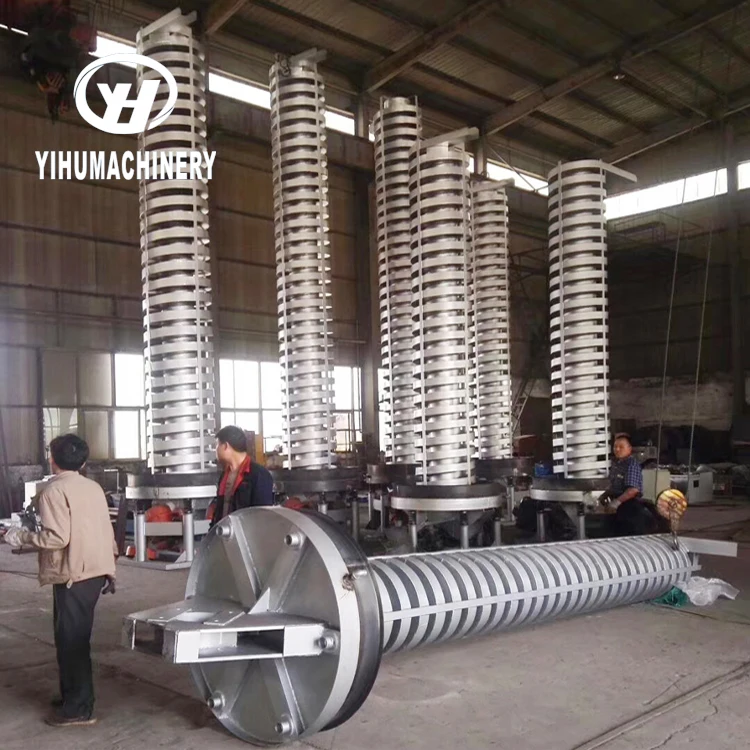

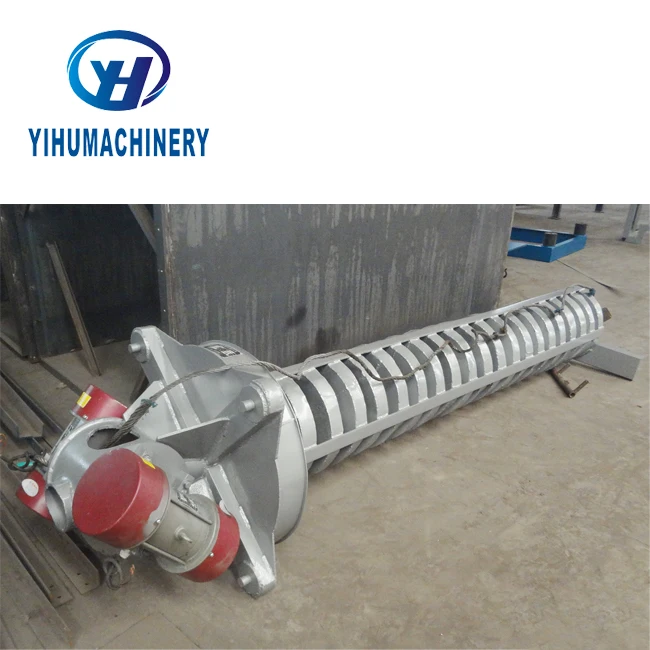

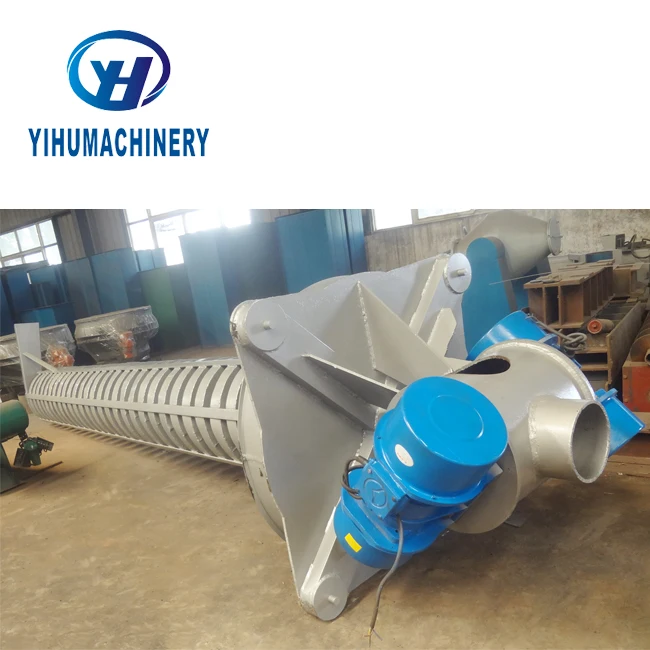

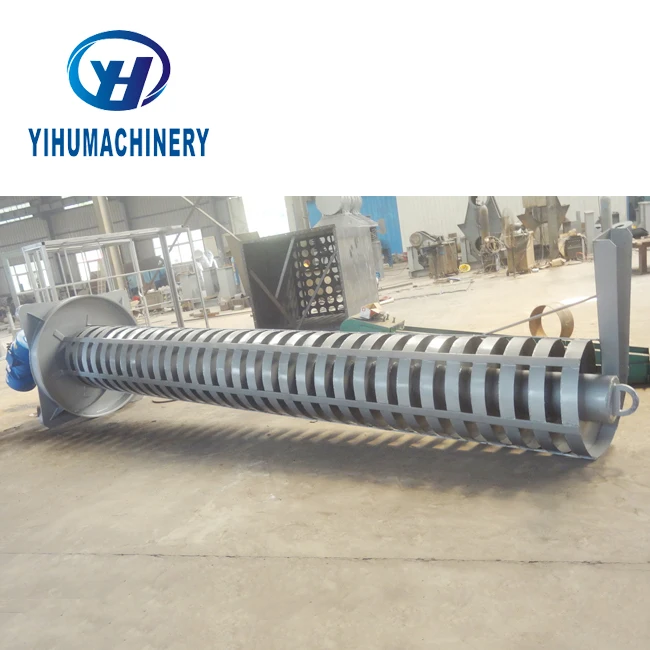

DZC vertical elevator is made up of tank, vibration motor, damping system and so on. It uses vibration motor as the power source, transporting the materials along the slotted helix upward by taking advantage of synthetic amplitude of the two motors. It can be made into an open or closed structure according to different requirements.
The machine conveys material by down-up and up-down two ways. It can be made into an open or closed structure according to different production processing requirements. Closed conveyor can effectively prevent harmful gases and dust from spilling. According to users’ needs , we can change the structure of the machine, so that you can accomplish cooling, drying, screening and other processes while transporting material.
Product Details
| Type | Lifting Capability(t/h) | Diameter of Spiral chute (mm) | Lifting width (mm) | Lifting height (m) | Speed(rpm) | Double amplitude (mm) | Power(kw) | Weight(kg) |
| DZC300 | ~1.0 | 300 | 77 | ≤2.0 | 960 | 6~7 | 2*0.4 | 800 |
| DZC500 | ~2.0 | 500 | 140 | ≤3.0 | 6~8 | 2*0.75 | 1150 | |
| DZC550 | ~3.0 | 550 | 152 | ≤3.5 | 6~8 | 2*1.5 | 1300 | |
| DZC600 | ~3.0 | 600 | 163 | ≤4.0 | 6~7 | 2*1.5 | 1500 | |
| DZC800 | ~4.0 | 800 | 224 | ≤4.5 | 6~8 | 2*2.2 | 1750 | |
| DZC850 | ~4.0 | 850 | 224 | ≤5.0 | 6~9 | 2*2.2 | 2300 | |
| DZC900 | ~3.5 | 900 | 260 | ≤6.0 | 6~9 | 2*3.0 | 2600 | |
| DZC950 | ~4 | 950 | 290 | ≤8.0 | 6~9 | 2*3.7 | 3200 |
