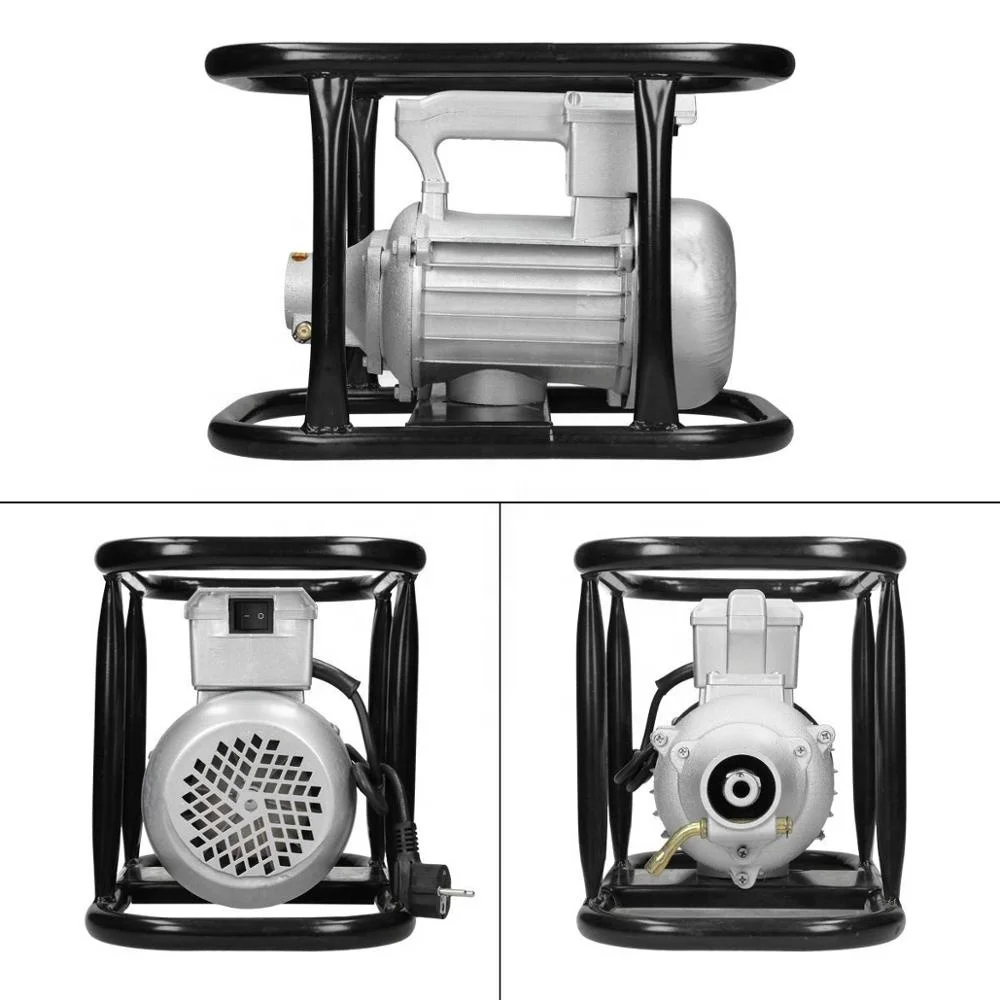

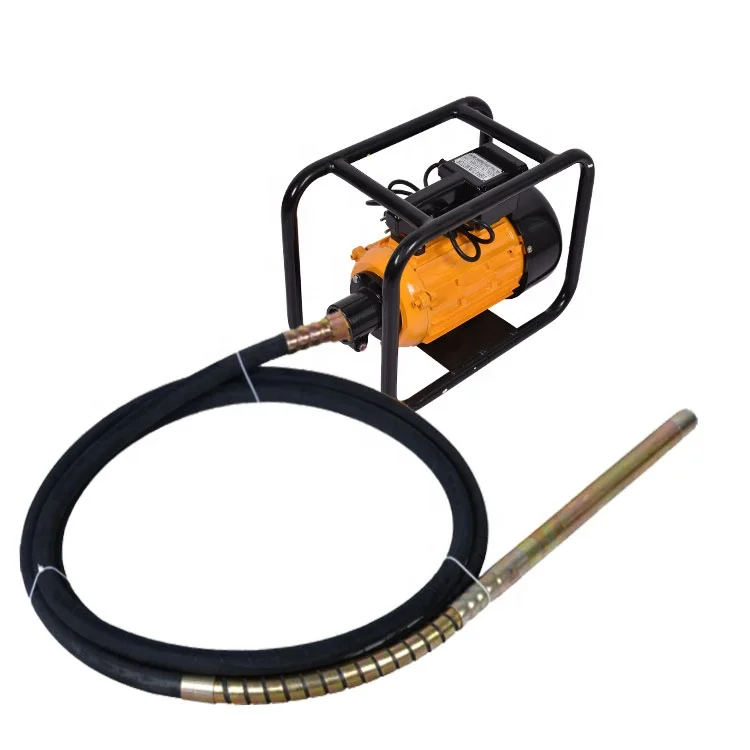

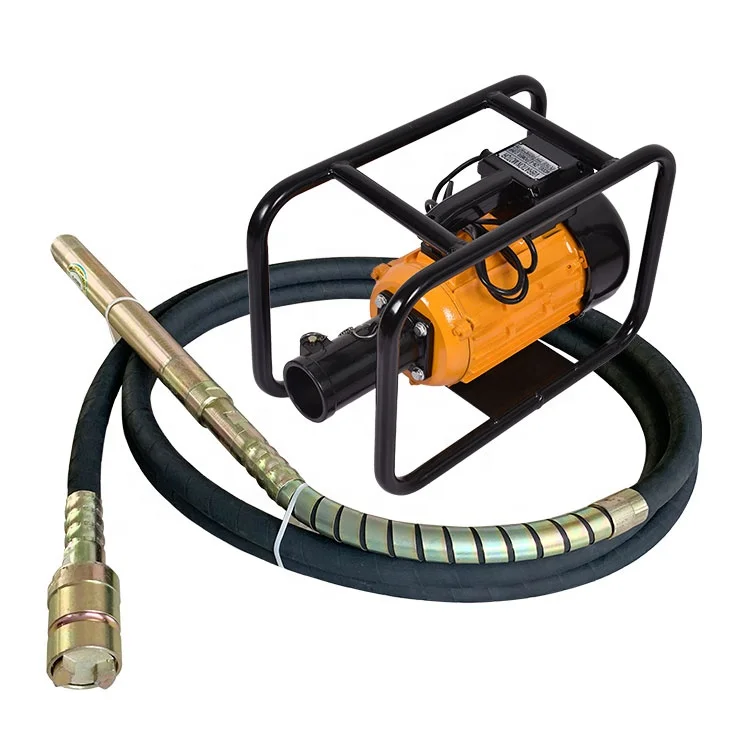

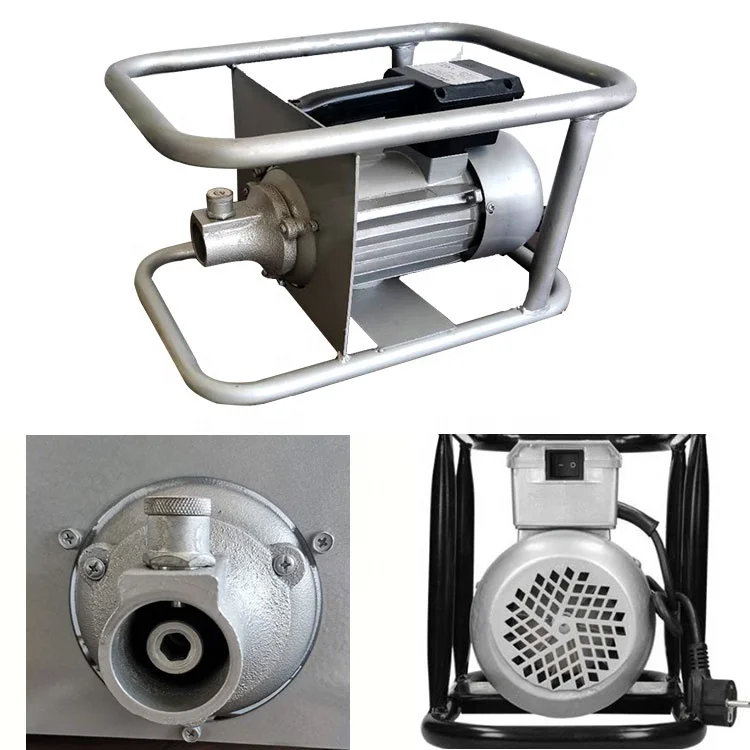

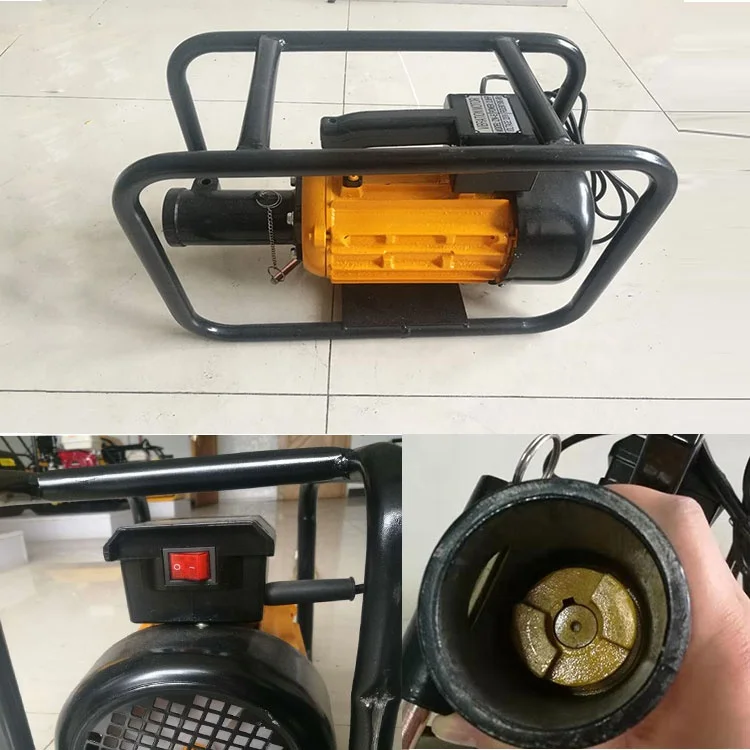

construction concrete vibrator electric vibrating motor 1.5kw
- Category: >>>
- Supplier: Ningbo Haishu Jianxin Engineering Machinery Factory
Share on (62273503246):
Product Overview
Description
Product Paramenters
Electric Concrete Vibrator | ||||||

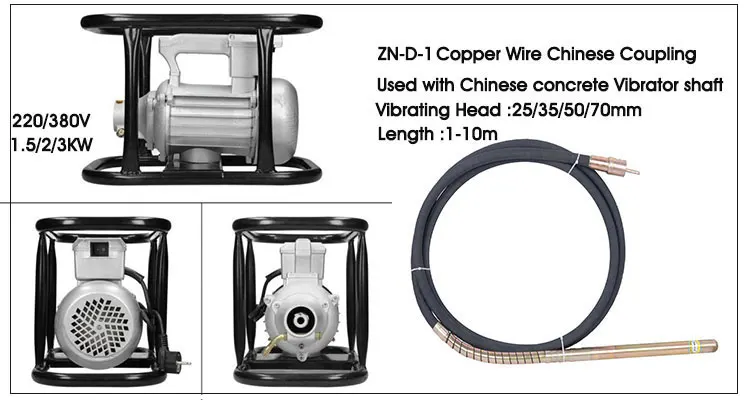

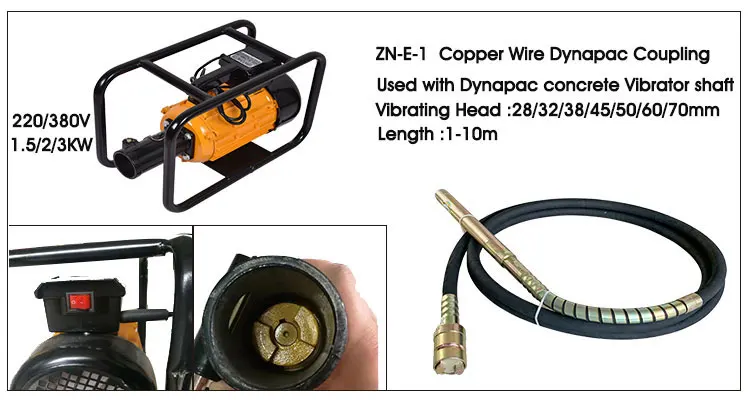

Model | ZN-A-1 | ZN-D-1 | ZN-E-1 | |||
Coupling | Japan type | Chinese Type | Dynapac /Malaysia Type | |||
Voltage (V) | 220/380 | 220/380 | 220/380 | |||
Frequency (50HZ) | 50/60 | 50/60 | 50/60 | |||
Power (KW) | 1.5/2/3 | 1.5/2/3 | 1.5/2/3 | |||
Speed (RPM) | 2850 | 2850 | 2850 | |||
Weight(KGS) | 13/14/15 | 13/14/15 | 13/14/15 | |||
Packing size (LxHxW /CM) | 42x28x29 | 42x28x29 | 42x28x29 | |||
Concrete Vibrator Shaft | ||||||||||||
Model | Vibrating Head Size | Frequency | Amplitude | Flex. Shaft dia | Rubber Dia | Length | ||||||
25mm | 25*470MM | 158-200HZ | 0.9MM | 8MM | 30MM | 1-10M | ||||||
28mm | 28*470MM | 158-200HZ | 0.9MM | 8MM | 30MM | 1-10M | ||||||
32mm | 32*470MM | 1.1MM | 10MM | 30MM | 1-10M | |||||||
35mm | 35*470MM | 1.6MM | 10MM | 30MM | 1-10M | |||||||
38mm | 38*470MM | 2.0MM | 10MM | 30MM | 1-10M | |||||||
45mm | 45*470MM | 2.2MM | 12MM | 32MM | 1-10M | |||||||
50mm | 50*470MM | 150-200HZ | 2.4MM | 13MM | 36MM | 1-10M | ||||||
60mm | 60*470MM | 2.6MM | 13MM | 36MM | 1-10M | |||||||
70mm | 70*470MM | 2.6MM | 13MM | 36MM | 1-10M | |||||||
Using In Multiple Scenarios
Products Show
Product packaging
100% Inspection Before delivery .
When Products finished , our department will do inspection to make sure quality no problem .
Packing : Double 5 layers cartons in side ,steel pallet outside in optional. .
Strong Enough and no need Inspection Certificate of Fumigation
Recommend Products
Factory Outlet | ||||||||
1. | Factory Price , No Middleman | |||||||
2. | Quality Guarantee | |||||||
3. | Delivery Guarantee | |||||||
4. | OEM / ODM Available | |||||||
Company Profile
FAQ
Q1. Are you factory or trade company ?
We are factory ,located in ningbo china .
We are factory ,located in ningbo china .
Q2. What are your terms of payment?
A: We usually only accept two terms of payment. 1) 30% T/T as depsot in advance, balance against the copy B/L.
2) Irrevocable L/C at sight.
Q3. What is your terms of delivery?
A: We can accept FOB, CNF, CFR, CIF, etc.
Q4: What is the delivery time?
A: For a 20GP or 40GP order, it will be delivered in 30~45 days after the payment is received. For small trial order, it will be
shipped in 15 days.
Q5. What is your sample policy?
A: We are glad to send samples for your inspection. Standard samples can be by charge , the clients need to
pay the freight.
Q6. Can you produce according to machine samples or drawings?
A: Yes, we can make OEM for you and also produce the goods according to your design.
Q7: How to solve the quality problems after sales?
A: We have a professional sales-support team to solve the problems after sale.
Please take photos and tell us the detailled information of the problem, and we will give you a satisfied solution in 3 days.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
2) Irrevocable L/C at sight.
Q3. What is your terms of delivery?
A: We can accept FOB, CNF, CFR, CIF, etc.
Q4: What is the delivery time?
A: For a 20GP or 40GP order, it will be delivered in 30~45 days after the payment is received. For small trial order, it will be
shipped in 15 days.
Q5. What is your sample policy?
A: We are glad to send samples for your inspection. Standard samples can be by charge , the clients need to
pay the freight.
Q6. Can you produce according to machine samples or drawings?
A: Yes, we can make OEM for you and also produce the goods according to your design.
Q7: How to solve the quality problems after sales?
A: We have a professional sales-support team to solve the problems after sale.
Please take photos and tell us the detailled information of the problem, and we will give you a satisfied solution in 3 days.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
