Product Overview

Description


JDS Cylindrical Lens  lens

Specification






 We carry on stock BK7 cylinder lenses, either AR coated or not,email us for more details .

  • Diameter:0.5-500mm
  • Tolerance: +0/-0,1mm,+/-0.01mm
  • Material:N-BK7, H-K9L, Fused Silica, H-ZF52A, Sil, MgF2, CaF2, Sapphire, ZnSe, ZnS, etc.
  • S/D :60-40,40-20,20-10
  • Thickness tolerance: +/-0.1mm
  • Focal length tolerance: +/-1%
  • Focal length is calculated at 546.1nm
  • Surface accuracy: λ/4 @632,8nm
  • Centration : < 3 arc min
  • Clear aperture : >90%
  • Damage threshold of broadband AR coating: >5J/cm^2, 20ns, 20Hz, 1064nm
  • Coatings: AR coating,Ultraviolet (UV), visible, or Infrared (IR) spectrums

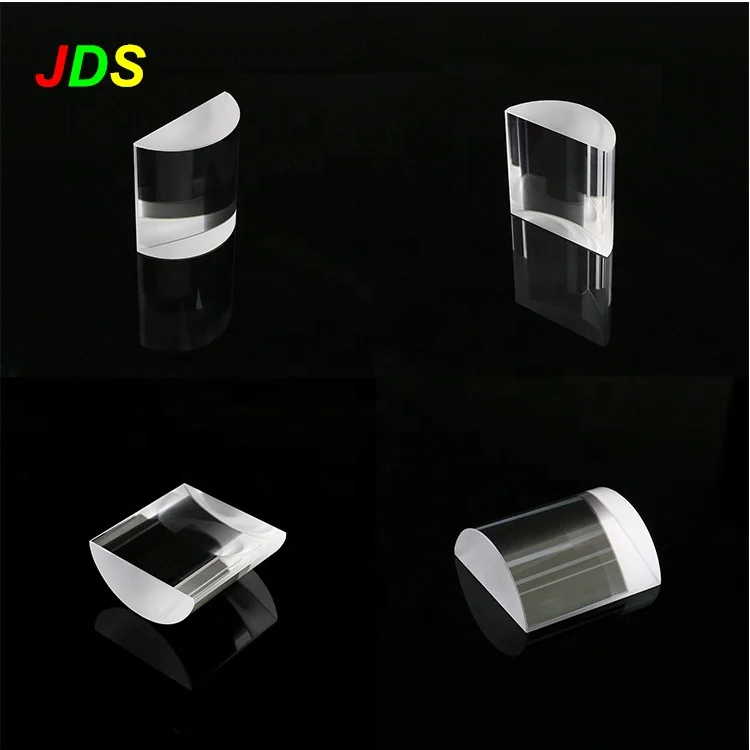

 JDS cylinder lens (8)_.jpg

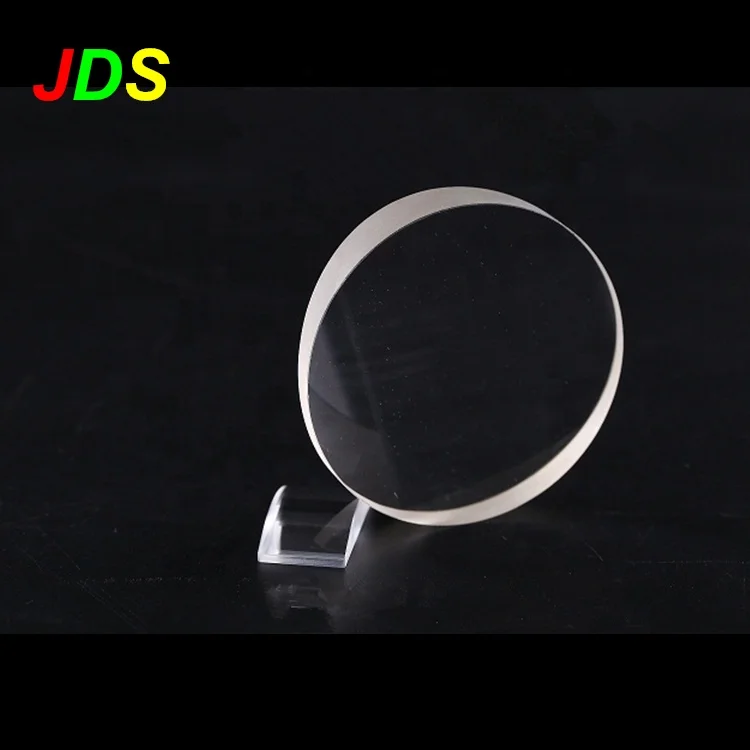

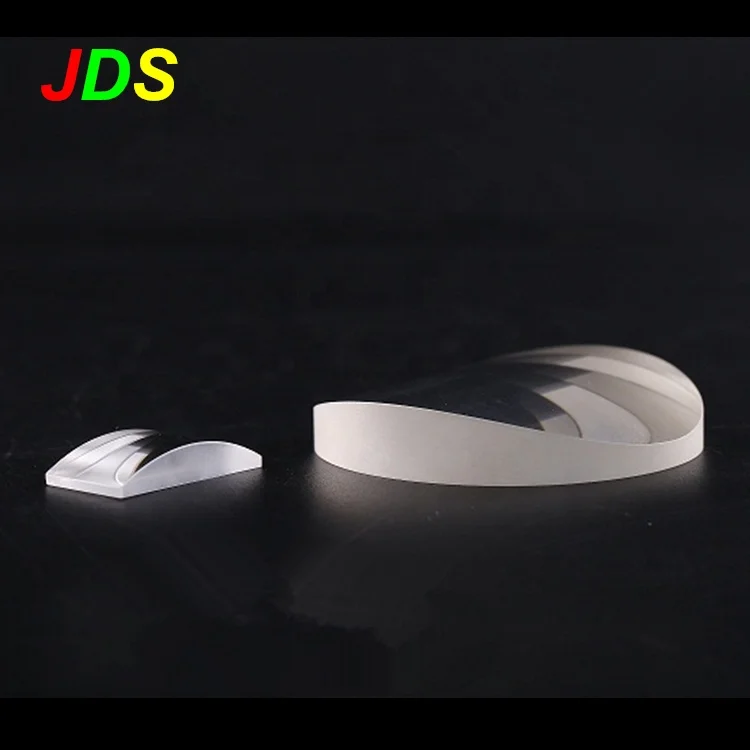

JDS cylinder lens (48)_.jpgJDS cylinder lens (31)_.jpgJDS cylinder lens (32)_.jpg



Product type



Cylindrical lenses have a spherical radius in one direction. This enables the light to be focused in one axis. A point of light can thus be stretched into a single line.

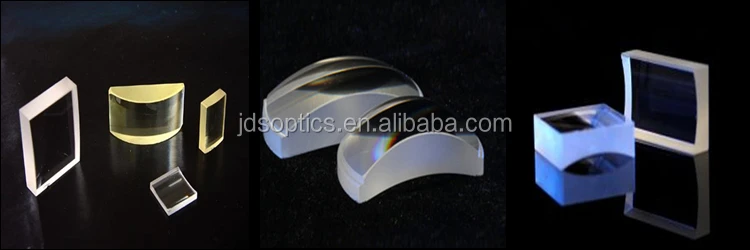

CYLINDER LENS 2.jpg

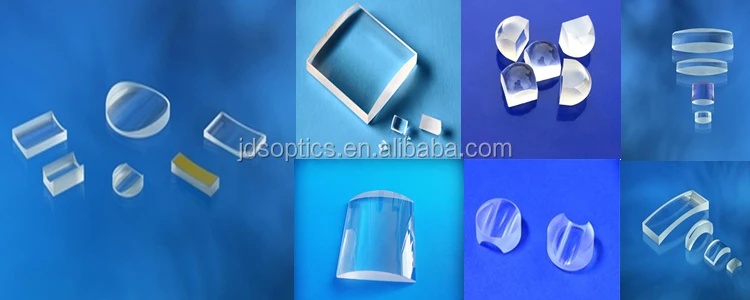

cylinder lens JDS.jpg



Material

N-BK7, H-K9L, Fused Silica, Sapphire,IR material etc.

Diameter

0.5 ~600mmCentration<1 arc min

Height

0.5 ~600mmClear Aperture>95%

Radius

> 0.5mm

Flatness

(per 25mm at 632.8nm)

 <1/4Lambda ,<1/10Lambda

Center Thickness

> 0.5mmIrregularity of Fringes0.2-0.5 Lambda

Focal Length

1~1000mmSurface Quality(S/D)60/40, 40/20 or better

Size Tolerance(mm)

+/-0.01mm, +/-0.001mmChamfer<0.25mmx45 degree

Center Thickness Tolerance(mm)

+/-0.01mm, +/-0.001mmCoatingUncoated, AR, BBAR, Reflective

Focal Length Tolerance(mm)

±0.5%Design Wavelength632.8 nm





Quality control

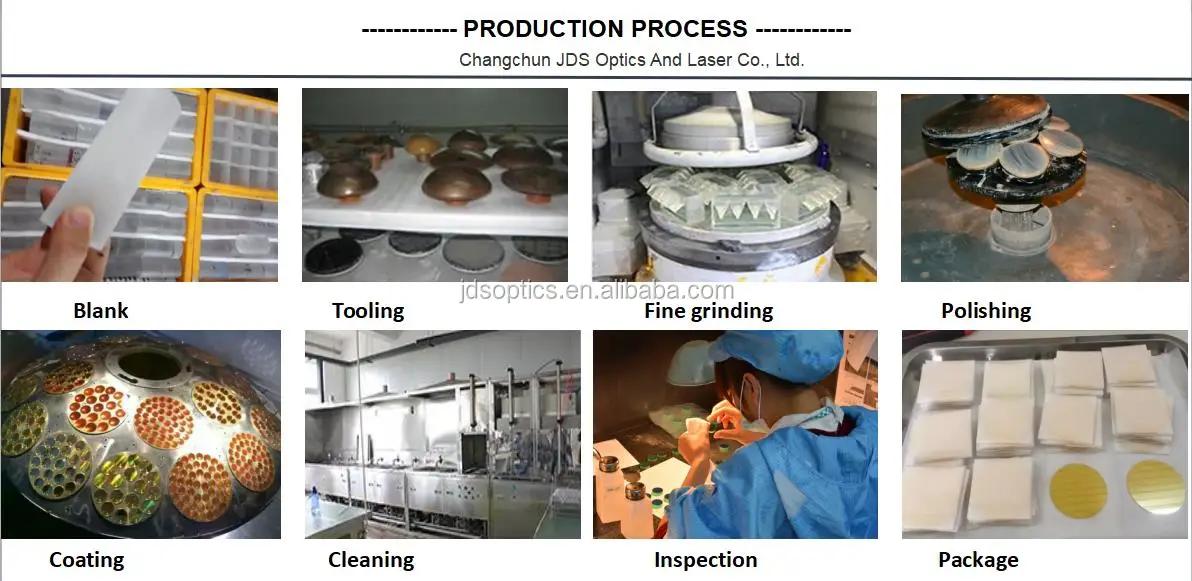

1.JDS production  process: we care on every production details to ensure high quality ! 36020180731224521420.jpg

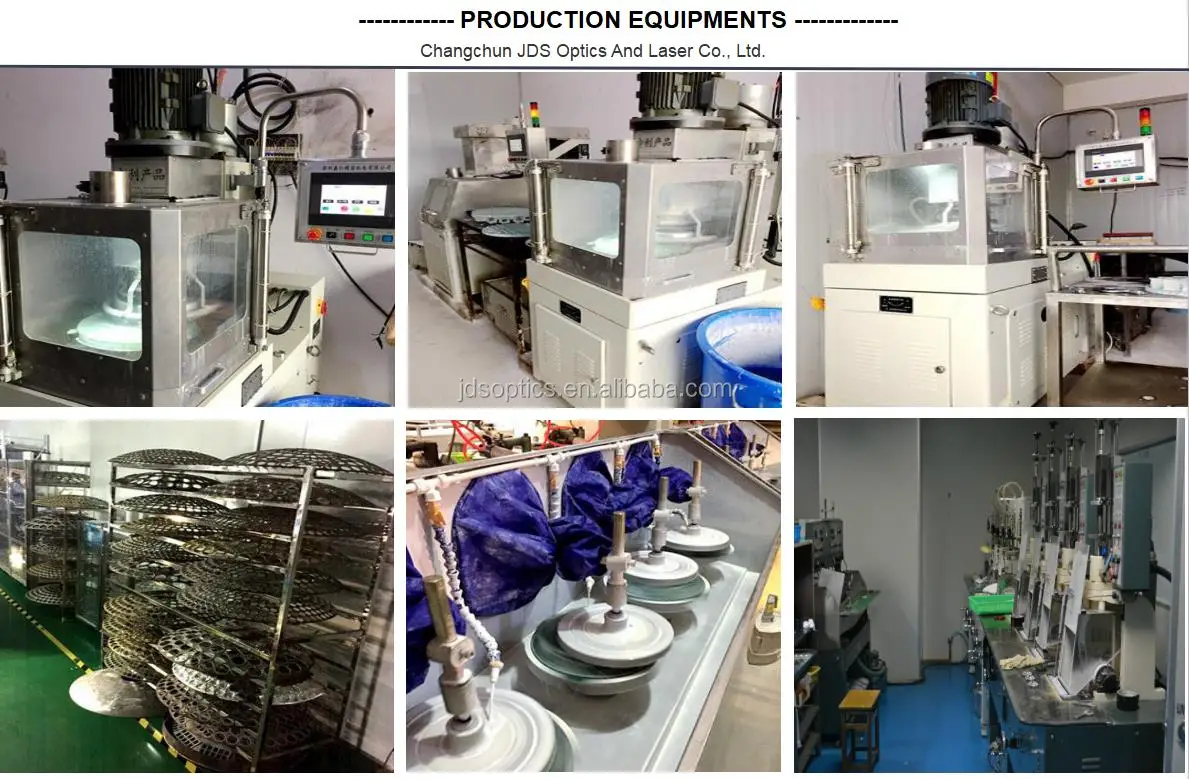

2.JDS production equipment: advanced and fine art!

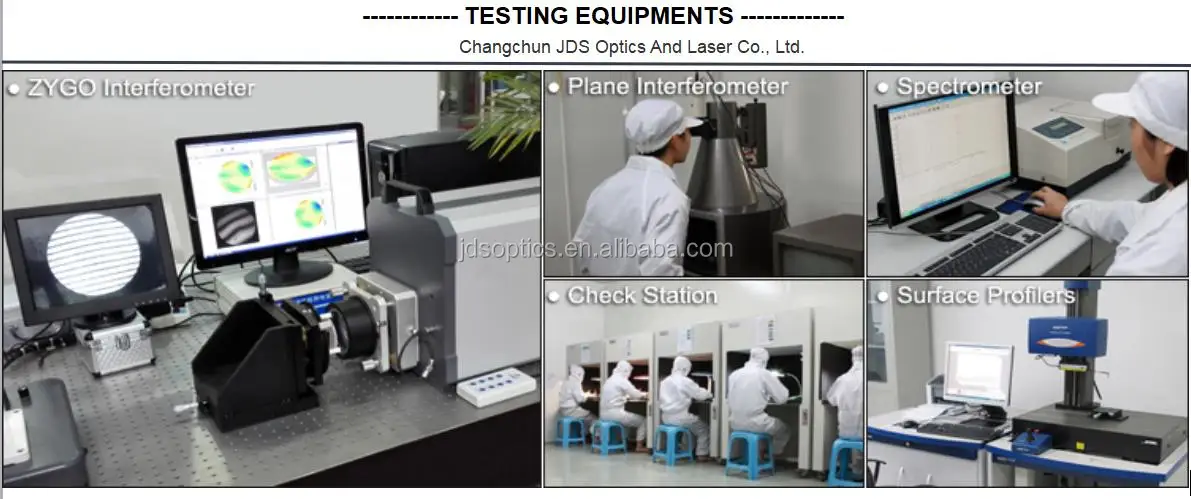

3.JDS testing equipment: advanced equipments ensure the high precision products !

testing equipments.jpg
