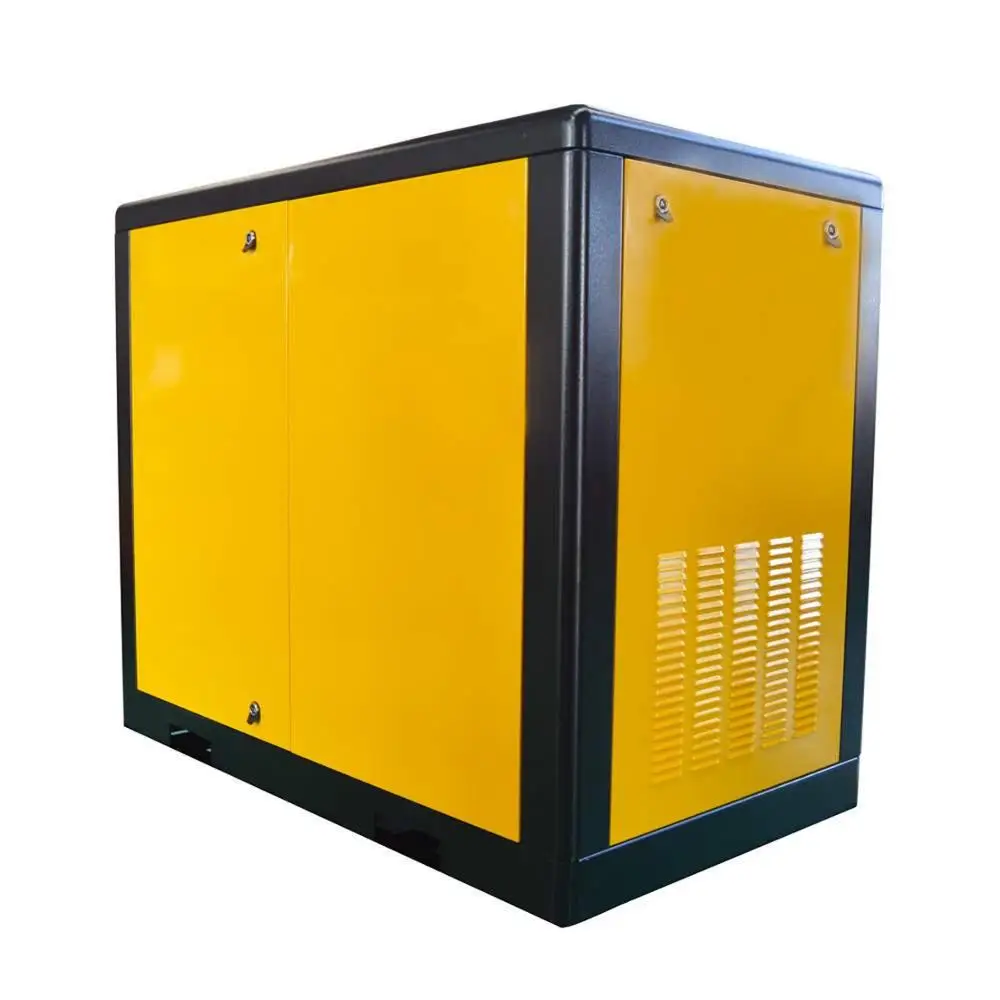

75kw Single stage compression Direct drive screw air compressor screw

Product Overview

Description

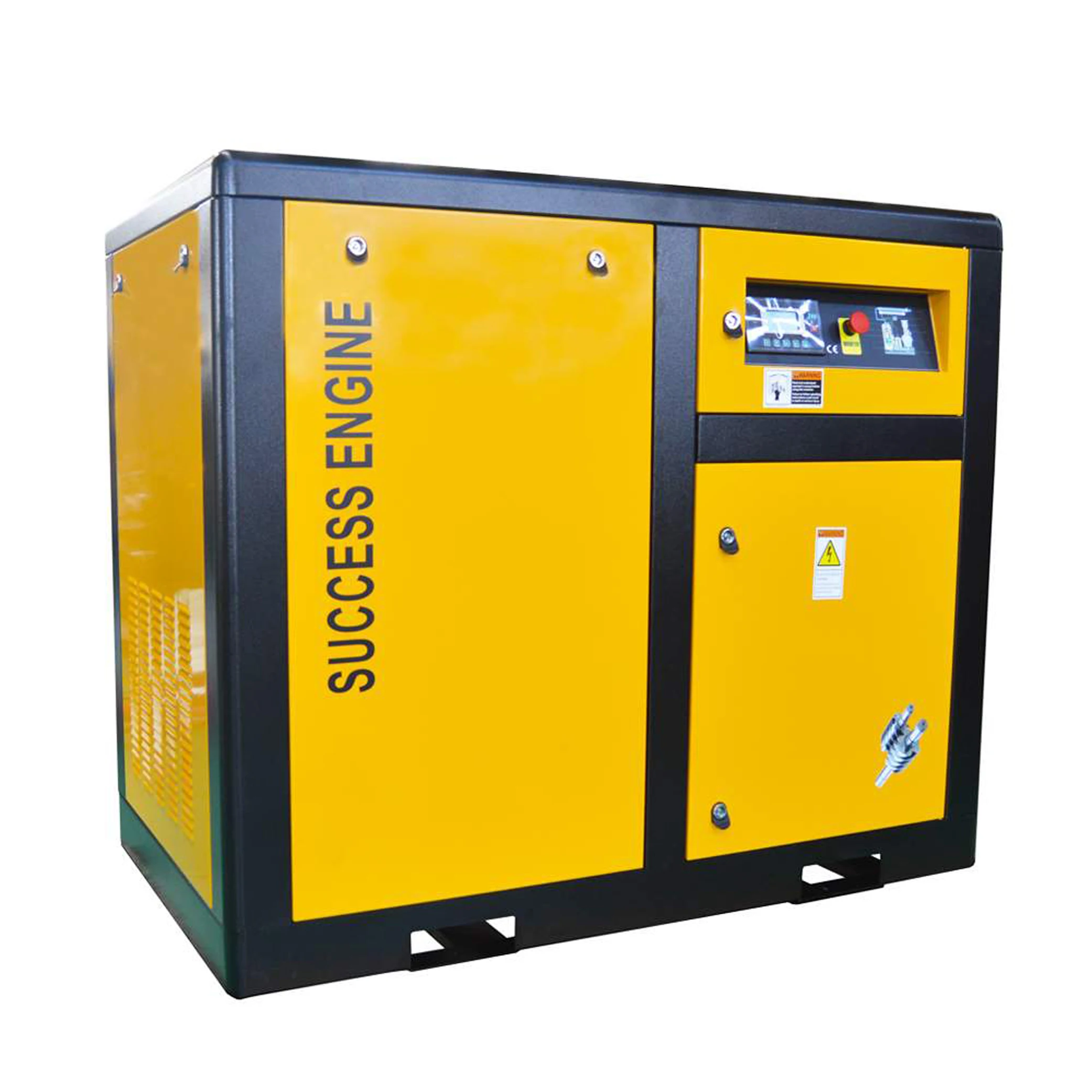

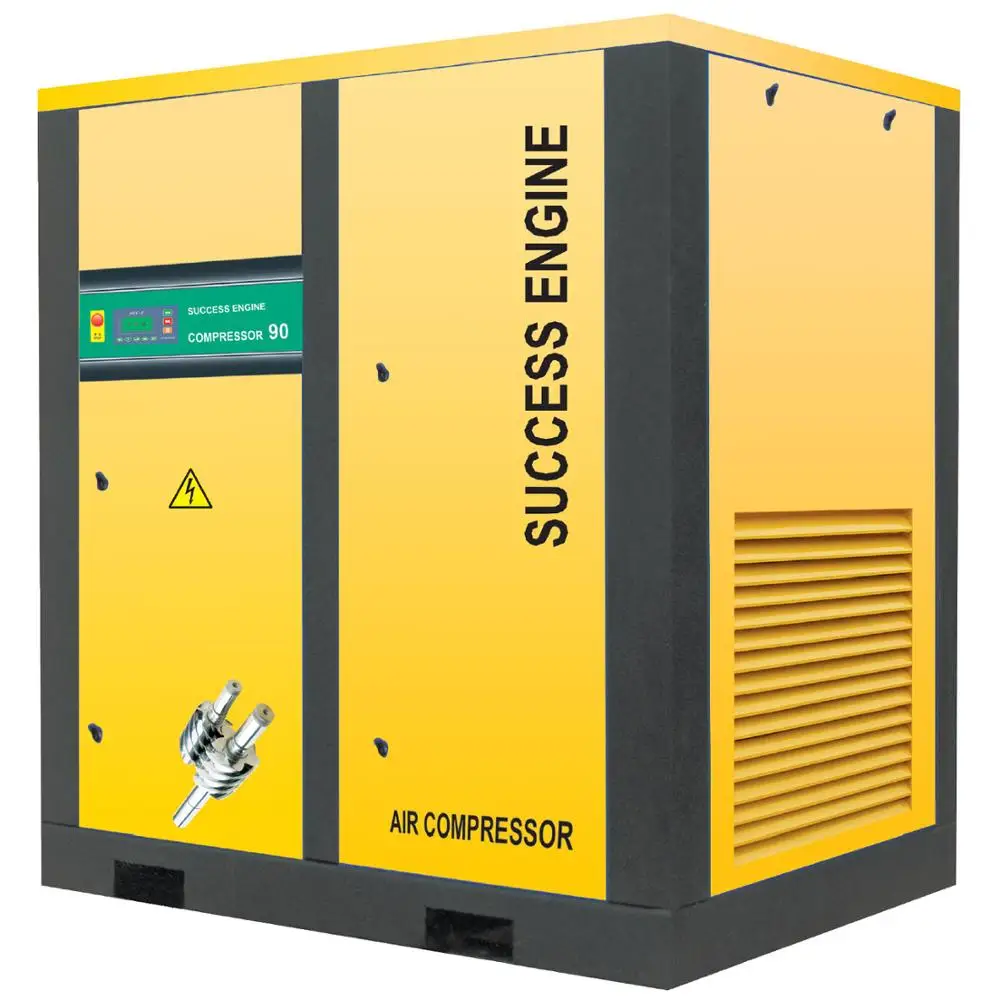

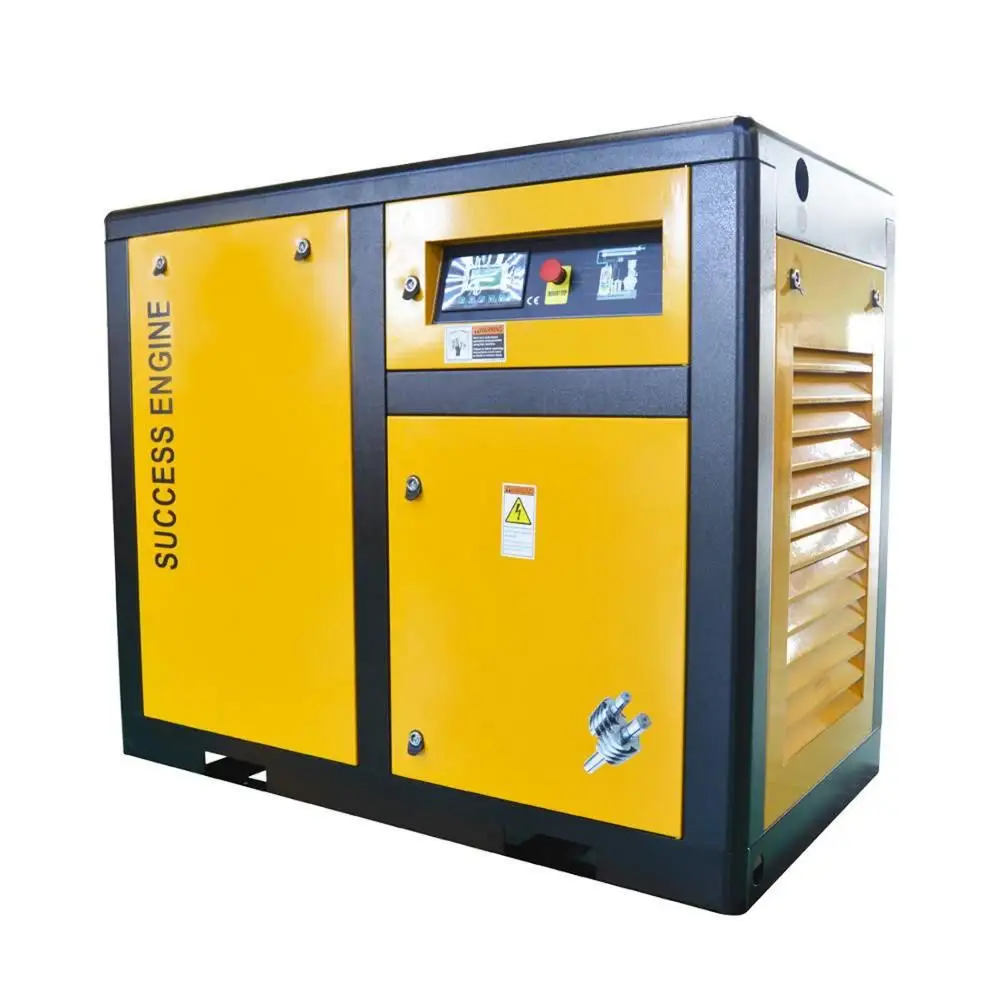

Direct Driven Screw Air Compressor
Constant Speed & Variable Speed Drives (VSD)   (22-630KW,  30-850HP)

1. Products Profiles
The direct driven screw air compressor transmits electric power to the airend through a flexible coupling, it consumes almost no energy in the transmit process, so that direct driven is the most efficient transmission mode.




2. Advantages
(1).There is no intermediate drive, so there is no energy loss.
(2).Larger rotors operate at lower speeds, so it is more efficient and further reducing energy consumption.
(3).It avoids some shortcomings of belt driven air compressor, such as unbalanced force, easy to generate heat, the belt is easy to break, frequent belt change, and need to re-adjust the level of the pulley and the tension of the belt frequently.
(4).Due to the coaxial transmission of the flexible coupling, the force is balanced and the vibration is reduced, which increases the reliability and reduces the maintenance cost.

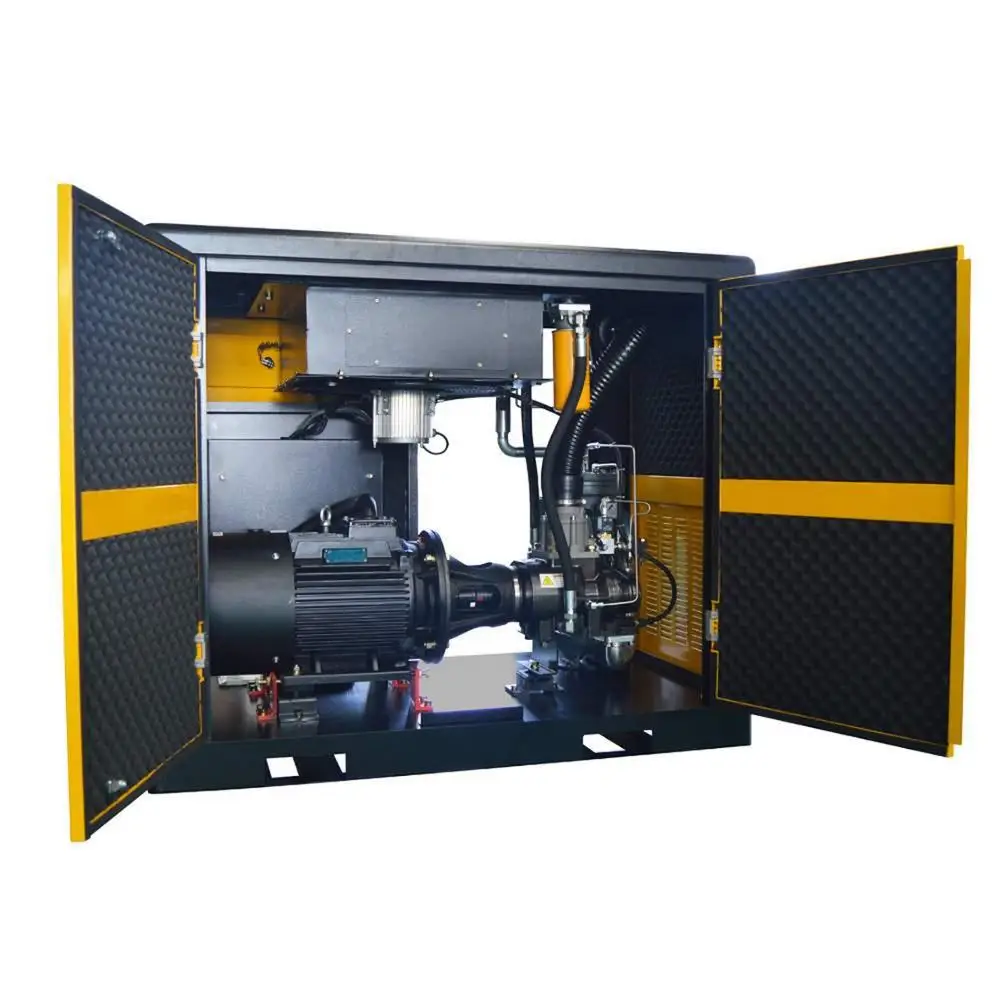

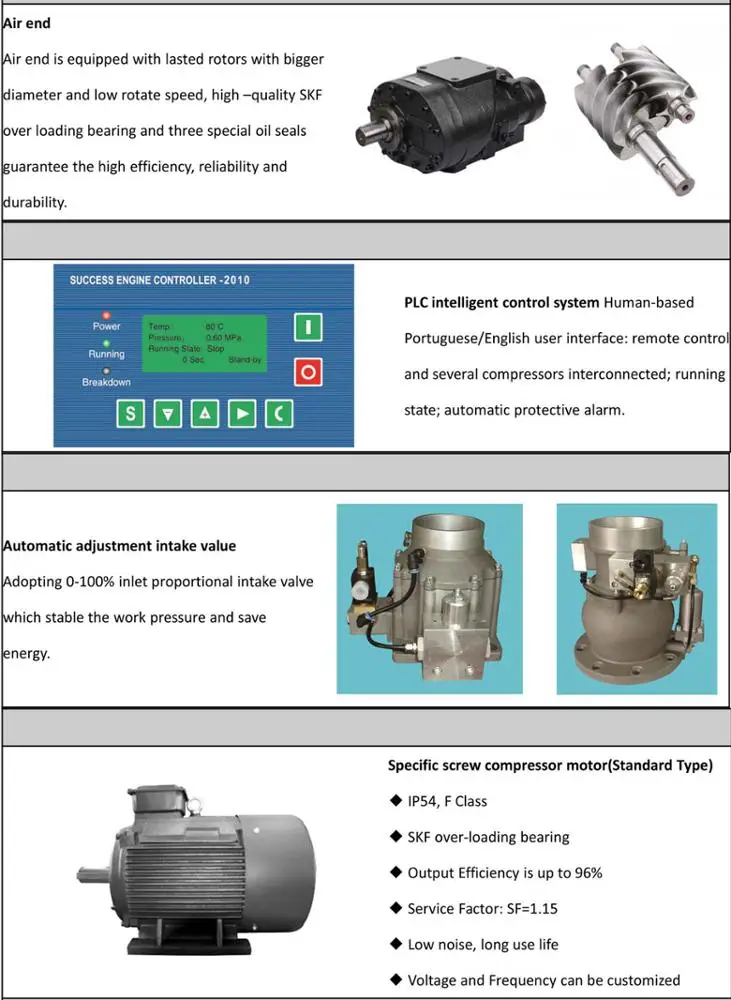

3. Main Components





4. Technical Parameters

MODEL	POWER		PRESSURE		AIR FLOW		OUTLET CONNECTION	NOISE LEVEL dB(A)	WEIGHT (KG)	DIMENSION (L*W*H mm)
	KW	HP	BAR	PSI	M3/MIN	CFM
SE22A-8/D	22	30	8	116	3.6	127.1	Rp 1 1/4	68	630	1300x860x1340
SE30A-8/D	30	40	8	116	5.0	176.5	Rp 1 1/4	70	690	1450x860x1340
SE37A-8/D	37	50	8	116	6.6	233.0	Rp 1 1/2	70	870	1580x950x1470
SE45A-8/D	45	60	8	116	7.8	275.3	Rp 1 1/2	72	960	1580x950x1470
SE55A-8/D SE55A-13/D	55	75	8 13	116 188.5	10.0 7.8	353 275.3	Rp 2	74	1460	2000x1100x1585
SE75A-8/D SE75A-10/D	75	100	8 10	116 145	13.0 10.9	458.9 384.8	Rp 2	75	1580	2000x1200x1585
SE90A-8/D SE90A-10/D SE90A-13/D	90	120	8 10 13	116 145 188.5	15.0 13.0 10.0	529.5 459 353	Rp 2	75	1950	2000x1200x1585
SE110A(W)-7/D SE110A(W)-8/D SE110A(W)-10/D SE110A(W)-13/D	110	150	7 8 10 13	101.5 116 145 188.5	20.0 19.8 17.0 13.6	706 698.9 600.1 480.1	DN65	75	2300	2166x1700x1918
SE132A(W)-07/D SE132A(W)-8/D SE132A(W)-10/D SE132A(W)-13/D	132	180	7 8 10 13	101.5 116 145 188.5	23.6 23.4 20.0 16.0	833.1 826.0 706 564.8	DN65	75	2500	2166x1700x1918
SE160A(W)-7/D SE160A(W)-8/D SE160A(W)-10/D SE160A(W)-13/D	160	220	7 8 10 13	101.5 116 145 188.5	27.0 26.6 24.5 20.8	953.1 939.0 864.9 734.2	DN65	76	2750	2466x1900x1918
SE180A(W)-7/D SE180A(W)-8/D SE180A(W)-10/D SE180A(W)-13/D	180	240	7 8 10 13	101.5 116 145 188.5	30.0 29.2 26.8 23.0	1059.0 1030.8 946.0 811.9	DN65	76	3000	2466x1900x1918
SE200A(W)-8/D SE200A(W)-10/D SE200A(W)-13/D	200	270	8 10 13	116 145 188.5	33.6 29.5 25.0	1186.1 1041.4 882.5	DN80	76	4500	2966x2000x1918
SE220A(W)-8/D SE220A(W)-10/D SE220A(W)-13/D	220	300	8 10 13	116 145 188.5	37.5 33.5 28.0	1323.8 1182.6 988.4	DN100	76	4800	3260x2050x2030
SE250A(W)-8/D SE280A(W)-10/D SE315A(W)-13/D	250 280 315	340 380 430	8 10 13	116 145 188.5	43.0 42.0 40.0	1517.9 1482.6 1412.0	DN100	80	6200	3260x2050x2030

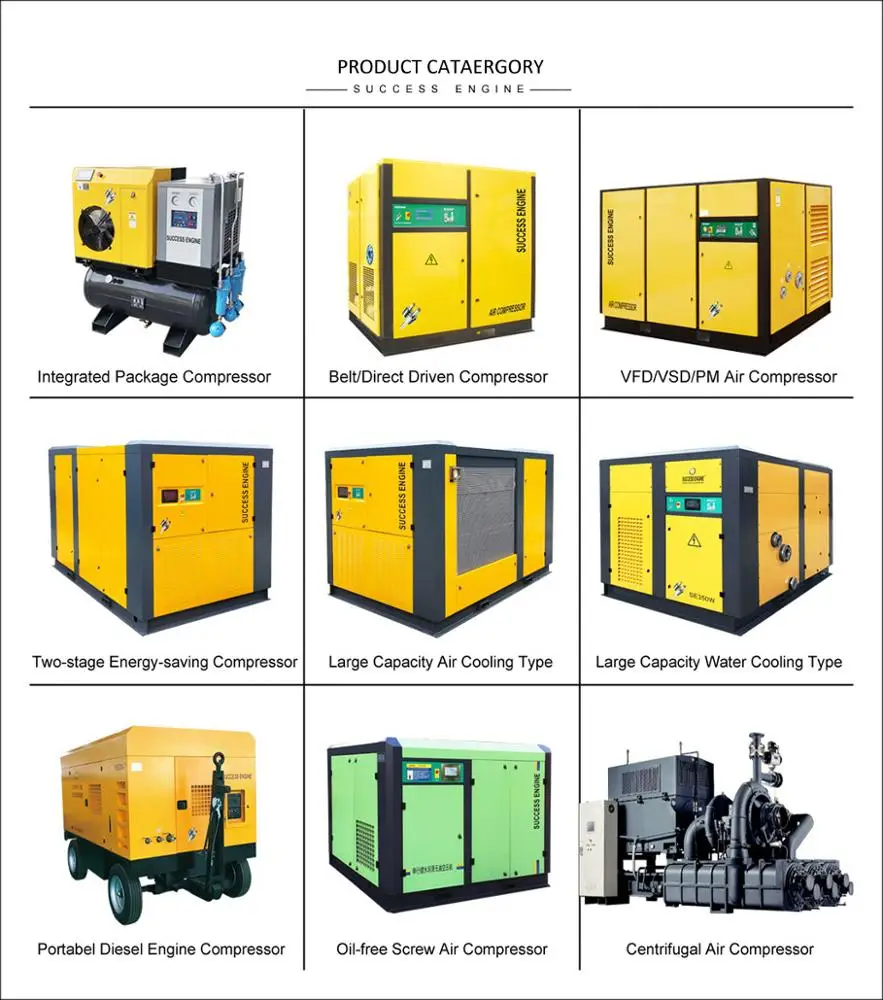

5. Products Category



6. Application

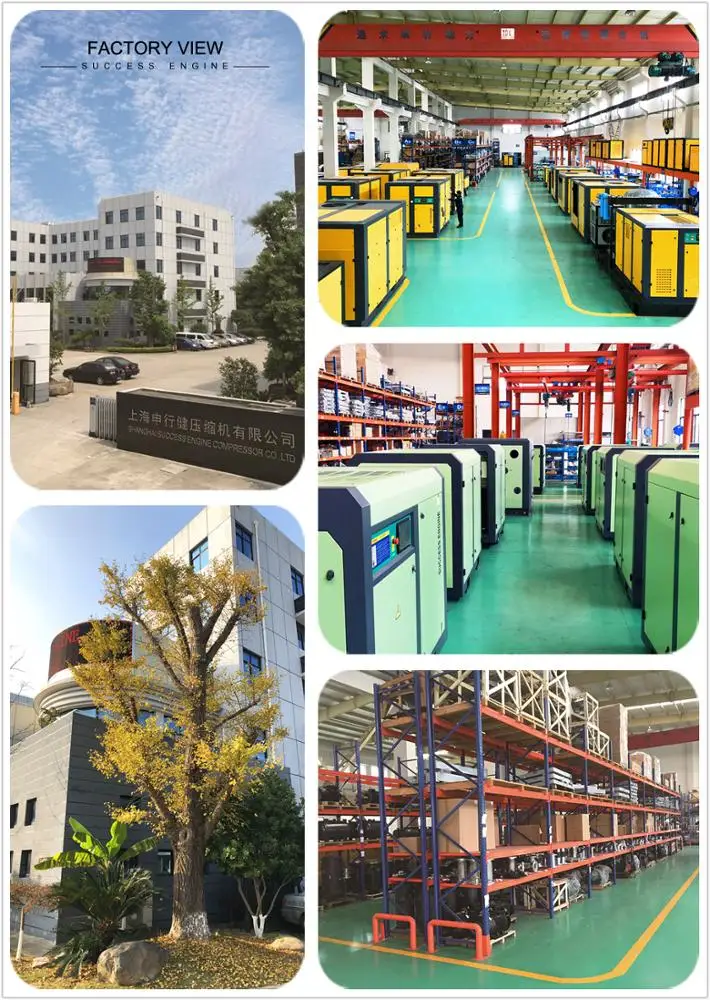

7. Factory View



8. Certificates






9. Packing & Shipment


10. Support & RFQ

Q: Are you a factory or trading company?

A: We are the professional screw air compressor manufacturer established in 2004



Q: Where is your company and factory located? How can I visit you?

A: Our overseas sales center is located in No.666,Xinbo Road, Maogang Industry Zone, Songjiang, Shanghai, China(201606). It takes about one hour from Shanghai Pudong airport or Hongqiao Airport. We warmly welcome all our clients from home or abroad to visit us!



Q: How does your company and factory do regarding quality control?

A: Quality is priority. SUCCESS ENGINE always attach great importance to quality controlling from beginning to the end. Our factory comply with the IS09001 standard strictly.

Q: What is your after-sale service?

A: The guarantee period is 12 months from the date of the installation or 15 months from the day of delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period.
