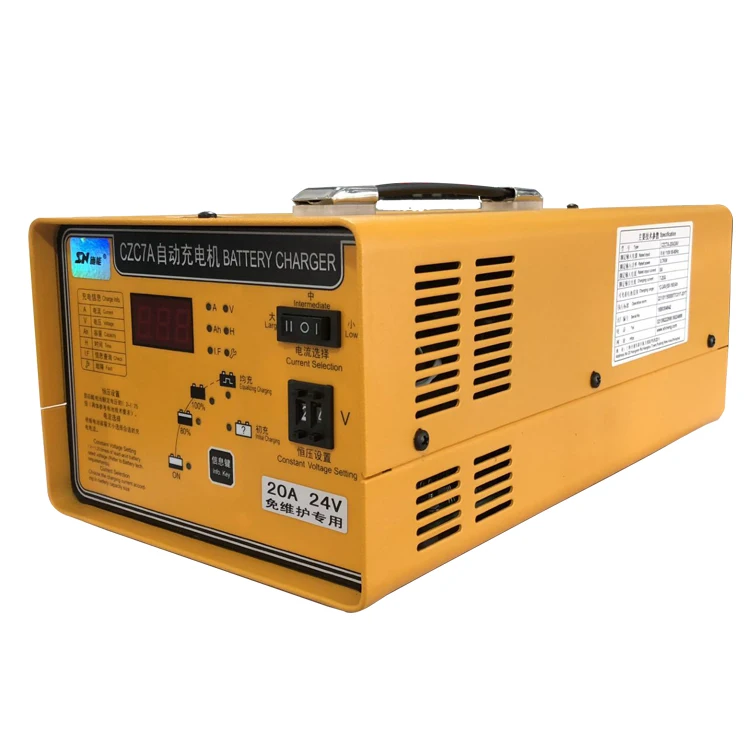

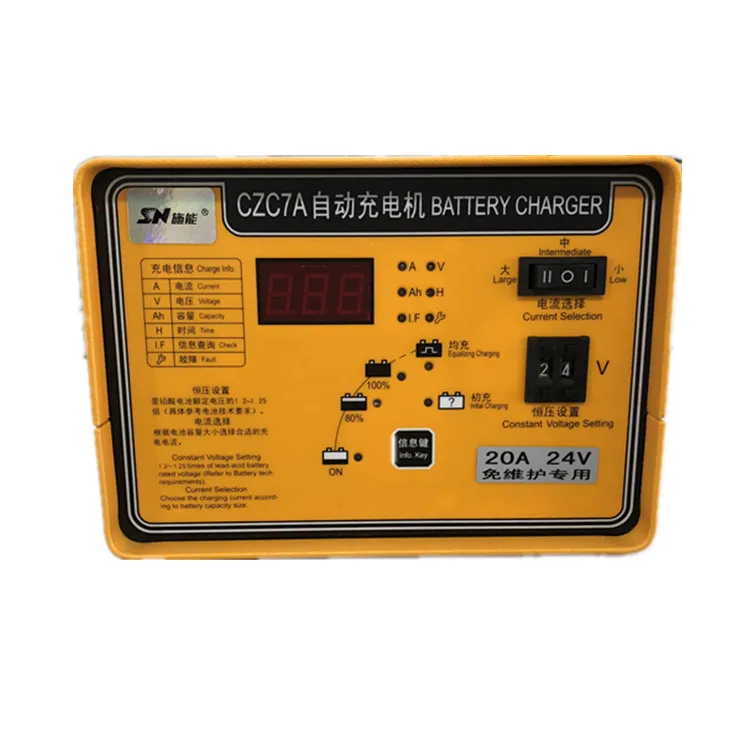

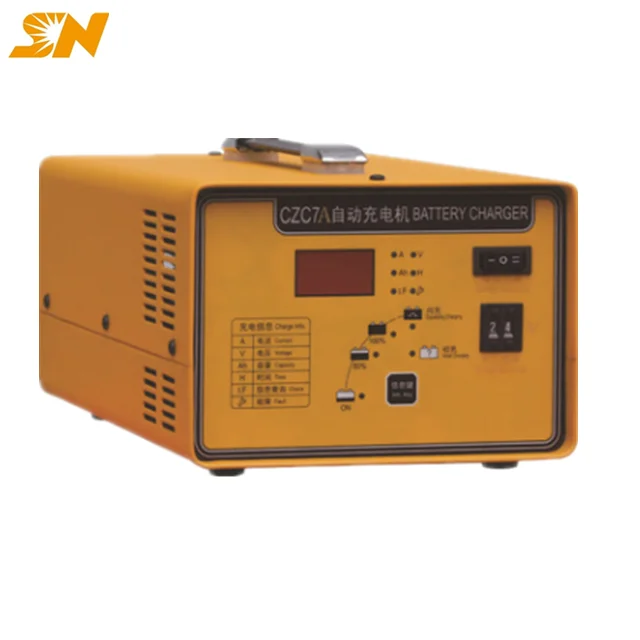

Shineng CZC7A 24v professional manufacturer for electric tow tractor charger

Share on (62274518912):


Price:RUB 21,832.30

Quantity:


Product Overview

Description



Product introduction

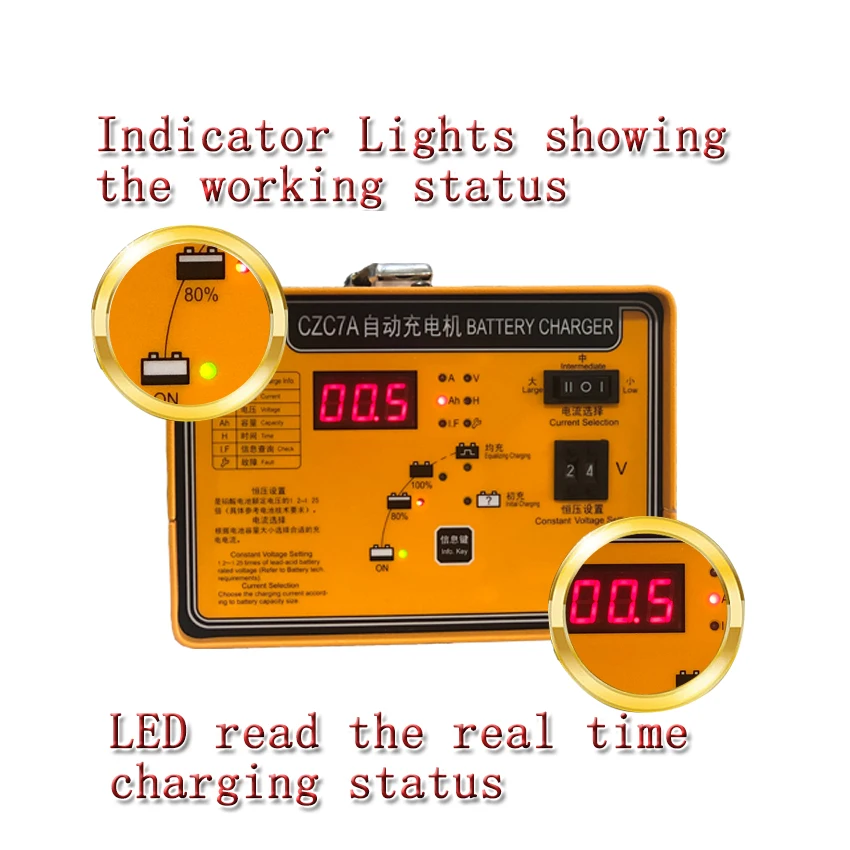

♦ Combine the high frequency switch mode with micro-processor in one unit to reach the best charging effect.

♦ Automatically control charging process according to the program without operator.

♦ Using IWUIa or IWUUa multi-stage charging curve which is suitable for liquid added or free maintance lead acid battery.

♦ Protection function such as open circuit, over load, short circuit and over temperature.

♦ With auto-checking, time-delay start, soft-start functions.

♦ Balance charging function and initial charging function for new or long no-used battery.

♦ Charging voltage and current adjustable.

♦ Memory function to check the last 20times charging history

♦ It have the function of self starting again if the power interrupted.

♦ Apply to electrical pallet, electric lift, electric truck, electric tour car and various kinds of small size electric vehicles with lead acid battery.

♦ Parameters:



Type(A/V)Rated input power supply(V)Rate charging current(A)Charger input power(KW)Chargeable battery voltage(V)Changed battery range(AH)Size(mm)Weight(KG)
CZC7A-20A/24V

Single phase

50/60HZ

7~200.712~2450~160200*365*1406.6
CZC7A-30A/24V

Single phase

50/60HZ

10~301.112~2470~240200*365*1406.6
CZC7A-35A/24V

Single phase

50/60HZ

12~351.312~2480~280200*365*1406.6
CZC7A-50A/24V

Single phase

50/60HZ

17~501.812~24120~400220*405*1408.3
CZC7A-30A/36V

Single phase

50/60HZ

10~301.612~3670~240220*405*1408.3
CZC7A-30A/48V

Single phase

50/60HZ

10~302.212~4870~240220*405*1408.3
