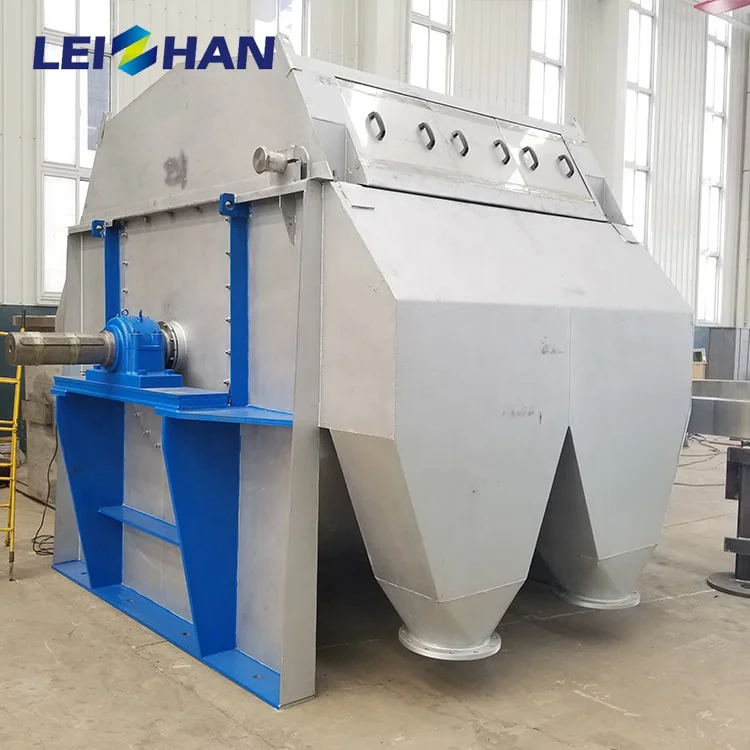

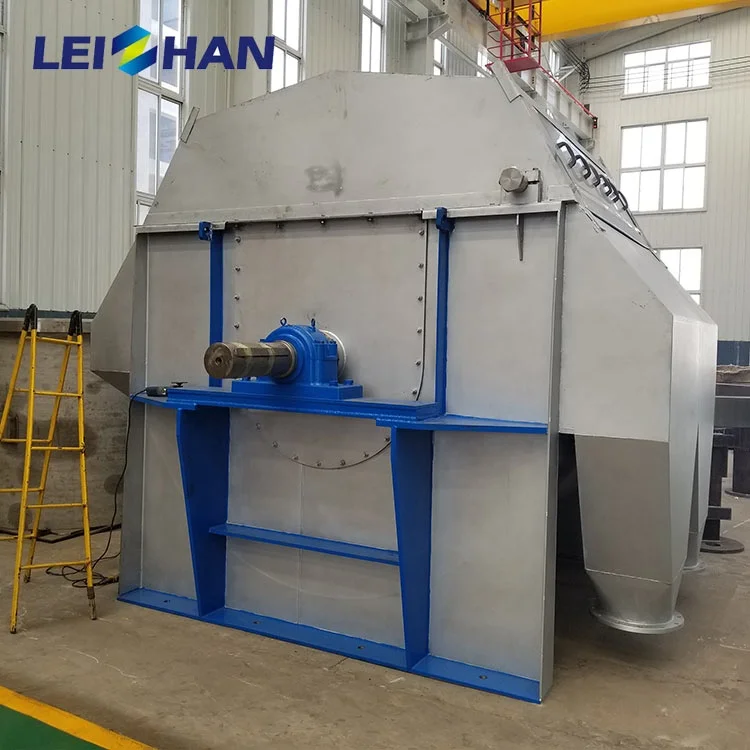

Leizhan ZNW24 Gravity Cylinder Thickener for Paper Mill
Product Description
Leizhan ZNW series gravity type cylinder thickener is widely used in pulp and paper industry for washing and thickening of slurry. Apply for concentrating wood pulp, cotton pulp, reed pulp, rice and wheat straw, and also used for filtering other types of fiber suspension in other industry.
Technical date:
Type | ZNW22 | ZNW23 | ZNW24 | ZNW25 | ZNW26 | ZNW27 | |
Cylinder area(m2) | 10 | 15 | 20 | 25 | 30 | 35 | |
Concentration of Input Pulp(%) | 0.5-1 | ||||||
Concentration of Output Pulp(%) | 4-6 | ||||||
Production Capacity
| Straw pulp | 10-15 | 15-22 | 20-30 | 25-38 | 30-45 | 35-52 |
waste paper pulp | 15-20 | 22-30 | 30-40 | 38-50 | 45-60 | 52-70 | |
Wood pulp | 30-35 | 45-52 | 60-70 | 75-88 | 95-105 | 105-122 | |
Ash Removal(%) | 90 | ||||||
Power of Main Motor(kw) | 5.5 | 7.5 | 11 | 11 | 15 | 15 | |
Features:
1.This series of products have the advantages of cylinder mould rotated speed can be stepless changed according to the concentration of slurry and types of slurry,
2.Compact whole steel structure slurry tank, high capacity per unit area, good thickening effect,
3.Cylinder mould surface adopts plastic filter plate combined type, easy to replace and maintain, portable spray cleaning, filter can clean pulp thoroughly, low power consumption.
